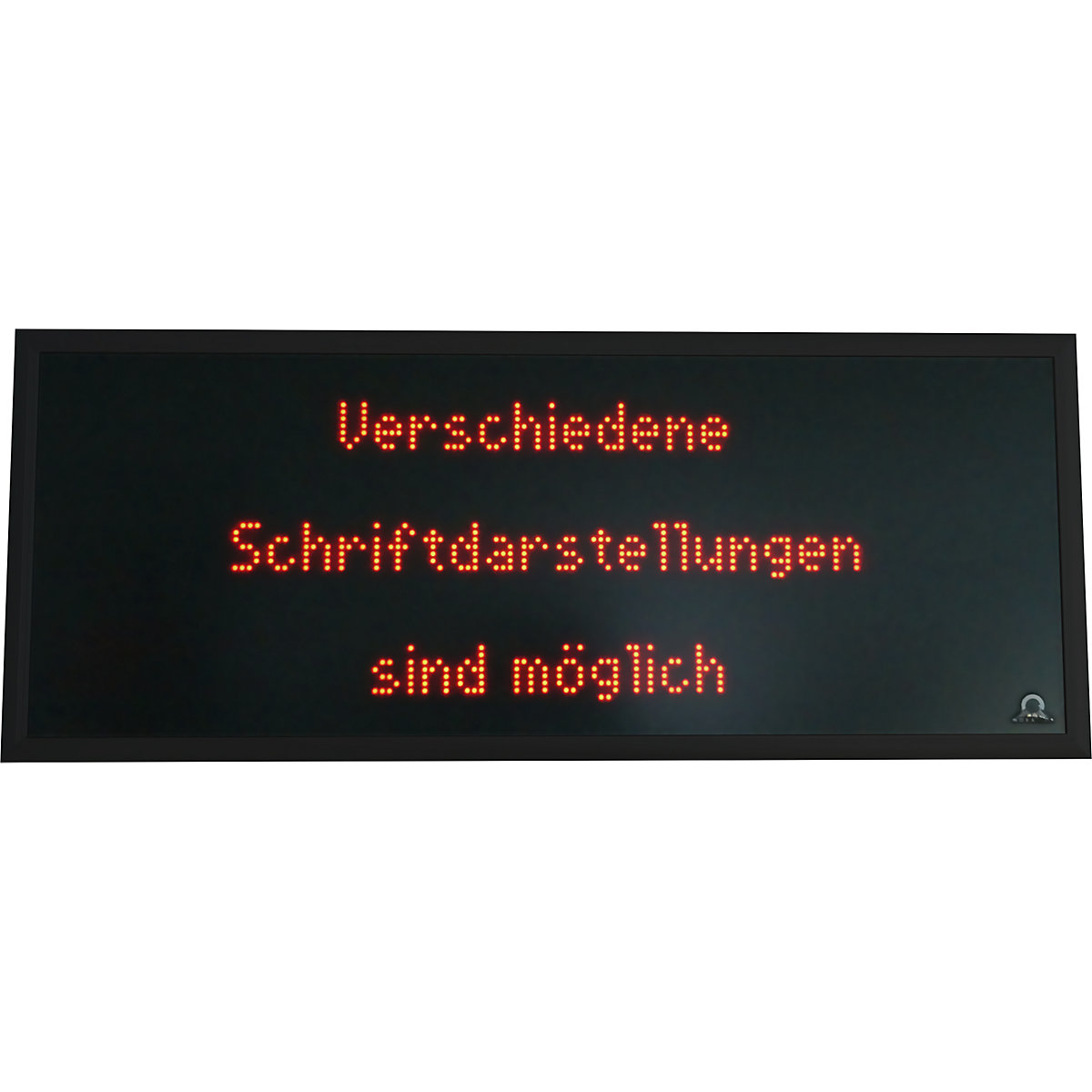

3-line text information display

width 722 mm
  • Text displayed in red or green
  • Easy to read
  • Reading distance approx. 12 m
Ref.: 485527 49
3-line text information display, width 722 mm, LED, black
Price / items (Ex. VAT)
3.350,00 €

Product description
+
Single sided, red dot matrix display with ultra bright LED diodes (3 mm diameter), digit height 45 mm, 3 lines, 16 visible digits each, reading distance approx. 12 m. Communication using RS-232, RS-485, USB or LAN (Ethernet) interface, time synchronisation using NTP, DCF or MOBALine. PC software for text programming, two inputs for temperature sensors and one input for stopwatch function (temperature sensor and stopwatch module optional). Elegant, flat aluminium housing, black anodised finish, for wall mounting, use indoors, protection class IP40.

Mains voltage 85 – 265 VAC / 50/60 Hz.
  • Text displayed in red or green
  • Easy to read
  • Reading distance approx. 12 m
Technical data
+
Width722 mm
Height290 mm
Depth39 mm
Colourblack
Housing materialaluminium
Suppliedassembled
Weight5.3 kg
