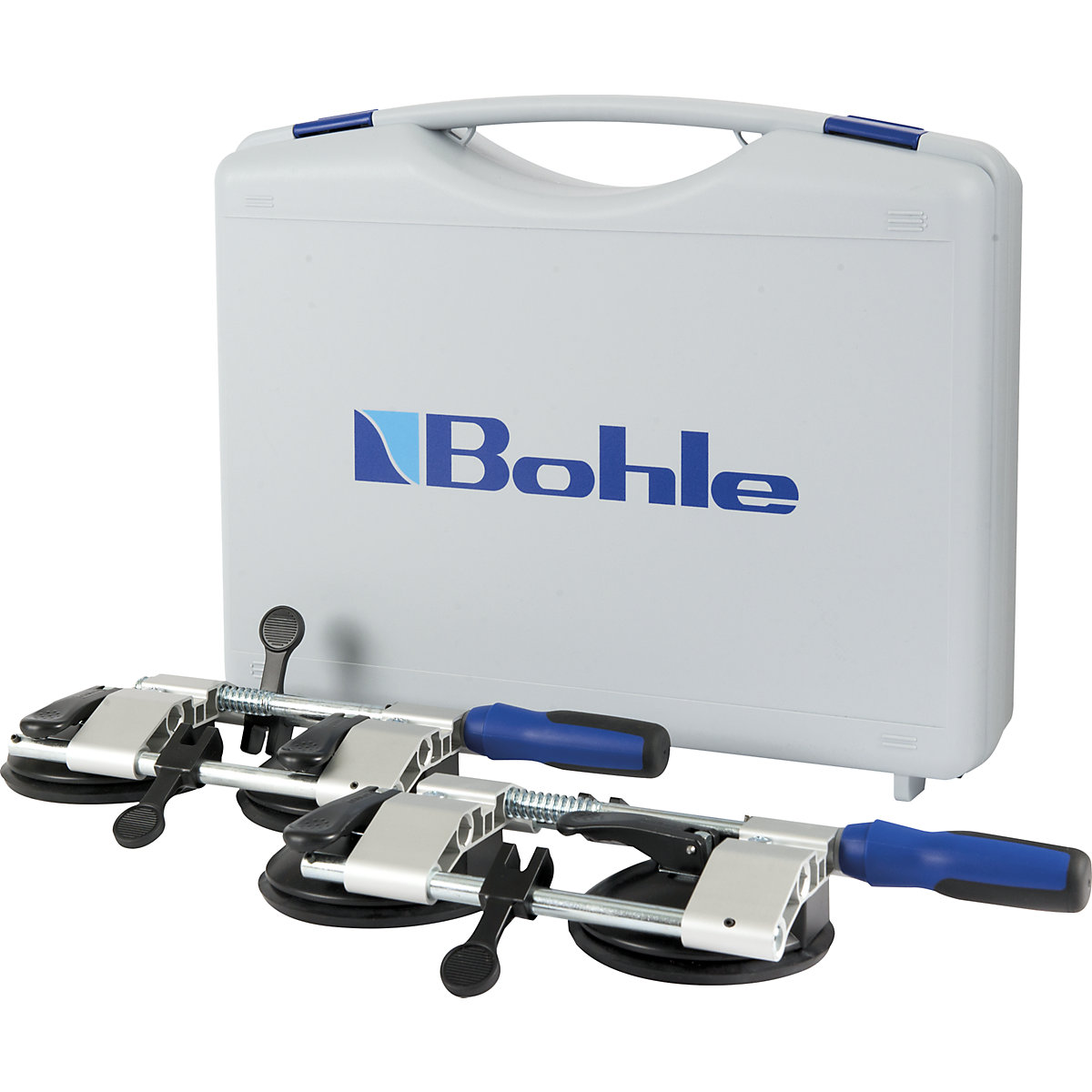

Bohle – VERIBOR® plate clamper in a case, pack of 2 2 head aluminium body with lever suction holders

  • For millimetre accurate clamping, opening and closing of large, smooth plates
  • Easy to handle and high quality workmanship
  • Made of aluminium and therefore particularly light
Bohle
Ref.: 527189 49
Bohle – VERIBOR® plate clamper in a case, pack of 2, 2 head aluminium body with lever suction holders, discs Ø 120 mm, 1+ packs
Bulk discount of up to 11.13%
QuantityPrice/PackYou save
1
719,00 €
-
2
669,00 €
6.95 %
4
639,00 €
11.13 %
Quantity discount from 2
Price / Pack (Ex. VAT)
pack of 2 only
719,00 €

Product description
Also particularly suitable for bonding the front of worktops and counters. Suitable for all materials with even and gas tight surfaces such as glass, plastic, metal, coated wood, marble, etc. The vacuum is created by flipping the levers on the plate clamper. The suction heads must be pressed firmly on the surface to be lifted with the rubber discs slack. When the lever is thrown, the resistance of the vacuum generation must be clearly felt. The spindle allows the material to be drawn together or pushed apart as needed. The eccentric lever on the side can be used to compensate any height differences of the plates.
  • For millimetre accurate clamping, opening and closing of large, smooth plates
  • Easy to handle and high quality workmanship
  • Made of aluminium and therefore particularly light
Technical data
Head diameter120 mm
Number of heads2 pcs.
Materialaluminium
Suppliedassembled
Weight4.42 kg
