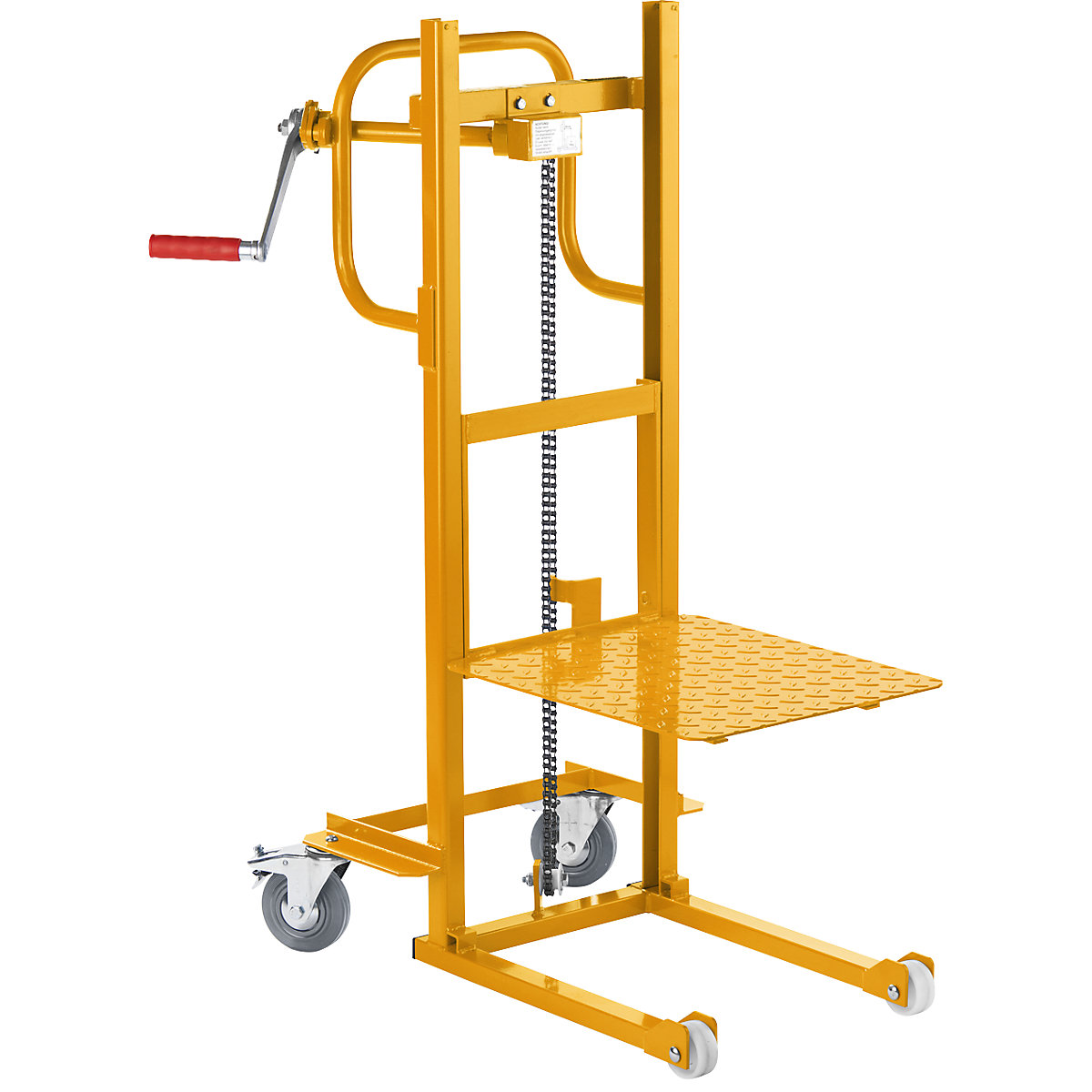

QUIPO – Material lifter lifting range 80 – 940 mm

  • The economic and mobile workshop aid
QUIPO
Tested safety
This is a test mark. GS stands for tested safety.
Tested safety. This is a test mark. GS stands for tested safety.
Ref.: 522653 49
QUIPO – Material lifter, lifting range 80 – 940 mm, max. load 100 kg, melon yellow
Only 7 available
Price / items (Ex. VAT)
639,00 €

Product description
Transport materials and goods to/ from the workstation and place them in the ideal working position.

Sturdy steel construction with platform made of ribbed sheet steel. Powder coated in melon yellow RAL 1028. Non-marking solid rubber tyres with wheel stops.
Transport materials and goods to/ from the workstation and place them in the ideal working position.
  • The economic and mobile workshop aid
Tested safety
This is a test mark. GS stands for tested safety.
Tested safety. This is a test mark. GS stands for tested safety.
Technical data
Max. load100 kg
Load centre250 mm
Lifting range80 – 940 mm
Overall length820 mm
Overall width539 mm
Overall height1260 mm
Clearance height75 mm
Materialsteel
Featuremanual
Finishpowder coated
Colourmelon yellow RAL 1028
Wheel fittings2 swivel castors with wheel stops, 2 fork rollers
Castor diameter front / rear70 / 125 mm
Steering wheel materialsolid rubber, non-marking
Fork roller materialnylon
Weight40 kg
Support leg length500 mm
Conforms toDIN EN ISO 3691-5:2014
Lift per crank rotation130 mm
Platform width430 mm
Platform length500 mm
Product typemini lifters
Suppliedassembled
