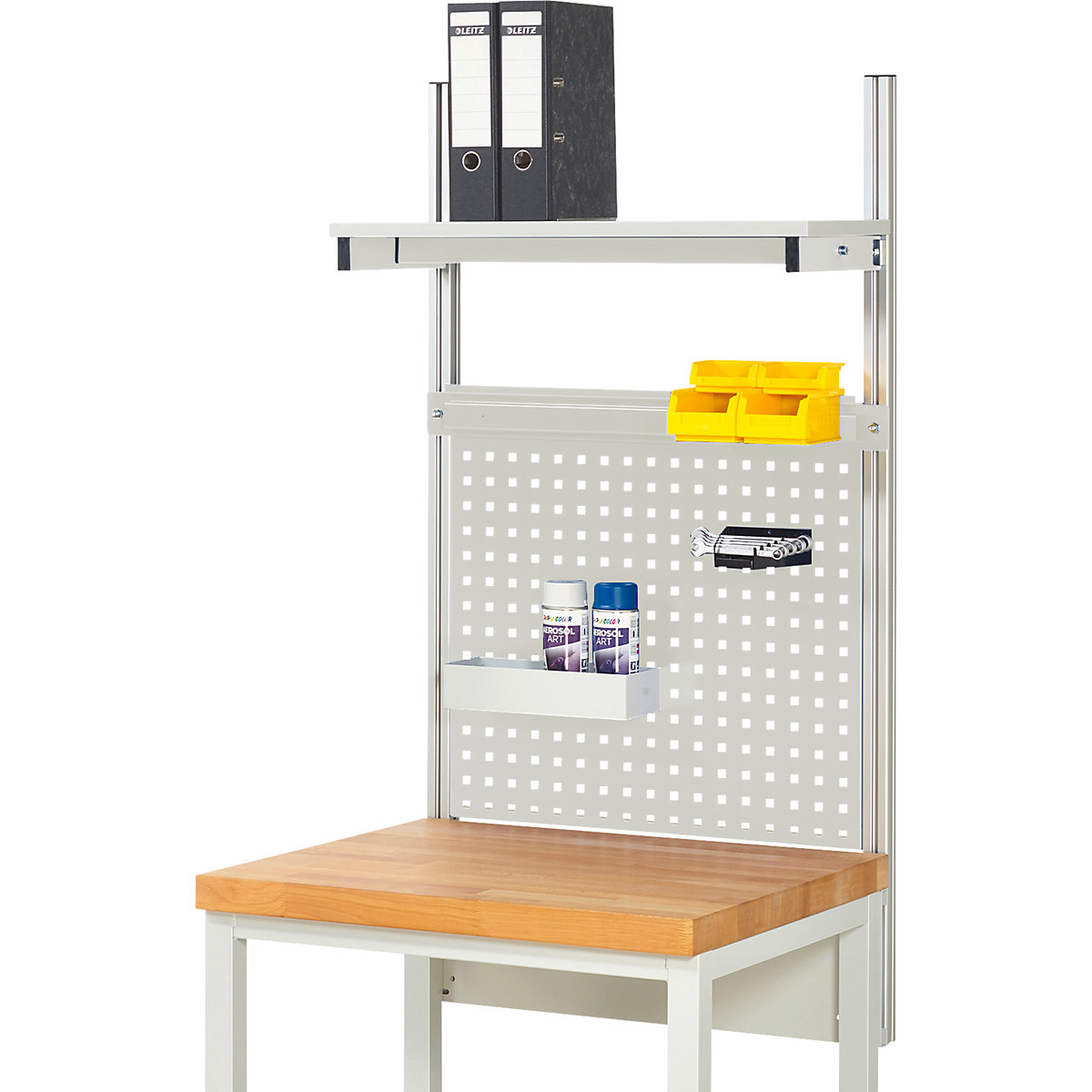

Complete modular system set 1 – RAU for workbench

The complete modular system set 1 includes:
– 1 x fastening set (cross bar) with 2 system uprights
– 1 x perforated panel (height 650 mm) with square system perforation to integrate tool holders and accessories
– 1 x shelf (depth 300 mm), melamine coated panel
– 1 x suspension rail to hold open fronted storage bins (open suspension edge at the rear of the open fronted storage bins required) and/or power strip

Each component of the set is included twice with the 2500 and 3000 mm workbench widths.

The installation height of the add-on units can be adapted on the system supports. The fastening set (cross bar) is attached to the rear of the system frame under the worktop. The 2 system uprights (aluminium profile 40 x 40 mm) are screwed to the fastening set (cross bar) by means of slot nuts (height adjustable) and run upwards behind the worktop so that the entire depth of the worktop remains free (not bolted to the worktop). The system uprights feature a profile groove on all 4 sides to allow use from all sides.
