Ref.: 681823 10

Complete modular system set 5 – RAU for workbench

Complete modular system set 5 – RAU

width 1500 mm

Width [mm]
1.580,00 €
Price / item (Ex. VAT)

Availability: 5-8 Working Days
Product description
  • Suitable for RAU workbenches/work tables and selected EUROKRAFTpro workbenches
  • Ergonomics, tidiness and organisation at the workplace
  • All interior fittings and attachment parts are adjustable in height
  • Easy to add to or expand
  • Indispensable for the implementation of LEAN management methods

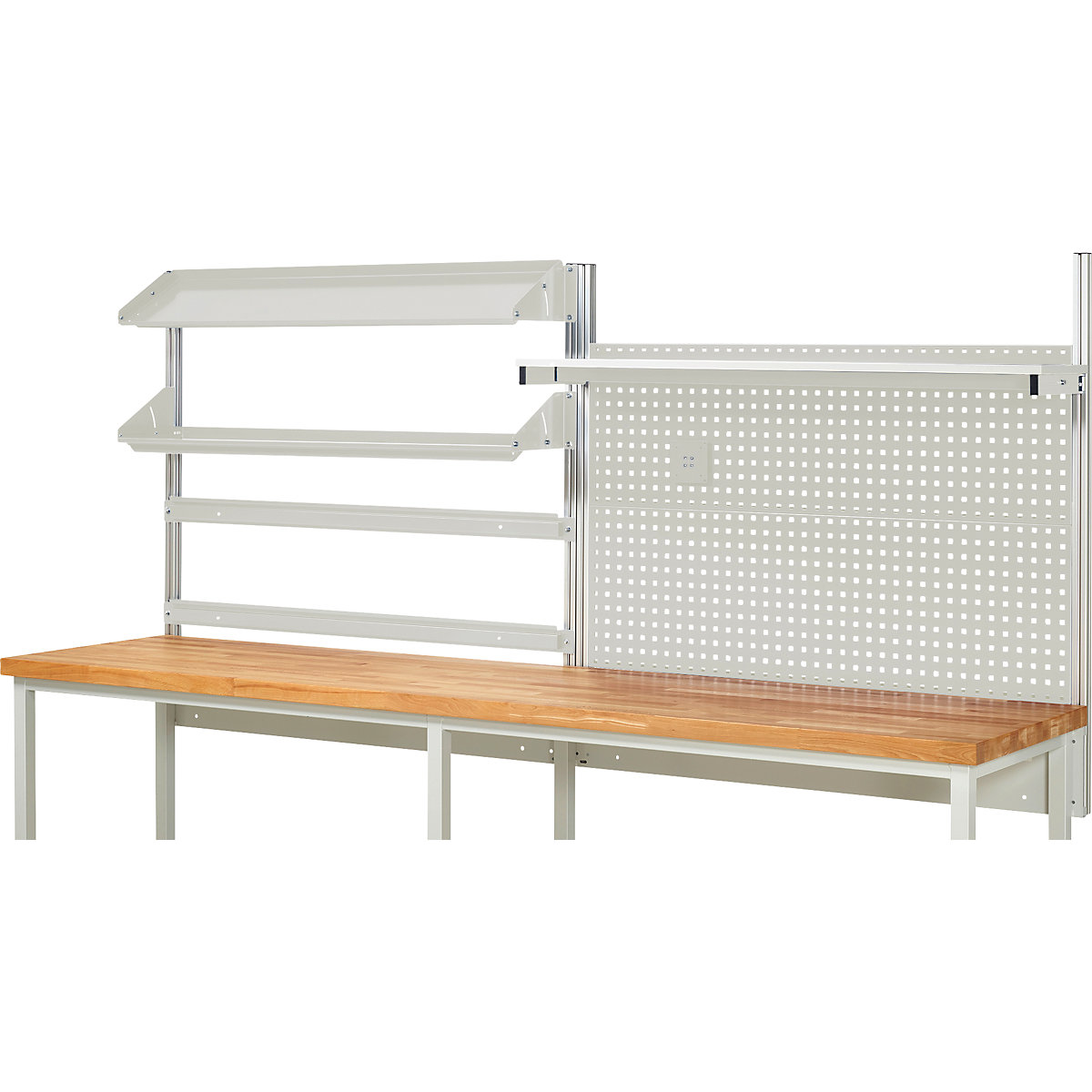

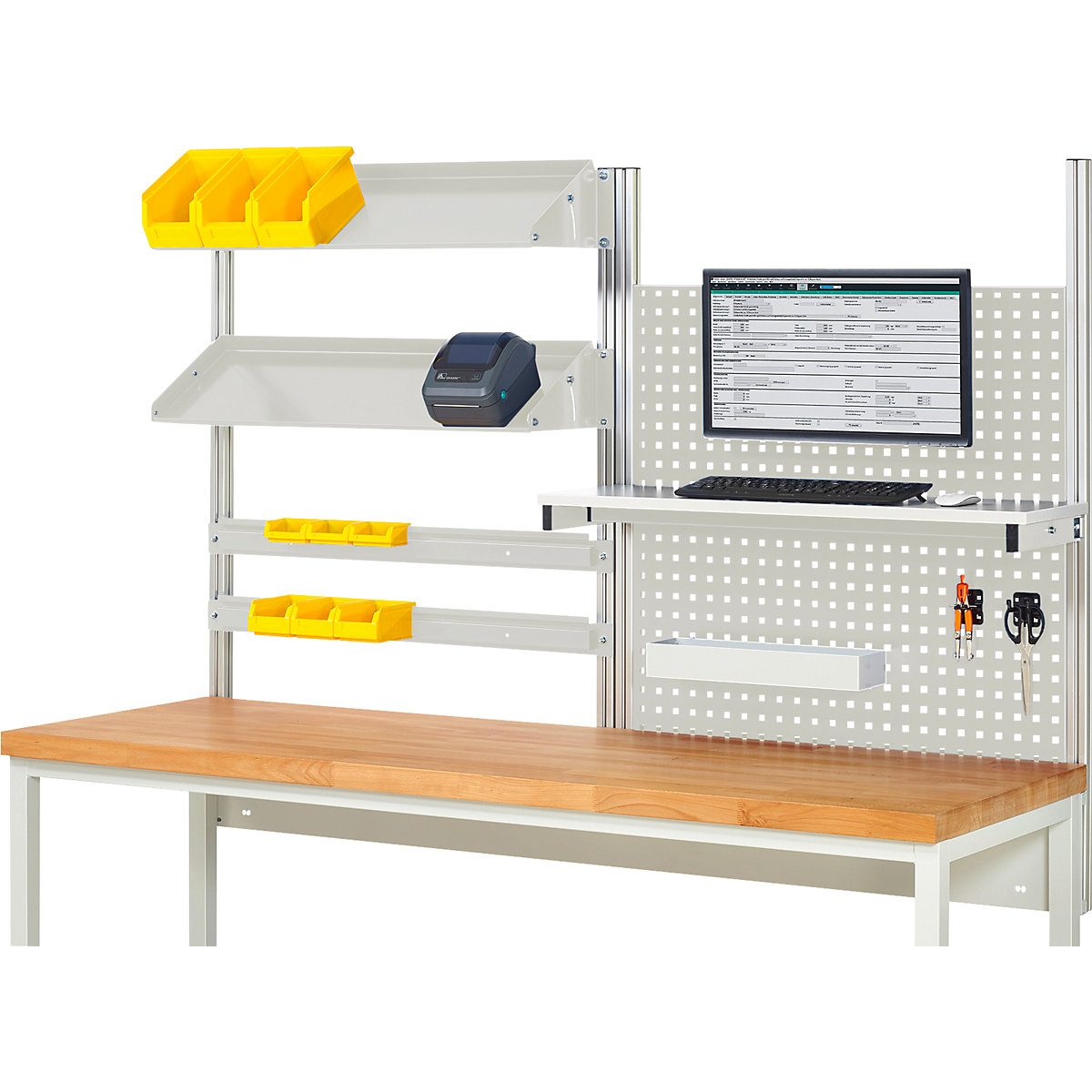

The complete modular system set 5 includes:
– 1 x fastening set (cross bar) with 4 system uprights for workbench width 1500 – 2000 mm or 2 x fastening set for workbench width 2500 – 3000 mm
– 2 x inclined metal shelf (WxD: bay width – 85 mm x 300 mm), raised edges on all sides
– 2 x suspension rail to hold open fronted storage bins (open suspension edge at the rear of the open fronted storage bins required) and/or power strip
– 2 x perforated panel (WxH: bay width – 85 mm x 450 mm) with square system perforation to integrate tool holders and accessories
– 1 x flat screen holder with mounting adapter for perforated panel (VESA MIS-D 75/100)
– 1 x shelf (WxD: bay width x 300 mm), melamine coated panel

The installation height of the add-on units can be adapted on the system supports. The fastening set (cross bar) is attached to the rear of the system frame under the worktop. The system uprights (aluminium profile 40 x 40 mm) are screwed to the fastening set (cross bar) by means of slot nuts (height adjustable) and run upwards behind the worktop so that the entire depth of the worktop remains free (not bolted to the worktop). The system uprights feature a profile groove on all 4 sides to allow use from all sides.
This modular system is designed for RAU workbenches/work tables and selected EUROKRAFTpro workbenches, and cannot be connected to workbenches made by other manufacturers! When placing an order without an appropriate workbench, it is imperative to specify for which series the modular elements are intended.
Technical data
Depth350 mm
Colourlight grey RAL 7035
Materialaluminium wood sheet steel
Number of uprights4 pcs.
Max. load100 kg
Effective height1130 mm
Height1400 mm
Product typeaccessories for workbenches
Suppliedflat pack
Width1500 mm
For table width1500 mm
Bay width2 x 750 mm
Weight20 kg
