Ref.: 539894 10

Ball unit with flange and clip – Schulz Stanztechnik plastic ball

Ball unit with flange and clip – Schulz Stanztechnik

ball Ø 15.88 mm, payload 25 kg, 20+ items

Ball diameter [mm]
21,90 €
Price / item (Ex. VAT)
Total (Ex. VAT)
438,00 €
Availability: 3-4 weeks
Product description
  • Integrated fastening clip
  • Clip compensates play in the mounting hole
  • High quality workmanship
These high quality ball units are suitable for transporting products and goods which require the option of being moved horizontally to all sides and being rotated around the vertical axis. They guarantee low friction transport of materials on conveyor systems when a high load bearing capacity is required. A change of direction can be realised quickly. All ball units in electrolytically zinc plated sheet steel housings. Our ball units are characterised by high temperature tolerance and impact resistance.

How to determine the suitable ball transfer unit according to the load:
Weight of the conveyed goods / 3 = max. dynamic load of a ball transfer unit

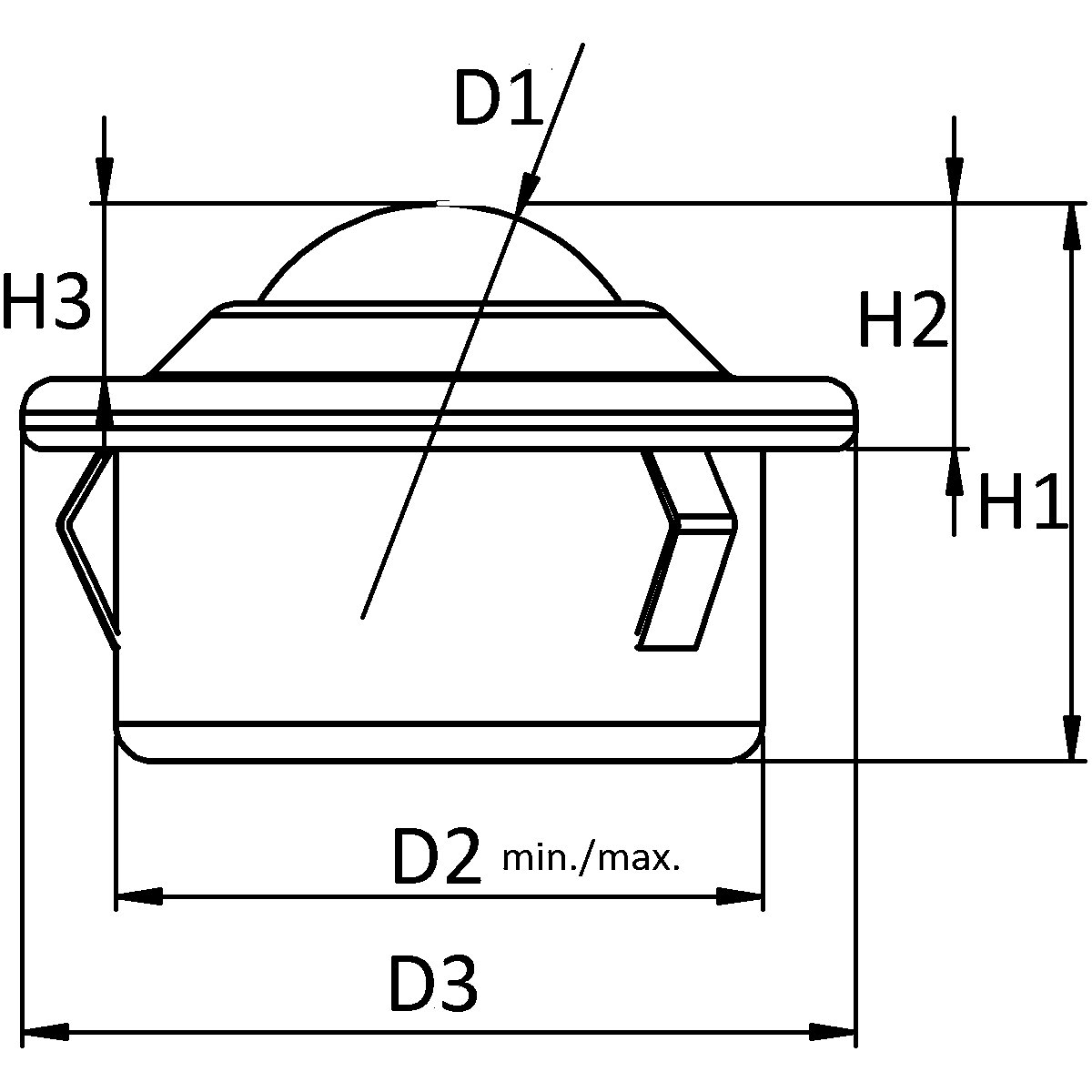

D1= Ball diameter
D2= Housing diameter
D3= Flange diameter
H1= overall height
H2= Installation height
H3= Ball protrusion
Technical data
Design of ball rollersflange
Roller materialplastic
Housing materialcold rolled, non-alloy steel 1.0330
Product typeball units
Coloursilver
Suppliedassembled
Ball diameter15.88 mm
Effective load25 kg
Overall height21 mm
Housing diameter24.8 – 26 mm
Ball protrusion above table plane6.5 mm
Flange diameter31 mm
Installation height9.5 mm
Weight0.026 kg
