Ref.: 476163 10
Ball unit – Schulz Stanztechnik flange
steel, load bearing ball Ø 15 mm
Ball diameter [mm]
Effective load [kg]
Roller material
Ref.: 476163 10
Ball unit – Schulz Stanztechnik flange
steel, load bearing ball Ø 15 mm
steel, load bearing ball Ø 15 mm
Score: 2.9/5.9Ball diameter [mm]
Effective load [kg]
Roller material
9,09 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
9,09 €
Price / item (Ex. VAT)
9,09 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
Product description
- For easy movement, rotation and positioning of loads with minimal effort
- Run smoothly with precise rolling characteristics
- Max. conveyor speed 3 m/s

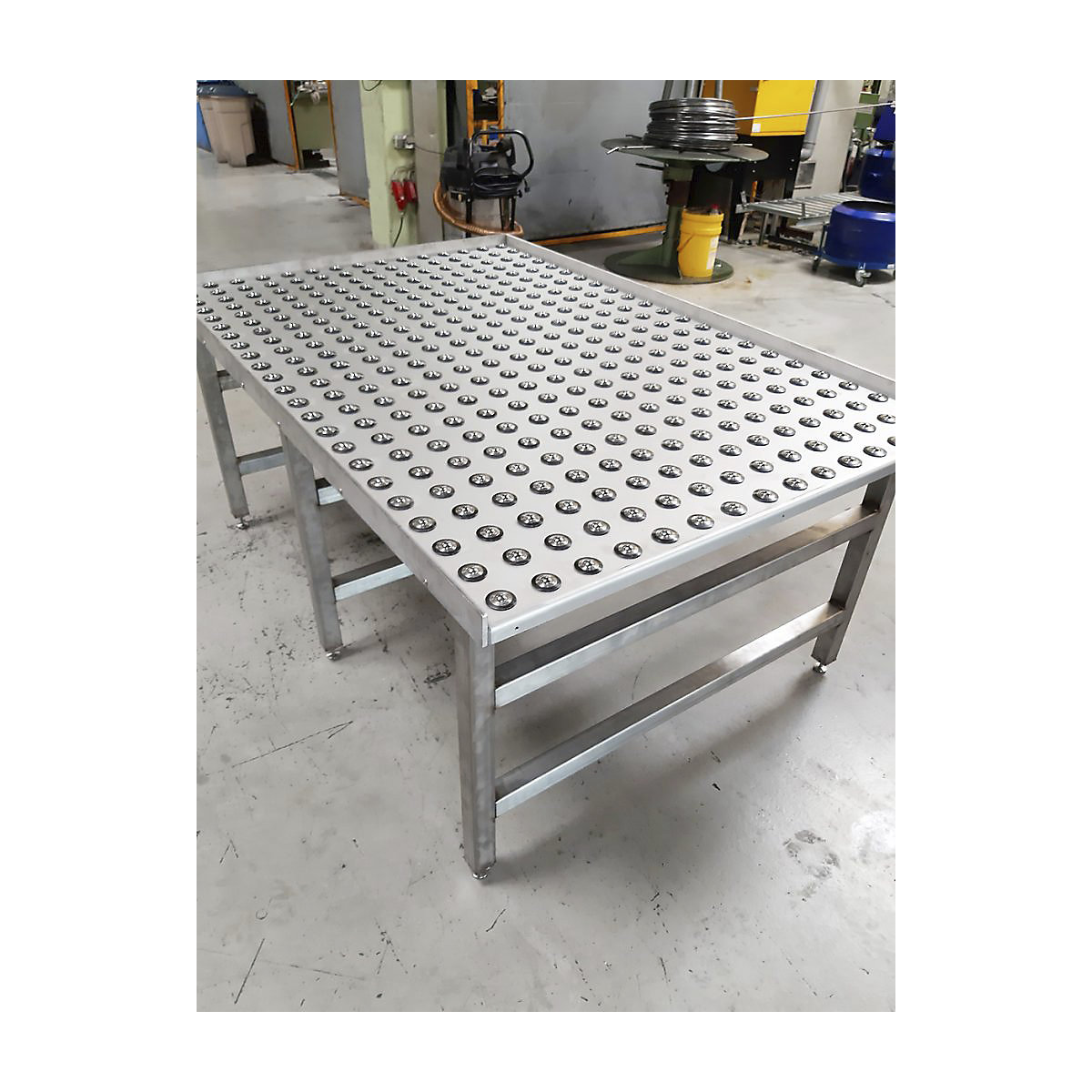

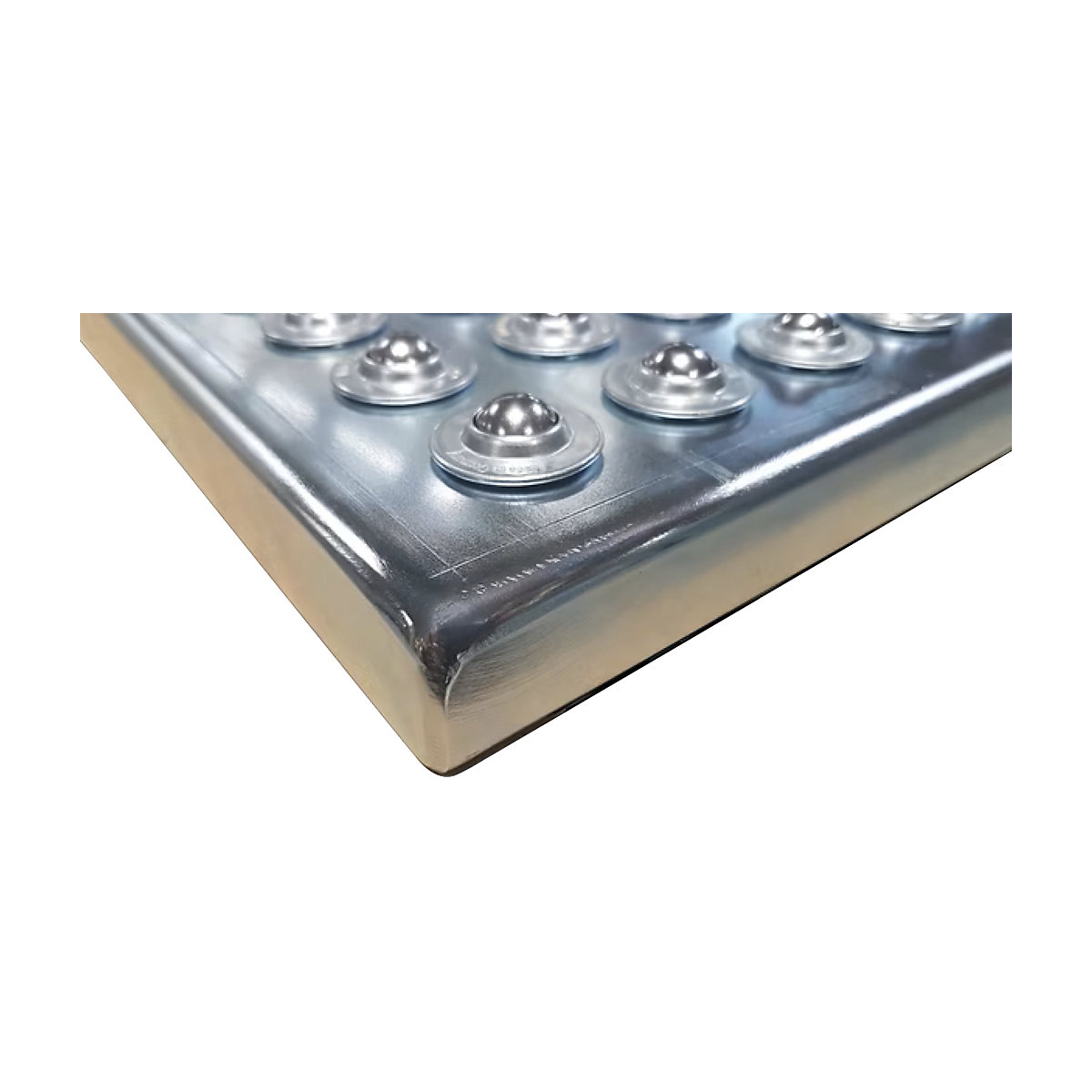

These high quality ball units are suitable for transporting products and goods which require the option of being moved horizontally to all sides and being rotated around the vertical axis. They guarantee low friction transport of materials on conveyor systems when a high load bearing capacity is required. A change of direction can be realised quickly. Our ball units are characterised by high temperature tolerance and impact resistance.

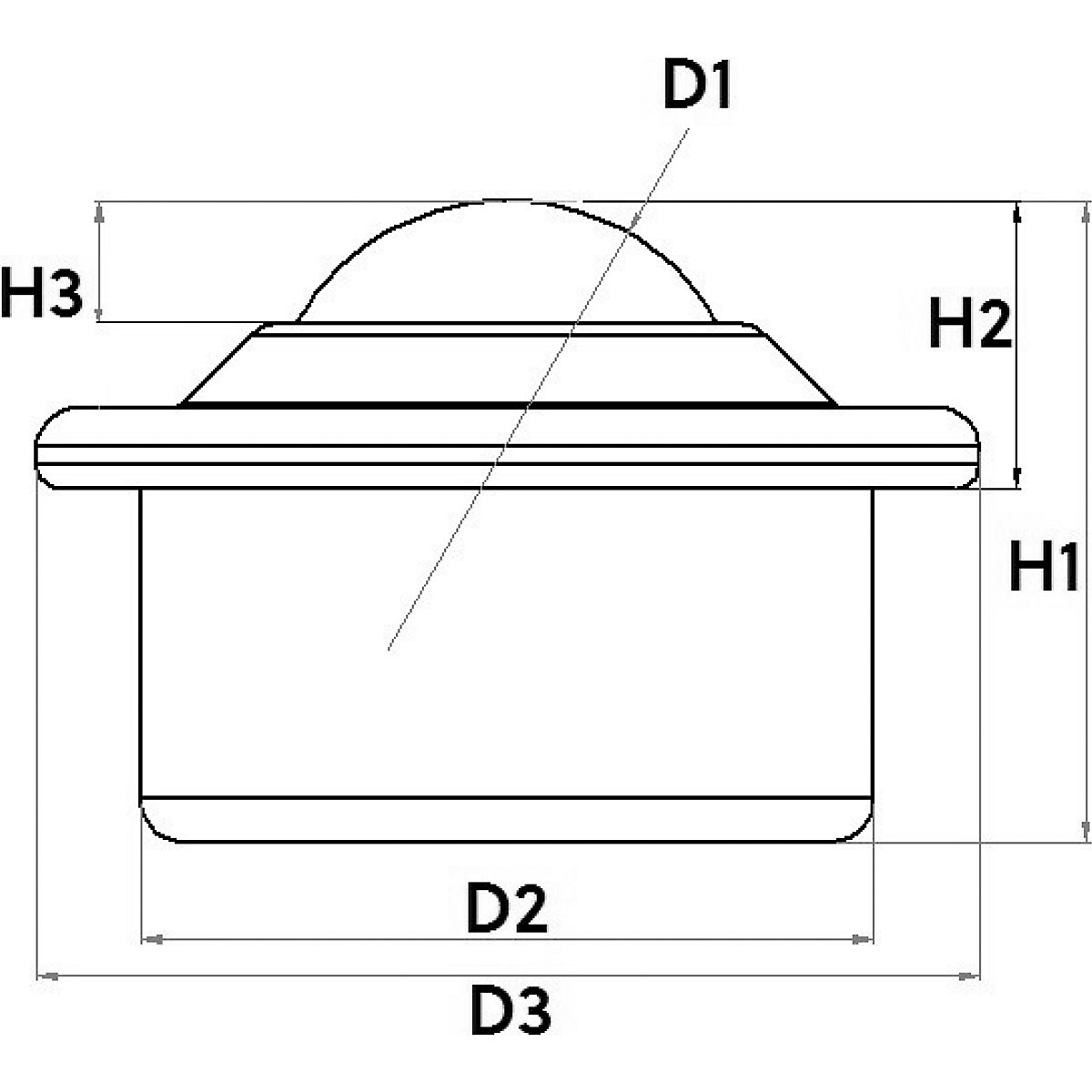

Ball unit with low overall height.
D1= ball diameter
D2= housing diameter
D3= flange diameter
H1= overall height
H2= installation height
H3= ball protrusion
Ball unit with low overall height.
D1= ball diameter
D2= housing diameter
D3= flange diameter
H1= overall height
H2= installation height
H3= ball protrusion
Full stainless steel also available on request.
This is how to find the right ball unit to suit the load:
Weight of the goods being conveyed / 3 = max. dynamic load of a ball unit
Weight of the goods being conveyed / 3 = max. dynamic load of a ball unit
Technical data
| Design of ball rollers | flange |
|---|---|
| Housing material | sheet steel, electrolytically zinc plated |
| Product type | ball units |
| Colour | silver |
| Supplied | assembled |
| Ball diameter | 15 mm |
| Effective load | 50 kg |
| Roller material | steel (100Cr6) |
| Overall height | 21 mm |
| Housing diameter | 24 mm |
| Ball protrusion above table plane | 6.5 mm |
| Max. speed | 2 m/s |
| Flange diameter | 31 mm |
| Installation height | 9.5 mm |
| Weight | 0.039 kg |
| Manufacturer / EU responsible Person (GPSR) |
Sustainability
Product with potential for future improvement
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
Product CO₂ footprint
- LCA functional unit
- 1
- Recycled content in %?
- 100
- CO2 footprint year of calculation
- 2026
- LCA validity (in years)
- 1
- CO2 footprint calculation method product
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
- CO2 footprint system boundaries
- Cradle-to-gate
PCF Lifecycle Breakdown
PCF Lifecycle Breakdown0.16kg CO₂e
| LCA Raw Material Extraction & Processing | 27.8% |
| LCA packaging production | 1.2% |
| LCA Product Manufacturing | 62.3% |
| LCA Inbound and Outbound Transportation | 9.3% |
