Mini ball unit with threaded pin – Schulz Stanztechnik stainless steel ball
ball Ø 6.4 mm, load capacity 10 kg, 5+ items
Ball diameter [mm]
Ref.: 539901 10
Mini ball unit with threaded pin – Schulz Stanztechnik stainless steel ball
ball Ø 6.4 mm, load capacity 10 kg, 5+ items
ball Ø 6.4 mm, load capacity 10 kg, 5+ items
Ball diameter [mm]
60,90 €
Price / item (Ex. VAT)
Total (Ex. VAT)
304,50 €
Availability: 5-6 weeks
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?60,90 €
Price / item (Ex. VAT)
Product description
- Mini version
- For use in measuring instruments
- For the transport of materials in cleanrooms
These high quality ball units are suitable for transporting products and goods which require the option of being moved horizontally to all sides and being rotated around the vertical axis. They guarantee low friction transport of materials on conveyor systems when a high load bearing capacity is required. A change of direction can be realised quickly. All ball units in electrolytically zinc plated sheet steel housings. Our ball units are characterised by high temperature tolerance and impact resistance.
This is how to find the right ball unit to suit the load:
Weight of the goods being conveyed / 3 = max. dynamic load of a ball unit

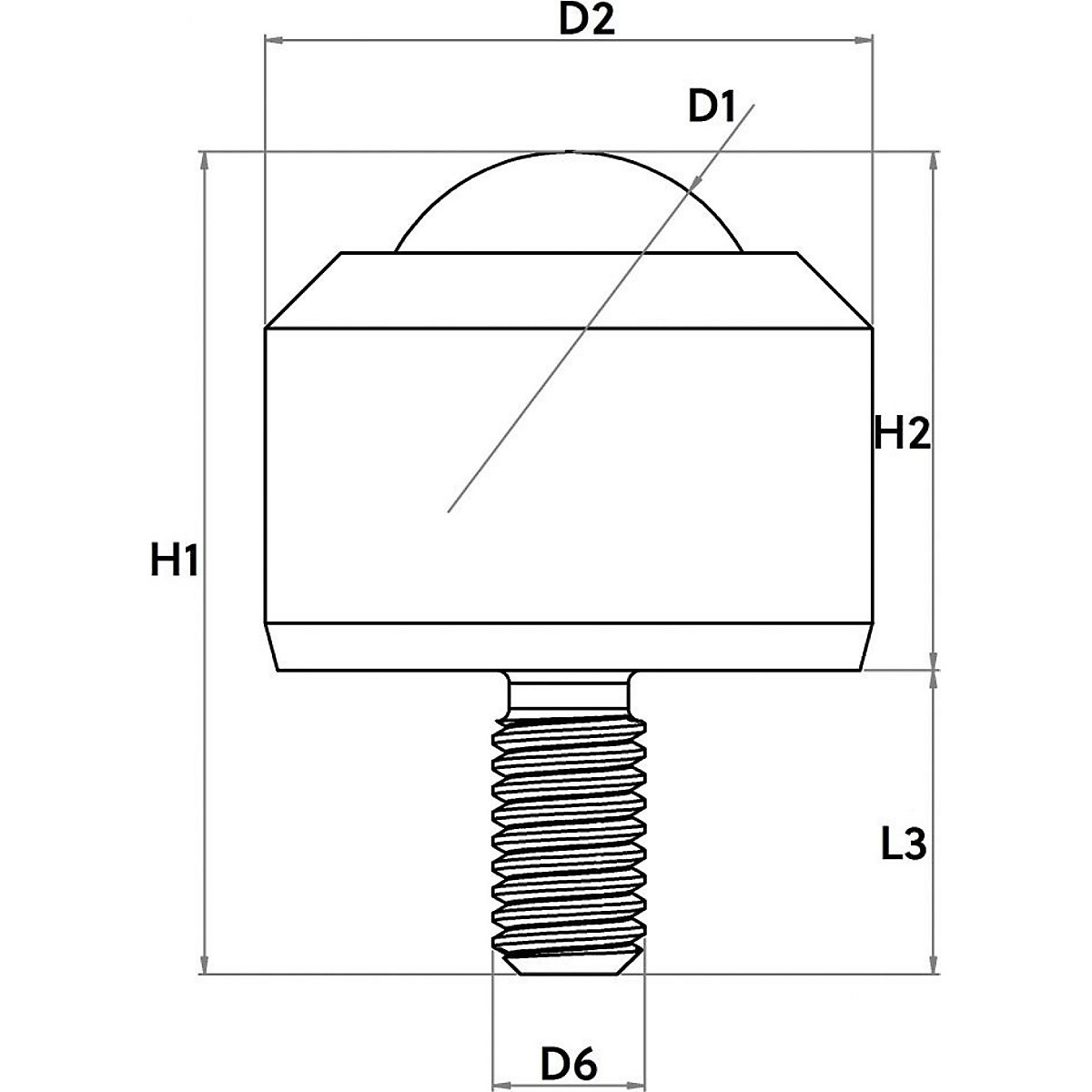

H1= overall height
H2= installation height
D1= ball diameter
D2= housing diameter
D6= thread diameter
L3= thread length
This is how to find the right ball unit to suit the load:
Weight of the goods being conveyed / 3 = max. dynamic load of a ball unit
H1= overall height
H2= installation height
D1= ball diameter
D2= housing diameter
D6= thread diameter
L3= thread length
Technical data
| Roller material | stainless steel |
|---|---|
| Housing material | machining steel, 1.0718 |
| Product type | ball units |
| Supplied | assembled |
| Ball diameter | 6.4 mm |
| Effective load | 10 kg |
| Overall height | 16.5 mm |
| Housing diameter | 13 mm |
| Installation height | 10.5 mm |
| Thread length | 2 mm |
| Thread diameter | M3 |
| Weight | 0.015 kg |
