Ref.: 903807 10

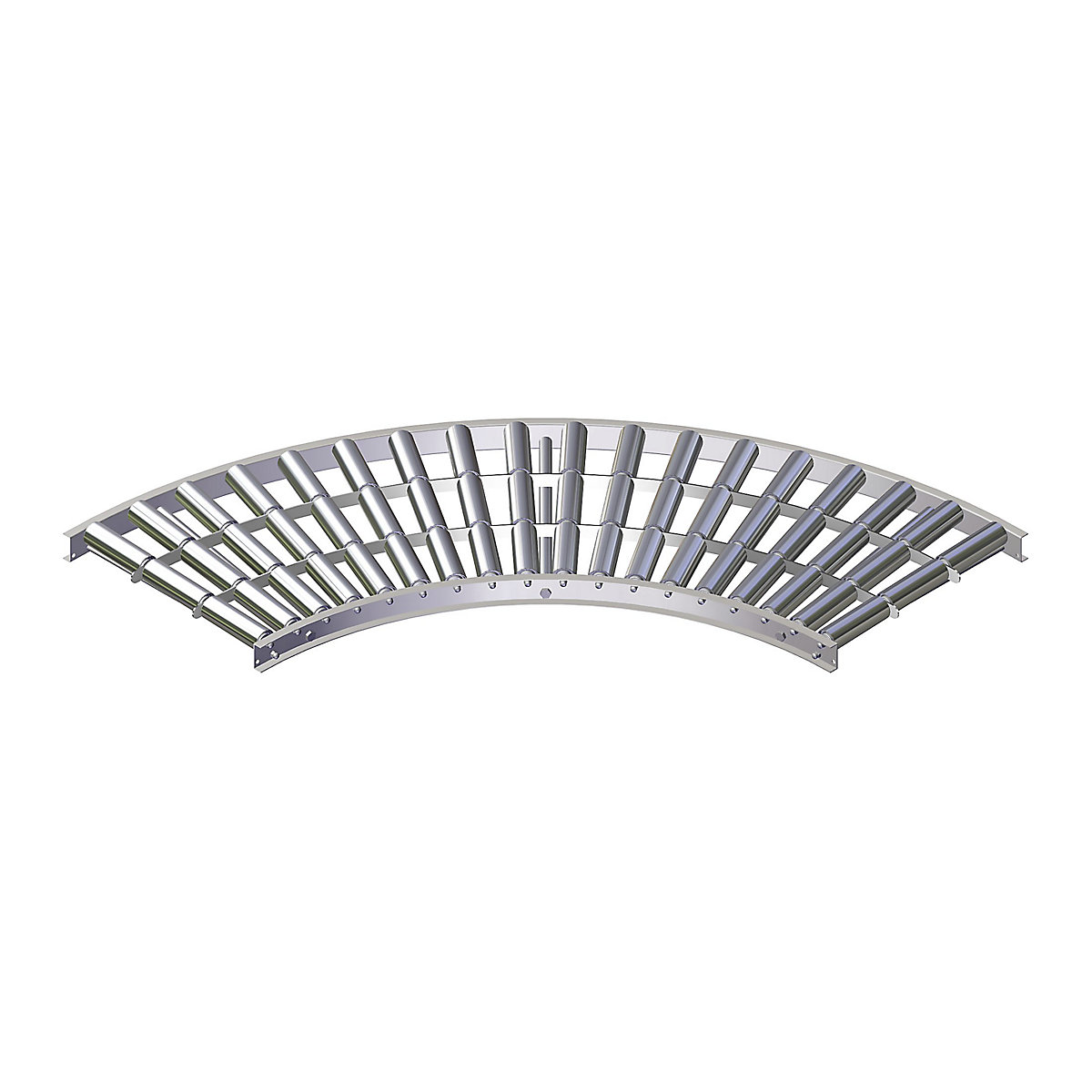

Light duty roller conveyor, steel frame with zinc plated steel rollers – Gura track width 500 mm, 90° curve

Light duty roller conveyor, steel frame with zinc plated steel rollers – Gura

inner radius 800 mm, axle spacing 100 mm

Planning service
Planning service
Axle spacing [mm]
Ref.: 903807 10
Product description
  • Optimises the material flow in the company
  • Modular system, making it individually adjustable
  • A very low empty weight makes it suitable for flexible use

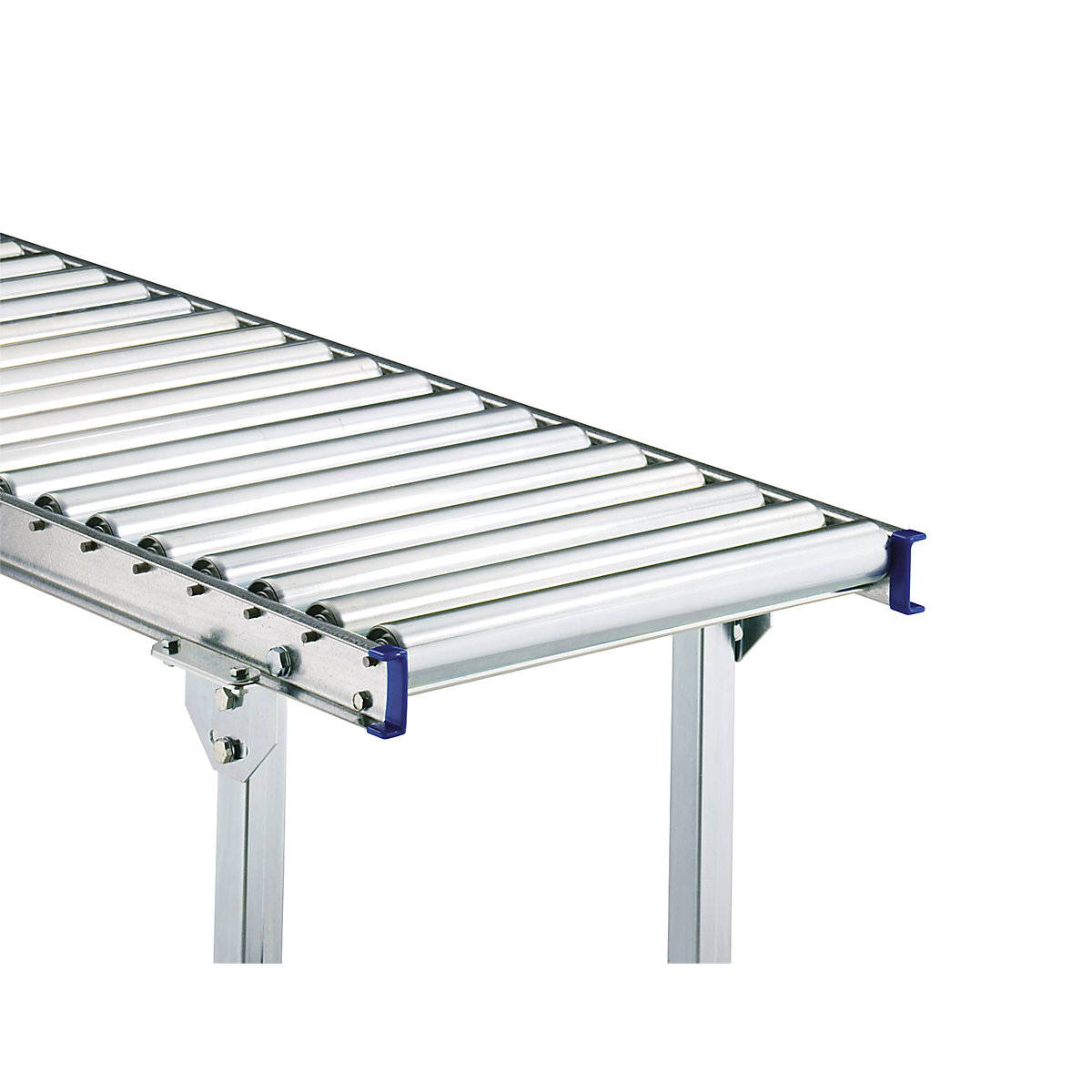

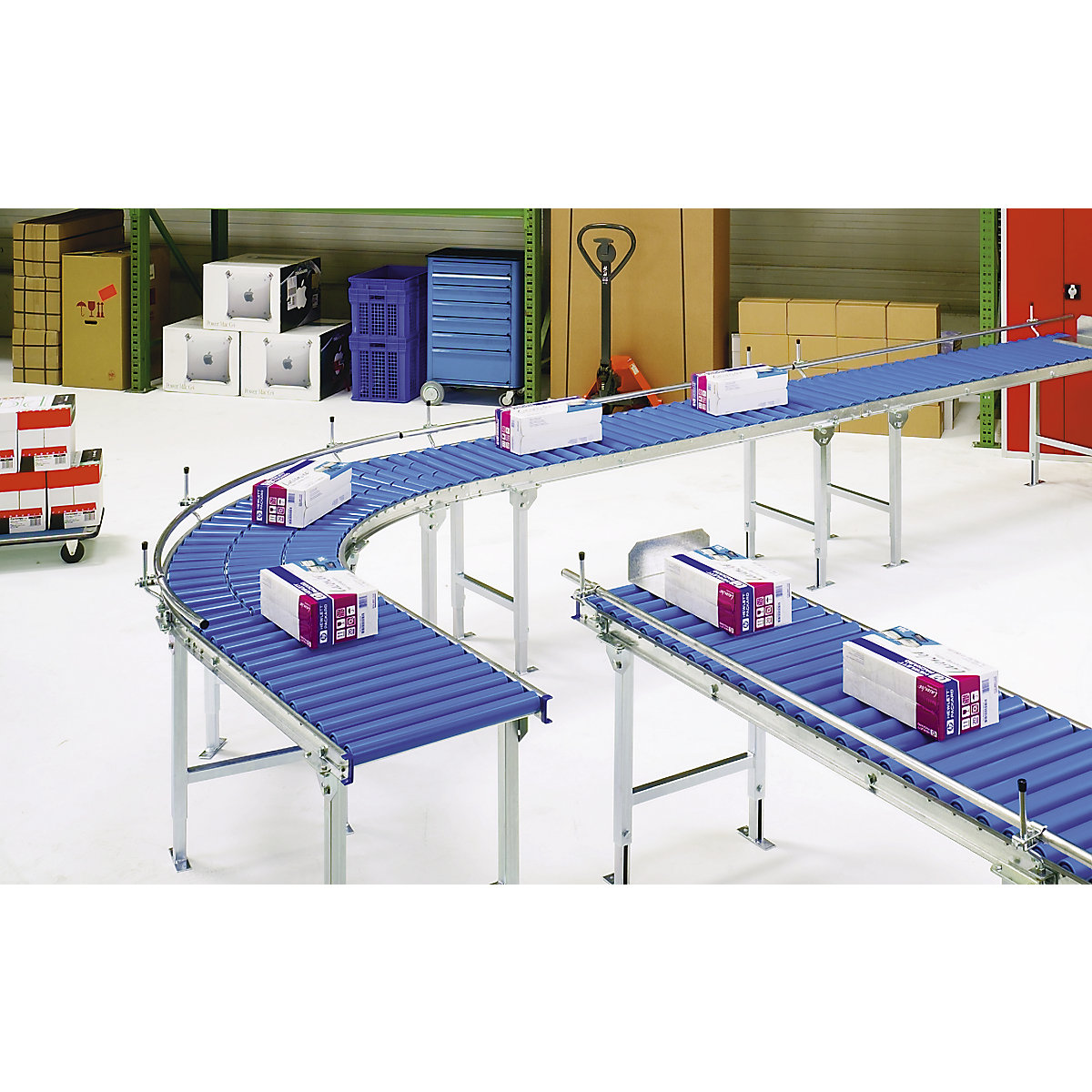

This lightweight roller conveyor from GURA improves the material flow within a company quickly and easily. The versatile modular system allows individual adjustment to suit your requirements.

Sturdy side profiles made of zinc plated steel with 20 x 60 x 20 mm. Ball bearing mounted steel rollers, Ø 50 mm or sprung axle with Ø 8 mm.

Designing your conveyor:

– Assemble required conveyor length from individual sections. Determine required number of straight and curved sections.

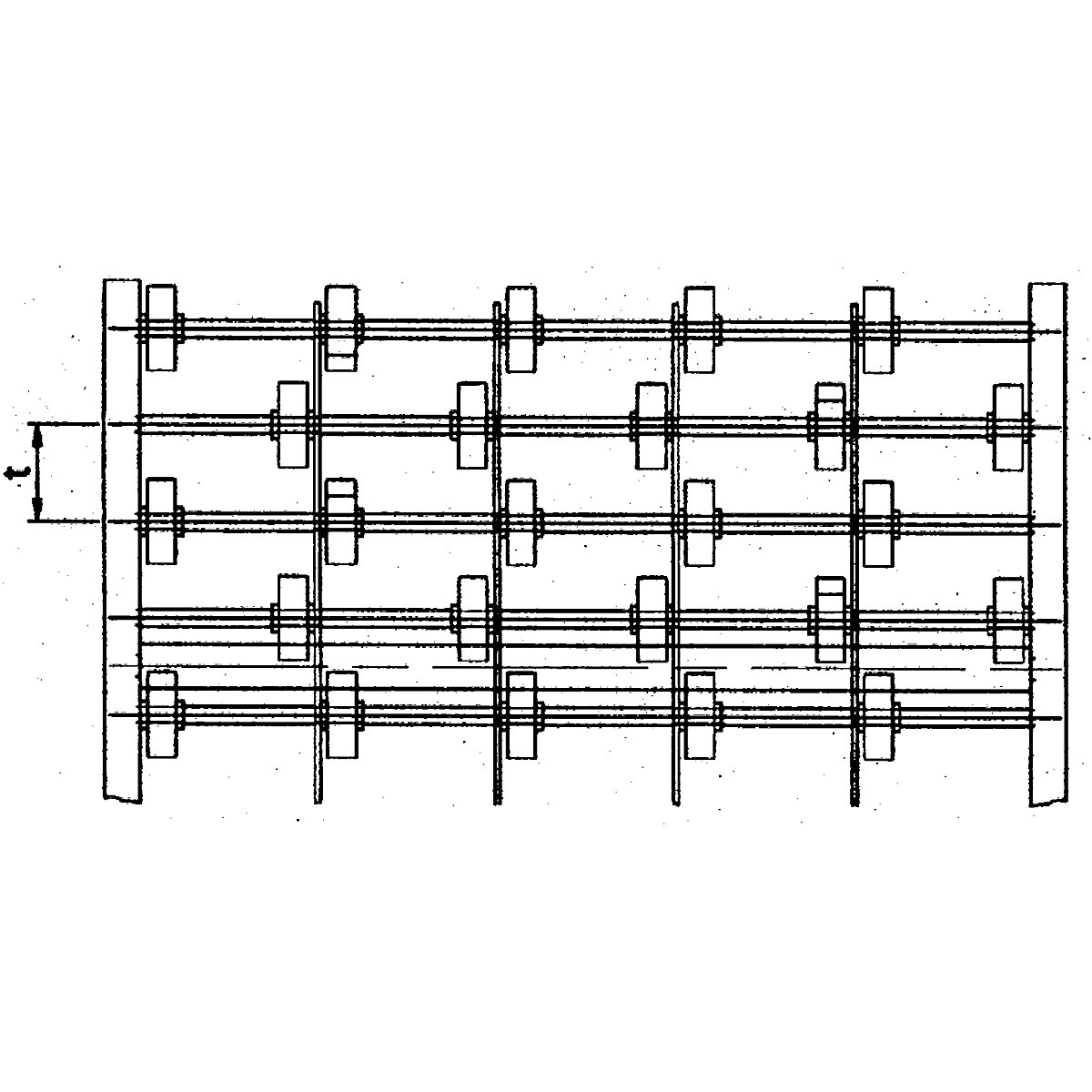

– Determine track width according to largest dimension of goods to be transported and axle spacing of the rollers according to smallest dimension of goods to be transported.

– With 75 mm axle spacing the effective length for 1 m = 975 mm, for 2 m = 1950 mm.

– Use our individual CAD planning service for comprehensive complete planning.
Custom models, 45° curves and passages upon request.
Supplied without double stands, quick connectors, protective caps and side guide rails.
Technical data
Design of framesteel, zinc plated
Track width500 mm
Overall height70 mm
Width540 mm
Length1.8 m
Roller diameter50 mm
Roller materialsteel, zinc plated
Width of goods conveyed600 mm
Max. load with 1 m frame support spacing200 kg
Installation length502 mm
Tube length492 mm
Frame colourzinc plated
Radius of curve800 mm
Model90° curve
Product typelight duty roller conveyors
Suppliedassembled
Axle spacing100 mm
Length of goods conveyed300 – 1000 mm
Weight36 kg
Pictorial instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

259.85kg CO₂e
LCA Raw Material Extraction & Processing
57.2%
LCA packaging production
0.8%
LCA Product Manufacturing
36.6%
LCA Inbound and Outbound Transportation
5.3%
‌
‌
‌
‌
‌
