Ref.: 118521 10

Display case door opens upwards 90°

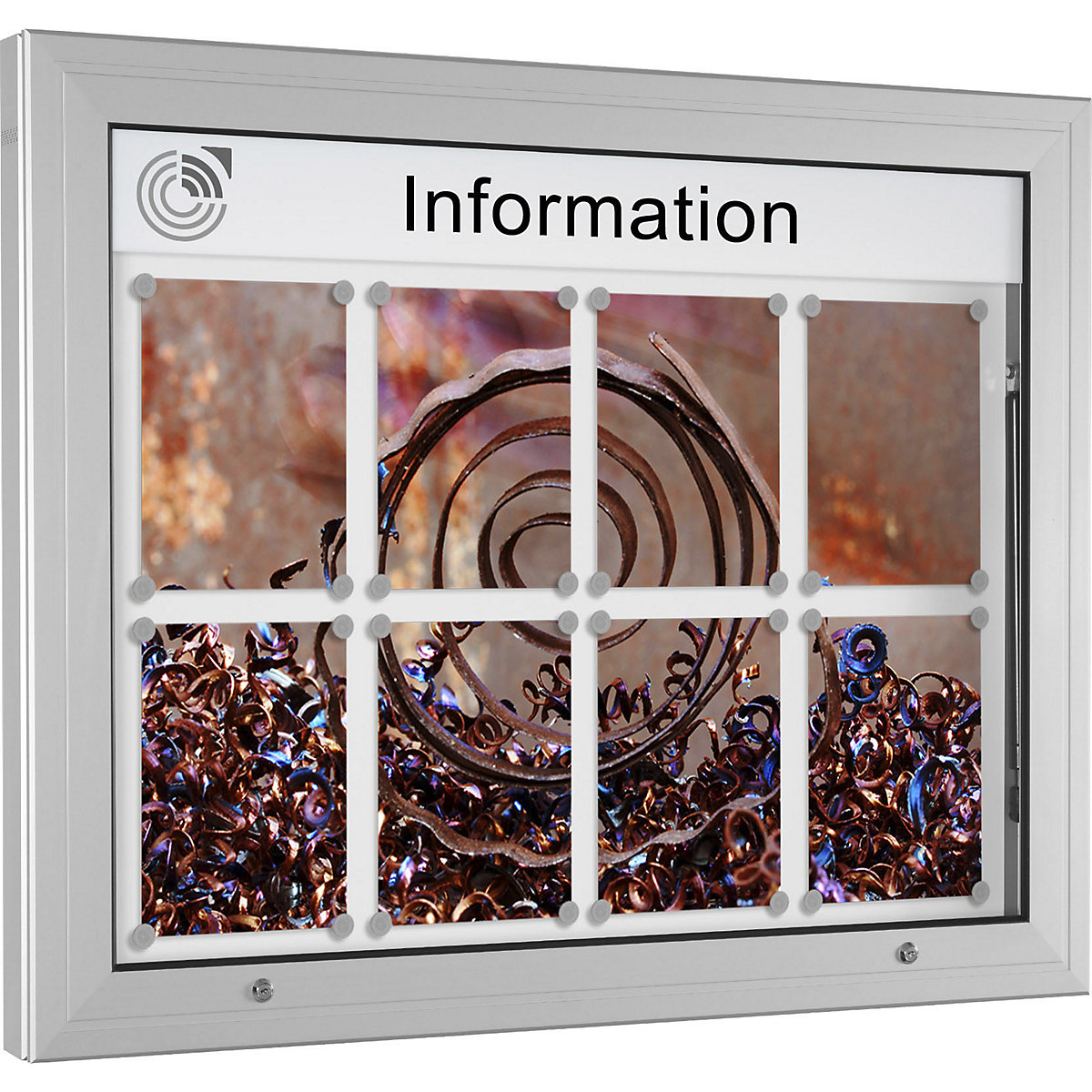

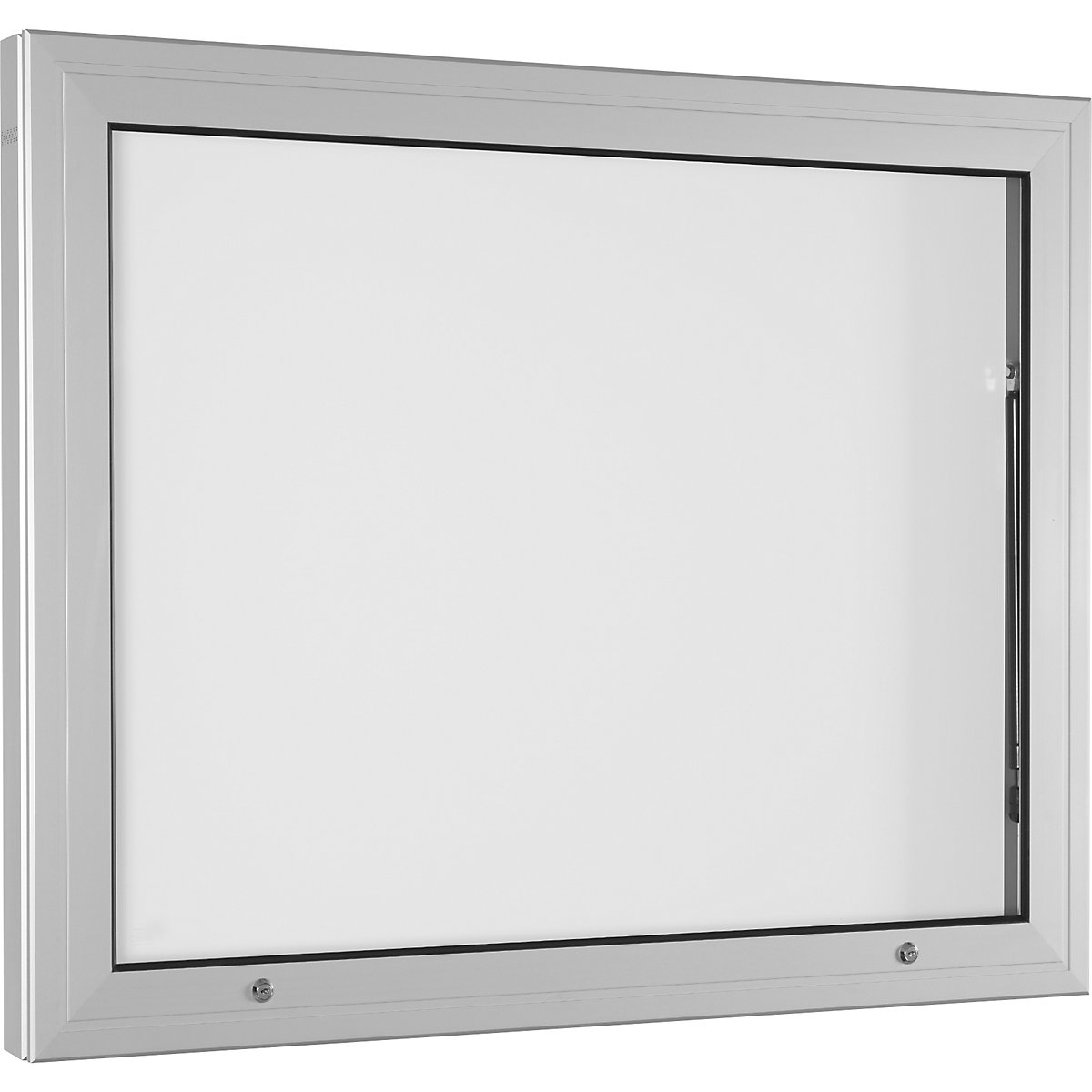

Display case

for A1 format, rear panel in pure white

For format
Capacity A4 sheets [pcs.]
Height [mm]
Width [mm]
Viewable area height [mm]
Viewable area width [mm]
Panel colour
1.080,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Door opens upwards 90°, lockable using gas spring
  • For indoor and outdoor use
  • External depth 75 mm
  • Effective internal depth 45 mm
  • Single pane safety glass, 4 mm thick
  • Zinc plated, magnetic rear panel
  • Patented, partially concealed hinge system – prevents magnets from falling between hinges when closing
  • Corners with bonded rubber seals for optimum weather resistance
  • Weather resistant aluminium construction
Maintenance free aluminium construction, silver anodised, with integrated ventilation and water drainage system.
Single pane safety glass 4 mm.
Patented, concealed hinge system.
Common key cylinder locks, 2 keys per lock.
Rubber seals are bonded to the corners to ensure a tight seal and to prevent them from slipping out of the corners.
Shelves made of zinc plated sheet steel.

Includes 10 grey magnets and one magnetic document pouch for A4.
Alternative sizes, vertical format, RAL colours and additional accessories are available on request.
5 year guarantee
5 year guarantee
The product corresponds to fire protection construction requirements. It has been classified as highly non-flammable.
The product corresponds to fire protection construction requirements. It has been classified as highly non-flammable.
Technical data
Depth75 mm
Internal depth45 mm
Design of display boxwith sheet steel rear panel, for magnets
Materialsingle pane safety glass
Glass thickness4 mm
Frame materialanodised aluminium
Panel materialsheet steel, galvanised
Door openingfolds upwards 90° with gas spring
Lock type2 cylinder locks, common key with 2 keys
Place of useindoor and outdoor use
Frameangled
Type of mountingwall mounting
Product typehinged door display cases
Suppliedassembled
For formatA1
Capacity A4 sheets8 (2 x 4) pcs.
Height800 mm
Width1025 mm
Viewable area height670 mm
Viewable area width895 mm
Panel colourpure white RAL 9010
Weight22 kg
