Ref.: 157236 10

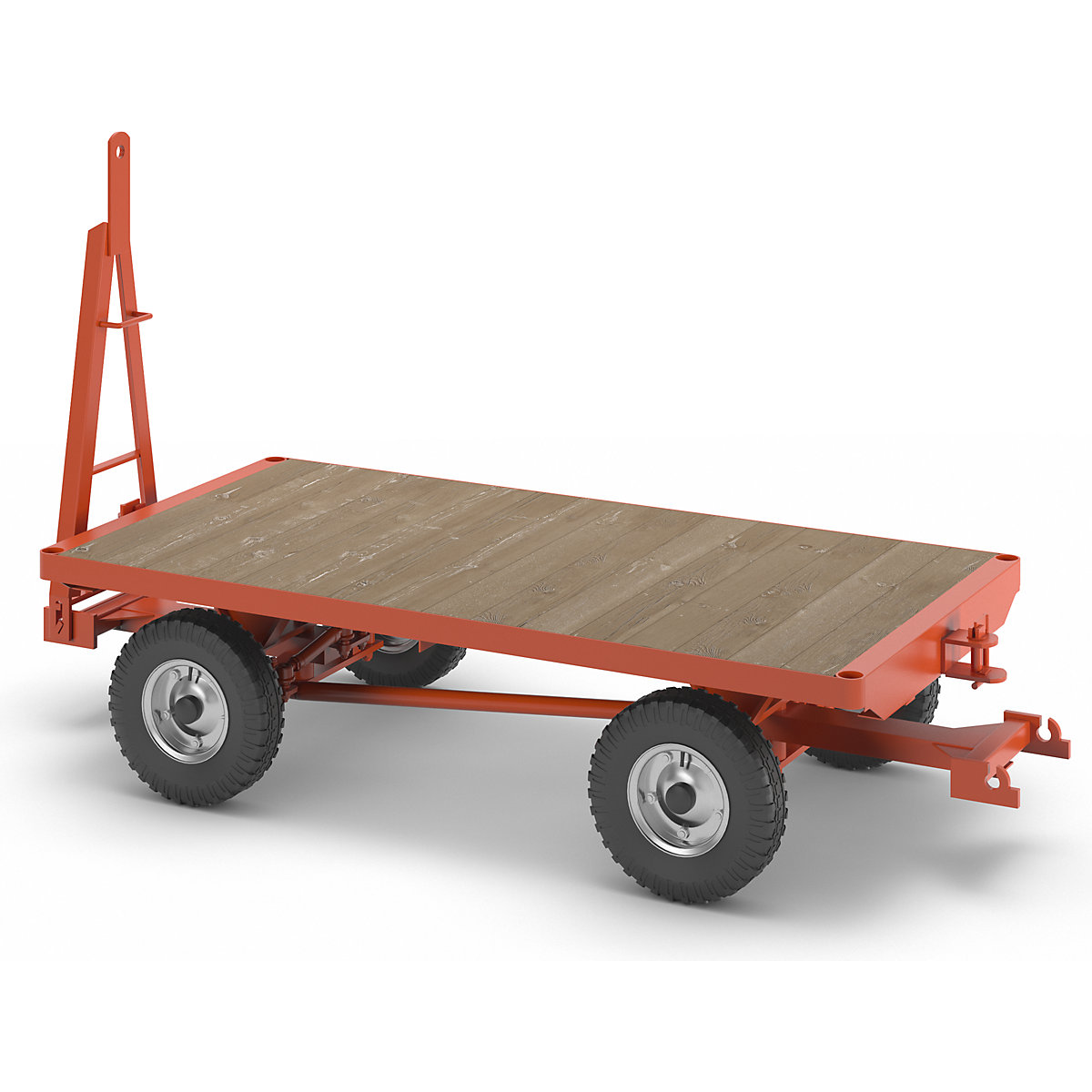

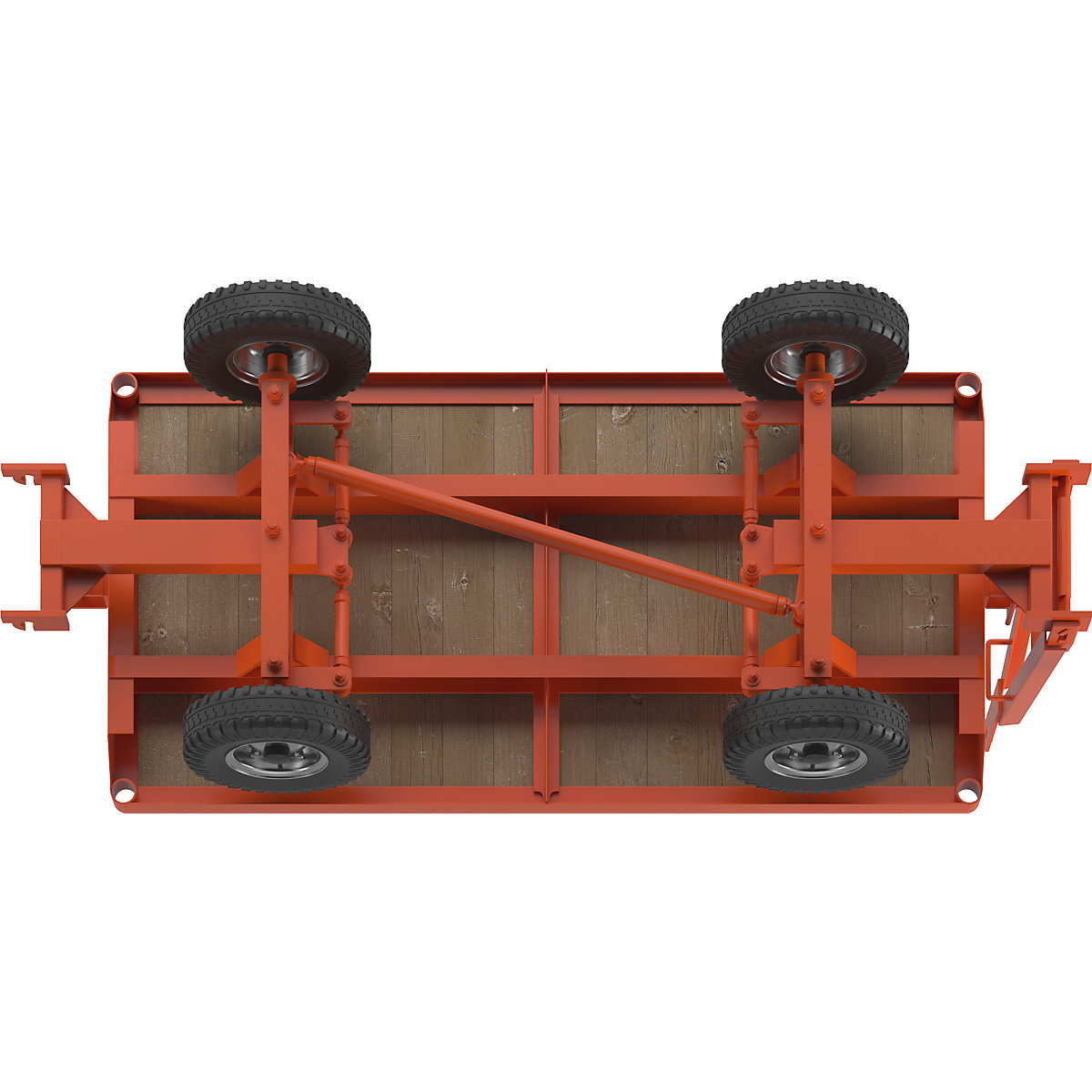

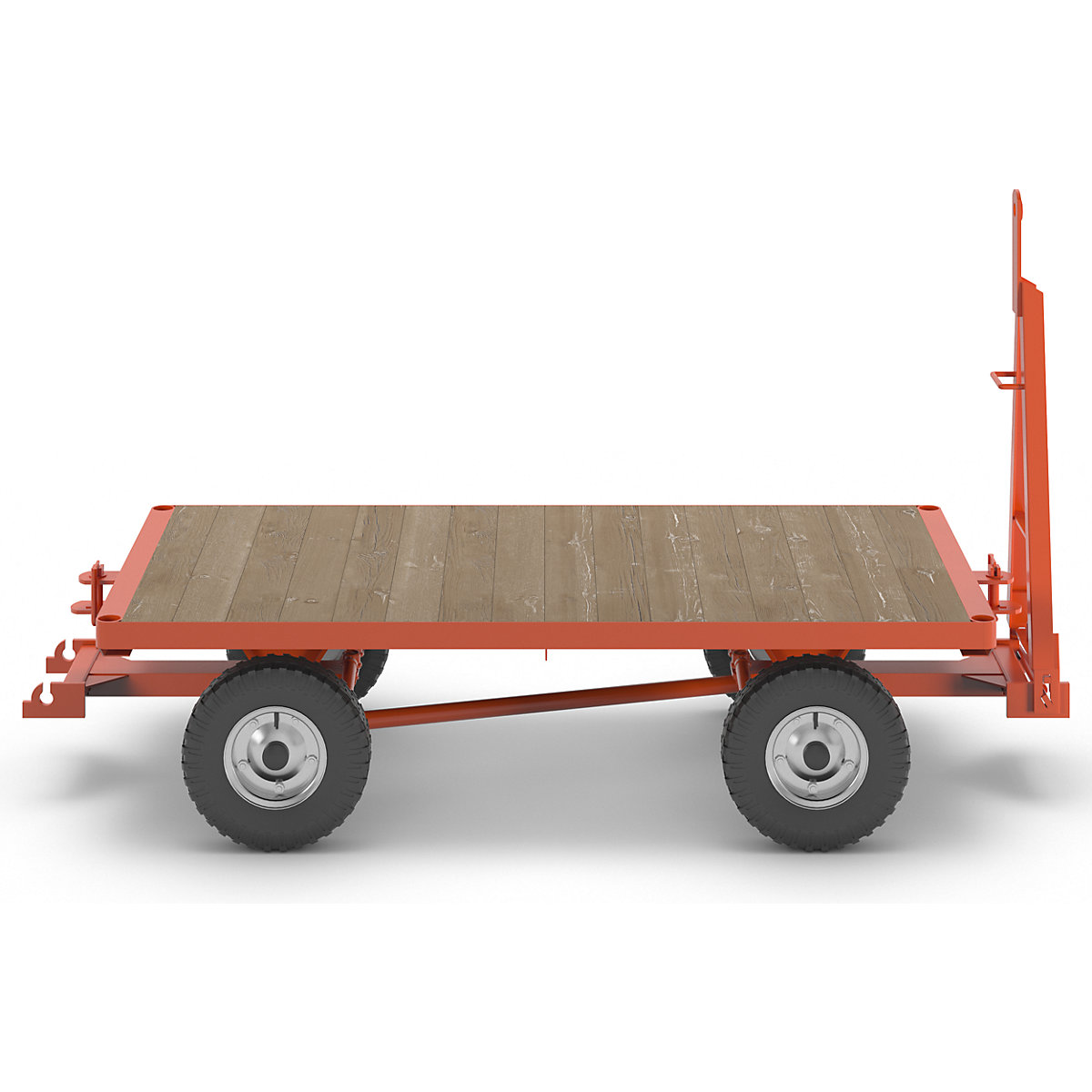

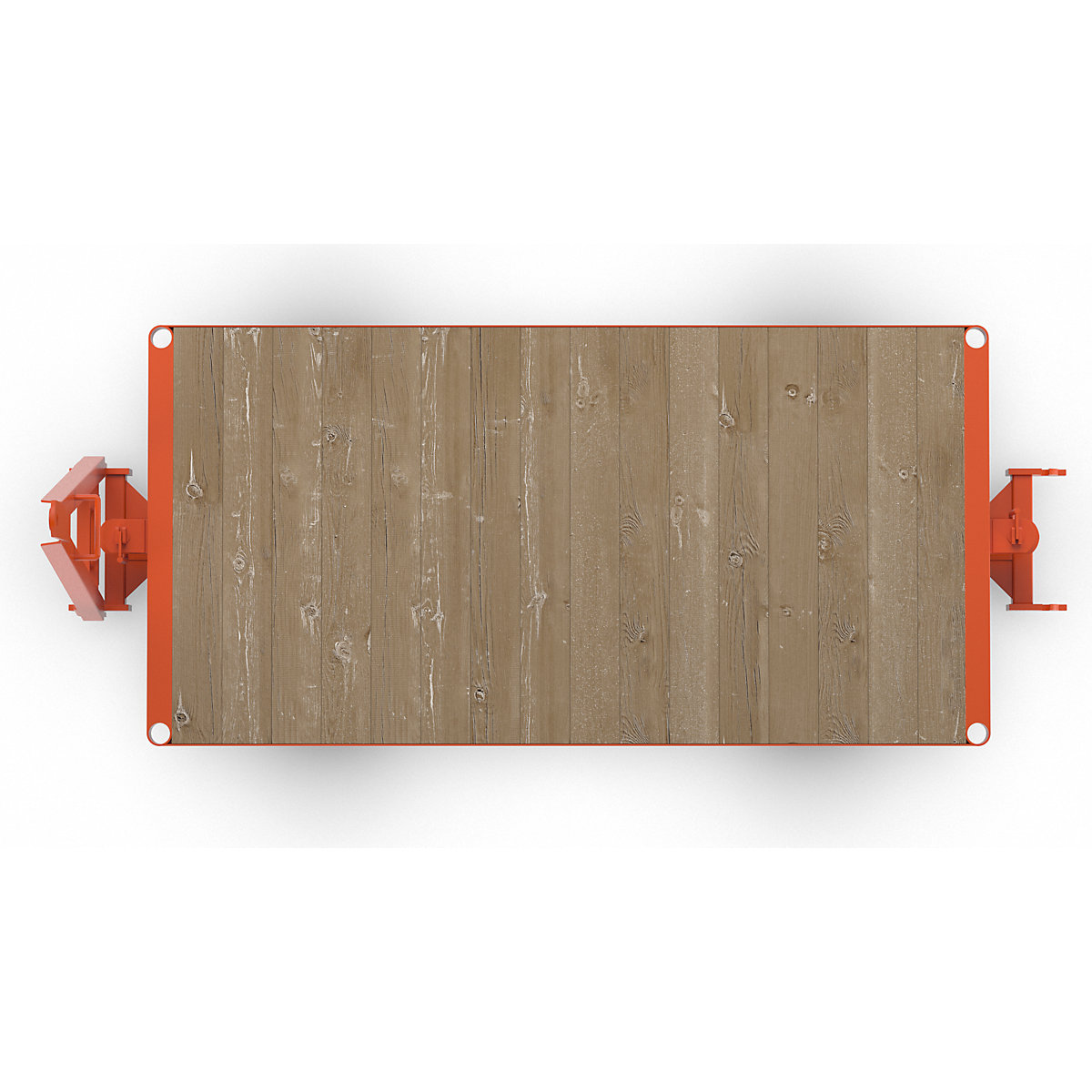

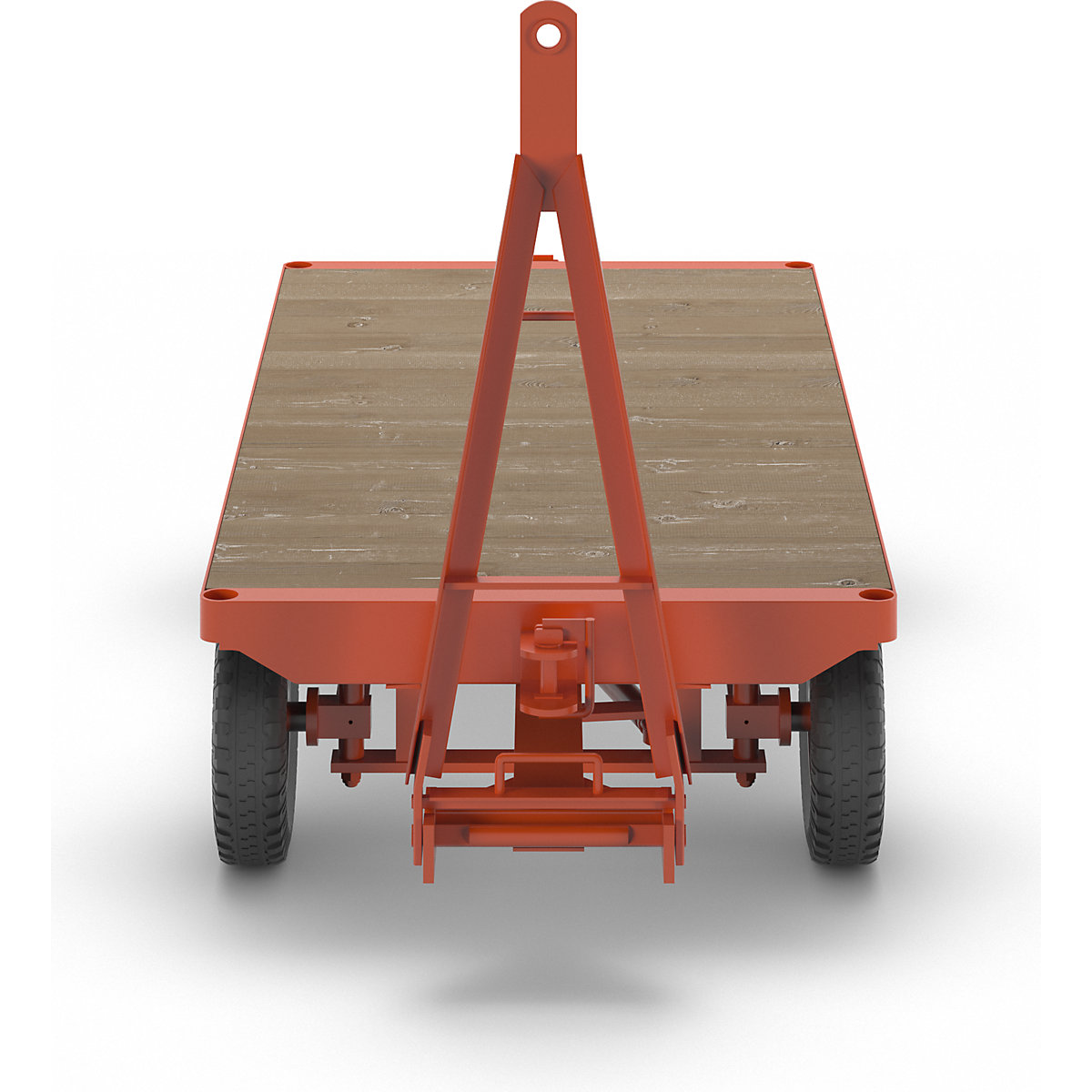

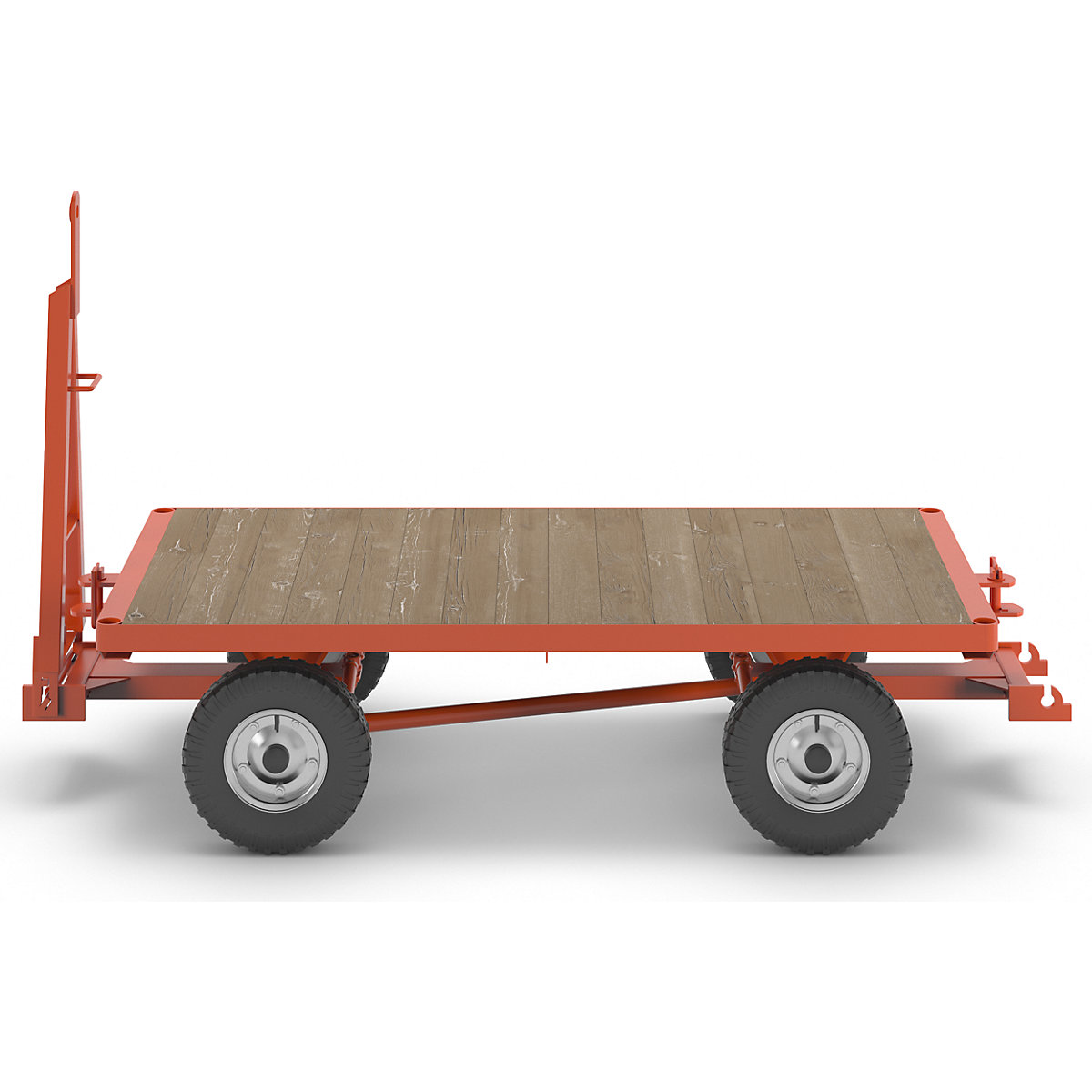

Trailer 4-wheel linked ackerman steering, max. load 2 t
platform 2.0 x 1.0 m, pneumatic tyres
Platform length [mm]
Platform width [mm]
Loading height [mm]
Ref.: 157236 10
Trailer 4-wheel linked ackerman steering, max. load 2 t
platform 2.0 x 1.0 m, pneumatic tyres
platform 2.0 x 1.0 m, pneumatic tyres
Platform length [mm]
Platform width [mm]
Loading height [mm]
3.525,00 €
Price / item (Ex. VAT)
Availability: 10-12 weeks
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?3.525,00 €
Price / item (Ex. VAT)
Product description
- Small turning circle – steering radius 40°
- Impregnated wooden platform for weather resistant and non-destructive load support
- Detachable drawbar, trailer coupling on both sides
- Robust welded steel construction
- Low maintenance
- Precision tracking stability
- Durable
- Track rods and steering rods with maintenance free ball heads
- In line with workplace safety regulations for transport vehicles
Chassis
Frame construction with rounded corners. Pipe corners for attaching posts or side panels, or as tie-down eyes. Pine laminate, hard-wearing varnish. Trailer coupling.
Wheel type
Solid rubber or pneumatic tyres. Hubs with double ball bearings.
Paintwork
Pure orange RAL 2004.
All-wheel Ackerman steering, tracking stability. Triangle drawbar, height adjustable with fall arrest.
Frame construction with rounded corners. Pipe corners for attaching posts or side panels, or as tie-down eyes. Pine laminate, hard-wearing varnish. Trailer coupling.
Wheel type
Solid rubber or pneumatic tyres. Hubs with double ball bearings.
Paintwork
Pure orange RAL 2004.
All-wheel Ackerman steering, tracking stability. Triangle drawbar, height adjustable with fall arrest.
On request
Parking brake, rubber axle and lead spring, CSE tyres, side walls, weather protection structure, lighting, sheet metal covering, stanchions, compressed air brake, mesh panel, mesh construction and folding aluminium side panels, folding loading ramps, electric brake, special paint finish, support feet, long material trailer, long material trailer with adjustable rear vehicle, special trailer with overrun brake, drawbar height adjustment mechanism, cropped drawbar, fixed bogie, dual action wheel chock with chain and bracket, cranked drawbar with drawbar height adjustment mechanism, low loader, low loader with hand crank parking brake, low loader with weather protection structure and other accessories
Parking brake, rubber axle and lead spring, CSE tyres, side walls, weather protection structure, lighting, sheet metal covering, stanchions, compressed air brake, mesh panel, mesh construction and folding aluminium side panels, folding loading ramps, electric brake, special paint finish, support feet, long material trailer, long material trailer with adjustable rear vehicle, special trailer with overrun brake, drawbar height adjustment mechanism, cropped drawbar, fixed bogie, dual action wheel chock with chain and bracket, cranked drawbar with drawbar height adjustment mechanism, low loader, low loader with hand crank parking brake, low loader with weather protection structure and other accessories
The technical specifications for these trailers makes it necessary to manufacture them to order.
For this reason, please be aware that there is no right of return for these items.
For this reason, please be aware that there is no right of return for these items.
Technical data
| Max. load at 6 km/h | 2 t |
|---|---|
| Steering | 4-wheel axle knuckle |
| Platform material | wood coating, treated with preservative |
| Type of tyre | single tyre |
| Feature | detachable drawbar |
| Finish | painted |
| Colour | pure orange RAL 2004 |
| Steering radius | 40 ° |
| Towing eyelet diameter | 35 mm |
| Product type | industrial trailers |
| Supplied | assembled |
| Platform length | 2000 mm |
| Platform width | 1000 mm |
| Loading height | 515 mm |
| Wheel type | pneumatic tyres |
| Wheel width | 112 mm |
| Wheel diameter | 414 mm |
| Weight | 267 kg |
Sustainability
Product with potential for future improvement
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
