Ref.: 527190 10

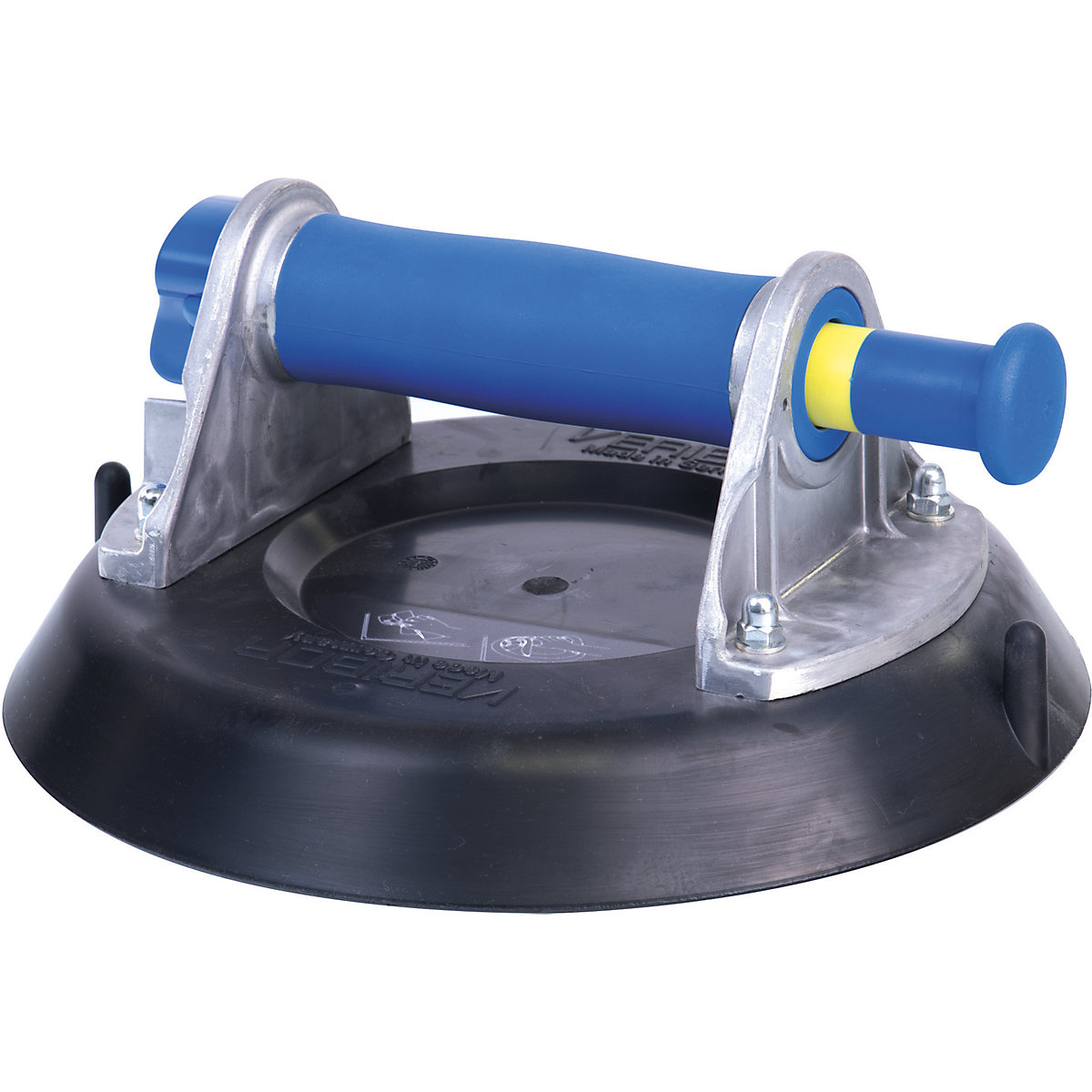

VERIBOR® suction lifter – Bohle 1 head aluminium body with hand pump, max. load 80 kg

VERIBOR® suction lifter – Bohle

disc Ø 220 mm

469,00 €
Price / item (Ex. VAT)
Availability: 9–12 Working Days
Product description
  • For curved and structured surfaces
  • Secure hold and convenient transport of various loads
  • Made of aluminium and therefore particularly light
Pump suction lifter made of aluminium with special rubber disc (220 mm) for curved and highly structured surfaces. Due to the very curved rubber disc, this suction lifter must be pushed firmly onto the surface to be lifted. Only then is the pump stem pressed to evacuate the air between the surface and the suction disc. Permanent visual check of the vacuum through the red ring on the pump stem.
Minimum suction radius 500 mm.
With practical transport case for safe storage and protection of the rubber discs.
Technical data
Head diameter220 mm
Max. load80 kg
Number of heads1 pcs.
Materialaluminium
Colourblack blue
Suitable forstructured surfaces convex surfaces
Load bearing directionparallel
Product typesuction lifters
Suppliedassembled
Weight1.54 kg
Instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

23.25kg CO₂e
LCA Raw Material Extraction & Processing
79.1%
LCA packaging production
0.4%
LCA Product Manufacturing
18%
LCA Inbound and Outbound Transportation
2.5%
‌
‌
‌
