Ref.: 530517 10

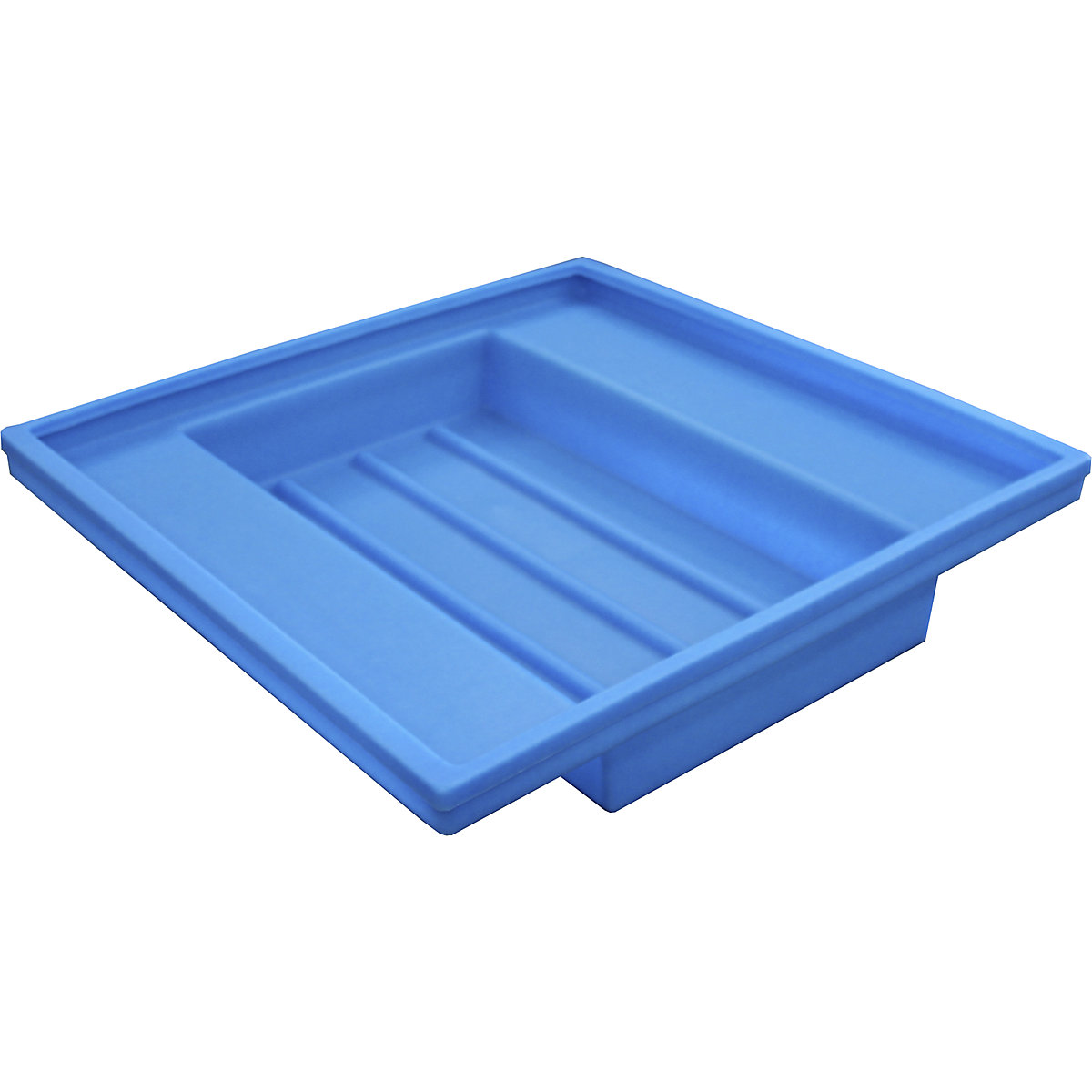

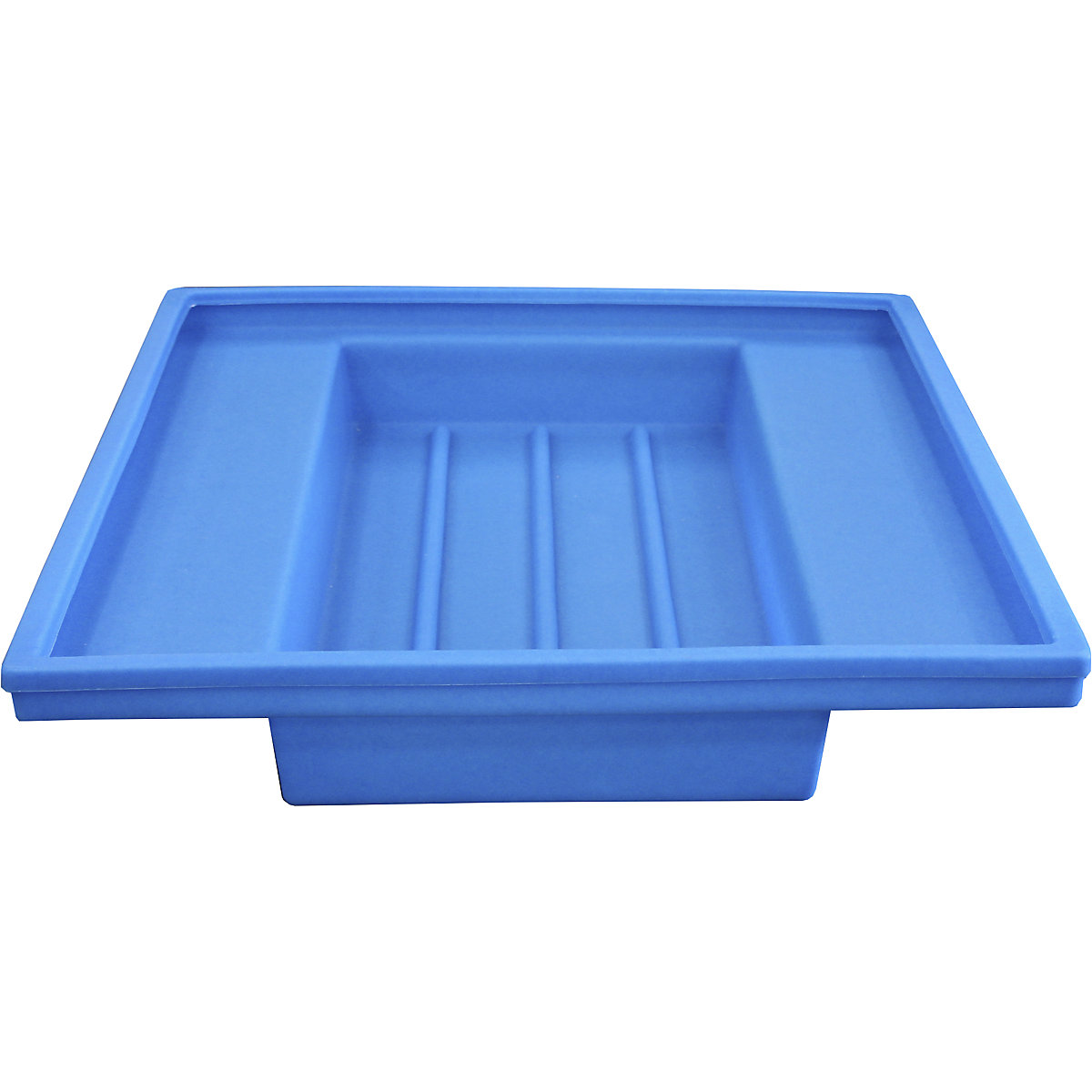

PE shelf sump tray sump capacity 220 l, without certification

PE shelf sump tray

without grate

Type of grate
459,00 €
Price / item (Ex. VAT)

Availability: 3-4 weeks
Product description
  • Existing racking systems can be retrofitted for storing drums and small containers
  • Easy to insert in existing standard pallet racking
  • Catches leaks from leaking, damaged containers, etc.
  • Made of durable, highly resistant polyethylene for storing corrosive chemicals

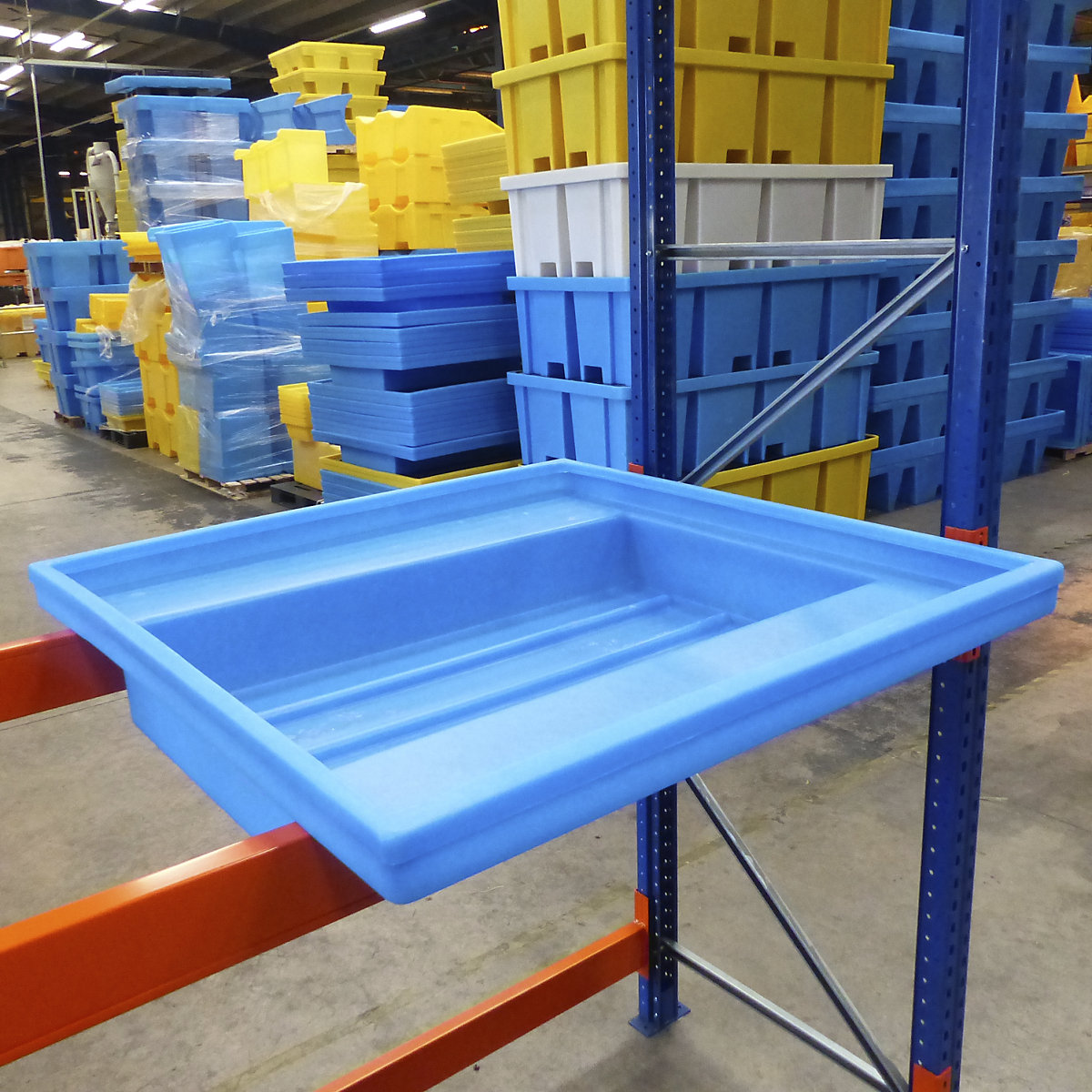

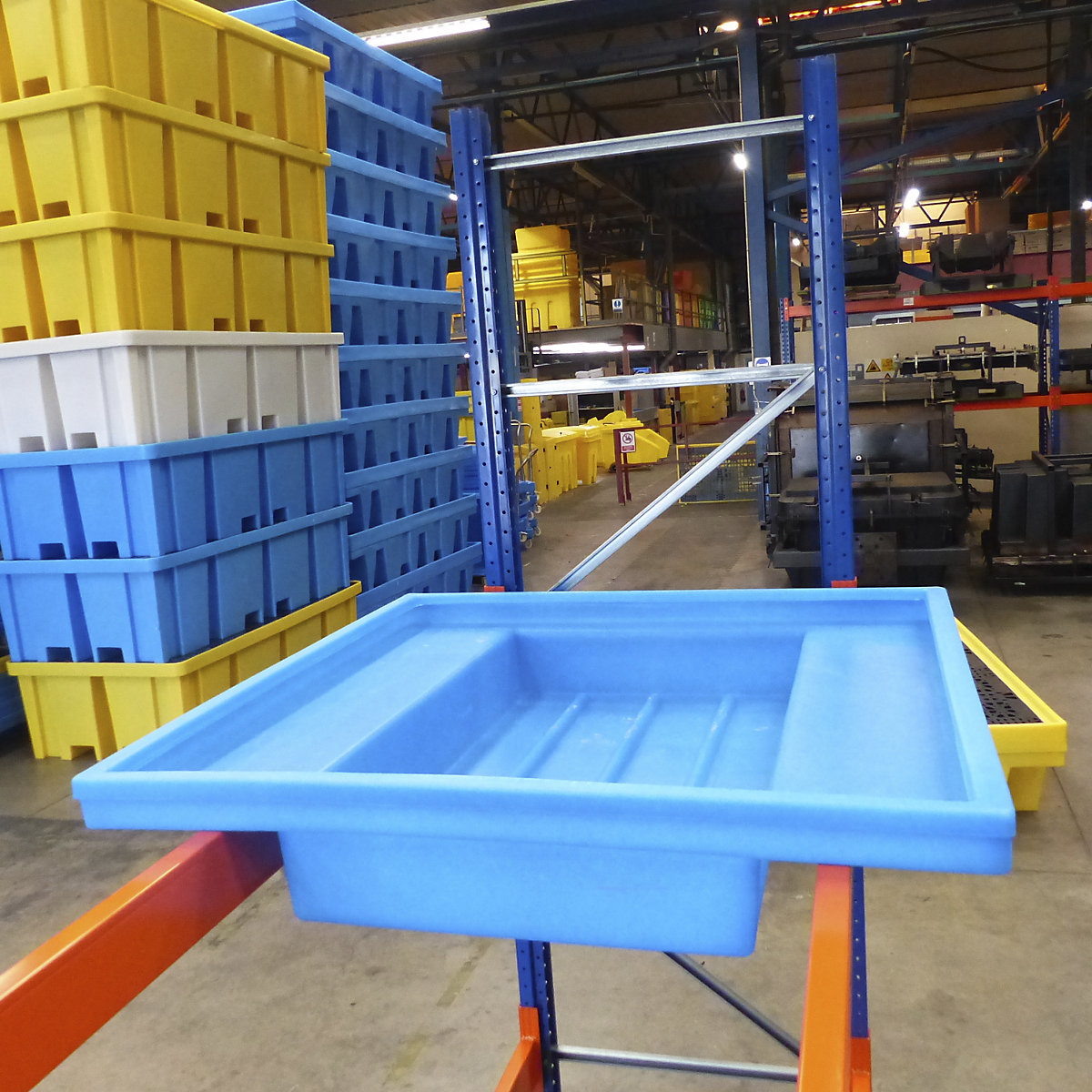

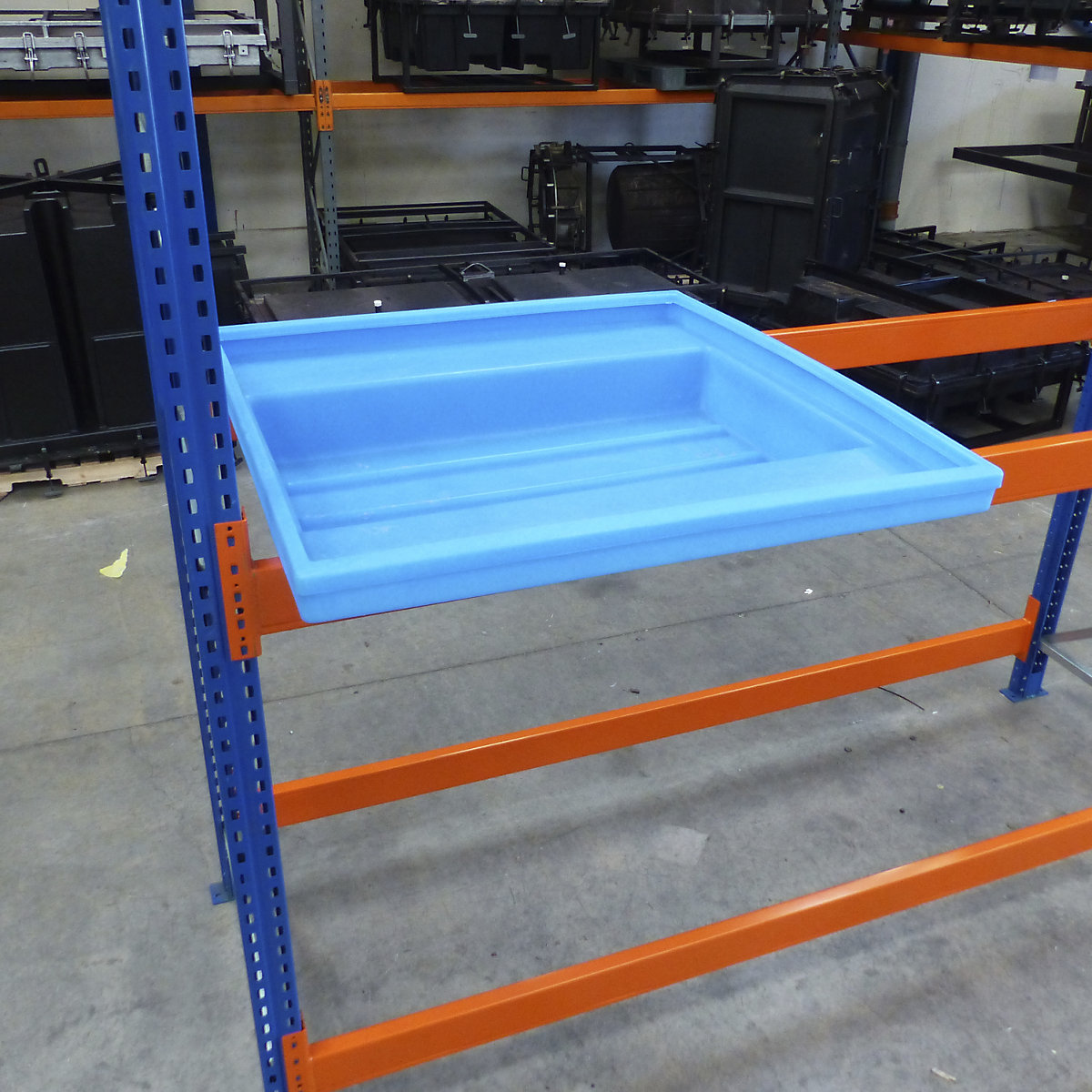

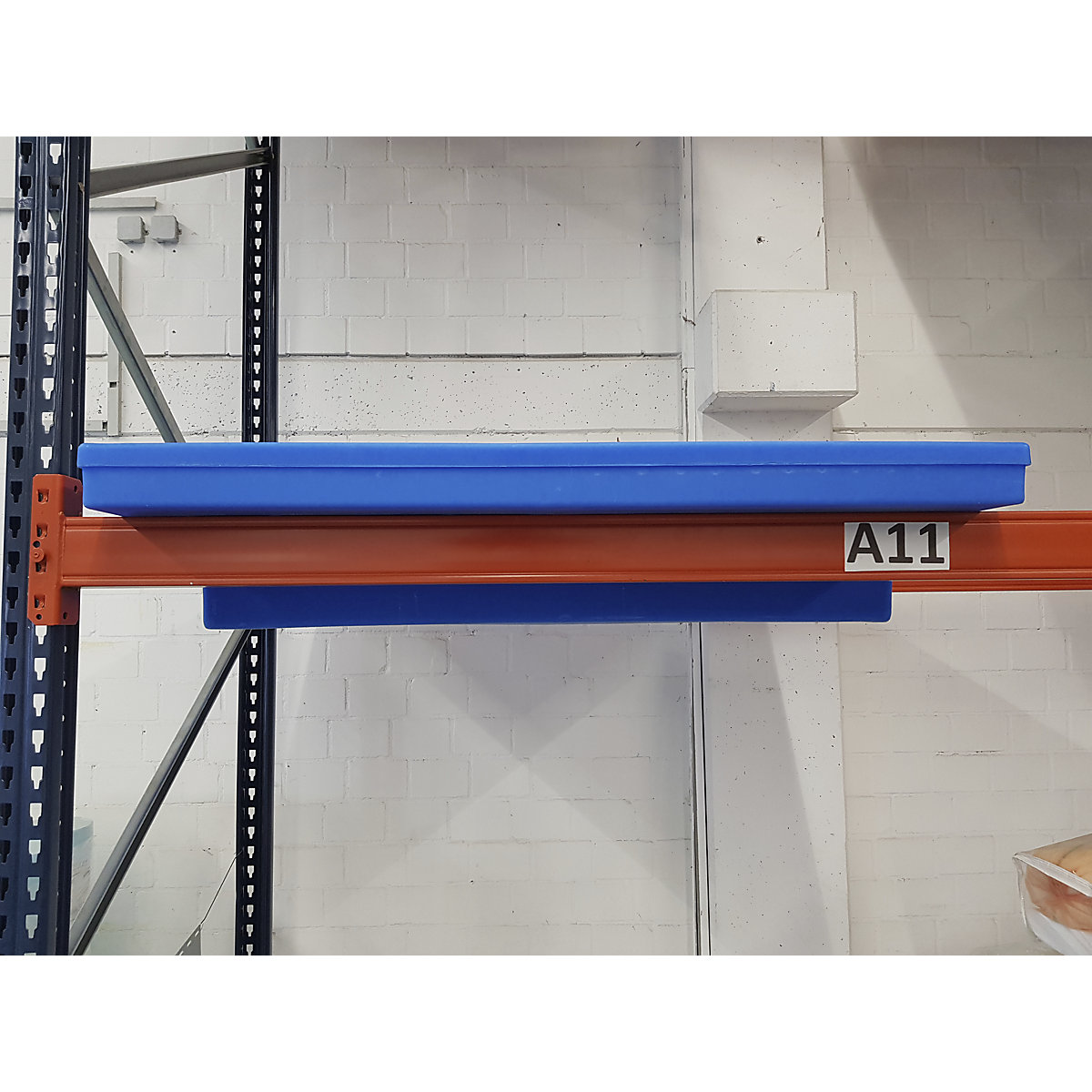

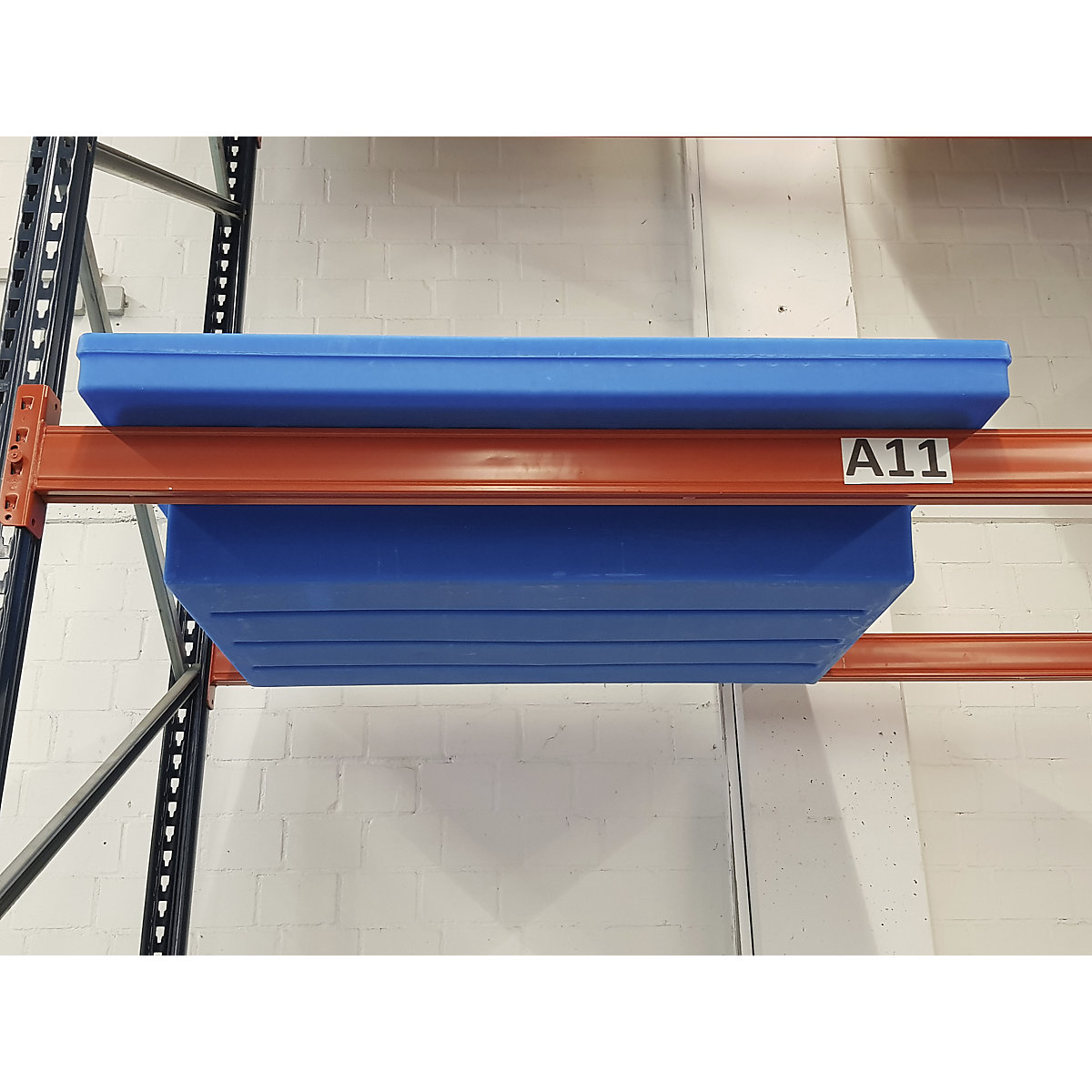

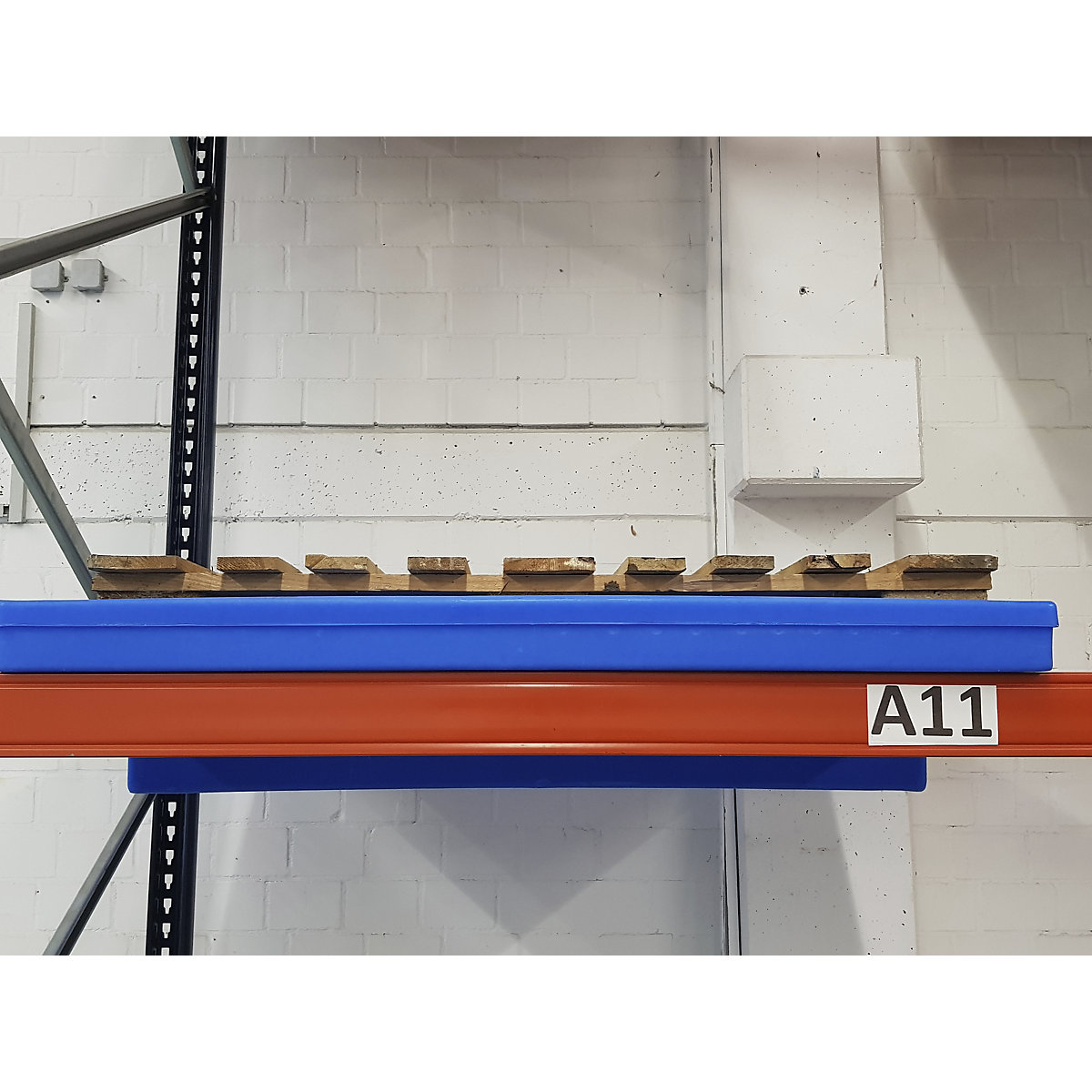

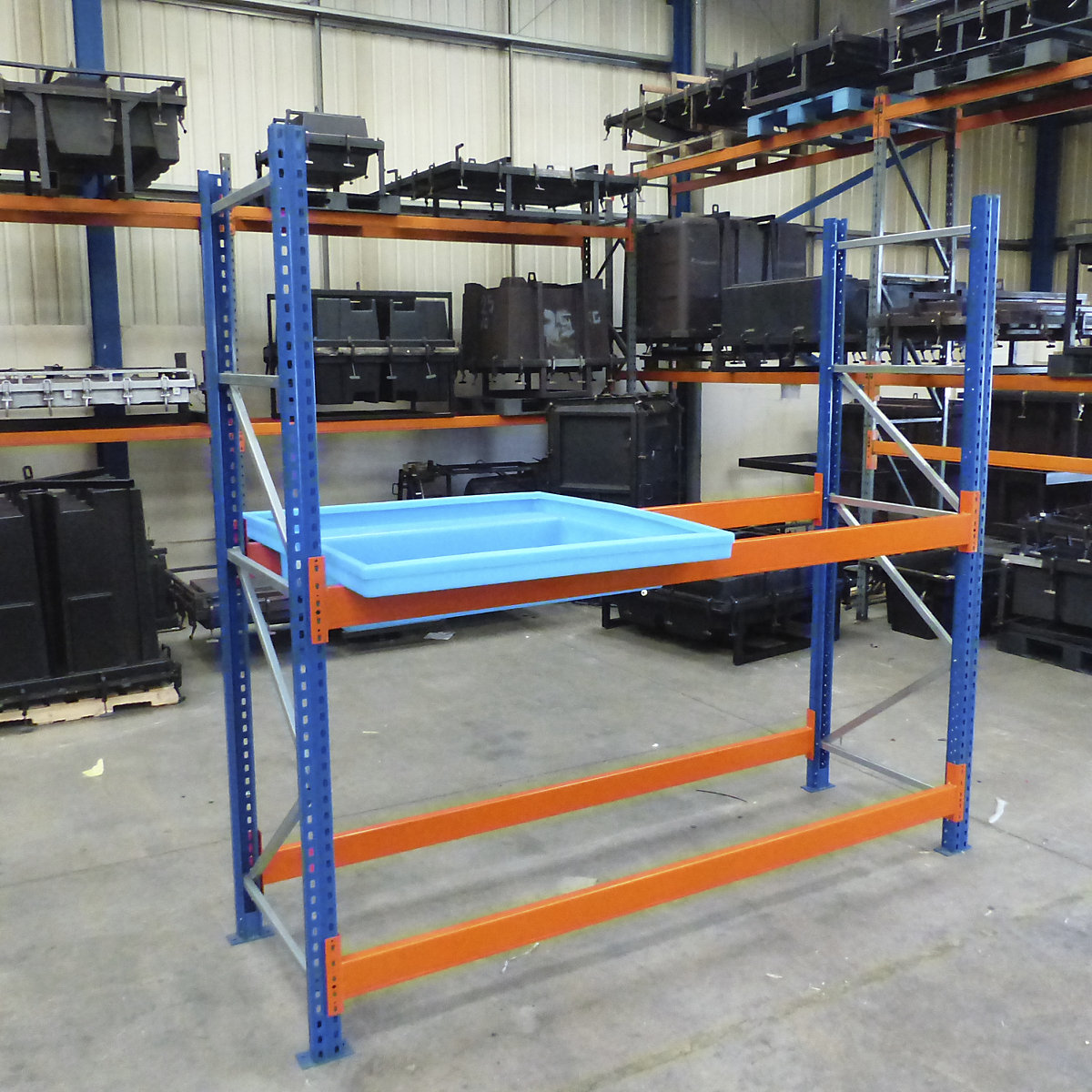

Sump trays are placed on the cross beams or suspended directly in the racking.
Distance between cross beams 700 mm.

Made of highly resistant, robust and durable polyethylene – ideal for storing corrosive media such as acids, alkaline solutions, oils.
Collection capacity 220 litres. Blue.

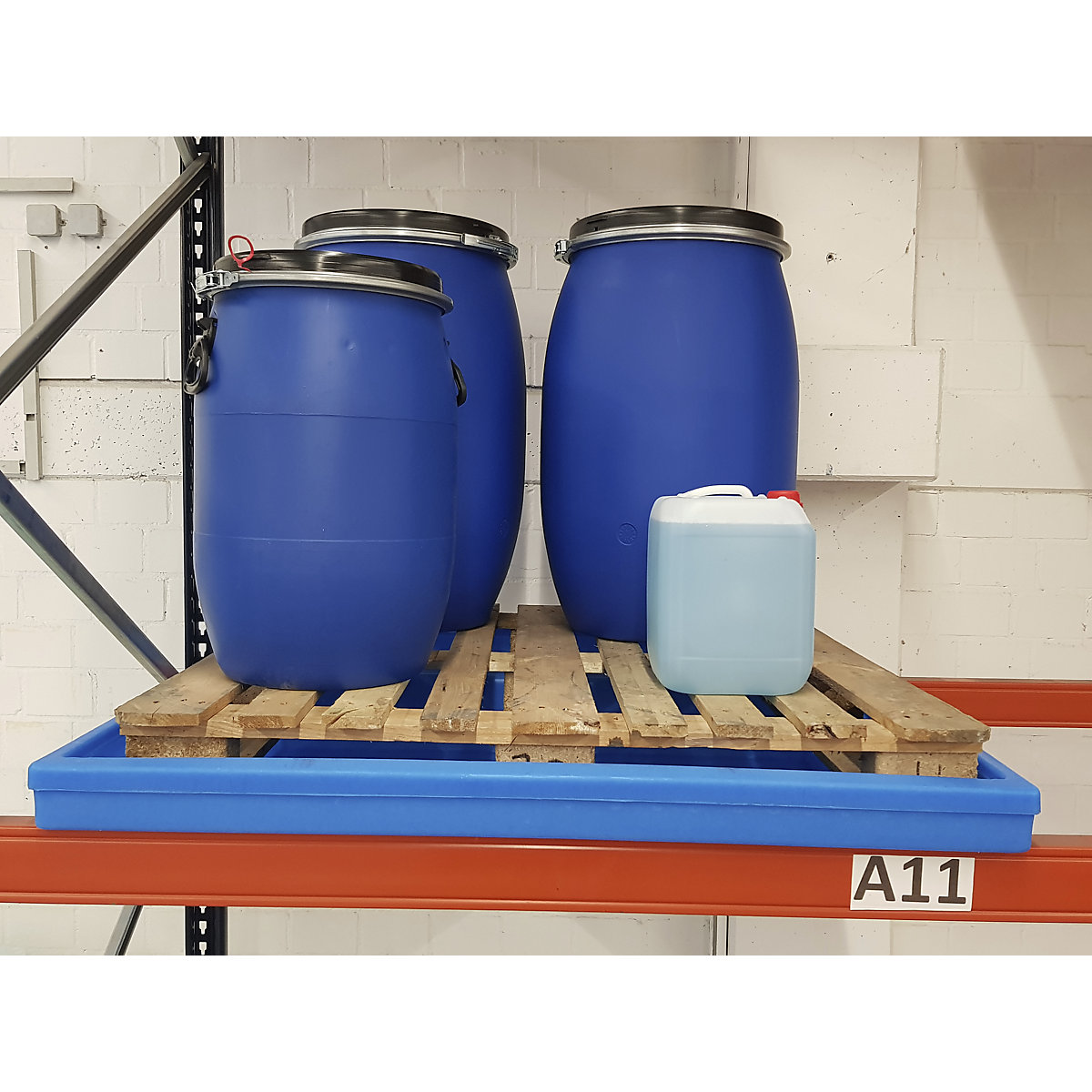

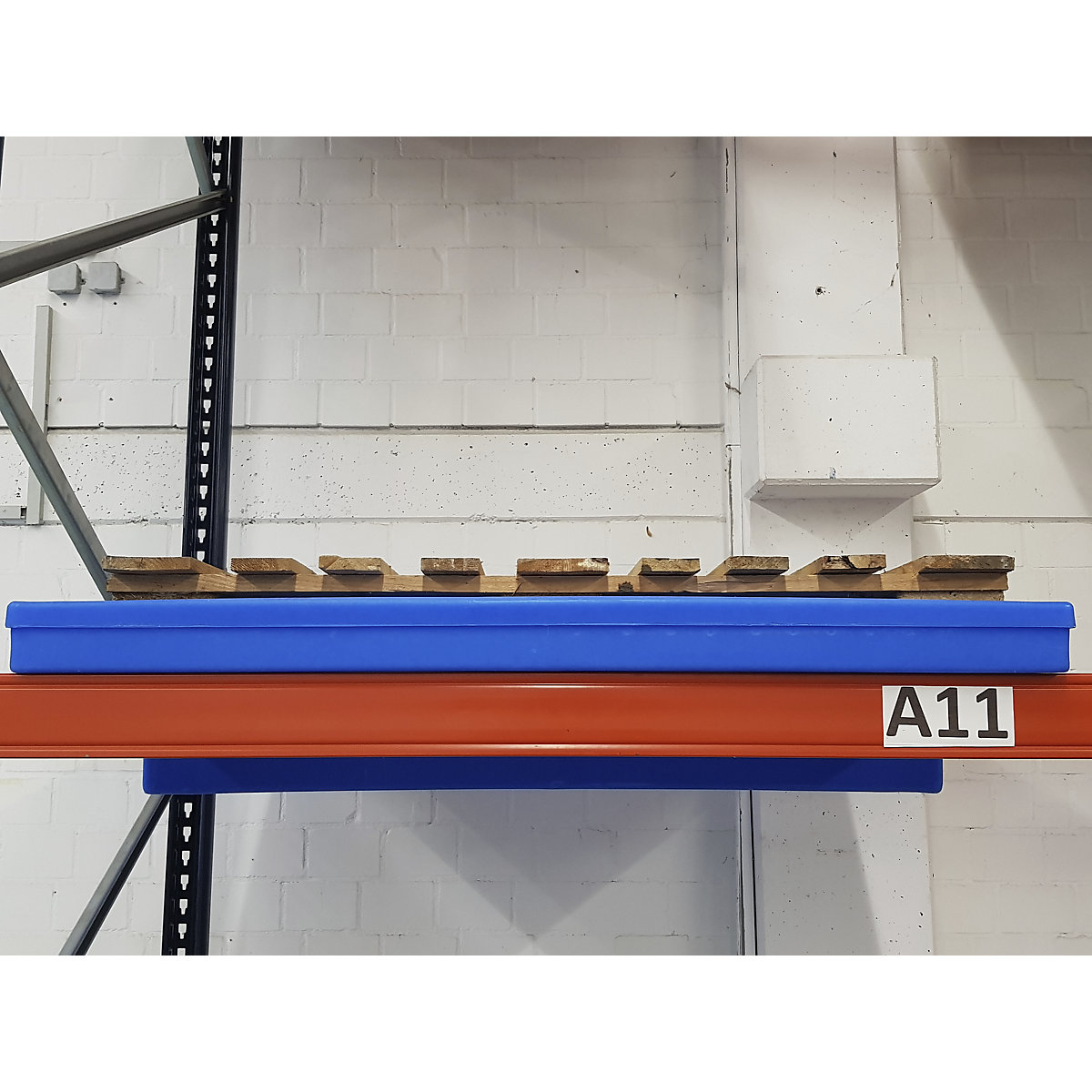

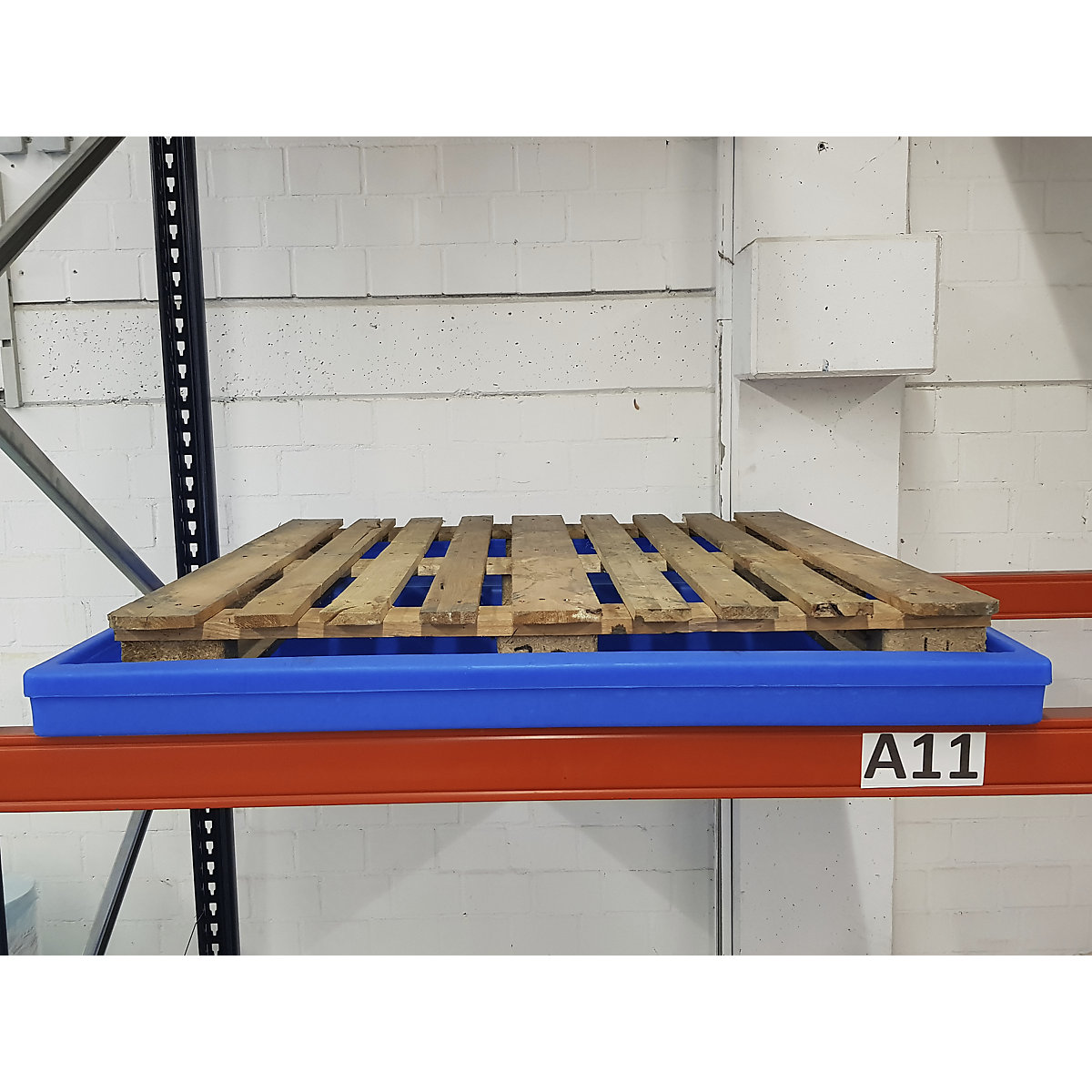

Tray without grate: for placing drums and small containers on pallets (e.g. on Euro/chemical pallets).
Tray with grate: drums and small containers can simply be placed directly on the PE grate and stored.

Sump trays without certification:
Only for the storage of non-water-hazardous media, etc.
Also for the storage of corrosive, water hazardous media in countries without approval requirements.
Technical data
Sump capacity220 l
Length1310 mm
Width1310 mm
Height245 mm
Drum capacity4 x 200 l
Pallet capacity1 Euro or 1 chemical
Materialpolyethylene
Colourblue
Max. load1000 kg
Material thickness8 mm
For mediawater hazardous dangerous goods chemicals, acids and alkalis oils
Hazard classfor corrosive media such as acids and alkalis
Featurestackable
Distributed load1000 kg
Certificationwithout
Product typeshelf sump trays shelving unit hook-in sump trays
Suppliedassembled
Type of gratewithout
Weight17 kg
