Ref.: 762630 10

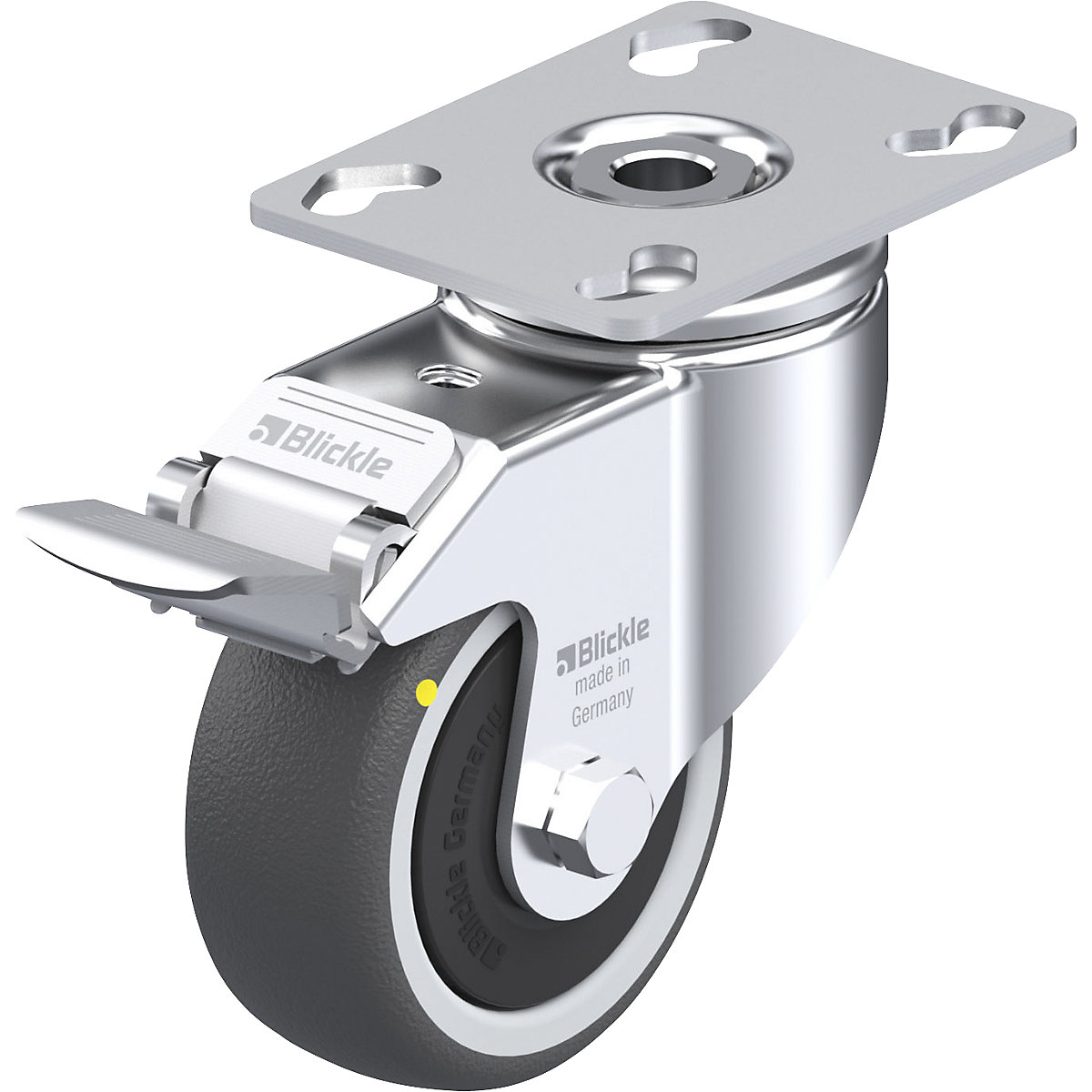

LKPA-PATH-FI-ELS light duty swivel castor – Blickle max. load 100 kg
wheel Ø 80 mm, overall height 111 mm
Ref.: 762630 10
LKPA-PATH-FI-ELS light duty swivel castor – Blickle max. load 100 kg
wheel Ø 80 mm, overall height 111 mm
wheel Ø 80 mm, overall height 111 mm
72,90 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?72,90 €
Price / item (Ex. VAT)
Product description
- Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Very high chemical resistance to many aggressive media
- Temperature resistance: –20 °C to +70 °C, reduced max. load above +35 °C
- Electrically conductive
- Double ball bearing in the ring bearing
- Stable centre bolt
- Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
- Locking lever stop-fix made of steel
- Tread: high quality thermoplastic polyurethane (TPU), non-staining
- Wheel body: high quality nylon 6, does not break, silver grey
- KA version: with plastic thread guard, small
Light duty swivel castor with mounting plate, with stop-fix stop. Wheel with thermoplastic polyurethane tread, with nylon wheel body, with plastic thread guard, large, electrically conductive, non-marking.
Technical data
| Wheel diameter | 80 mm |
|---|---|
| Structure | swivel castor with wheel stop |
| Wheel material | polyurethane |
| Material of rim | nylon |
| Type of mounting | with top plate |
| Max. load at 4 km/h | 100 kg |
| Wheel width | 32 mm |
| Overall height | 111 mm |
| Wheel bearing | ball bearing |
| Model | light duty castors |
| Swivel castor plate dimensions | 90 x 66 mm |
| Shore hardness | 94 Shore A |
| Feature | ESD version |
| Product type | swivel castors |
| Supplied | assembled |
| Weight | 0.74 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 5.9 | |
| 30% | 2.0 | |
| 25% | 2.0 | |
| 10% | 0.0 | |
| 5% | 3.9 | |
| Overall score | 3.6 | |
