Ref.: 762631 10

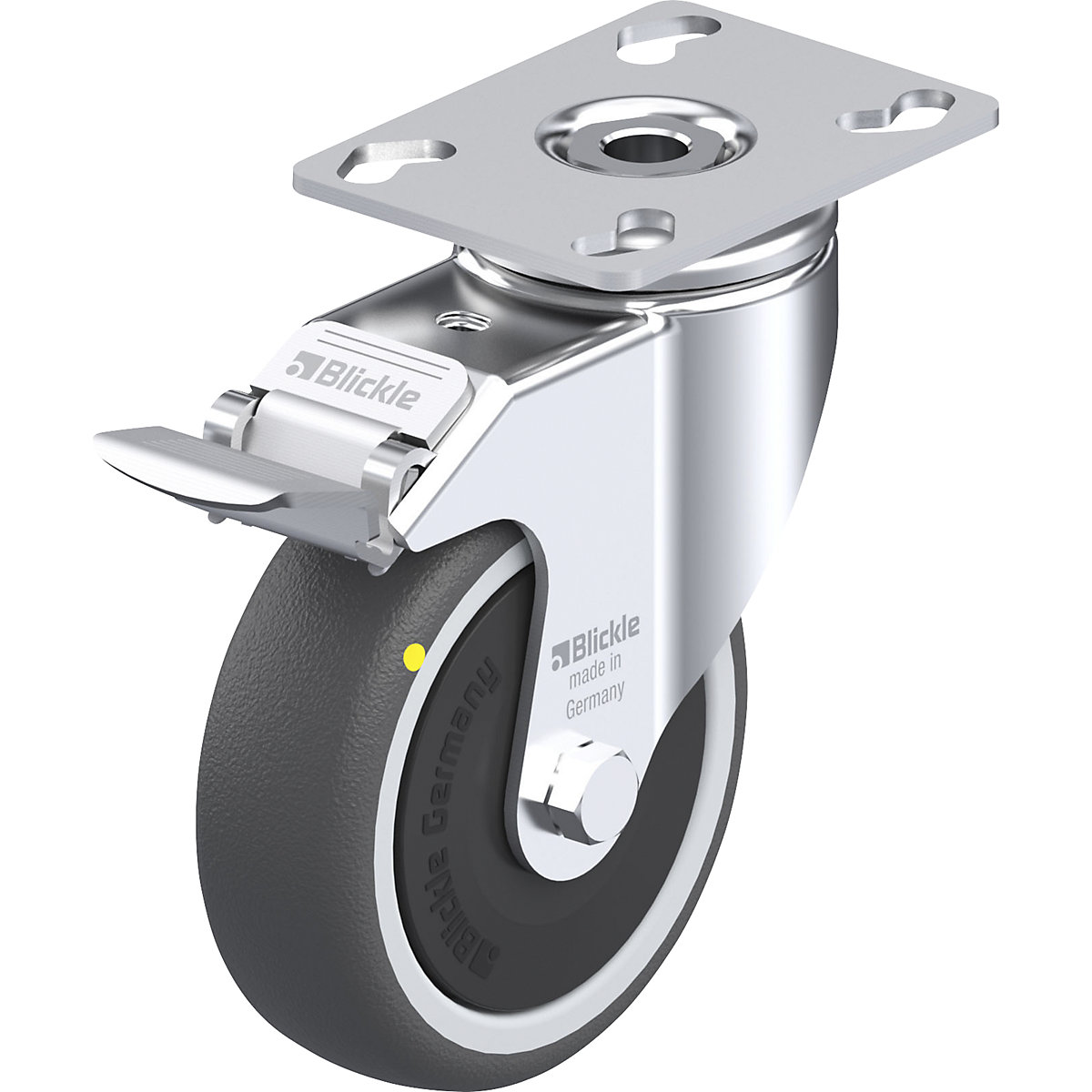

LKPA-PATH-FI-ELS light duty swivel castor – Blickle max. load 120 kg

LKPA-PATH-FI-ELS light duty swivel castor – Blickle

wheel Ø 100 mm, overall height 136 mm

Wheel diameter [mm]
85,90 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
  • Very high chemical resistance to many aggressive media
  • Temperature resistance: –20 °C to +70 °C, reduced max. load above +35 °C
  • Electrically conductive
  • Double ball bearing in the ring bearing
  • Stable centre bolt
  • Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
  • Locking lever stop-fix made of steel
  • Tread: high quality thermoplastic polyurethane (TPU), non-staining
  • Wheel body: high quality nylon 6, does not break, silver grey
  • KA version: with plastic thread guard, small
Light duty swivel castor with mounting plate, with stop-fix stop. Wheel with thermoplastic polyurethane tread, with nylon wheel body, with plastic thread guard, large, electrically conductive, non-marking.
Technical data
Structureswivel castor with wheel stop
Wheel materialpolyurethane
Material of rimnylon
Type of mountingwith top plate
Max. load at 4 km/h120 kg
Wheel width32 mm
Wheel bearingball bearing
Modellight duty castors
Swivel castor plate dimensions90 x 66 mm
Shore hardness94 Shore A
FeatureESD version
Product typeswivel castors
Suppliedassembled
Wheel diameter100 mm
Overall height136 mm
Weight0.83 kg
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.
‌
‌
‌
