Ref.: 762637 10

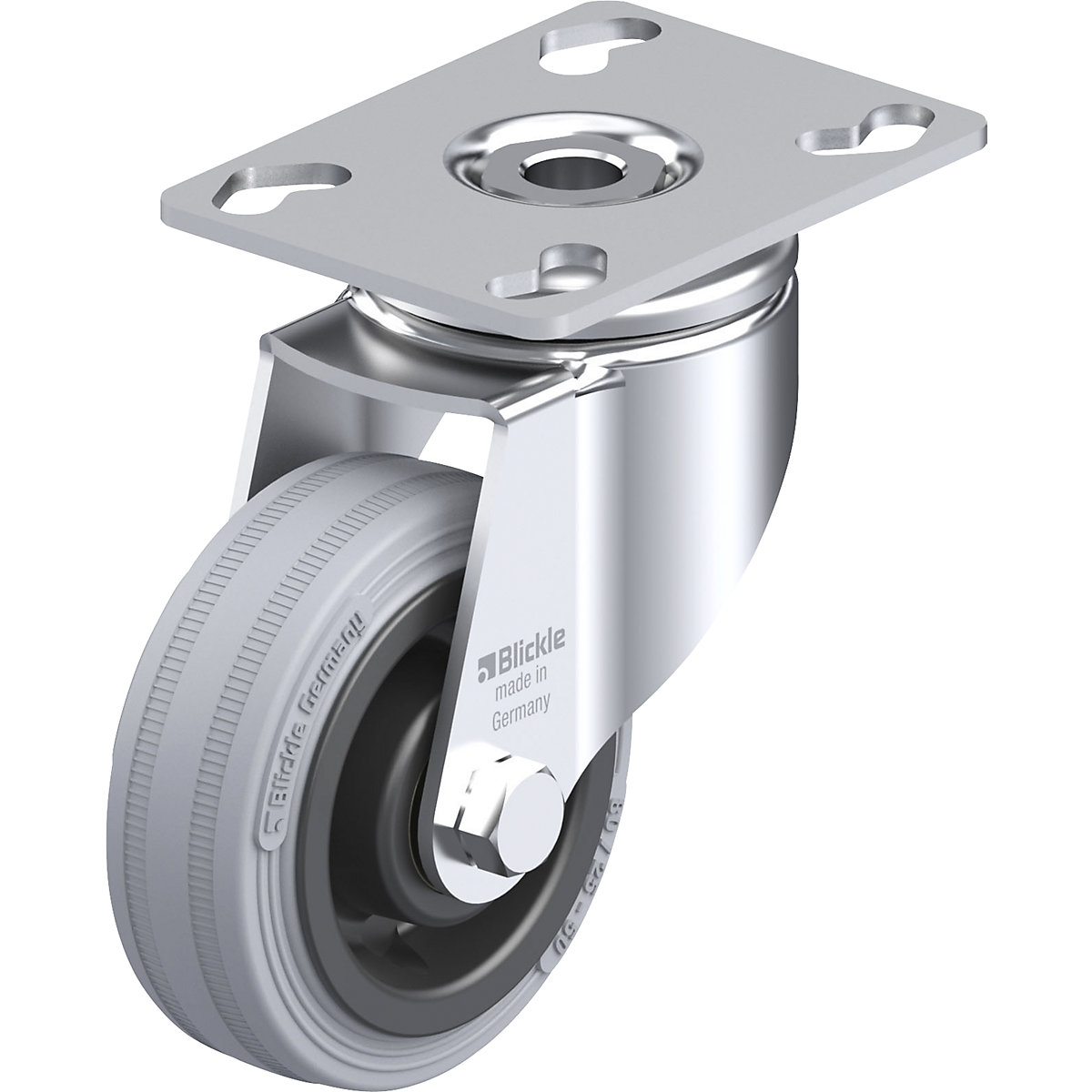

LKPA-VPA light duty swivel castor – Blickle plate dimensions 90 x 66 mm
wheel Ø 80 mm, max. load 80 kg
Wheel diameter [mm]
Max. load at 4 km/h [kg]
Ref.: 762637 10
LKPA-VPA light duty swivel castor – Blickle plate dimensions 90 x 66 mm
wheel Ø 80 mm, max. load 80 kg
wheel Ø 80 mm, max. load 80 kg
Wheel diameter [mm]
Max. load at 4 km/h [kg]
36,50 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Do you have any questions about this product?36,50 €
Price / item (Ex. VAT)
Product description
- Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Double ball bearing in the ring bearing
- Stable centre bolt
- Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
- Steel locking lever
- Tyres: high quality solid rubber, hardness 80 Shore A, grey, non-marking, non-staining
- Rim: high quality nylon 6 or polypropylene for the related electrically conductive product, does not break
- High chemical resistance to many aggressive media, but not to oils
- Temperature resistance: –20 °C to +60 °C, reduced max. load above +30 °C
Light duty swivel castor with mounting plate.
This label from kaiserkraft evaluates products based on different sustainability criteria
Technical data
| Structure | swivel castor |
|---|---|
| Wheel material | rubber |
| Material of rim | nylon |
| Type of mounting | with top plate |
| Wheel bearing | ball bearing |
| Model | light duty castors |
| Swivel castor plate dimensions | 90 x 66 mm |
| Shore hardness | 80 Shore A |
| Product type | swivel castors |
| Supplied | assembled |
| Wheel diameter | 80 mm |
| Max. load at 4 km/h | 80 kg |
| Wheel width | 25 mm |
| Overall height | 111 mm |
| Weight | 0.63 kg |
