Ref.: 762547 10

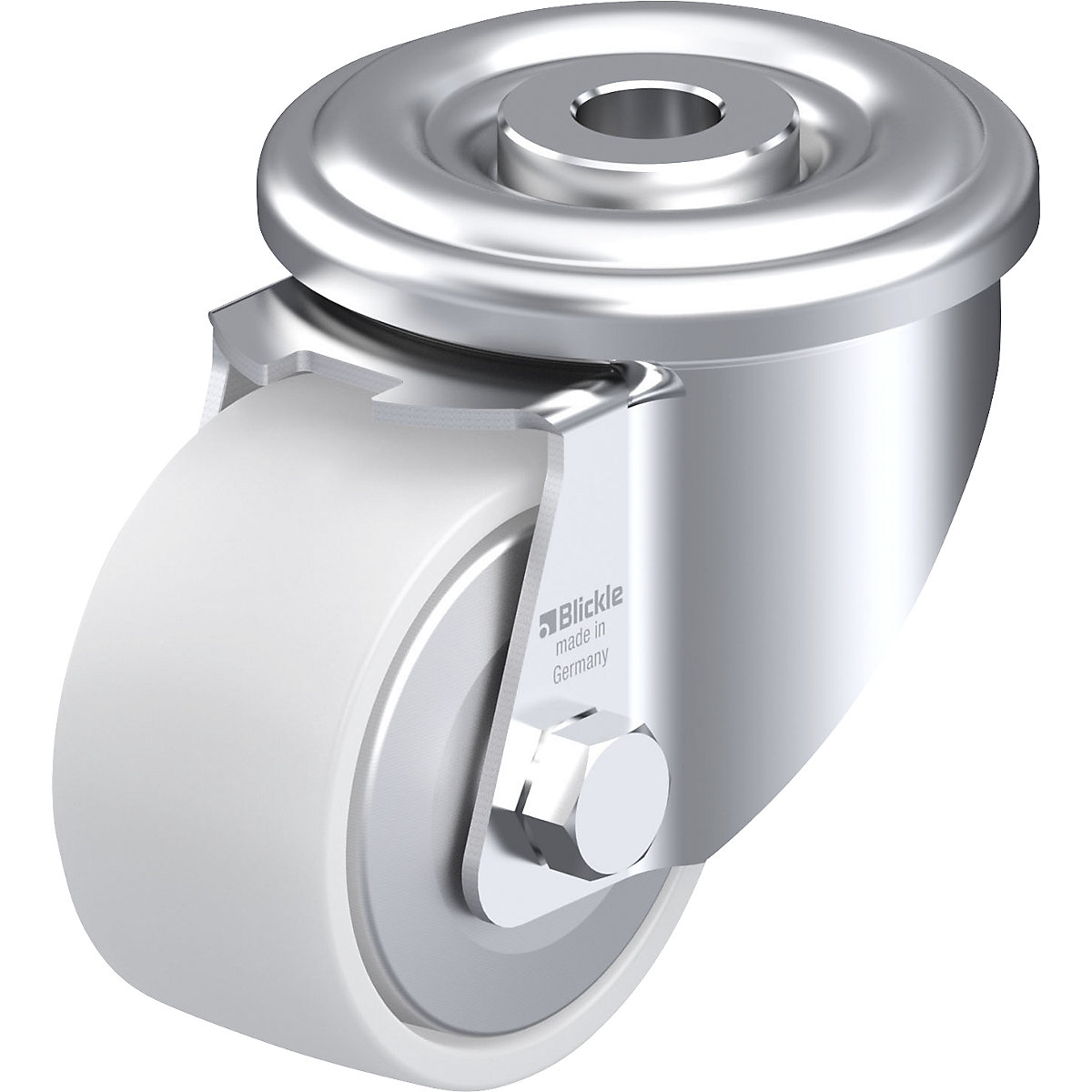

Sheet steel swivel castor – Blickle wheel Ø x W 60 x 32 mm, bolt hole

Sheet steel swivel castor – Blickle

swivel castor

40,90 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
  • Double ball bearing in the ring bearing
  • Stable centre bolt
  • Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
  • High quality nylon 6, does not break, hardness 70 Shore D, natural white
  • With plastic thread guard, large
  • High chemical resistance to many aggressive media
  • Temperature resistance: –20 °C to +80 °C, reduced max. load above +35 °C
Sheet steel swivel castor with bolt hole.
Technical data
Wheel diameter60 mm
Structureswivel castor
Wheel materialplastic
Material of rimnylon
Type of mountingwith bolt hole
Max. load at 4 km/h150 kg
Wheel width32 mm
Overall height80 mm
Wheel bearingball bearing
Modeltransport castors
Swivel castor plate dimensions70 mm
Shore hardness70 Shore D
Product typeswivel castors
Suppliedassembled
Weight0.48 kg
