Ref.: 986042 10

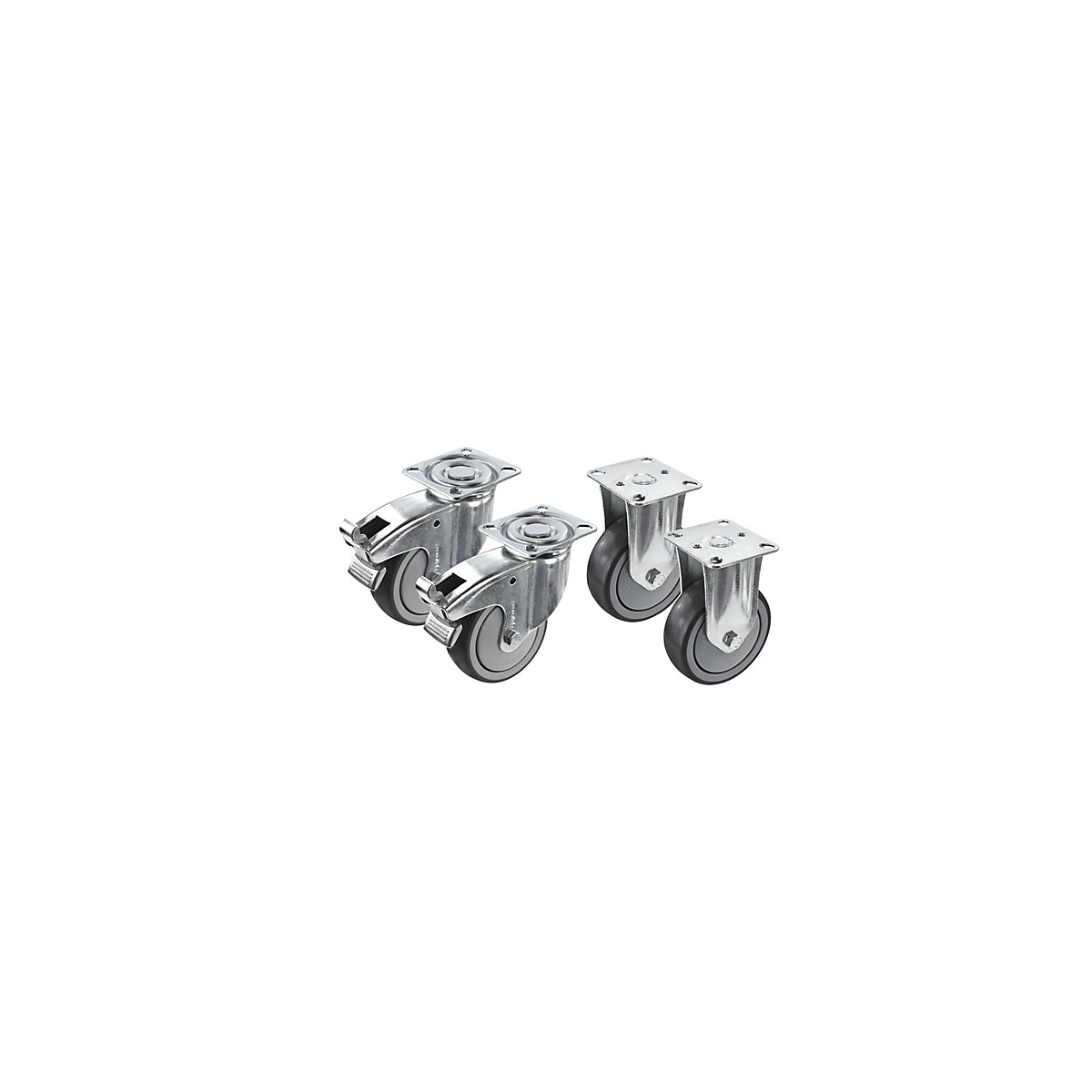

Thermoplastic rubber tyre, set offer – Proroll 2 swivel castors with wheel stops and 2 fixed castors, mounting plate

Thermoplastic rubber tyre, set offer – Proroll

wheel Ø x width 50 x 18 mm

Wheel diameter [mm]
60,90 €
Price / item (Ex. VAT)
Availability: 3-4 Working Days
Product description
  • Non-leak tyres
  • Low rolling resistance, smooth running
  • Non-marking tyres, hardwearing
  • Hardness 85 Shore A
  • Temperature resistant from –10 °C to +70 °C
Also available as electrically conductive models on request.
Swivel bearing with double ball race. Especially cost effective when purchased as a set.
Low rolling resistance
Low rolling resistance
Non-marking
Non-marking
Technical data
Structureswivel castor with double stop fixed castor
Wheel materialrubber – thermoplastic rubber elastomer (TPE)
Material of rimpolypropylene
Type of mountingwith top plate
Housing materialsteel
Scope of delivery2 swivel castors with double stops, 2 fixed castors
Wheel bearingball bearing
Temperature resistance–10 °C to +70 °C
Modellight duty castors
Housing surfacezinc plated
Shore hardness85 A
Featurenon-marking low wear low rolling resistance low swivel resistance
Product typeswivel castors
Suppliedassembled
Wheel diameter50 mm
Max. load at 4 km/h40 kg
Wheel width18 mm
Overall height71 mm
Swivel castor offset25 mm
Screw hole diameter6.3 mm
Fixed castor plate dimensions56 x 56 mm
Swivel castor plate dimensions60 x 60 mm
Screw hole spacing46 / 38 x 46 / 38 mm
Weight0.88 kg
