Ref.: 568364 10

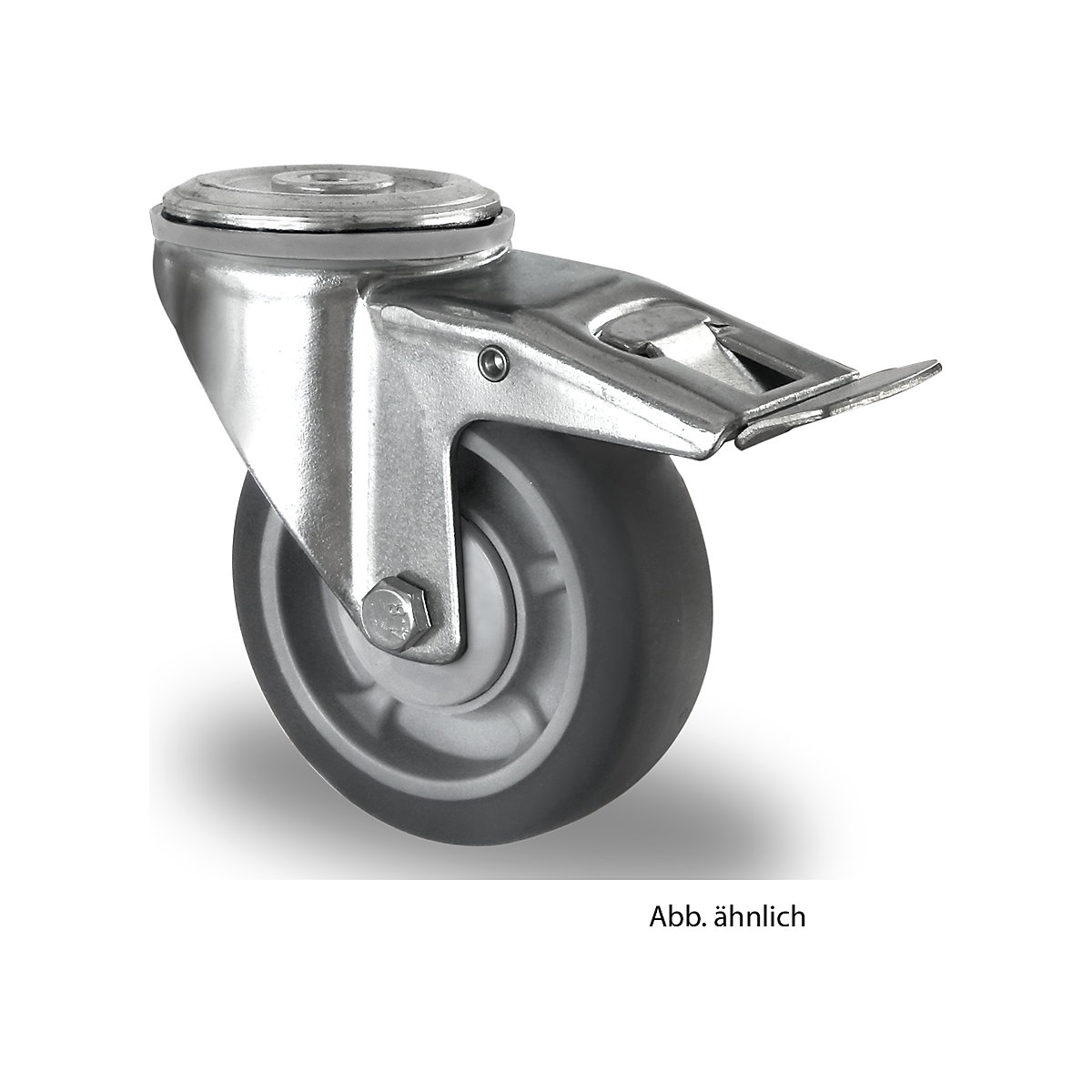

TPE tyres on PP rim, 2+ items – eurokraft basic wheel Ø x width 125 x 35 mm

TPE tyres on PP rim, 2+ items – eurokraft basic

swivel castor

Low rolling resistance
Low rolling resistance
Non-marking
Non-marking
Structure
Wheel diameter [mm]
Type of mounting
16,75 €
Price / item (Ex. VAT)
Total (Ex. VAT)
33,50 €
Availability: 9–12 Working Days
Product description
  • Do not damage floors, non-marking
  • Low rolling resistance, quiet, very smooth running
  • Temperature resistant from –20 °C to +60 °C
Thermoplastic elastomer tyres on polypropylene rim.
Sheet steel housing, electrolytically zinc plated in blue. Swivel bearing with dual turntable bearing. Small plastic thread guard. Ball bearings.
TPE wheels may leave oily marks on open-pored, unsealed and absorbent flooring.
We are happy to advise you about use on parquetry, stone or other sensitive flooring.
Technical data
Modeltransport castors
Wheel materialrubber – thermoplastic rubber elastomer (TPE)
Material of rimpolypropylene
Housing materialsteel
Wheel bearingball bearing
Temperature resistance–20 °C to +60 °C
Housing surfacezinc plated by galvanization
Shore hardness65 – 70
Suppliedassembled
Structureswivel castor
Wheel diameter125 mm
Type of mountingwith top plate
Max. load at 4 km/h165 kg
Swivel castor offset40 mm
Screw hole diameter10 mm
Hub length50 mm
Hub bore10 mm
Screw hole spacing80/77 x 60 mm
Swivel castor plate dimensions105 x 80 mm
Fixed castor plate dimensions105 x 80 mm
Overall height155 mm
Wheel width35 mm
Product typeswivel castors
Weight0.774 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

4.18kg CO₂e
LCA Raw Material Extraction & Processing
51.3%
LCA packaging production
1.5%
LCA Product Manufacturing
34.3%
LCA Inbound and Outbound Transportation
12.9%
‌
‌
‌
‌
