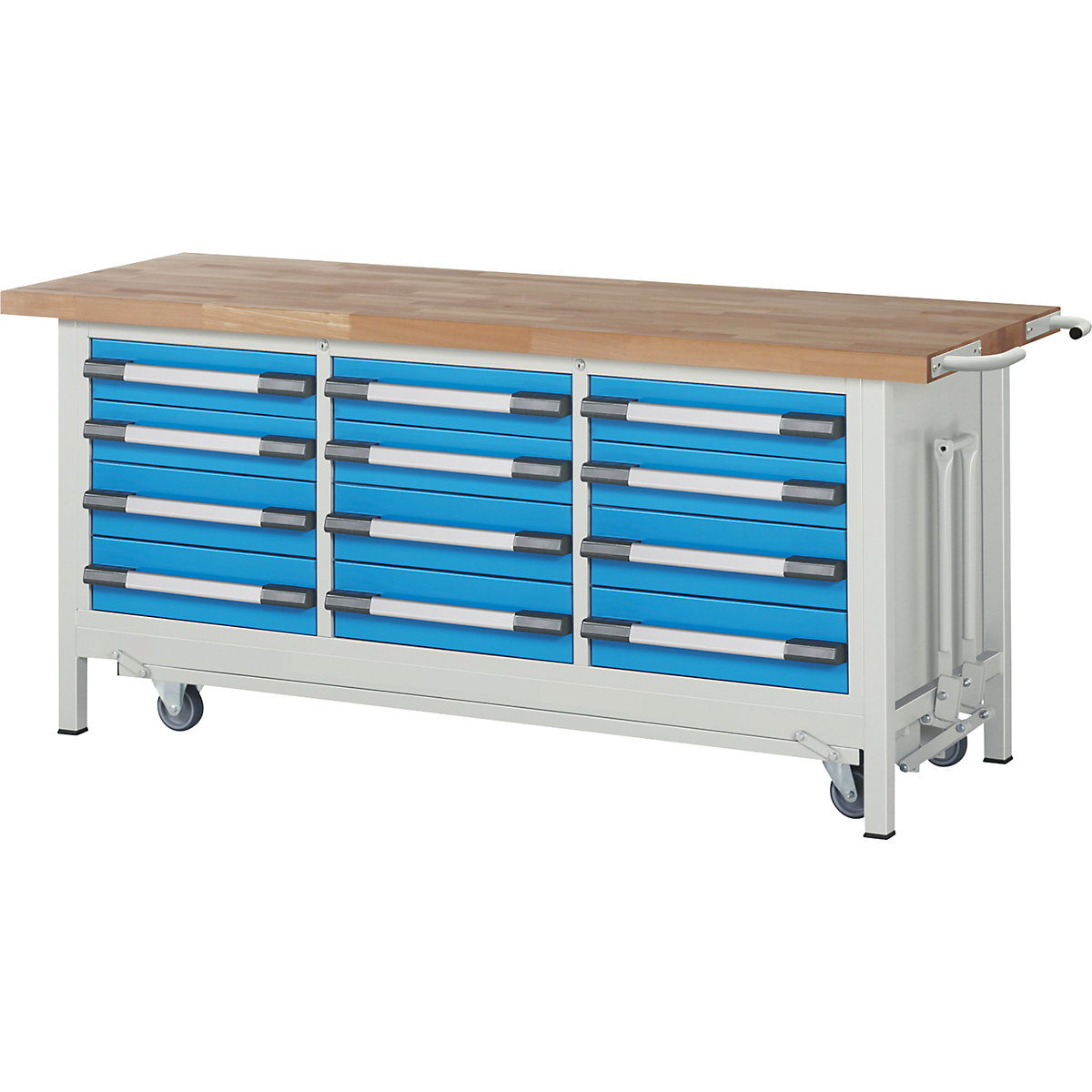

Mobile and lowerable workbench, Series 8000 frame construction – eurokraft pro 12 drawers

Solid beech worktop, 40 mm thick. Surface protection provided by environmentally friendly Danish oil. Worktop depth 700 mm.
System base frame as 4 leg welded frame with two pairs of frame feet made of profiled steel tubing (45 x 45 x 2 mm) incl. cross braces (top and bottom). Powder coated in light grey RAL 7035. Frame feet at bottom with end element incl. non-slip stud for a stable footing. Wheeled base installed on the bottom with eccentric lever (right). Operation of the eccentric lever only possible up to a max. load of 300 kg. The wheeled base can be retracted and extended using the eccentric lever. Wheeled base with 2 fixed and 2 swivel castors (castor diameter 100 mm, overall height 125 mm, tread made of thermoplastic rubber (non-marking, 85° shore), wheel body made of polypropylene). Fixed castors are installed on the left side, swivel castors on the right side (secured using wheel plate). Bar handle/push handle (enclosed loose). Powder coating. Max. distributed load 1250 kg (or max. 450 kg when the wheeled base is extended). Delivered fully assembled.

1 triple base container, width x depth x height 1710 x 650 x 620 mm, with the following divisions:
Left: 4 drawers 2 x 120, 2 x 150 mm.
Centre: 4 drawers 2 x 120, 2 x 150 mm.
Right: 4 drawers 2 x 120, 2 x 150 mm.
Internal drawer width x depth 490 x 560 mm. Max. load 100 kg. 90% extension.
