Ref.: 870301 10

Drawer for ESD heavy-duty cupboard – LISTA WxD 918 x 459 mm, max. load 200 kg

Drawer for ESD heavy-duty cupboard – LISTA

front height 75 mm, light grey RAL 7035

Height [mm]
New
495,00 €
Price / item (Ex. VAT)
Availability: 5-6 weeks
Product description

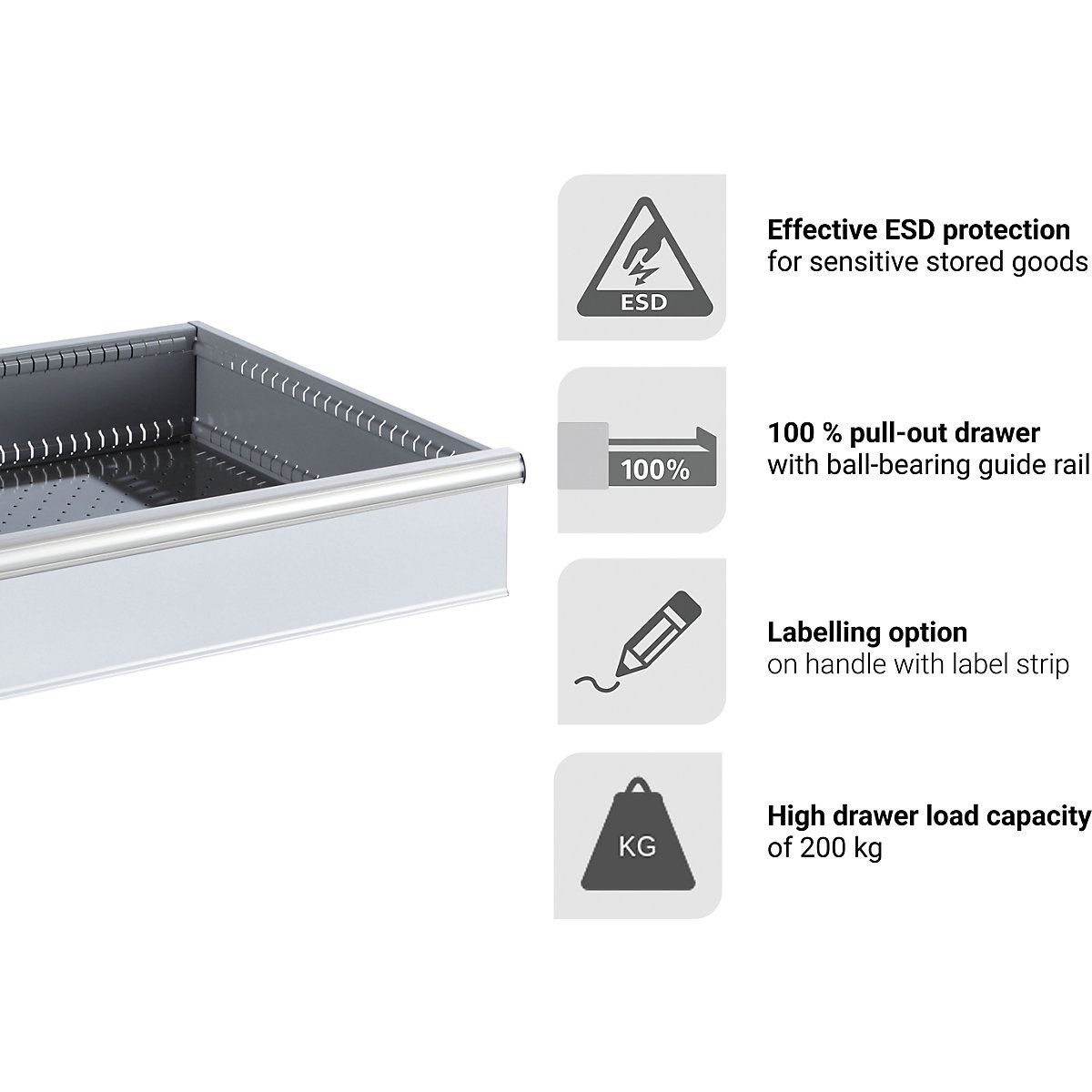

  • Effective ESD protection for sensitive stored goods
  • Full extension with ball-bearing guide rail
  • With practical handle and label strip
  • High load capacity: 200 kg per drawer
  • Drawer walls with a slotted grid for optional division
Store sensitive and heavy components correctly – in the drawer suitable for the ESD heavy-duty cabinet from Lista. This allows the cabinet to be flexibly adapted, the storage space to be used optimally, and reliable ESD protection to be guaranteed.

The drawer is made of powder coated sheet steel and boasts a high max. load of 200 kg. Particularly suitable for heavy electronic and ESD-sensitive components in production, storage and assembly areas.

For a better overview, the ESD drawer is equipped with a full extension with a ball-bearing guide rail. A continuous handle strip ensures easy handling. And thanks to the integrated label strip with a transparent cover, the drawer contents can be clearly labelled – for more order and structure.

The inner sides of the drawer are provided with a slotted grid in units (E of 17 mm) and the drawer base is perforated. This makes further individual and optional partitioning possible. Small parts in particular can be sorted even better in this way. You can find suitable accessories in our webshop.
Anti-static
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Anti-static. This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Technical data
Width918 mm
Depth459 mm
For width1100 mm
For depth641 mm
Materialsteel
Finishpowder coated
Colourlight grey RAL 7035
Max. load200 kg
Drawer extension100% extendable
Drawer guideball bearing guide
Product typeaccessories
Suppliedassembled
Height75 mm
Front height75 mm
Weight13 kg
Sustainability
Recyclable
Recyclable products are products that can be recycled at the end of their service life, providing they are separated into all their individual components in designated recycling facilities. This means that the individual components are made of materials that can be exploited using the recycling process and be reprocessed into new products. Recyclable products help reduce the environmental impact of waste and to conserve resources.
‌
‌
‌
‌
