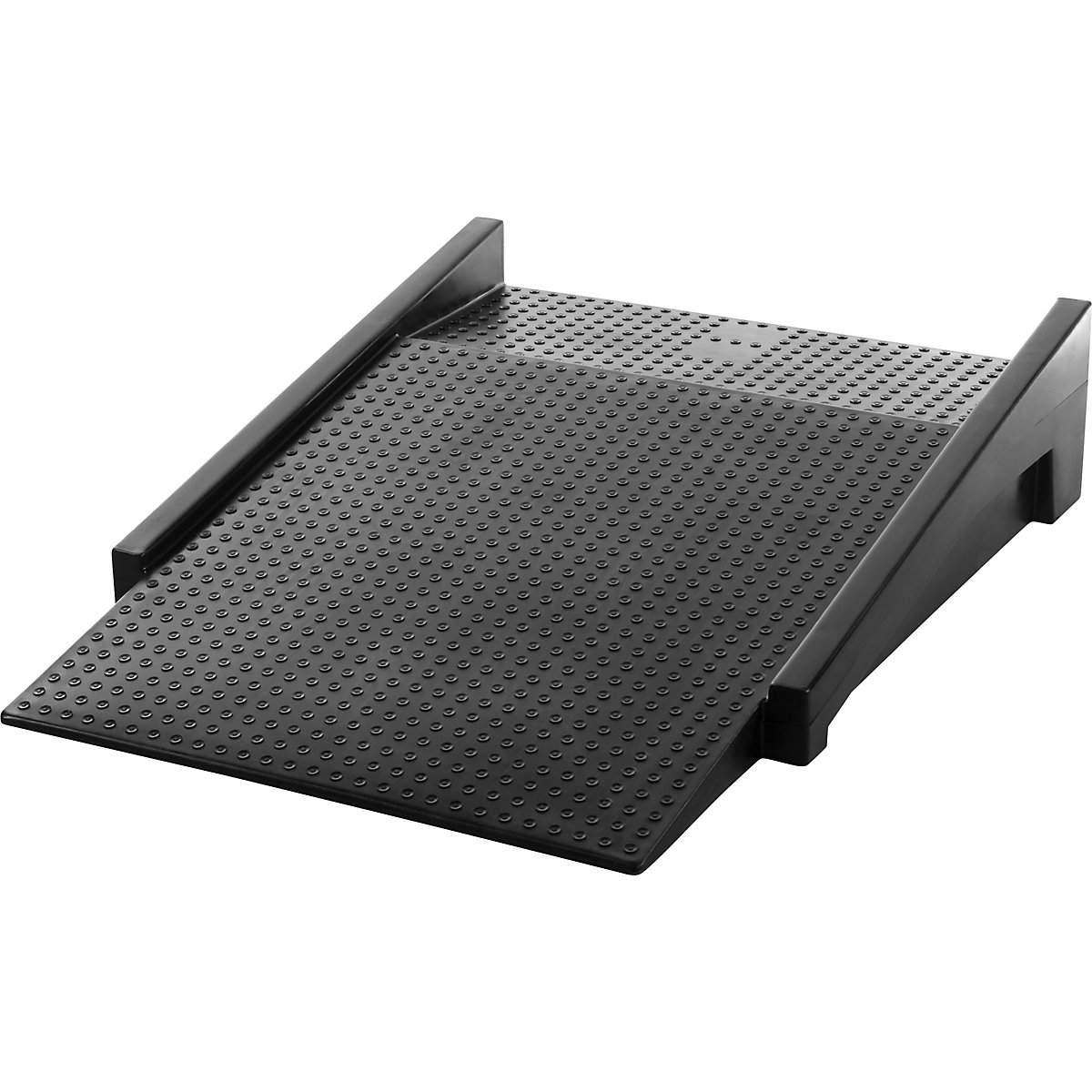

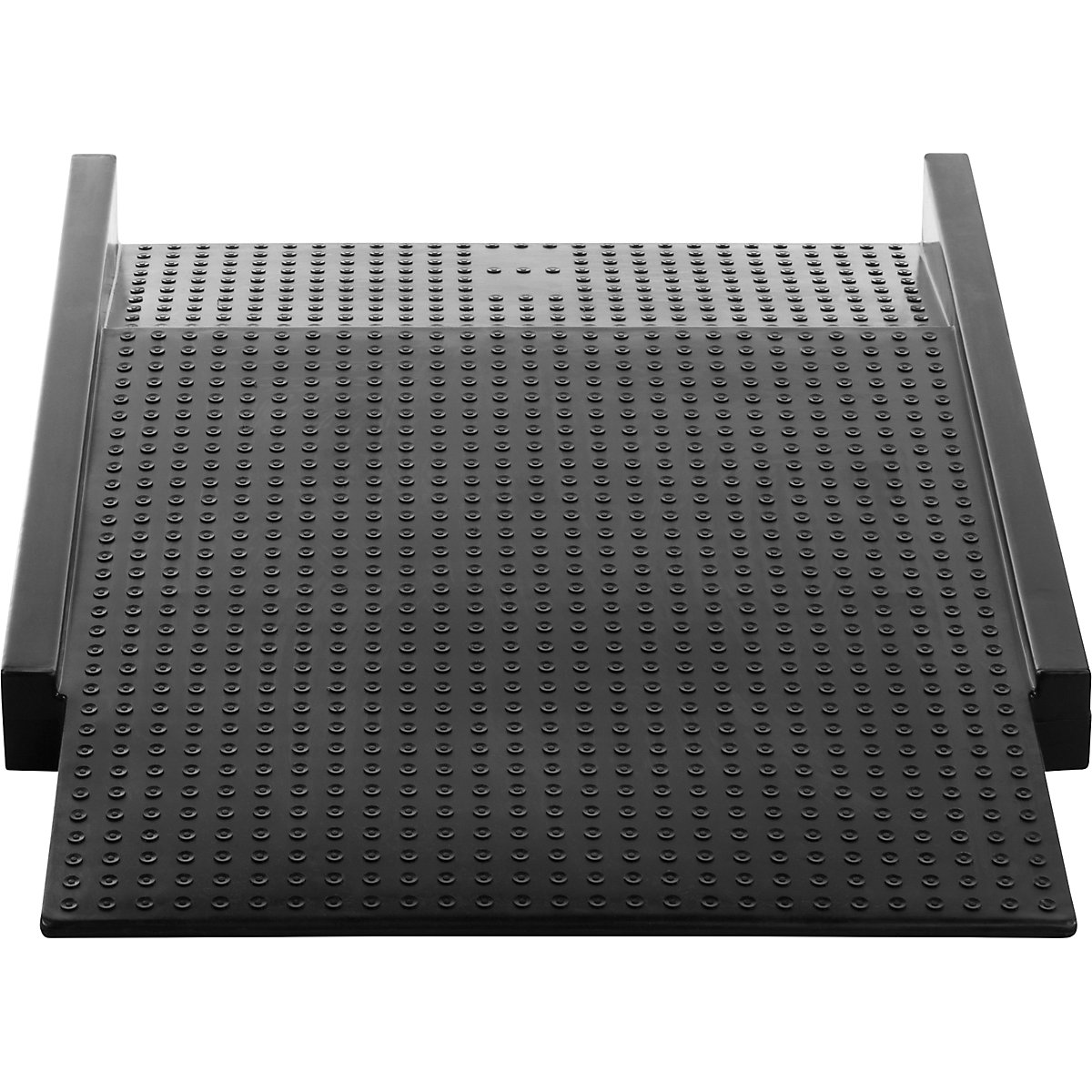

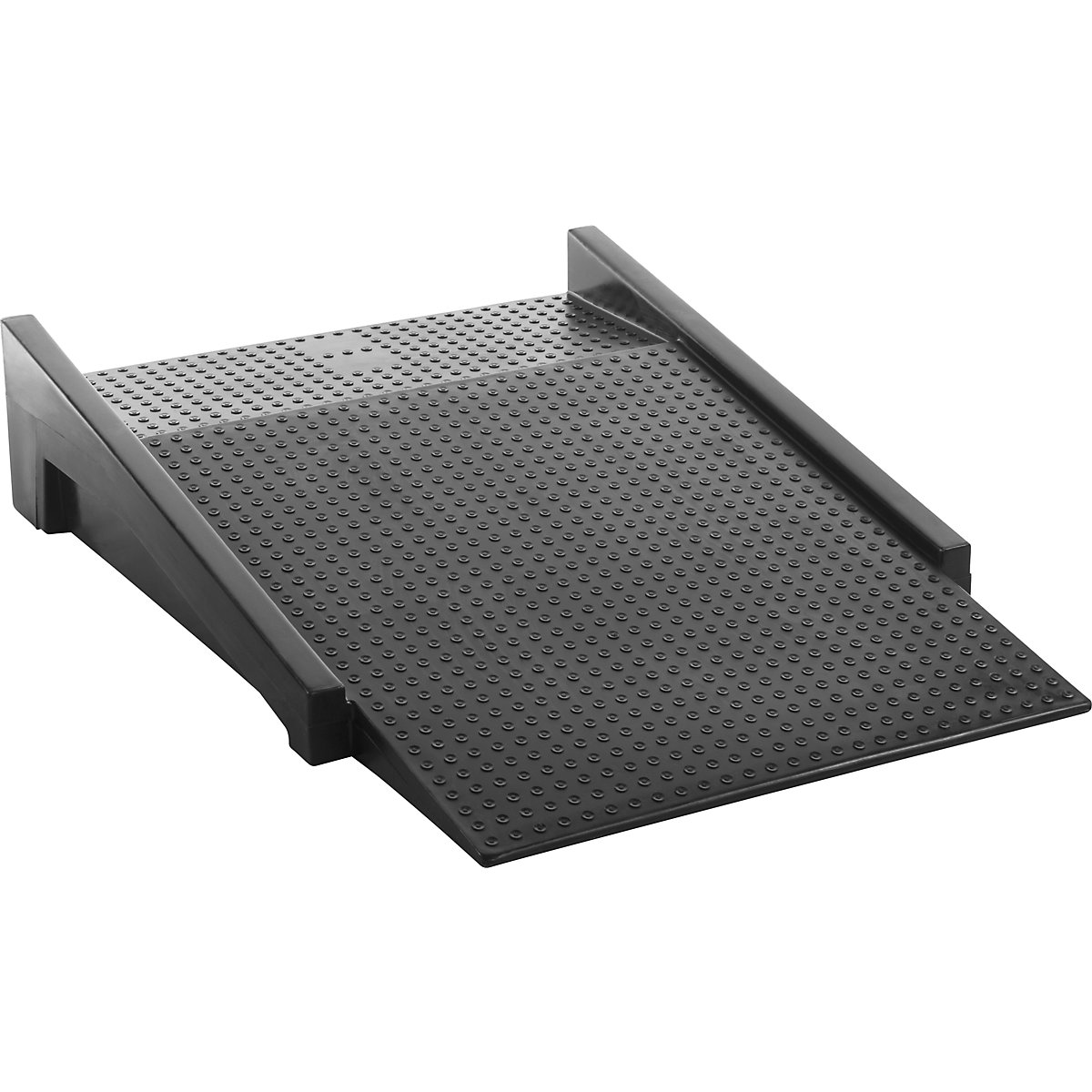

Modular universal loading ramp LxWxH 1000 x 670 x 150 mm
- Suitable for the most popular drum trucks, ergonomic slope of 11°, anti-slip surface
- Extremely robust – for demanding industrial applications, indoors and outdoors
- Several ramp components can be connected to each other and be individually expanded
- For sump trays, depots etc. with different heights
- Integrated guidance system for additional safety
Resistant to aggressive, corrosive chemicals
Ref.: 546865 10
Modular universal loading ramp, LxWxH 1000 x 670 x 150 mm, black
Bulk discount
| Quantity | Price/item | You save | |
|---|---|---|---|
| 1 | 123,60 € | - | |
| 2 | 115,10 € | 6,88% |
Bulk discount
| Quantity | Price/item | You save | |
|---|---|---|---|
| 1 | 123,60 € | - | |
| 2 | 115,10 € | 6,88% |
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Monday to Friday from 8.00 am to 4.00 pm CET
Product description
Robust construction made of chemical, temperature and UV resistant, hardwearing polyethylene (MDPE).

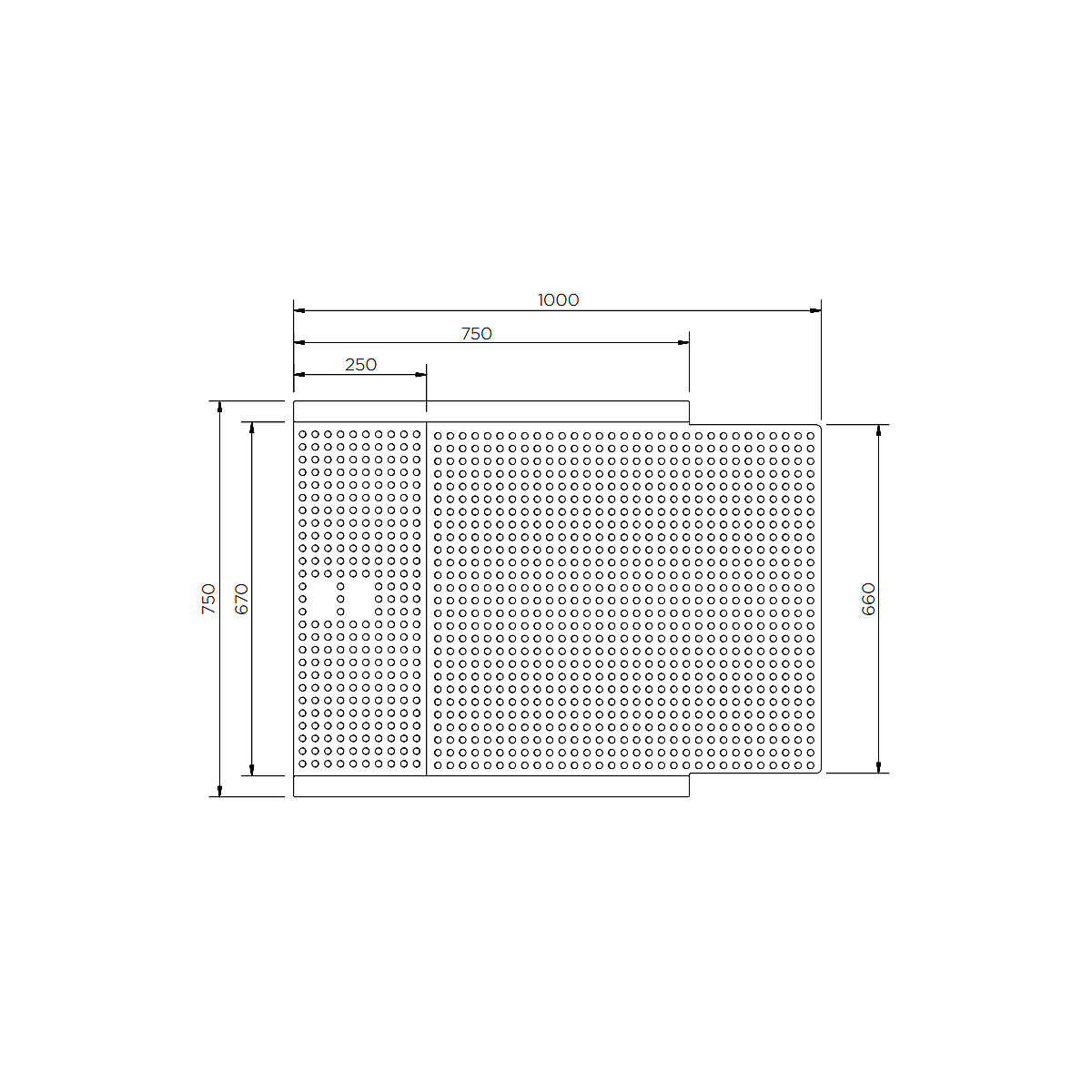

Access width 670 mm, total width 750 mm.

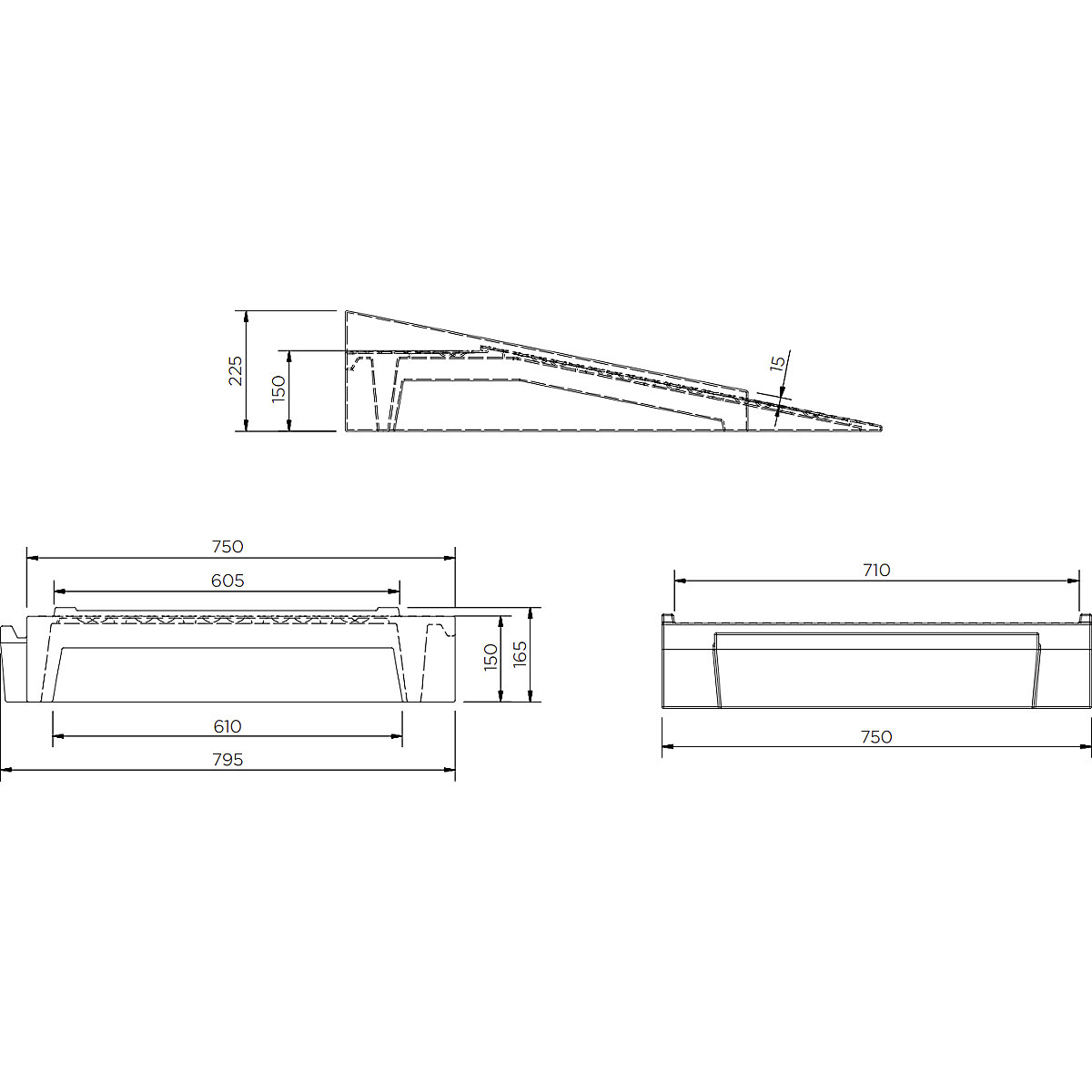

Several ramp modules can be connected to each other and platform modules (see Accessories) can be placed underneath them to combine them into loading ramps with a height of 150 – 450 mm and length of 1000 – 2500 mm:
1 ramp module:
Height 150 mm, length 1000 mm
2 ramp modules + 1 platform module:
Height 300 mm, length 1750 mm
3 ramp modules + 3 platform modules:
Height 450 mm, length 2500 mm
Max. load 250 kg.
Fast, easy and safe self assembly.
Access width 670 mm, total width 750 mm.
Several ramp modules can be connected to each other and platform modules (see Accessories) can be placed underneath them to combine them into loading ramps with a height of 150 – 450 mm and length of 1000 – 2500 mm:
1 ramp module:
Height 150 mm, length 1000 mm
2 ramp modules + 1 platform module:
Height 300 mm, length 1750 mm
3 ramp modules + 3 platform modules:
Height 450 mm, length 2500 mm
Max. load 250 kg.
Fast, easy and safe self assembly.
- Suitable for the most popular drum trucks, ergonomic slope of 11°, anti-slip surface
- Extremely robust – for demanding industrial applications, indoors and outdoors
- Several ramp components can be connected to each other and be individually expanded
- For sump trays, depots etc. with different heights
- Integrated guidance system for additional safety
Resistant to aggressive, corrosive chemicals
Technical data
| Supplied | assembled |
|---|---|
| Width | 670 mm |
| Colour | black |
| Weight | 9 kg |
| Height | 150 mm |
| Length | 1000 mm |
| Material | polyethylene (MDPE) |
| Product type | accessories for 200 l sump trays |
| Max. load | 250 kg |
