Industrial safety door, 100% recyclable – Boplan DOUBLE AXES GATE

Industrial safety door for fall protection and cordoning off work areas. The AXES GATE is made entirely of special plastic that was developed in-house (HI-TEP). This 100% recyclable material plays a major role in sustainability.

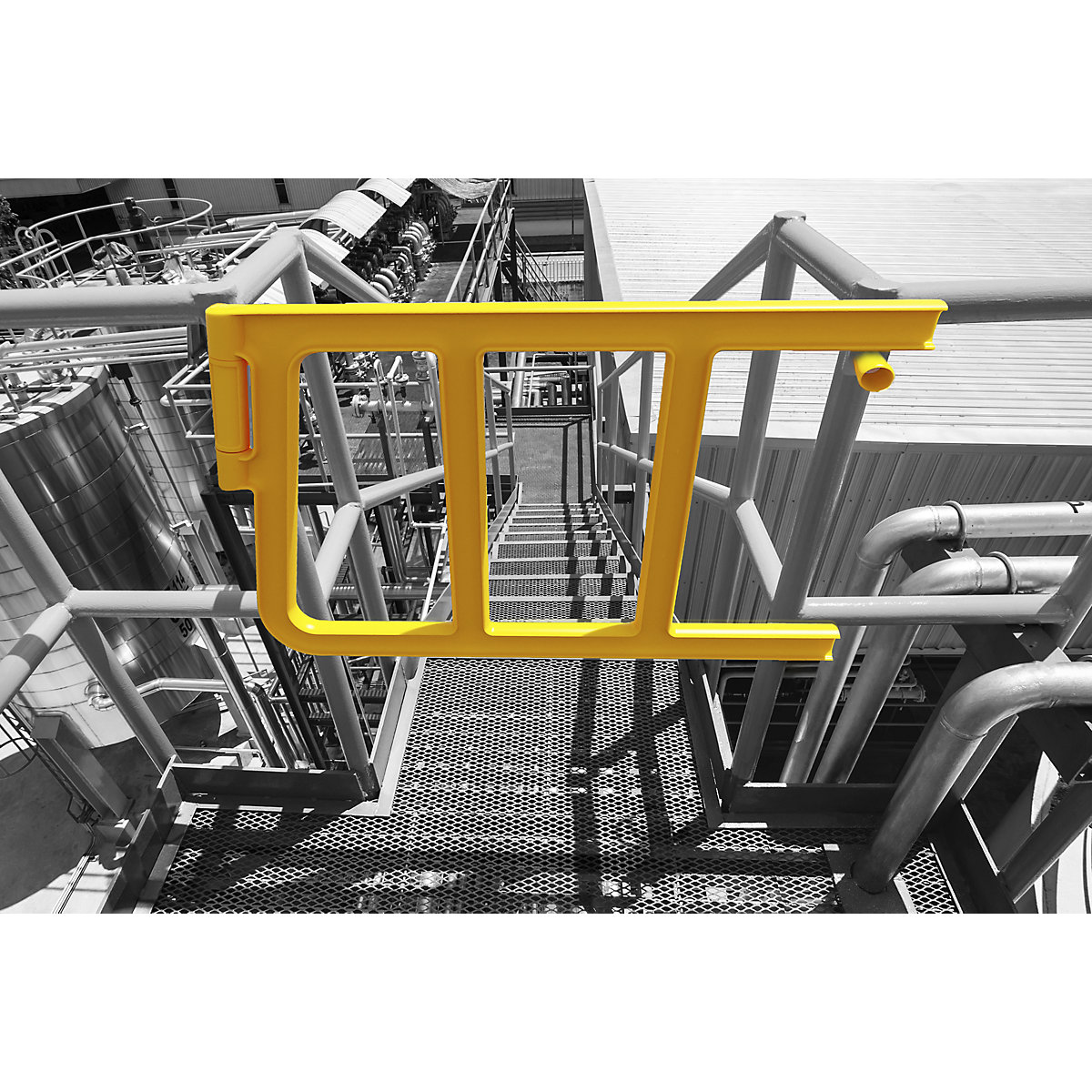

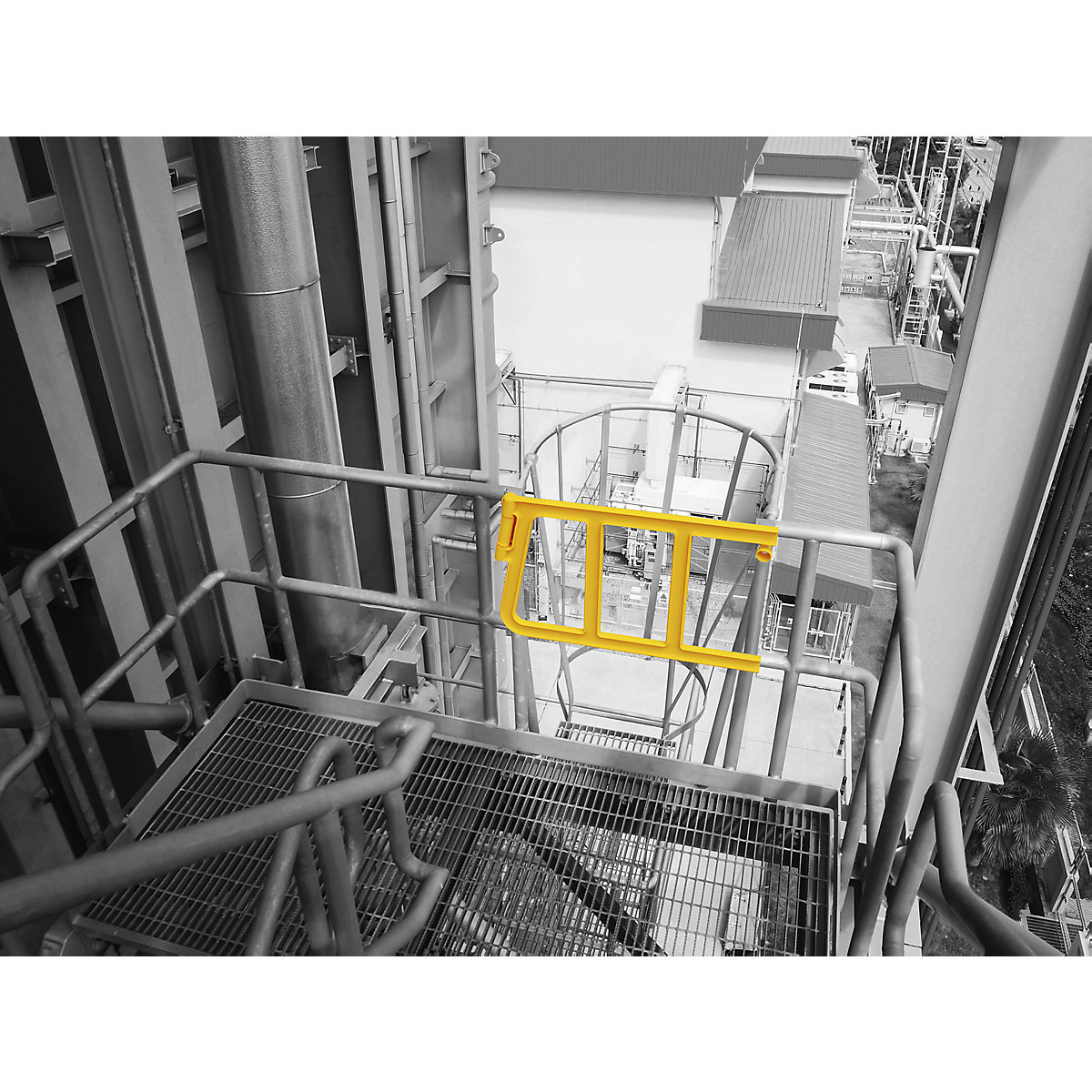

Falling from a height is a real danger in industrial environments. The DOUBLE AXES GATE prevents this accident risk. Use it to secure fixed ladders and platforms, for example, or to cordon off machine and maintenance areas.

With a passage width of 950 mm, the DOUBLE AXES GATE fulfils the safety directive EN 14122-3, chapter 8.2 (stability tests and TÜV certified*) and EN 14122-3, chapter 7.1.4 (handrail and knee rail). To fulfil the requirements specified in ISO 14122-3 and OSHA 1910-1910.29, an overhang of 80 mm from the door opening and a sill height of 1100 mm from floor level must be maintained. In addition, the DOUBLE AXES GATE with a passage width of 820 mm fulfils the safety standard B-92-1143 and NBN-ISO 7892:1992 (Large Soft Body Test) and is also certified by TÜV*. An overlap of 125 mm to the door opening must be provided for this, and an additional stop is to be installed above the knee bar.

*Certificate available upon request.
