Ref.: 762778 10

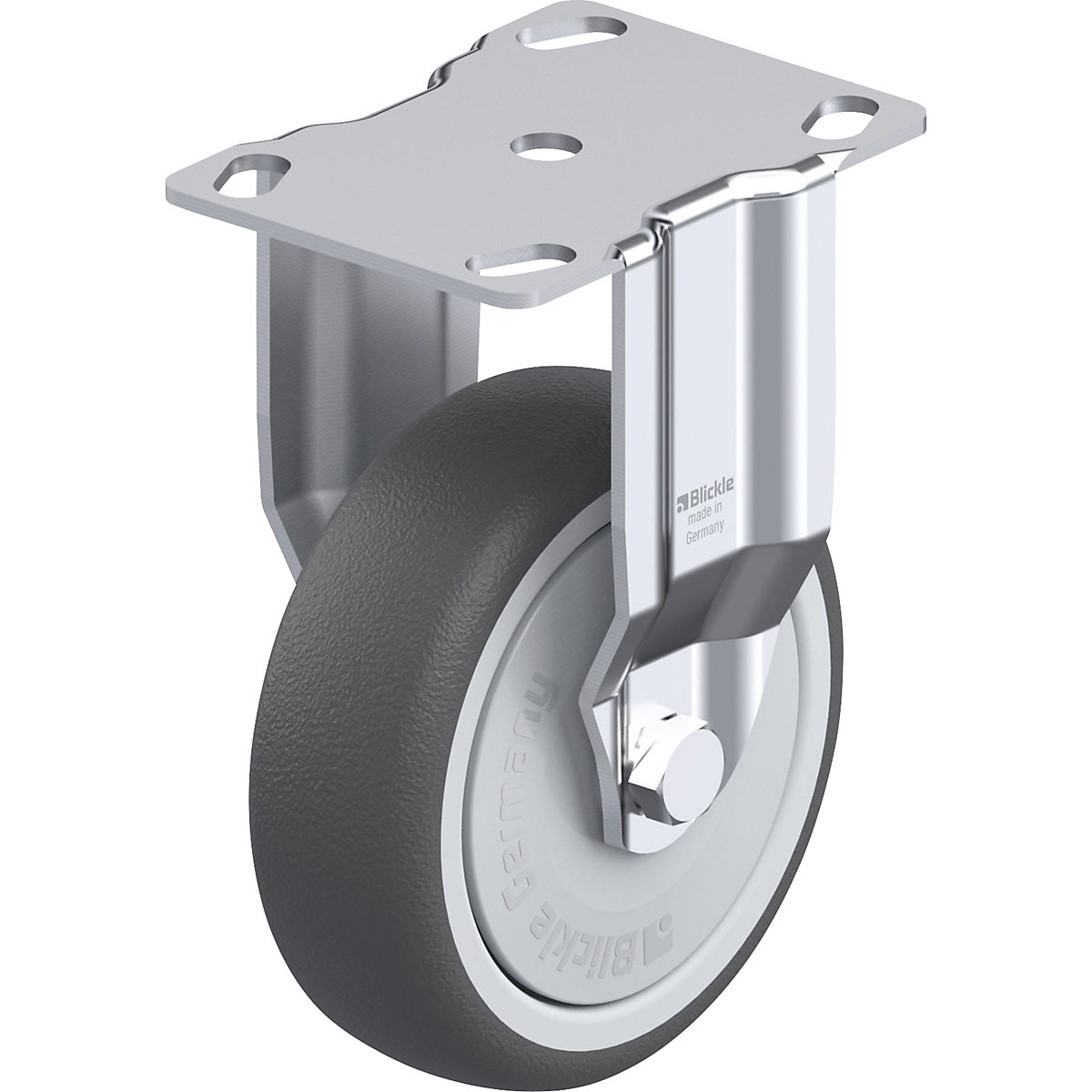

BKPA-PATH light duty fixed castor – Blickle plate dimensions 90 x 66 mm
wheel Ø 100 mm, max. load 120 kg
Wheel diameter [mm]
Ref.: 762778 10
BKPA-PATH light duty fixed castor – Blickle plate dimensions 90 x 66 mm
wheel Ø 100 mm, max. load 120 kg
wheel Ø 100 mm, max. load 120 kg
Sustainability score:Wheel diameter [mm]
40,90 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
40,90 €
Price / item (Ex. VAT)
40,90 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
Product description
- Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Tread: high quality thermoplastic polyurethane (TPU), non-marking
- Wheel body: high quality nylon 6, does not break, silver grey
- With plastic thread guard, large
- Very high chemical resistance to many aggressive media
- Temperature resistance: –20 °C to +70 °C, reduced max. load above +35 °C
Light duty fixed castor with mounting plate. Wheel with thermoplastic polyurethane tread, with nylon wheel body, with plastic thread guard, large.
Technical data
| Structure | fixed castor |
|---|---|
| Model | light duty castors |
| Wheel material | polyurethane |
| Material of rim | nylon |
| Type of mounting | with top plate |
| Housing material | steel |
| Max. load at 4 km/h | 120 kg |
| Wheel bearing | ball bearing |
| Shore hardness | 94 Shore A |
| Fixed castor plate dimensions | 90 x 66 mm |
| Wheel width | 32 mm |
| Product type | fixed castors |
| Supplied | assembled |
| Wheel diameter | 100 mm |
| Overall height | 136 mm |
| Weight | 0.56 kg |
| Manufacturer / EU responsible Person (GPSR) |
