Ref.: 611033 10

X-Guard door add-on kit (without door wall element, supports and locking mechanism) – Axelent single door as sliding door

X-Guard door add-on kit (without door wall element, supports and locking mechanism) – Axelent

HxW 2500 x max. 1000 mm

Width [mm]
529,00 €
Price / item (Ex. VAT)
Availability: 5-6 weeks
Product description

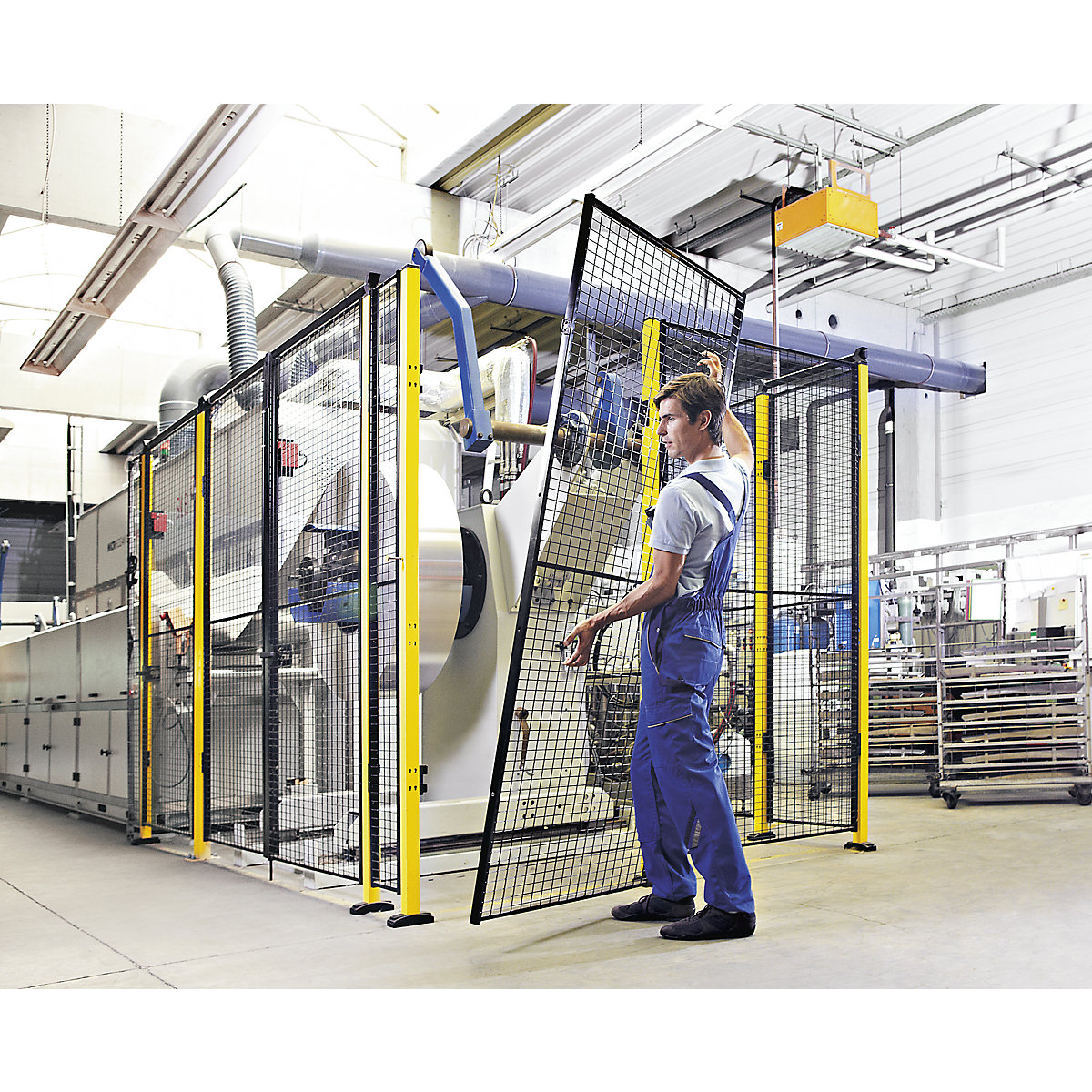

  • X-GUARD – the protective fencing system for machines, systems, robots, storage and logistics – 200 mm safety clearance from source of danger
  • Fulfils machine directive 2006/42/EC
  • Regulation compliant mesh size of 30 x 50 mm – cannot be reached through
  • High quality powder coating
  • Add-on door kit converts wall sections into single/double hinged doors or sliding doors
  • Quick and easy assembly
Hinged doors and sliding doors are available in single and double door versions. They are designed to enable versatile mounting options. At least one wall section and two uprights are required for the add-on door kits offered.
Please order together with the necessary X-GUARD CLASSIC wall sections and uprights.

Lock housing and handle (for the installation of a Euro lock cylinder provided by the customer) can be included with your order as an accessory. A Euro lock system cannot be fitted at a later stage.
X-Lock system incl. suitable safety switch is available on request.
With mechanical splint which holds the doors open.
The mechanism requires intentional activation from outside to open and close doors.
From inside, X-Lock can always be opened, but never closed.
In accordance with EN ISO 12100, section 5.5.3.
Important ordering information for add-on door kits
When ordering doors kits, the required X-GUARD CLASSIC door panels, uprights and the corresponding locking mechanism must be ordered at the same time.
Technical data
Height2500 mm
Door typesliding door
Door hinge positionleft or right
Modelsingle door
Finishpowder coated
Mesh size30 x 50 mm
Thickness of wire3.0 / 2.5 mm
Materialrectangular steel pipe steel wire
Frame profile20 x 30 mm
Lock typewithout lock
Stiffening profile25 x 15 mm
Colourgraphite black RAL 9011
Product typemachine protective fencing made of steel
Width1000 mm
Suppliedflat pack
Weight9.28 kg
Pictorial instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

49.29kg CO₂e
LCA Raw Material Extraction & Processing
48.7%
LCA packaging production
1.5%
LCA Product Manufacturing
42.6%
LCA Inbound and Outbound Transportation
7.3%
‌
‌
‌
‌
‌
