Ref.: 570798 10

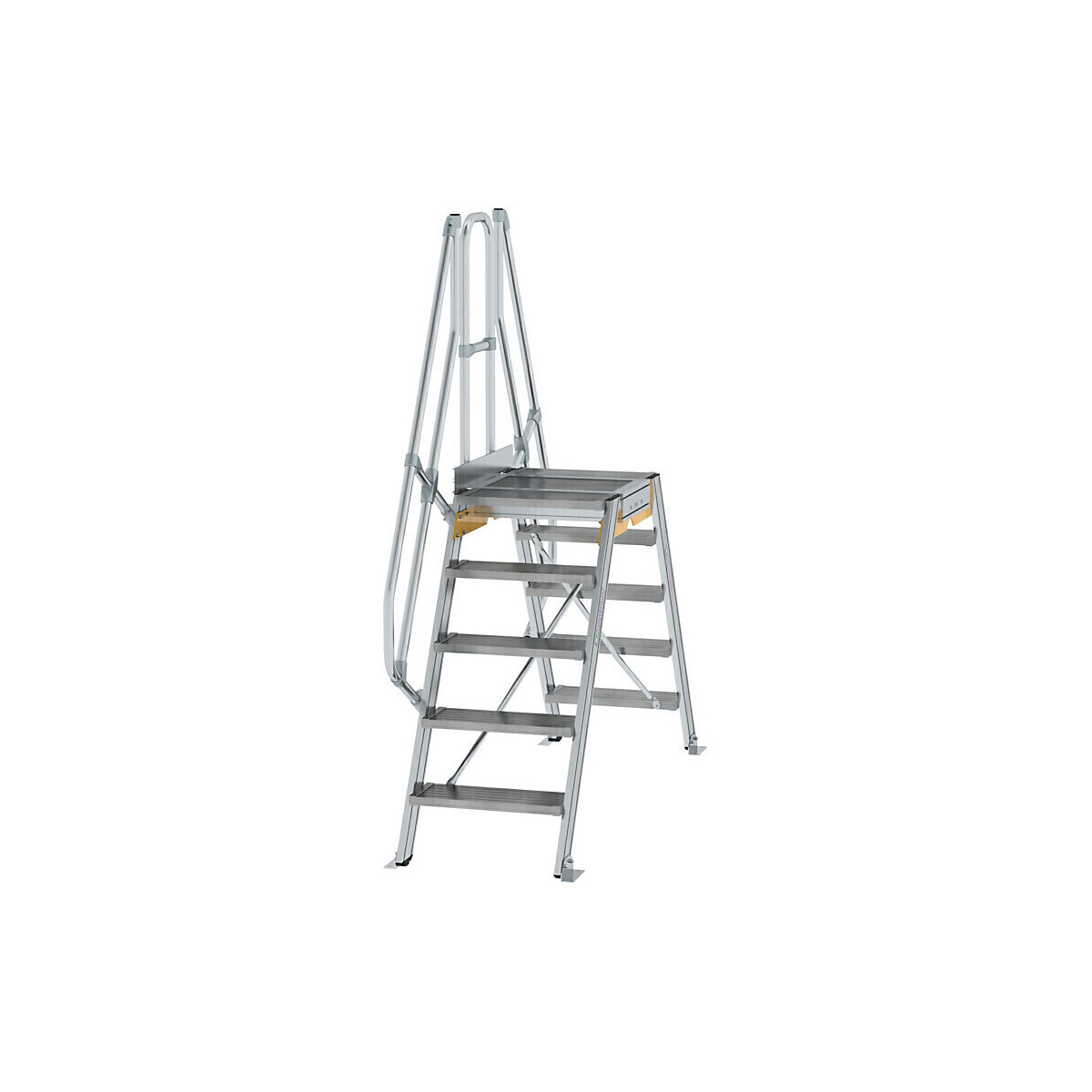

Crossover platform – MUNK total max. load 300 kg
5 steps, platform 800 x 600 mm
Platform length [mm]
Clear height [mm]
Ref.: 570798 10
Crossover platform – MUNK total max. load 300 kg
5 steps, platform 800 x 600 mm
5 steps, platform 800 x 600 mm
Sustainability score:Platform length [mm]
Clear height [mm]
1.760,00 €
Price / item (Ex. VAT)
Availability: 9–12 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
1.760,00 €
Price / item (Ex. VAT)
1.760,00 €
Price / item (Ex. VAT)
Availability: 9–12 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
Product description
- For bridging machines, conveyor belts or pits
- Safe, fatigue-free working – even over longer periods
- Comfortable ascent – 60° slope
- Overall max. load 300 kg
- Lower end of stairs with foot brackets for floor mounting
- Includes one handrail (1100mm high, can be mounted on the left or right)
The MUNK crossover bridge is a robust solution for safely crossing machinery, conveyor belts or pits, and is characterised by a sturdy design and fatigue-free working even during extended use.
Take advantage of the construction with extruded aluminium profile, which ensures a high max. load. The steps are connected with torsion resistance, providing safe and comfortable ascent at a slope of 60°. The upper stile ends are closed and bolted to the platform side rails. The total load is 300 kg, allowing safe access and working on the bridge.
The crossover bridge is aimed at in-plant employees, assembly teams and maintenance personnel who regularly need to use elevated crossings. Foot brackets at the lower end of the stairs for floor fixing allow the construction to be securely and permanently anchored. The product is particularly suitable where comfortable ascent, reliable stability and a heavy-duty model are required.
Take advantage of the construction with extruded aluminium profile, which ensures a high max. load. The steps are connected with torsion resistance, providing safe and comfortable ascent at a slope of 60°. The upper stile ends are closed and bolted to the platform side rails. The total load is 300 kg, allowing safe access and working on the bridge.
The crossover bridge is aimed at in-plant employees, assembly teams and maintenance personnel who regularly need to use elevated crossings. Foot brackets at the lower end of the stairs for floor fixing allow the construction to be securely and permanently anchored. The product is particularly suitable where comfortable ascent, reliable stability and a heavy-duty model are required.
Additional sizes, mobile version, 45° angle of inclination as well as alternative designs available on request.
One hand rail 1100 mm in height included, can be mounted on left or right.
Second hand rail as an accessory.
Second hand rail as an accessory.
Delivered partially assembled – easy final assembly.
Technical data
| Platform width | 600 mm |
|---|---|
| Material of treads | aluminium, ribbed |
| Step depth | 200 mm |
| Step width | 600 mm |
| Overall max. load | 300 kg |
| Frame material | aluminium extruded profile |
| Slope | 60° |
| Product type | crossover platforms |
| Supplied | assembled |
| Platform length | 800 mm |
| Clear height | 1174 mm |
| Steps incl. platform | 5 pcs. |
| Reach | 2142 mm |
| Weight | 44 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Product CO₂ footprint
- Product Carbon Footprint per kg CO2e
- 672.732
- Product Carbon Footprint Calculation Year
- 2026
- Product Carbon Footprint System Boundaries
- Cradle-to-gate
- Product Carbon Footprint Calculation Method
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
| Criteria | Weighting | Score |
|---|---|---|
 Climate protection | 30% | 2.5 |
 Circulatory economy | 30% | 4.0 |
 Biodiversity | 25% | 3.0 |
 Economic efficiency | 10% | 0.8 |
 Innovation | 5% | 3.9 |
| Overall score | 3.4 | |
