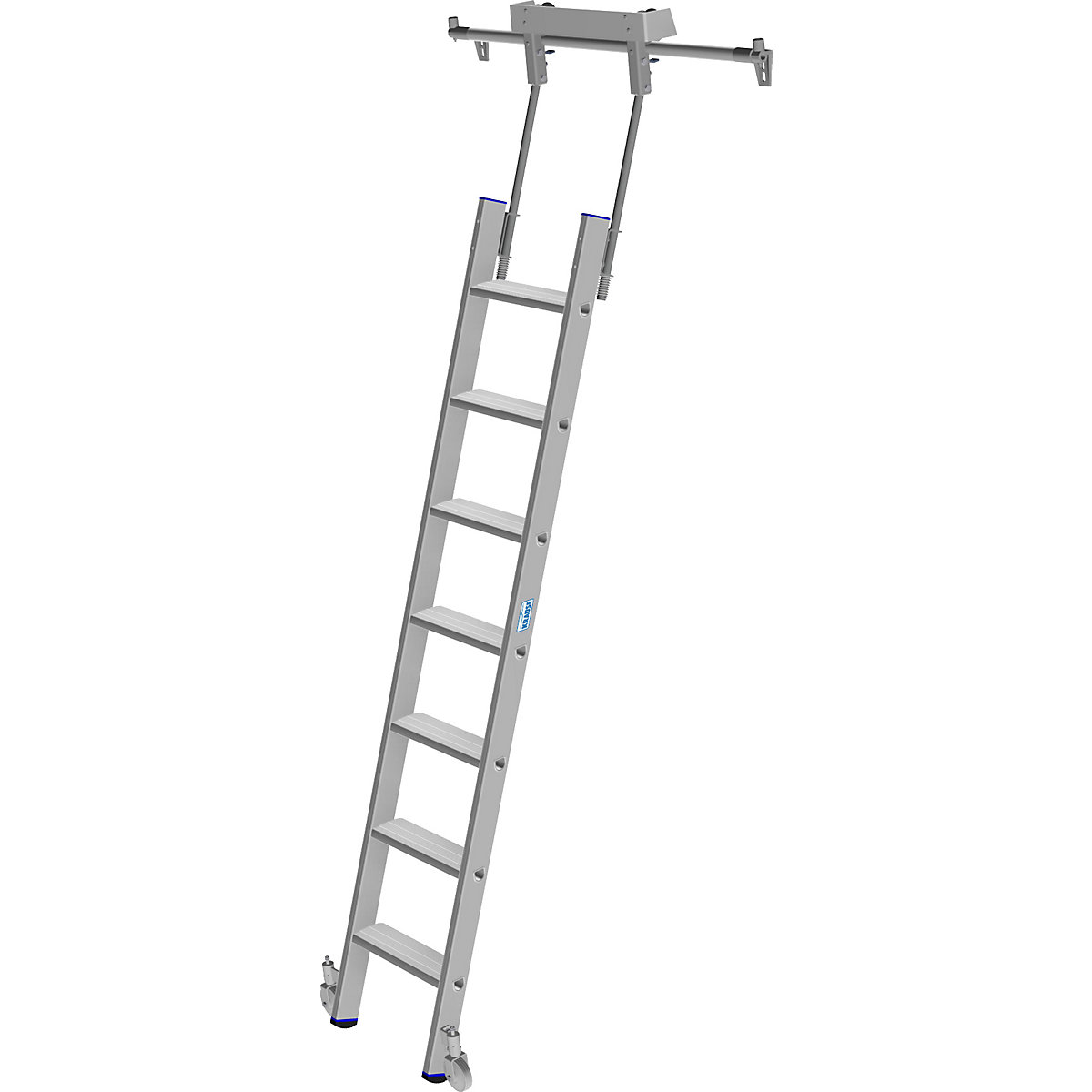

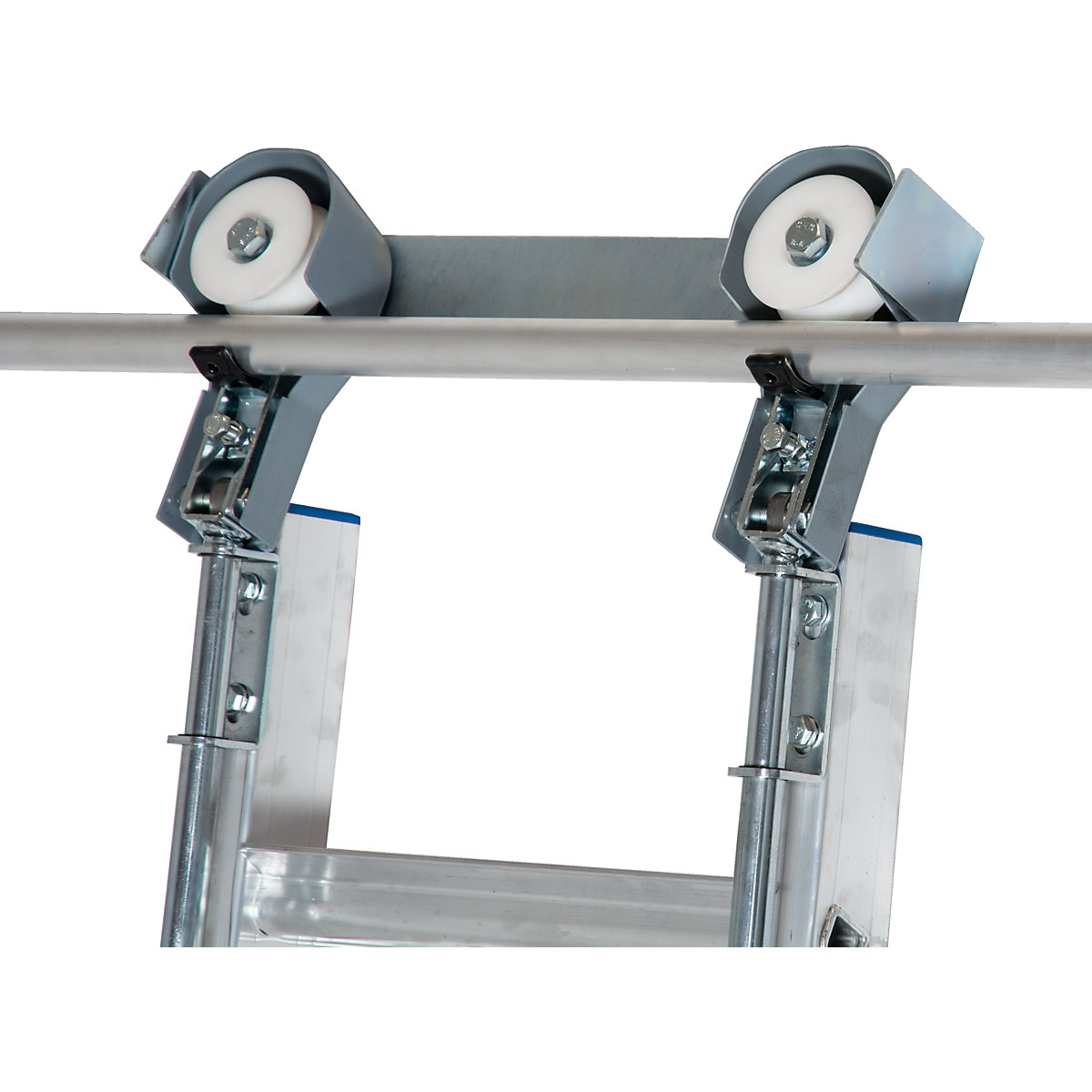

KRAUSE – Step shelf ladder with wheels on top for round tubing rail system
6 steps
- High stability due to high strength beaded step-rail connection
- Safe ascent due to 80 mm deep, profiled steps
- Space saving suspension when not in use
10 year guarantee
Ref.: 487018 10
Properties
Number of steps [pcs.]: 6, Length [mm]: 1700, Weight [kg]: 8.5, Working height [mm]: 2700, Standing height [mm]: 700, Vertical hook-in height [mm]: 1900
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Monday to Friday from 8.00 am to 4.00 pm CET
Product description

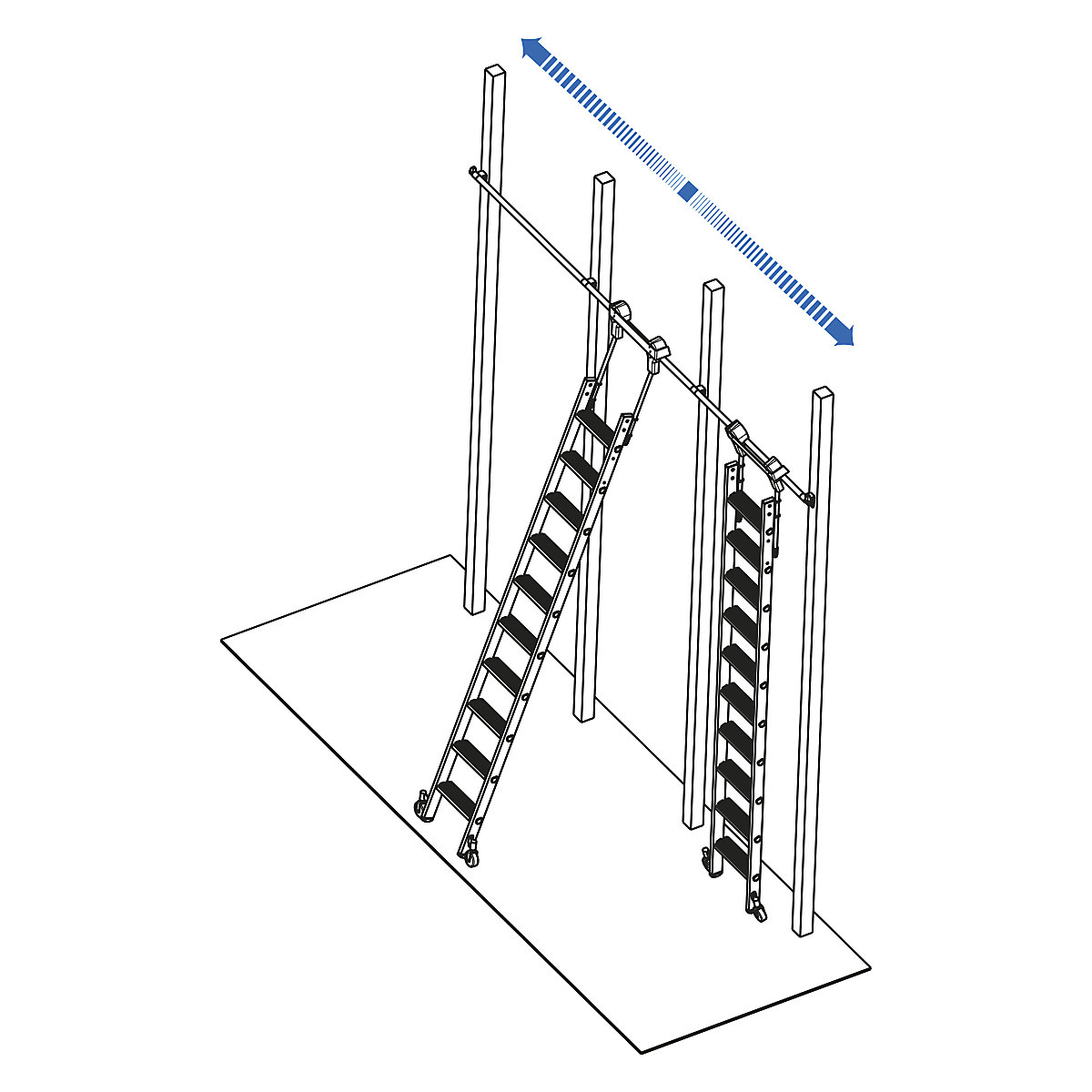

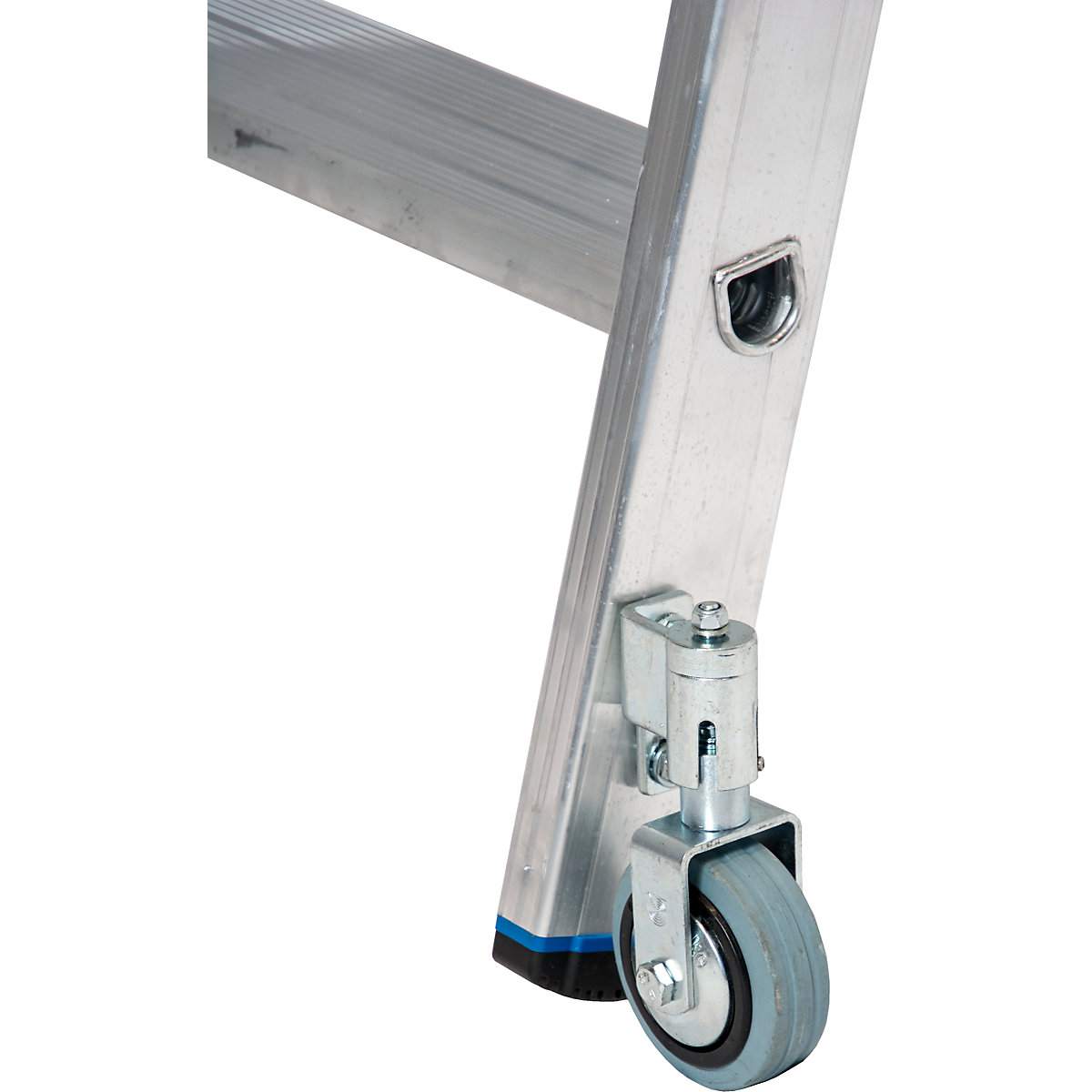

This step shelf ladder is the optimal supplement to every shelf system. In combination with a round tubing rail system (tubing diameter 30 mm), this lean to ladder provides fast and safe access to shelves located at a height. 2 self locking braked castors (diameter 80 mm) ensure it is easy to move. The two component ladder feet provide a sturdy footing during use. The ladder inclination totals 21°. When work is finished, the ladder can be placed vertically against the shelf to save space – in the parking position.
The vertical suspension height is decisive to selecting the right shelf ladder (distance from the ground to the lower edge of the rail system).

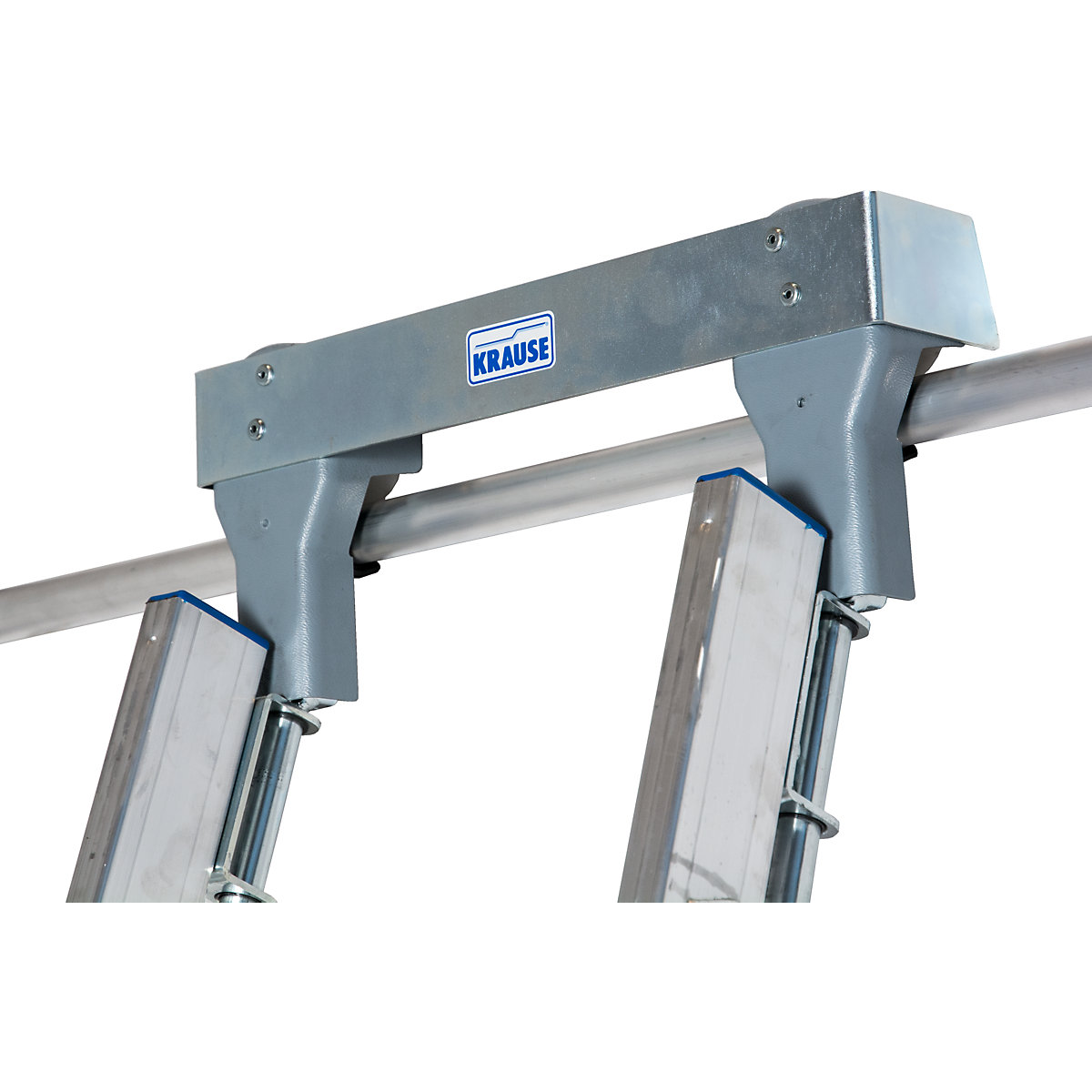

Round tubing rail system, handrail and holding rod are available as accessories.
The vertical suspension height is decisive to selecting the right shelf ladder (distance from the ground to the lower edge of the rail system).
Round tubing rail system, handrail and holding rod are available as accessories.
- High stability due to high strength beaded step-rail connection
- Safe ascent due to 80 mm deep, profiled steps
- Space saving suspension when not in use
10 year guarantee
Technical data
| Product type | shelf ladders |
|---|---|
| Access type | steps |
| Material of treads | aluminium |
| Step depth | 80 mm |
| Feature | mobile |
| Width | 570 mm |
| Frame material | aluminium |
| Max. load | 150 kg |
| Supplied | assembled |
