Ref.: 487241 10

LCB mesh pallet with 4 lockable drawers

LCB mesh pallet

made of zinc plated sheet metal, blue fronts

2.600,00 €
Price / item (Ex. VAT)
Availability: 3-4 weeks
Product description
  • Easy removal of the contents using drawers
  • Stackable and lockable
  • Drawers can be divided individually

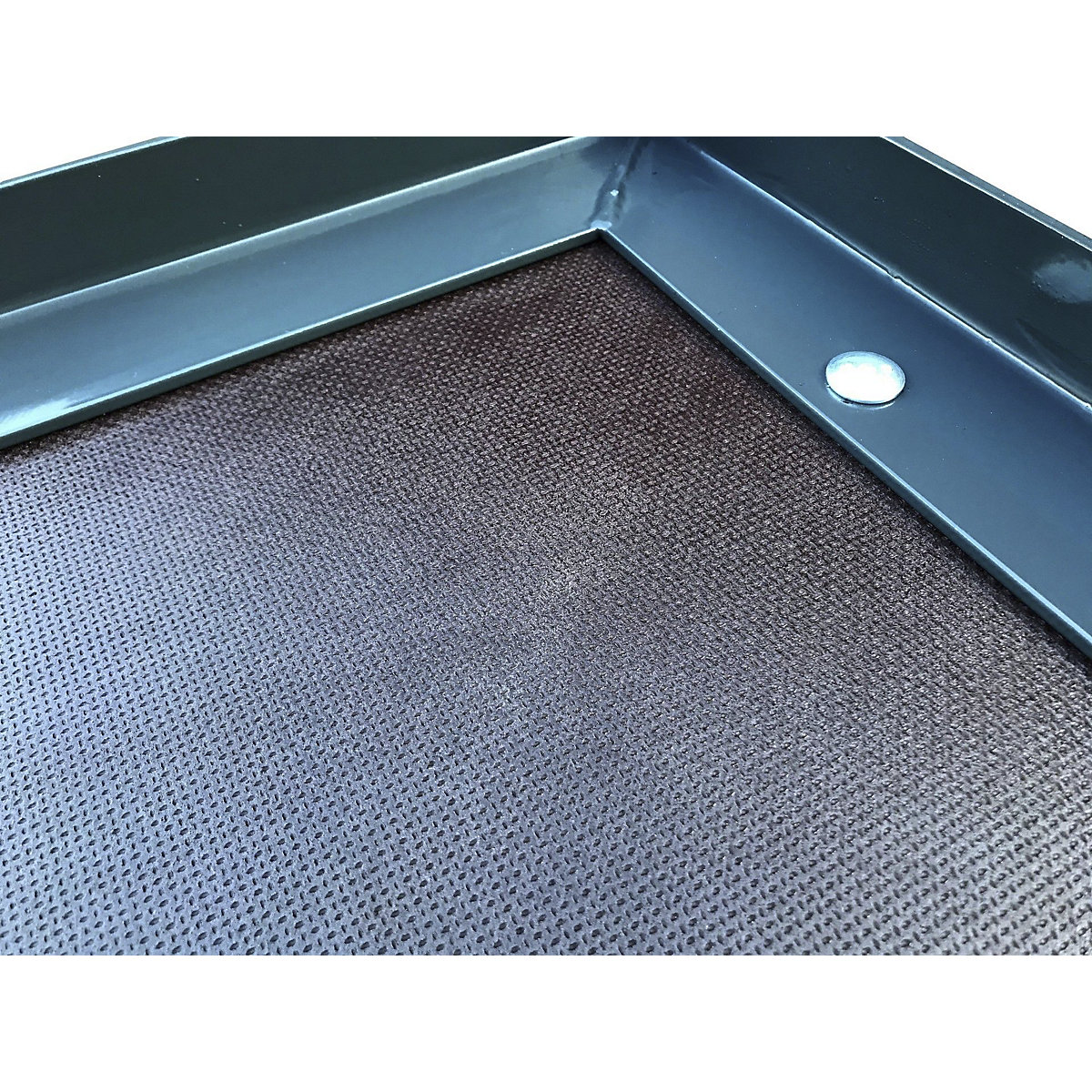

This innovative load carrier, based on the Euro mesh pallet, offers a wide range of usage options in production logistics, maintenance or assembly. This mesh pallet provides an ideal alternative to special load carriers, JIS racks or tool cupboards. Tradesmen value the lockable mesh pallet as a mobile and robust workbench at construction sites. The 12 mm thick phenolic plywood, which provides the upper cover, is optimally suited for use as an additional storage and work surface. With basic dimensions of 1200 x 800 mm, the mesh pallet is compatible with all conventional conveyor devices, roller conveyors and means of transport.
Custom made models are available on request. Available with a flap lock instead of with an indexing plunger.
Technical data
Length1240 mm
Width835 mm
Height980 mm
Colourcharcoal ultramarine blue RAL 5002
Filling height170 mm
Materialsteel
Weight170 kg
Max. load480 kg
Stacking load5000 kg
Stacking height5000 mm
Finishzinc plated and powder coated
Clearance height100 mm
Forklift access width short side570 mm
Forklift access width long side760 mm
Design of stacking containerswith drawers made of zinc plated sheet metal
Mesh size50 mm
Featurestackable
Number of drawers4 pcs.
Internal drawer dimensions3 x 1080 x 780 x 170 mm
Product typestacking containers
Suppliedassembled
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

897.50kg CO₂e
LCA Raw Material Extraction & Processing
43.5%
LCA packaging production
1.3%
LCA Product Manufacturing
47.9%
LCA Inbound and Outbound Transportation
7.3%
‌
‌
‌
‌
