Ref.: 100091 10

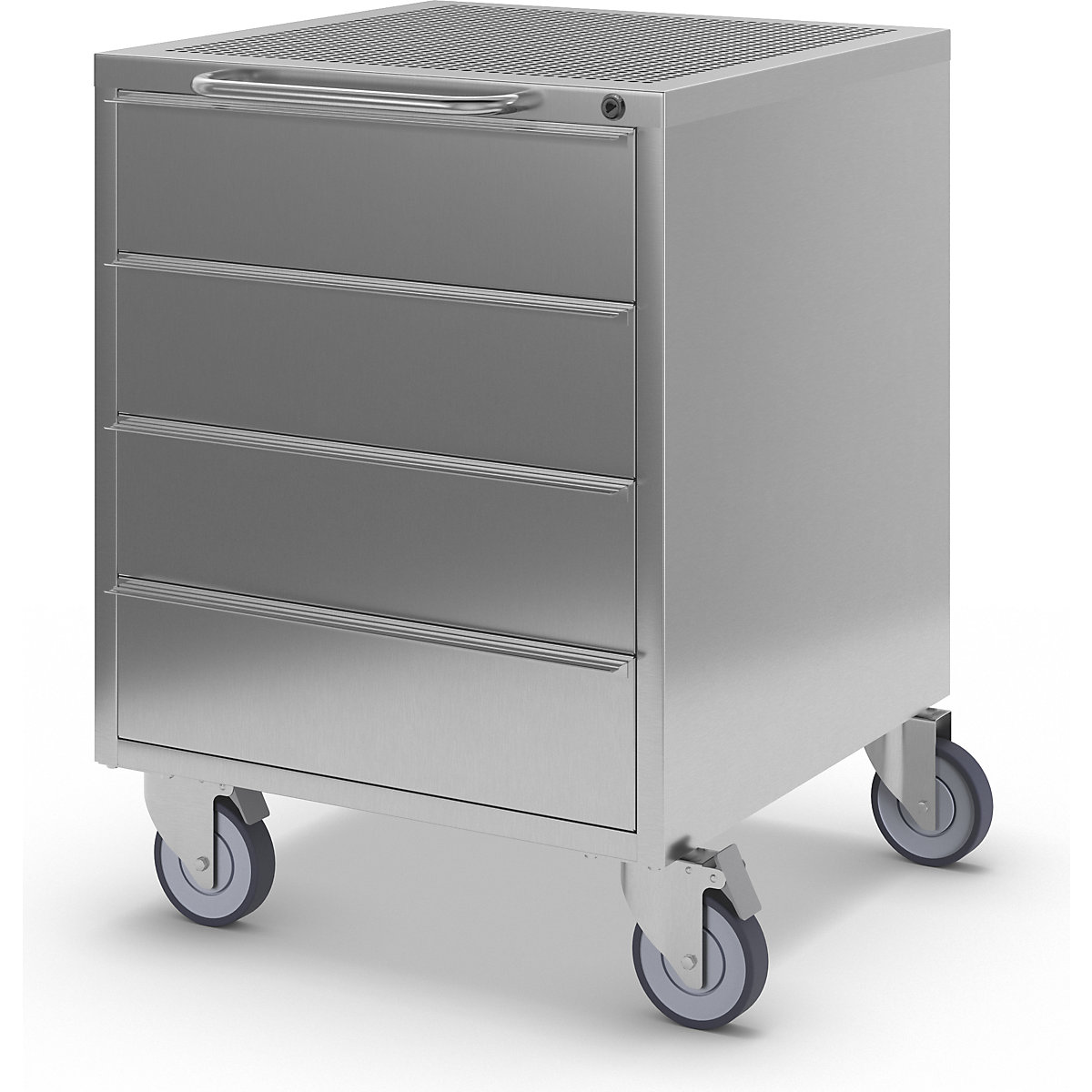

Cleanroom mobile cupboard made of stainless steel

Cleanroom mobile cupboard

HxWxD 810 x 600 x 600 mm

3.325,00 €
Price / item (Ex. VAT)
Availability: 3-4 weeks
Product description
  • Suitable for cleanroom and laboratory operation
  • Lockable drawers mounted on stainless steel telescopic rails with pull-out stop
  • Drawers and top side perforated
  • Optimal laminar flow through precision perforations
  • Effective ESD protection of electronic stored goods

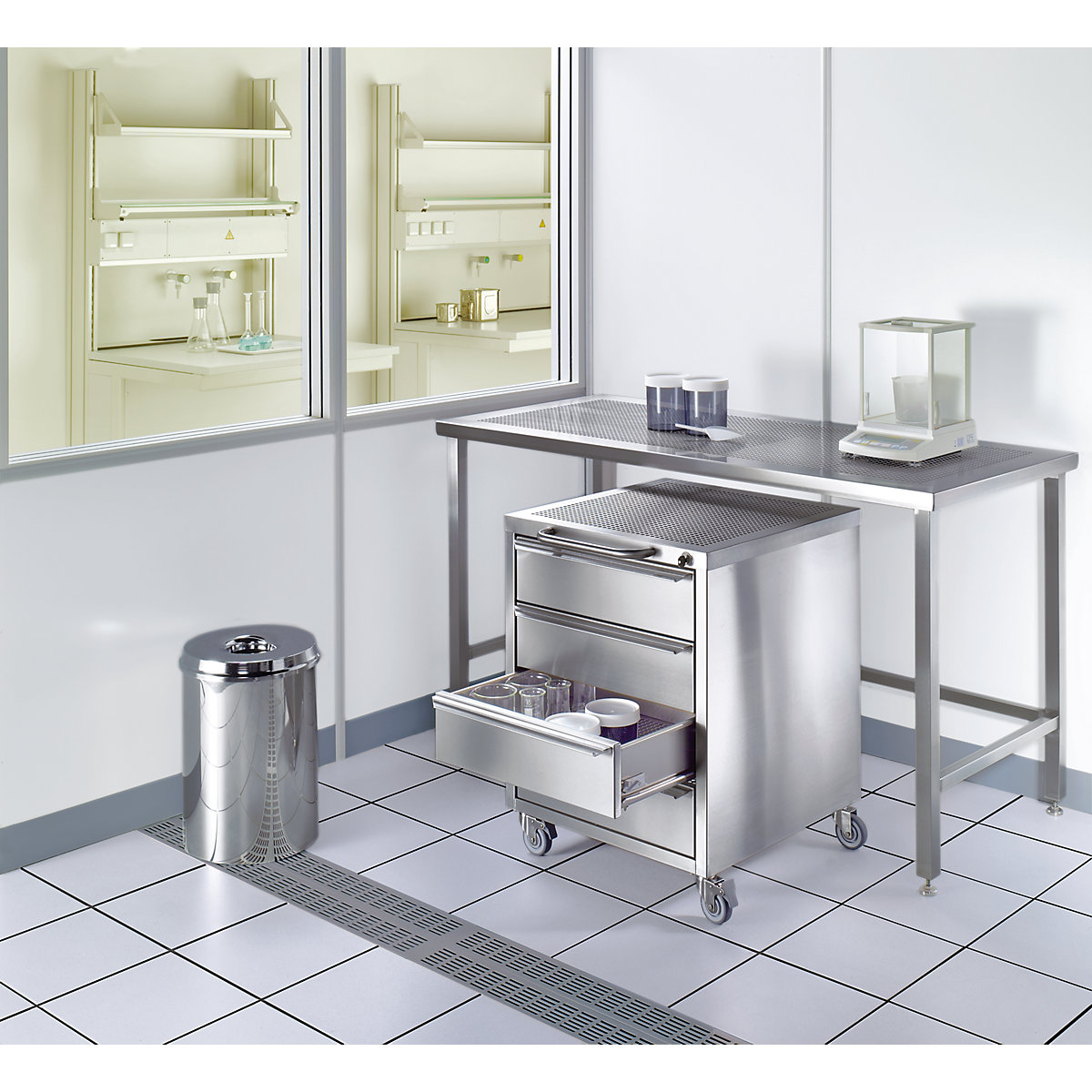

Ideally equip laboratories and cleanrooms – with the cleanroom mobile cupboard made of stainless steel in the ESD model. The mobile cupboard is suitable as a table trolley or for use under workbenches. Even sensitive electronic components are safely stored here and protected from electrostatic discharge.

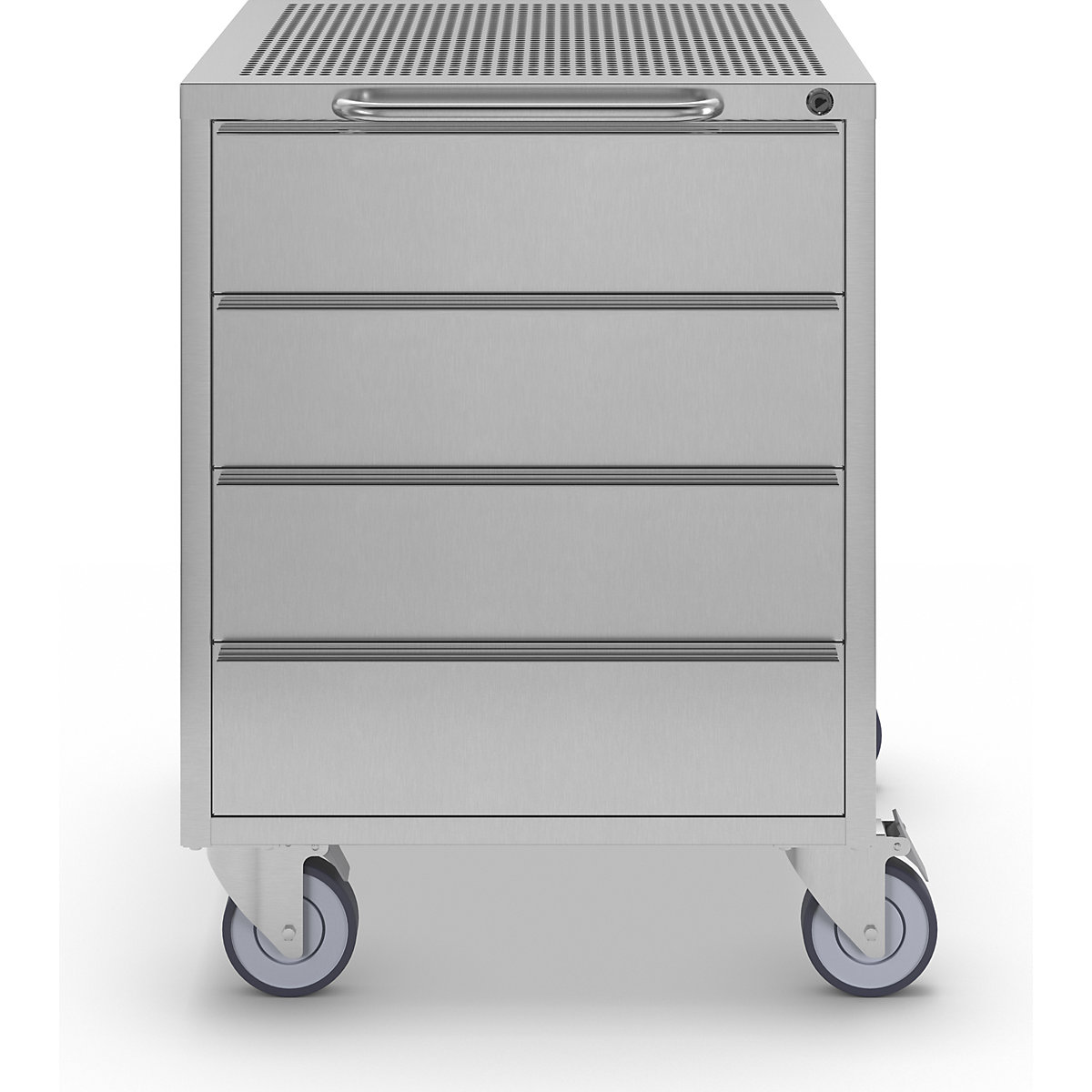

The mobile cupboard is equipped with four lockable drawers (150 mm high) with a pull-out stop and on stainless steel telescopic rails. The handle strips can be labelled – for a better overview of the drawer contents.

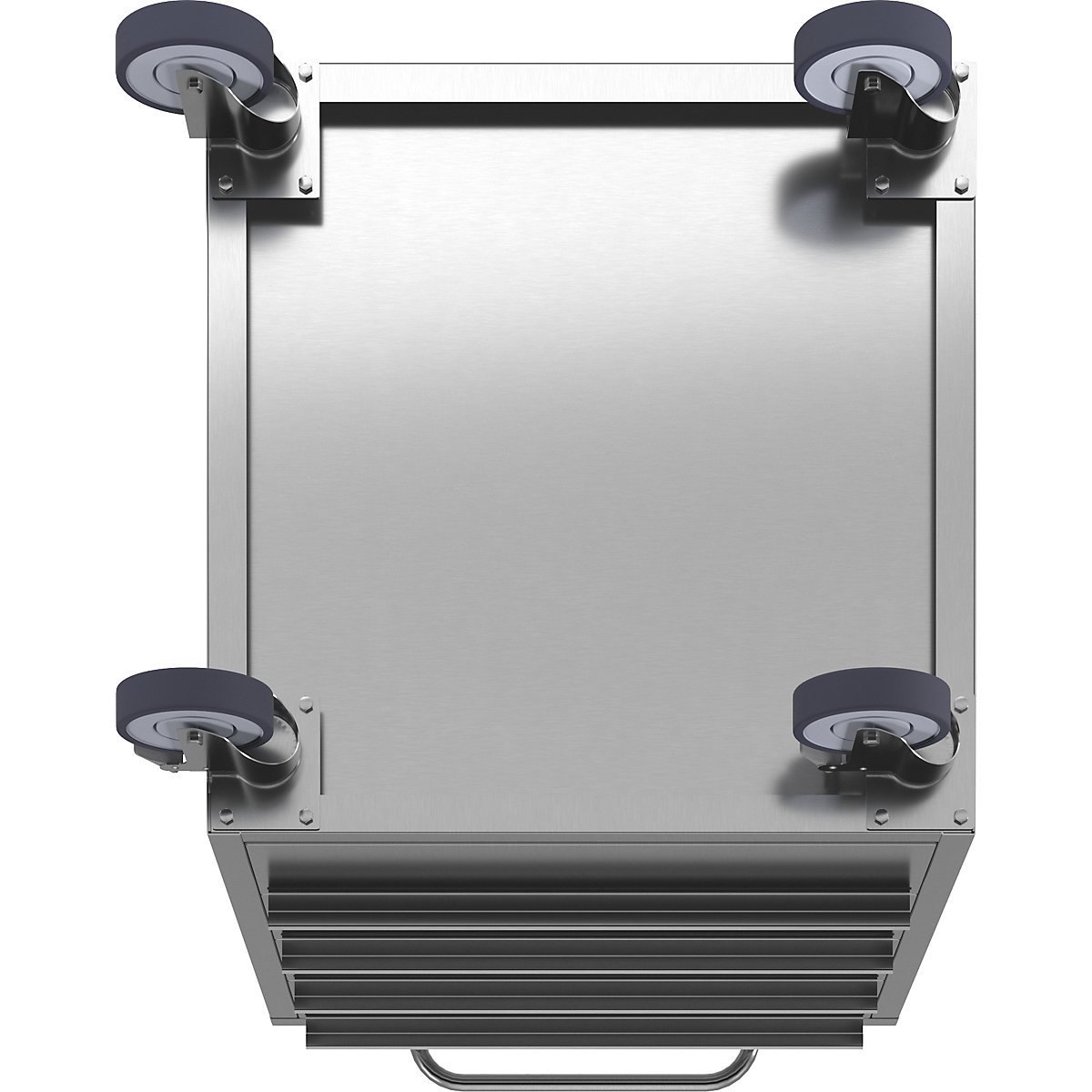

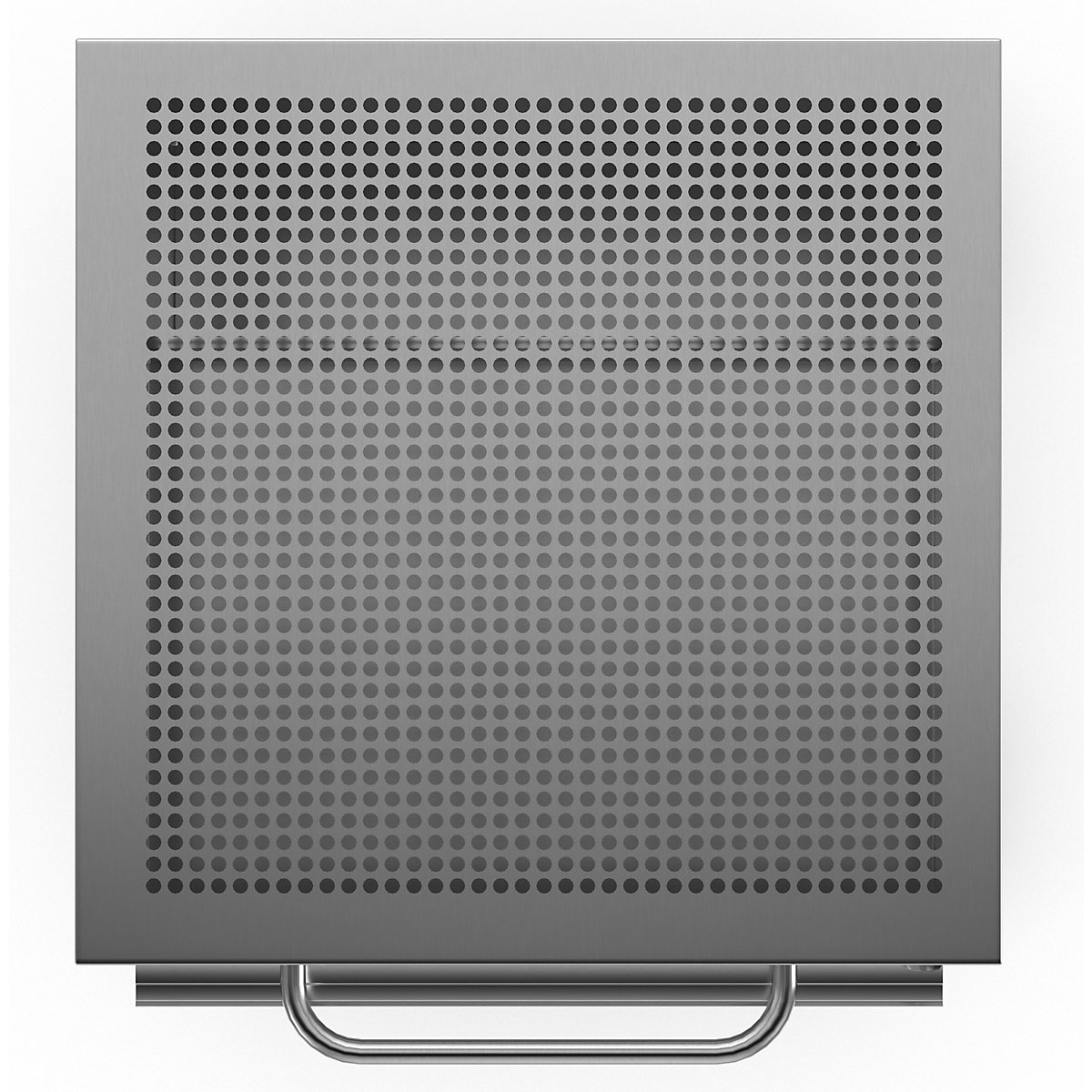

The drawers and the top of the cupboard are perforated. The cleanroom mobile cupboard has double-walled side panels as well as four non-marking swivel castors (two of which have brakes).

According to cleanroom class 4 (ISO 14644-1) and manufactured from stainless steel 1.4301 (V2A) with ground and polished drawers.
We would be happy to verify the compatibility with your media.
Please enquire if necessary.
Recommended use

Level of purity ≥
ISO 14644-1 : 4
US Fed. standard 209E : 10

Stainless steel only has limited resistance (or is only resistant for a short period) to certain chemicals used in cleanrooms (e.g. sulphuric acid, chlorous compounds, Selectipur, etc.).
Rust free stainless steel
Rust free stainless steel
Anti-static
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Anti-static. This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Technical data
Height810 mm
Width600 mm
Depth600 mm
Number of drawers4 pcs.
Drawer height4 x 150 mm
Max. drawer load25 kg
Drawer extension75%
Drawer guidetelescopic guide
Overall max. load100 kg
Lock typecylinder lock
Wheel fittings4 swivel castors 2 with wheel stops
FeatureESD version
Materialstainless steel V2A
Body colourstainless steel
Front colourstainless steel
Internal drawer dimensions502 x 487 mm
Product typecleanroom mobile pedestals
Suppliedassembled
Weight61 kg
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.
‌
‌
‌
‌
