Ref.: 677242 10

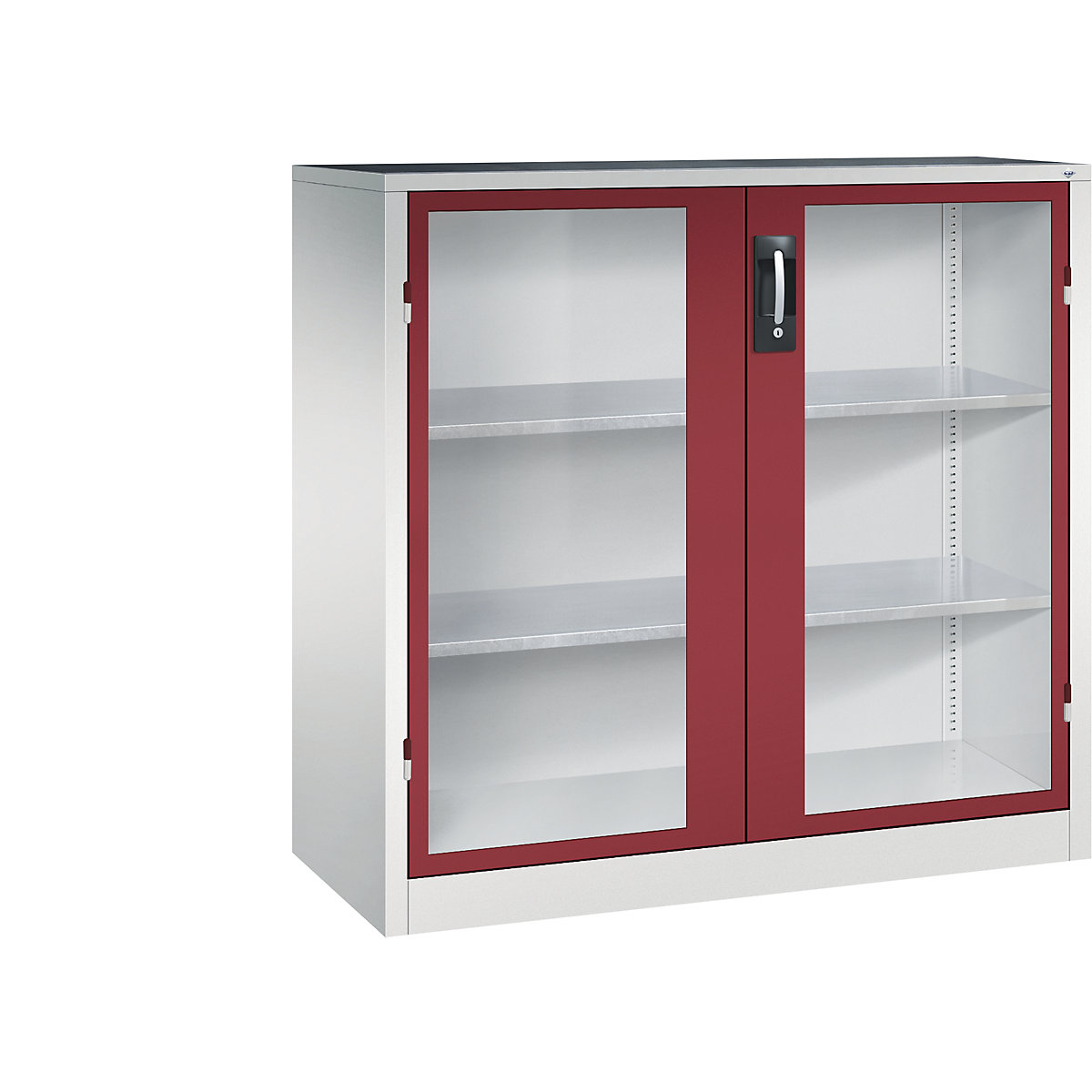

Vision panel double door cupboard – C+P HxWxD 1200 x 1200 x 500 mm, 2 shelves

Vision panel double door cupboard – C+P

light grey / ruby red

Door colour
1.020,00 €
Price / item (Ex. VAT)
Availability: 5-6 weeks
Product description
  • Practical side cupboards with vision panels for organisation and efficiency as well as short searches
  • Also ideal for the implementation of KAIZEN and KVP
  • High max. housing load of 450 kg, max. shelf load of 70 kg
  • Door opening angle 180° – no protruding doors in passageways etc.
The practical side cupboards with vision panels made of acrylic glass and hinged doors in hinges on the outside (door opening angle 180°). Sturdy steel construction with high quality stove enamelling.
Ingeniously simple: a direct view of the contents of the cupboard saves you time spent searching or attaching labels. The cupboards with vision panels automatically helps keep things organised.
Concealed lock linkage. Triple bolt Ergo-Lock 4.0 handle lock: simply press to close, easy to operate even with gloves. The top of the cupboard features a ribbed rubber mat. Acrylic glass doors, direct view of the contents of the cupboard results in less time spent searching and better organisation.

With 2 zinc plated, height adjustable shelves. Max. load 70 kg each.
Also available with a PIN code or transponder lock upon request. In addition: more than 150 colour combinations available at no extra charge!
Safety tested
This is a test symbol. GS stands for certified safety.
Safety tested. This is a test symbol. GS stands for certified safety.
Technical data
Height1200 mm
Width1200 mm
Depth500 mm
Door typevision panel double doors
Door versionwith vision panel
Body colourlight grey RAL 7035
Number of shelves2 pcs.
Internal fittings2 shelves
Max. shelf load70 kg
Shelf height adjustment increments15 mm
Lock typecylinder lock
Lockstriple
Shelf coloursilver
Shelf materialsheet steel, galvanised
Housing materialsteel
Door materialacrylic glass steel
Finishstove enamelled
Internal height1055 mm
Internal width1198 mm
Internal depth453 mm
Shelf width1195 mm
Shelf depth452 mm
Opening angle of doors110 °
Plinth height100 mm
Max. cupboard load450 kg
Max. load70 kg
Designwelded
Product typetool side cupboards
Suppliedassembled
Weight61.64 kg
Door colourruby red RAL 3003
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

Product Carbon Footprint per kg CO2e
300.695
Product Carbon Footprint Calculation Year
2026
Product Carbon Footprint System Boundaries
Cradle-to-gate
Product Carbon Footprint Calculation Method
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
‌
‌
‌
‌
