Ref.: 690439 10

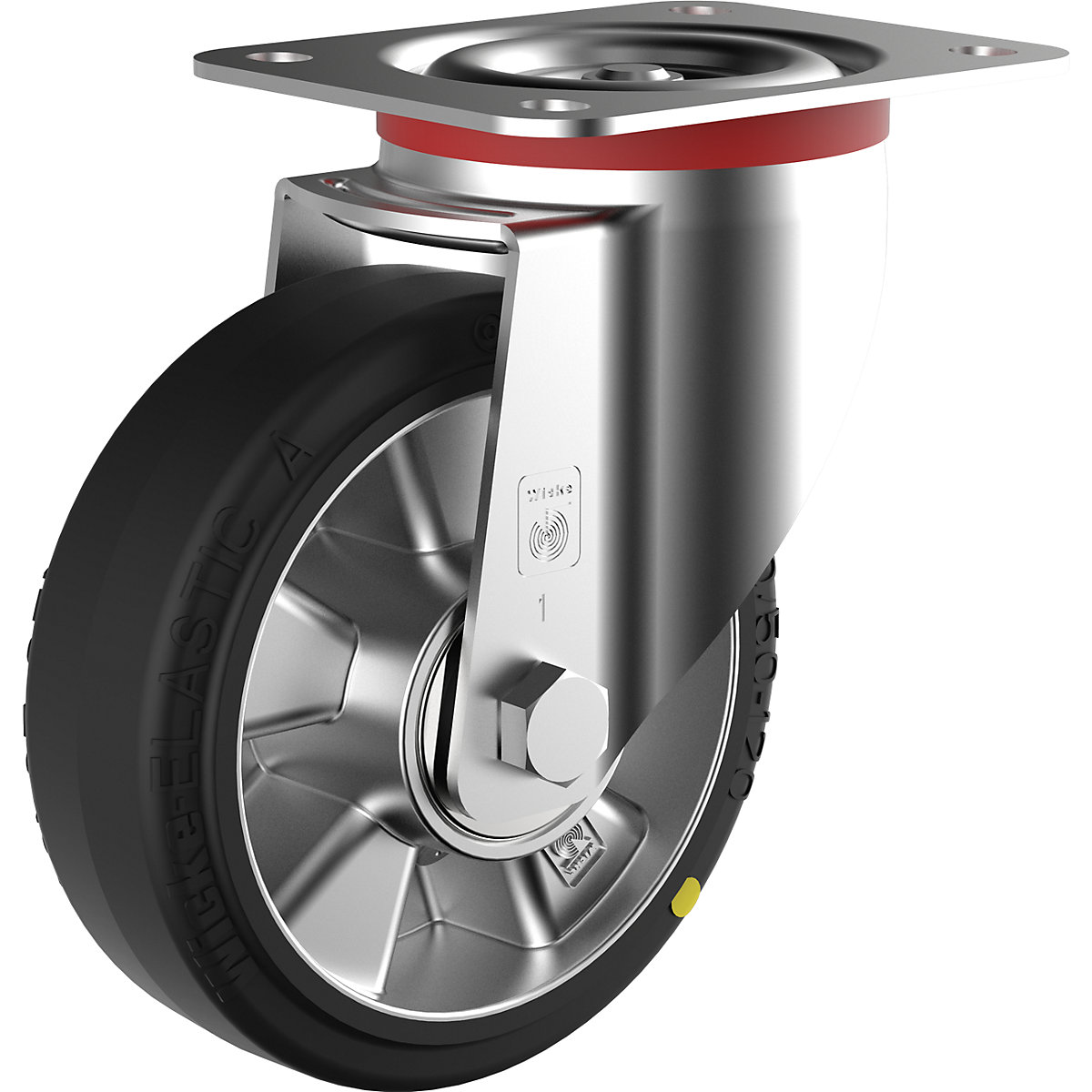

ESD elastic rubber tyre – Wicke wheel Ø x width 160 x 50 mm, max. load 400 kg
swivel castor
Structure
Wheel diameter [mm]
Max. load at 4 km/h [kg]
Ref.: 690439 10
ESD elastic rubber tyre – Wicke wheel Ø x width 160 x 50 mm, max. load 400 kg
swivel castor
swivel castor
Anti-static
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Score: 2.3/5.9Structure
Wheel diameter [mm]
Max. load at 4 km/h [kg]
107,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
107,00 €
Price / item (Ex. VAT)
107,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
Product description
- On aluminium rim
- Max. electrical conductivity R < 10^4 Ω
- Very smooth running
Swivel bearing with double ball race.
Technical data
| Wheel material | rubber – solid rubber – elastic |
|---|---|
| Material of rim | aluminium |
| Type of mounting | with top plate |
| Housing material | steel |
| Wheel bearing | ball bearing |
| Housing surface | zinc plated |
| Shore hardness | 63 A |
| Feature | ESD version |
| Supplied | assembled |
| Structure | swivel castor |
| Wheel diameter | 160 mm |
| Max. load at 4 km/h | 400 kg |
| Swivel castor offset | 60 mm |
| Screw hole diameter | 11 mm |
| Screw hole spacing | 105x75/80 mm |
| Swivel castor plate dimensions | 135x110 mm |
| Fixed castor plate dimensions | 135x114 mm |
| Overall height | 190 mm |
| Wheel width | 50 mm |
| Product type | swivel castors |
| Weight | 2.66 kg |
| Manufacturer / EU responsible Person (GPSR) |
