Ref.: 945654 10

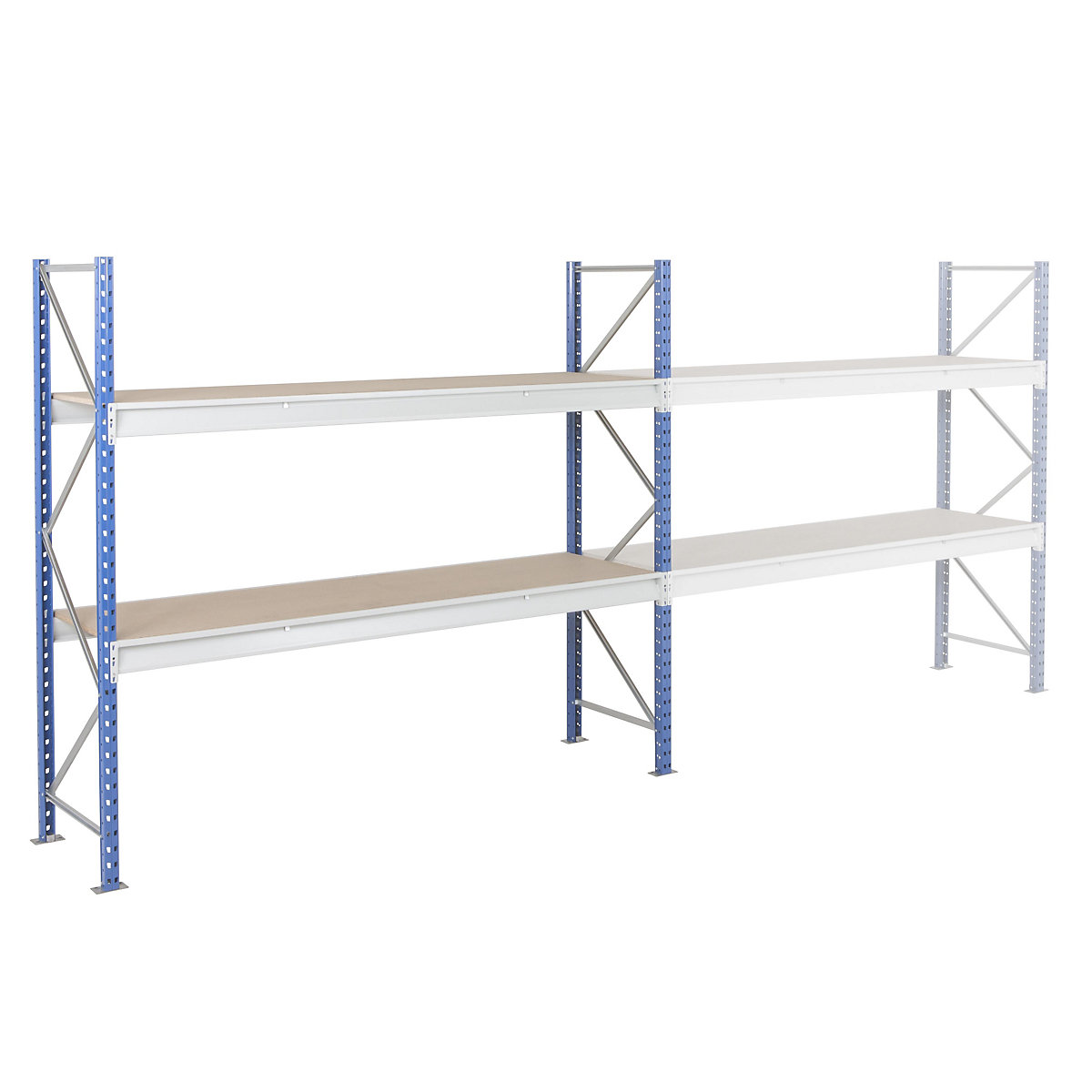

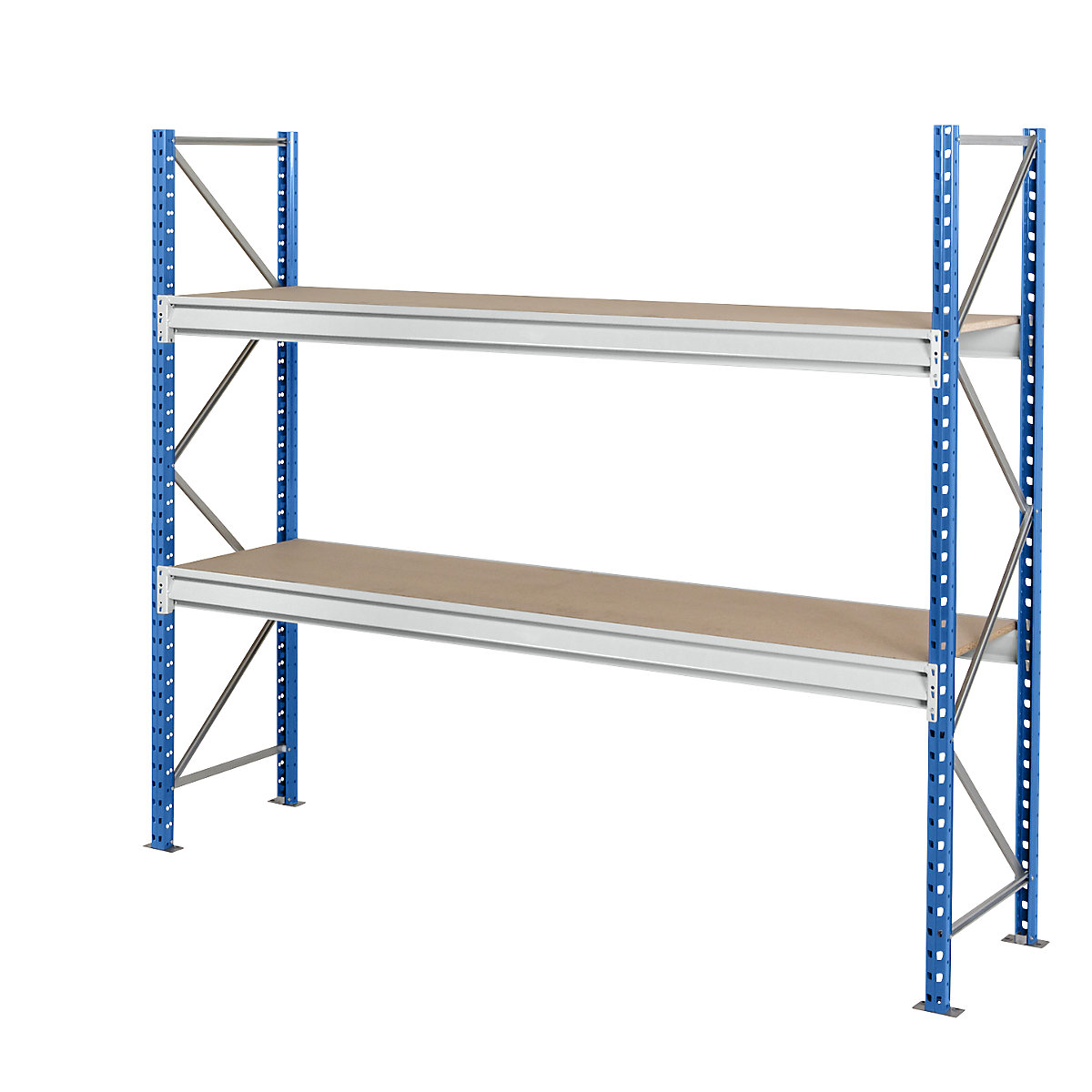

Heavy duty wide span shelving with moulded chipboard shelf panels – Manorga frame colour blue
HxWxD 1996 x 2330 x 600 mm, extension shelf unit
Shelf unit type
Shelf unit height [mm]
Shelf width [mm]
Shelf depth [mm]
Ref.: 945654 10
Heavy duty wide span shelving with moulded chipboard shelf panels – Manorga frame colour blue
HxWxD 1996 x 2330 x 600 mm, extension shelf unit
HxWxD 1996 x 2330 x 600 mm, extension shelf unit
Sustainability score:Shelf unit type
Shelf unit height [mm]
Shelf width [mm]
Shelf depth [mm]
445,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
445,00 €
Price / item (Ex. VAT)
445,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
Product description
- For the manual storage of bulky and heavy goods
- Boltless installation and adjustment of support beams
- Manufactured in accordance with the guidelines and regulations of European FEM 10.2.06 as well as Eurocode III
Upright frame
2 steel posts, 1.5 mm thick, plastic coated blue RAL 5010. Contoured profile, 50 x 50 mm.
Upright cross beams and diagonals are made of zinc plated C-profile, 25 x 15 mm, and are bolted to the posts.
Zinc plated base plates for floor anchoring, 3 mm in height. Bolts and plugs not included.
50 mm shelf adjustment grid.
Shelves
Support beams with Z profile, plastic coated light grey RAL 7035.
3 suspension hooks with securing pins for mounting the support beams.
Chipboard panels, 19 mm thick.
2 steel posts, 1.5 mm thick, plastic coated blue RAL 5010. Contoured profile, 50 x 50 mm.
Upright cross beams and diagonals are made of zinc plated C-profile, 25 x 15 mm, and are bolted to the posts.
Zinc plated base plates for floor anchoring, 3 mm in height. Bolts and plugs not included.
50 mm shelf adjustment grid.
Shelves
Support beams with Z profile, plastic coated light grey RAL 7035.
3 suspension hooks with securing pins for mounting the support beams.
Chipboard panels, 19 mm thick.
External dimensions
Standard shelf unit width
– without footplates: shelf width + 100 mm.
– with footplates: shelf width + 160 mm.
Extension shelf unit width
– without footplates: shelf width + 50 mm.
– with footplates: shelf width + 80 mm.
Shelf unit depth incl. foot plates
Shelf depth + 10 mm.
Standard shelf unit width
– without footplates: shelf width + 100 mm.
– with footplates: shelf width + 160 mm.
Extension shelf unit width
– without footplates: shelf width + 50 mm.
– with footplates: shelf width + 80 mm.
Shelf unit depth incl. foot plates
Shelf depth + 10 mm.
Supplied flat pack – easy self-assembly.
The specified max. load values are applicable with uniform load distribution. Additional shelf levels may be used if the specified max. bay load is observed.
Technical data
| Colour of uprights | gentian blue RAL 5010 |
|---|---|
| Width of upright profile | 25 mm |
| Depth of upright profile | 15 mm |
| Shelf thickness | 19 mm |
| Max. bay load | 4500 kg |
| Adjustment grid | 50 mm |
| Material | steel |
| Material of uprights | steel, plastic coated |
| Cross beam material | steel, zinc plated |
| Shelf material | chipboard |
| Cross beam colour | light grey RAL 7035 |
| Shelf colour | wood |
| Design | screw connection |
| Design of shelf levels | cross-pieces with shelves |
| Product type | heavy duty bolt-together shelving units |
| Supplied | flat pack |
| Shelf unit type | extension unit |
| Shelf unit height | 1996 mm |
| Shelf width | 2250 mm |
| Shelf depth | 600 mm |
| Width | 2330 mm |
| Depth | 610 mm |
| Shelf clearance width | 2245 mm |
| Max. shelf load | 1125 kg |
| Number of shelf levels | 2 pcs. |
| Weight | 66.912 kg |
| Pictorial instructions | |
| Manufacturer / EU responsible Person (GPSR) |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Product CO₂ footprint
- LCA functional unit
- 1
- Recycled content in %?
- 15
- CO2 footprint year of calculation
- 2026
- LCA validity (in years)
- 1
- CO2 footprint calculation method product
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
- CO2 footprint system boundaries
- Cradle-to-gate
PCF Lifecycle Breakdown
PCF Lifecycle Breakdown237.24kg CO₂e
| LCA Raw Material Extraction & Processing | 41.8% |
| LCA packaging production | 2% |
| LCA Product Manufacturing | 45.3% |
| LCA Inbound and Outbound Transportation | 10.9% |
Scoring System
More about our sustainability approach.
3.1/5.9Overall score
| Criteria | Weighting | Score |
|---|---|---|
 Climate protection | 30% | 2.2 |
 Circulatory economy | 30% | 3.6 |
 Biodiversity | 25% | 1.0 |
 Economic efficiency | 10% | 3.6 |
 Innovation | 5% | 3.9 |
