Ref.: 547585 10

RKPK aluminium gantry crane overall height 2099 – 3050 mm

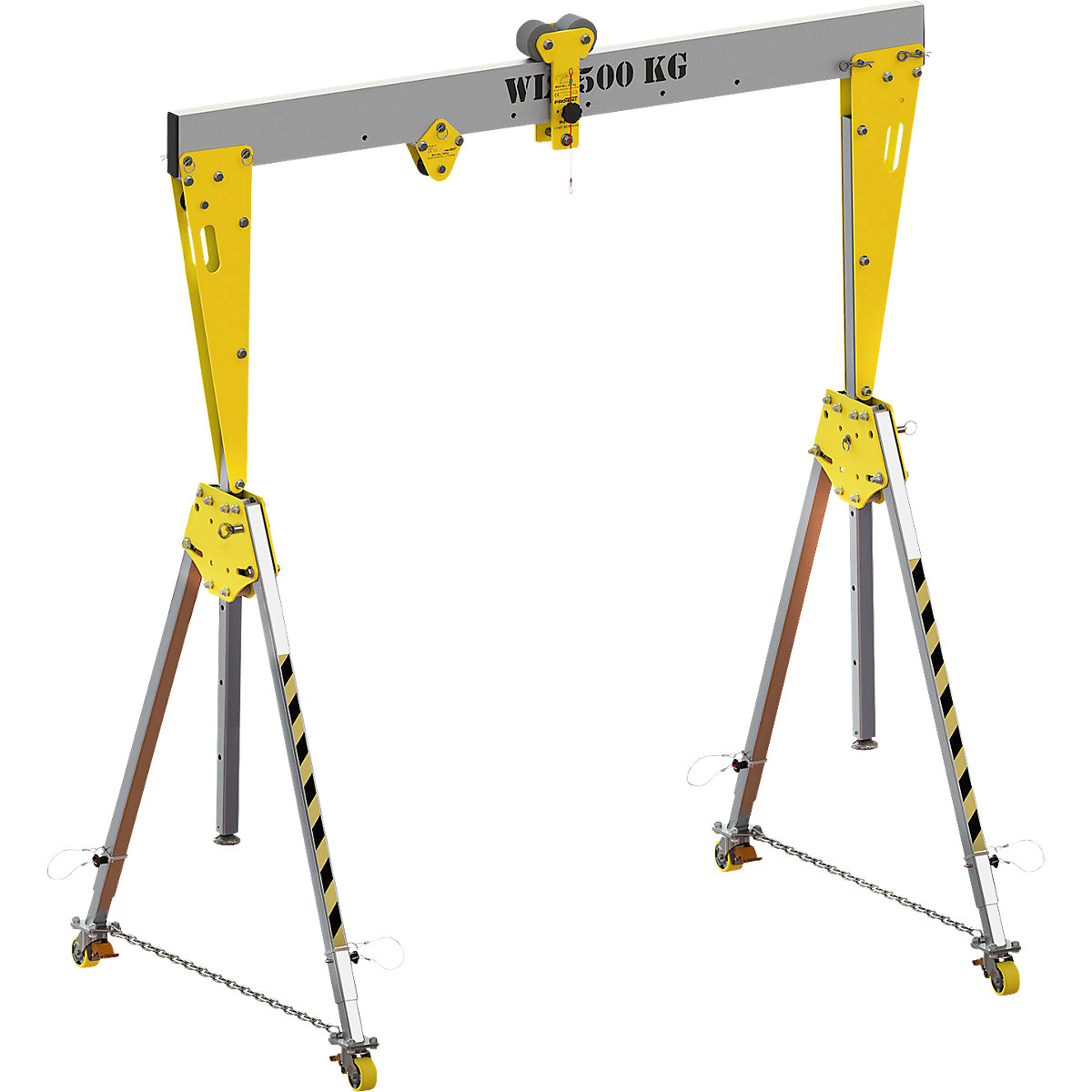

RKPK aluminium gantry crane
Delivery without cable winch shown, cable winch available as an option upon request

width 2000 mm

Track width [mm]
4.100,00 €
Price / item (Ex. VAT)
Availability: 10-12 weeks
Product description
  • Wheel set with brakes, Ø 125 mm, solid rubber, for universal use
  • Incl. transport dolly for material
  • Quick and easy assembly by two persons (or also possible working alone by using a mini ratchet chain hoist as an assembly aid)
The RKPK aluminium gantry crane is suitable for versatile use in different assembly areas due to its modular design and the use of high strength aluminium components. The use of the corresponding hoist allows your crane to be optimally equipped for your lifting jobs. The swivel wheels featured as standard make moving the crane to the assembly site easy, even when it is supporting a load.
A hoist is not included in the delivery.
Upon request, chassis for persons, chassis for material transport.
Technical data
Max. load500 kg
Materialaluminium
Overall height from – to2099 – 3050 mm
Side support width1730 mm
Wheel fittingsswivel wheel with brake
Featuremobile
Colouryellow
Product typemobile gantry cranes

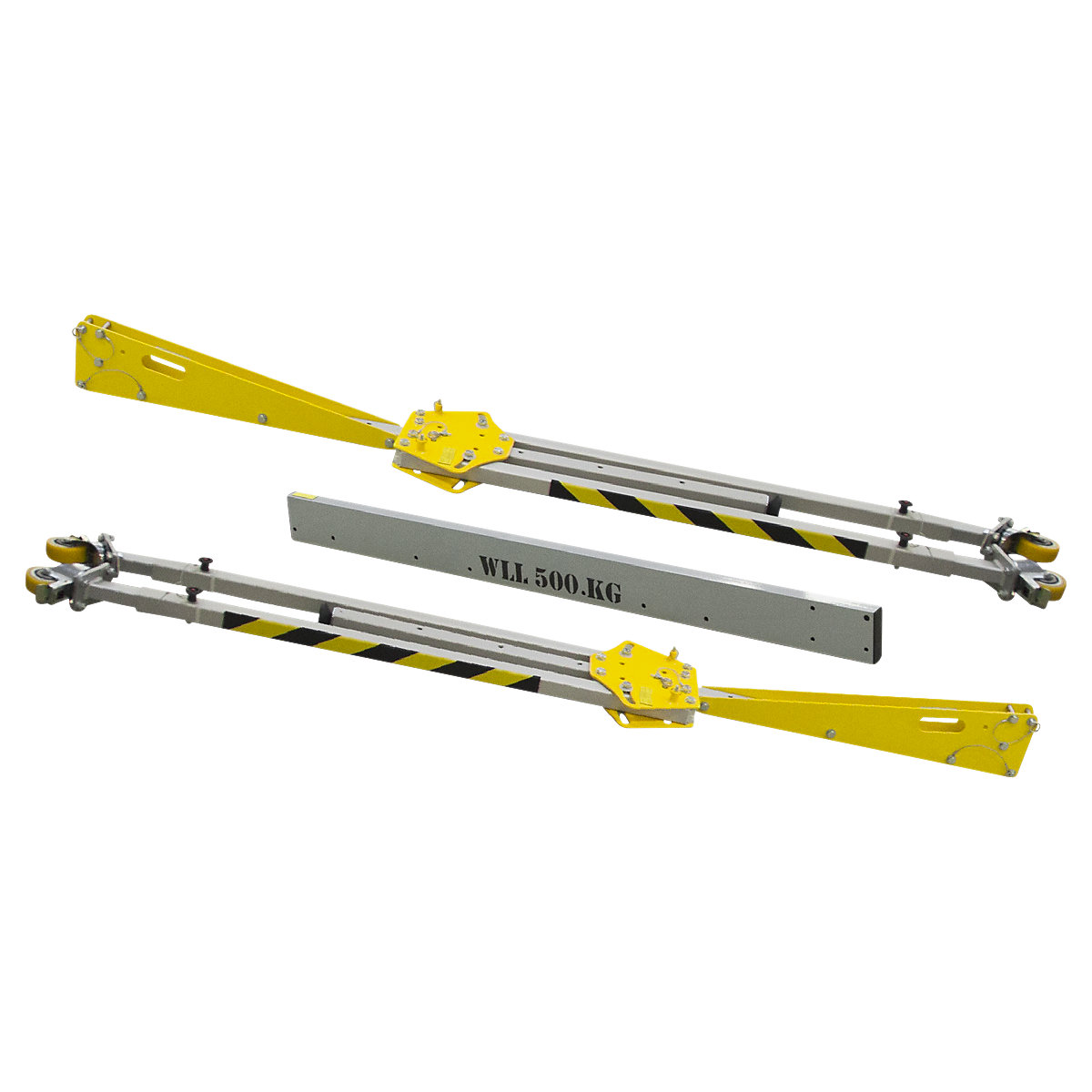

Suppliedpre-assembled, final assembly by customer
Track width2000 mm
Weight49 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

697.85kg CO₂e
LCA Raw Material Extraction & Processing
75.3%
LCA packaging production
0.4%
LCA Product Manufacturing
21.6%
LCA Inbound and Outbound Transportation
2.7%
‌
‌
‌
