Ref.: 762274 10

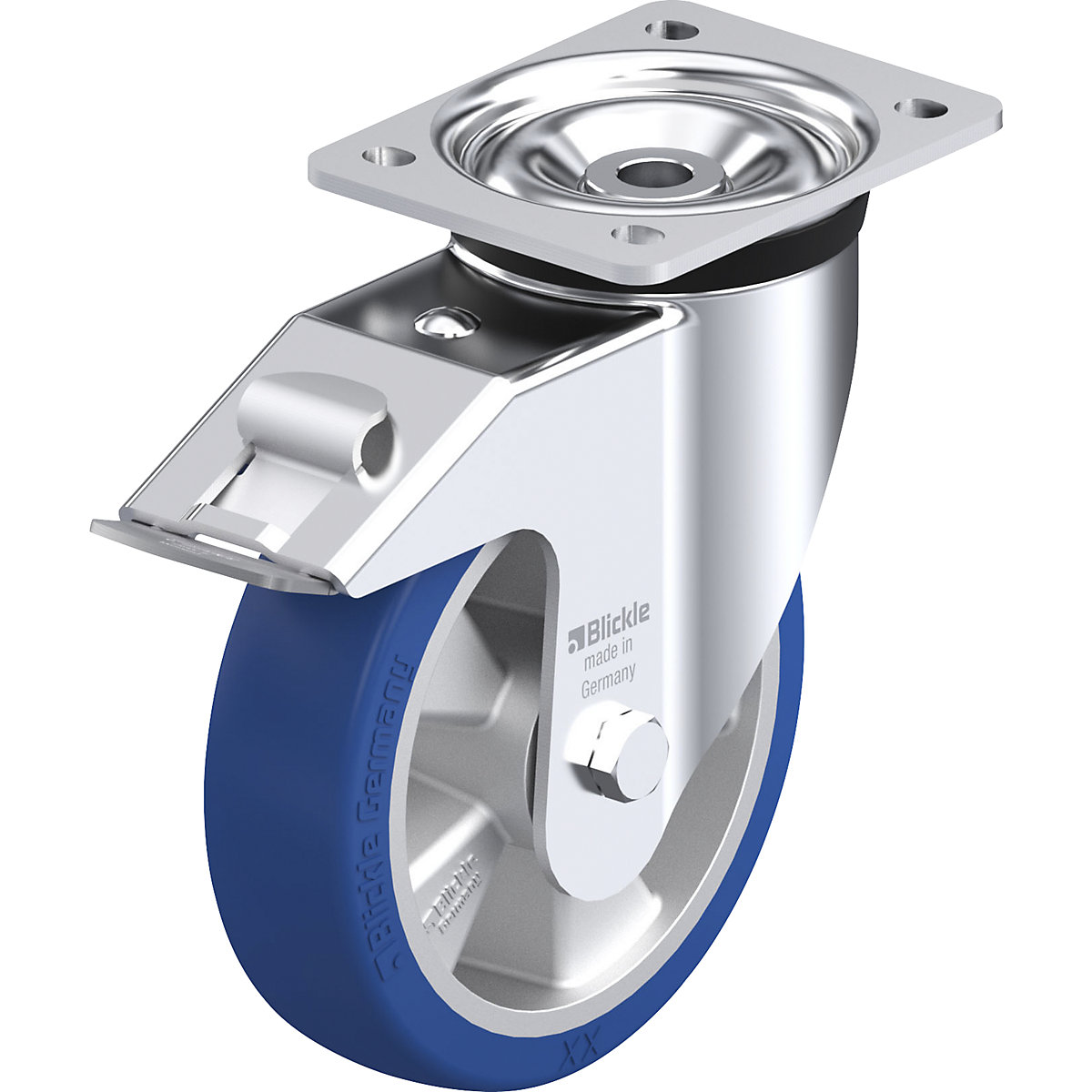

LK-ALBS sheet steel swivel castor – Blickle wheel Ø x width 180 x 50 mm
swivel castor with wheel stop
Structure
Ref.: 762274 10
LK-ALBS sheet steel swivel castor – Blickle wheel Ø x width 180 x 50 mm
swivel castor with wheel stop
swivel castor with wheel stop
Sustainability score:Structure
345,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
345,00 €
Price / item (Ex. VAT)
345,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
Product description
- Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Double ball bearing in the ring bearing
- Stable centre bolt (from wheel Ø 125 x 50 mm)
- Ring bearing seal
- Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
- Tread: high quality Blickle Besthane® Soft polyurethane elastomer, non-marking
- Wheel body: die cast aluminium, silver grey
- High chemical resistance to many aggressive media
- Temperature resistance: –20 °C to +70 °C, reduced max. load above +40 °C
Technical data
| Model | heavy duty castors |
|---|---|
| Wheel diameter | 180 mm |
| Wheel material | polyurethane |
| Material of rim | cast aluminium |
| Type of mounting | with top plate |
| Housing material | steel |
| Max. load at 4 km/h | 600 kg |
| Wheel bearing | ball bearing |
| Shore hardness | 75 Shore A |
| Swivel castor plate dimensions | 140 x 110 mm |
| Overall height | 223 mm |
| Wheel width | 50 mm |
| Product type | swivel castors |
| Supplied | assembled |
| Structure | swivel castor with wheel stop |
| Weight | 3.87 kg |
| Manufacturer / EU responsible Person (GPSR) |
