Ref.: 762616 10

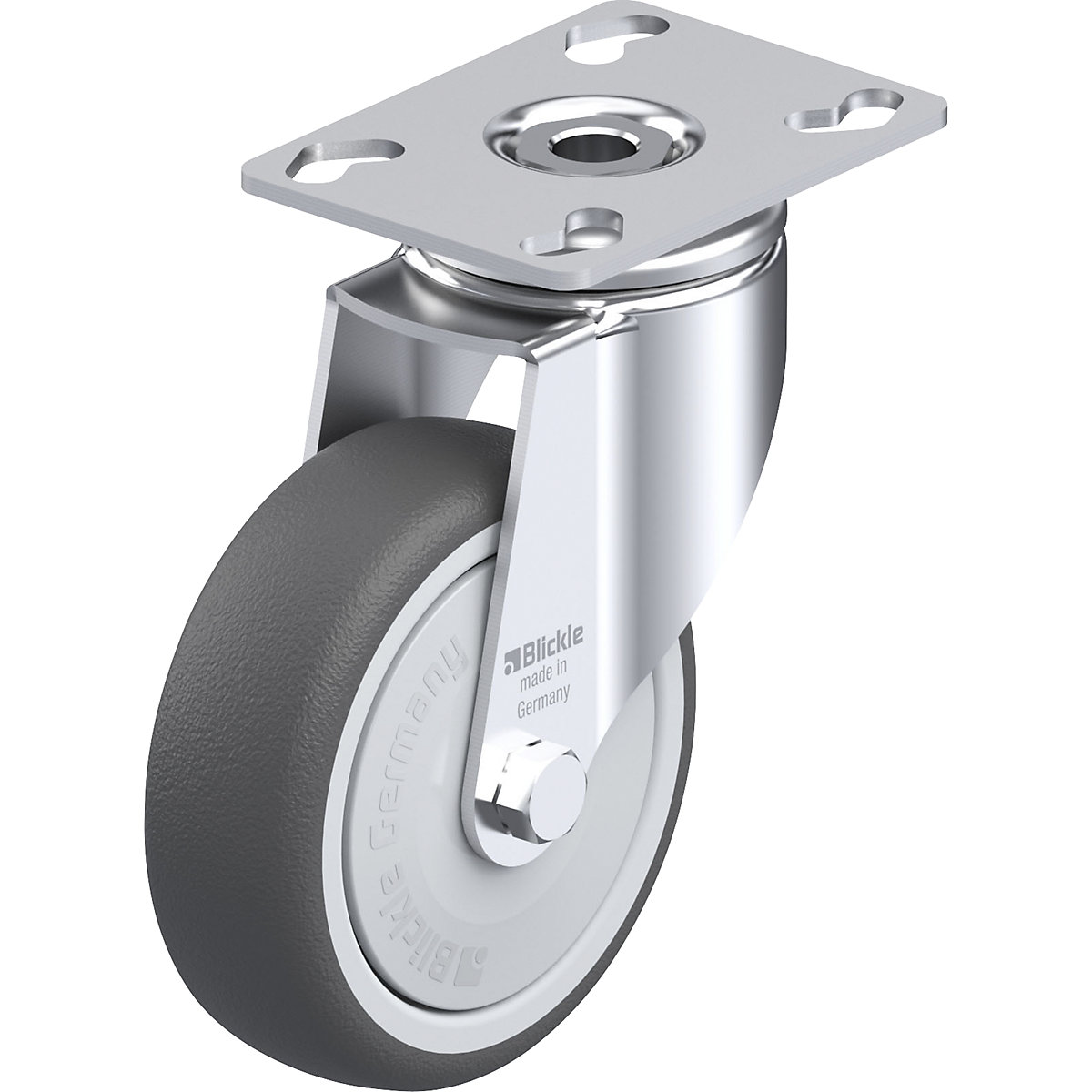

LKPA-PATH light duty swivel castor – Blickle max. load 120 kg
wheel Ø 100 mm, overall height 136 mm
Wheel diameter [mm]
Ref.: 762616 10
LKPA-PATH light duty swivel castor – Blickle max. load 120 kg
wheel Ø 100 mm, overall height 136 mm
wheel Ø 100 mm, overall height 136 mm
Sustainability score:Wheel diameter [mm]
49,90 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
49,90 €
Price / item (Ex. VAT)
49,90 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Efficient order processes for business customers
Product description
- Sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Temperature resistance: –20 °C to +70 °C, reduced max. load above +35 °C
- Double ball bearing in the ring bearing
- Stable centre bolt
- Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
- Locking lever stop-fix made of steel
- Tread: high quality thermoplastic polyurethane (TPU), non-marking
- Wheel body: high quality nylon 6, does not break, silver grey
- Very high chemical resistance to many aggressive media
Light duty swivel castor with mounting plate. Wheel with thermoplastic polyurethane tread, with nylon wheel body, with plastic thread guard, large.
Technical data
| Structure | swivel castor |
|---|---|
| Model | light duty castors |
| Wheel material | polyurethane |
| Material of rim | nylon |
| Type of mounting | with top plate |
| Housing material | steel |
| Max. load at 4 km/h | 120 kg |
| Wheel bearing | ball bearing |
| Shore hardness | 94 Shore A |
| Swivel castor plate dimensions | 90 x 66 mm |
| Wheel width | 32 mm |
| Product type | swivel castors |
| Supplied | assembled |
| Wheel diameter | 100 mm |
| Overall height | 136 mm |
| Weight | 0.71 kg |
| Manufacturer / EU responsible Person (GPSR) |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Product CO₂ footprint
- LCA functional unit
- 1
- CO2 footprint year of calculation
- 2026
- LCA validity (in years)
- 1
- CO2 footprint calculation method product
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
- CO2 footprint system boundaries
- Cradle-to-gate
Scoring System
More about our sustainability approach.
3.7/5.9Overall score
| Criteria | Weighting | Score |
|---|---|---|
 Climate protection | 30% | 5.9 |
 Circulatory economy | 30% | 2.0 |
 Biodiversity | 25% | 2.0 |
 Economic efficiency | 10% | 1.0 |
 Innovation | 5% | 3.9 |
