Ref.: 566231 10

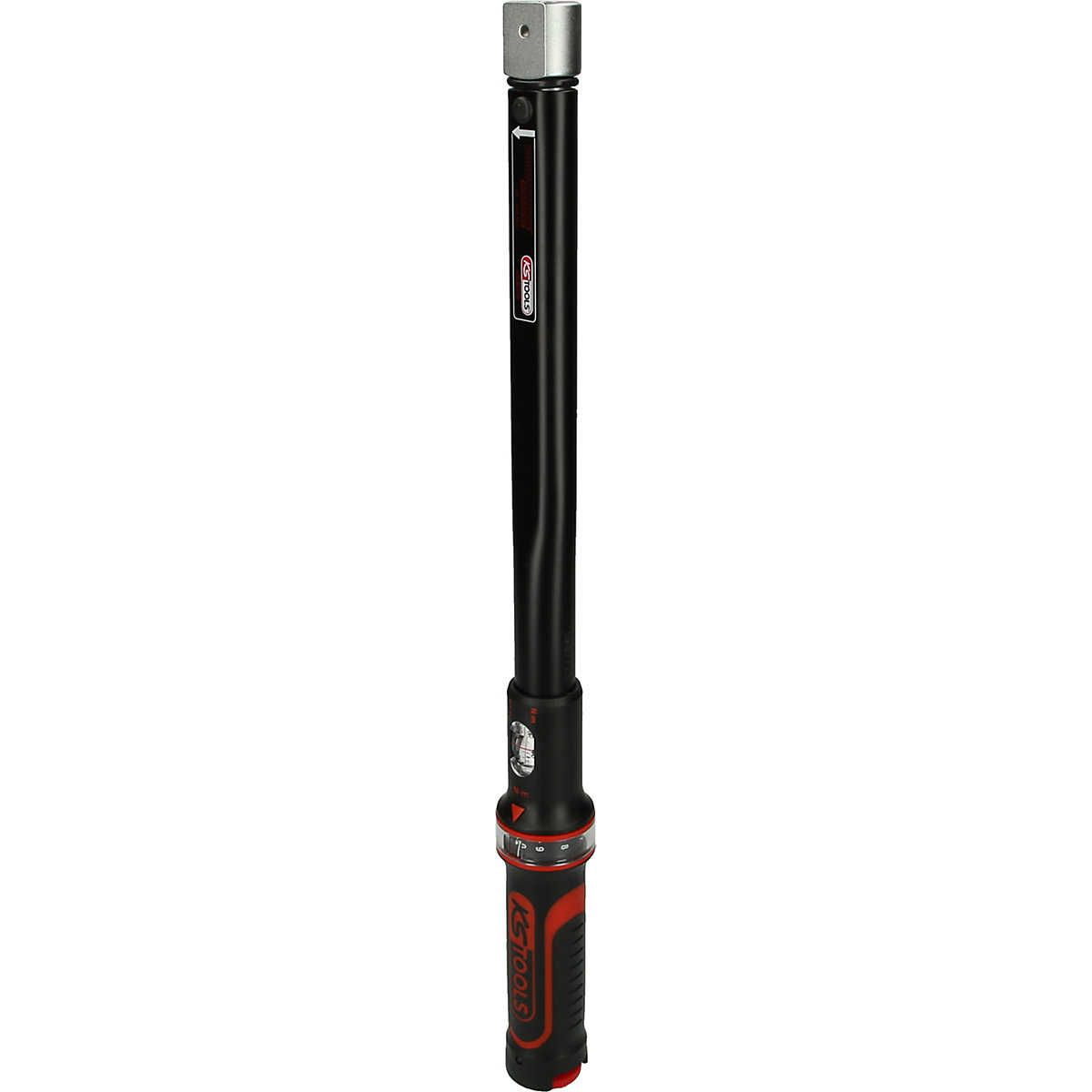

ERGOTORQUE®precision fine adjustment torque wrench – KS Tools 14 x 18 mm

ERGOTORQUE®precision fine adjustment torque wrench – KS Tools

20 – 100 Nm

195,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Actuation accuracy: ±3% tolerance from the value set on the scale
  • Repeat accuracy and precision for at least 5000 load changes
  • For controlled clockwise and anti-clockwise tightening
  • Clearly audible and palpable torque actuation by quick release function
  • Double scale with Nm and lbf ft divisions for precise adjustment
  • Ergonomic and comfortable 2 component handle with soft zone
  • Double scale with Nm and lbf ft divisions for precise adjustment
  • Includes an Nm micrometre scale with exact divisions for fine and precise adjustment
  • Large vision panel with magnifying function to optimise readability
  • Turning the handle adjusts the torque quickly and reliably
  • Secure locking mechanism on the handle
Includes a declaration of calibration conformity in accordance with EN ISO 6789:2017(E) – traceable to national standards.

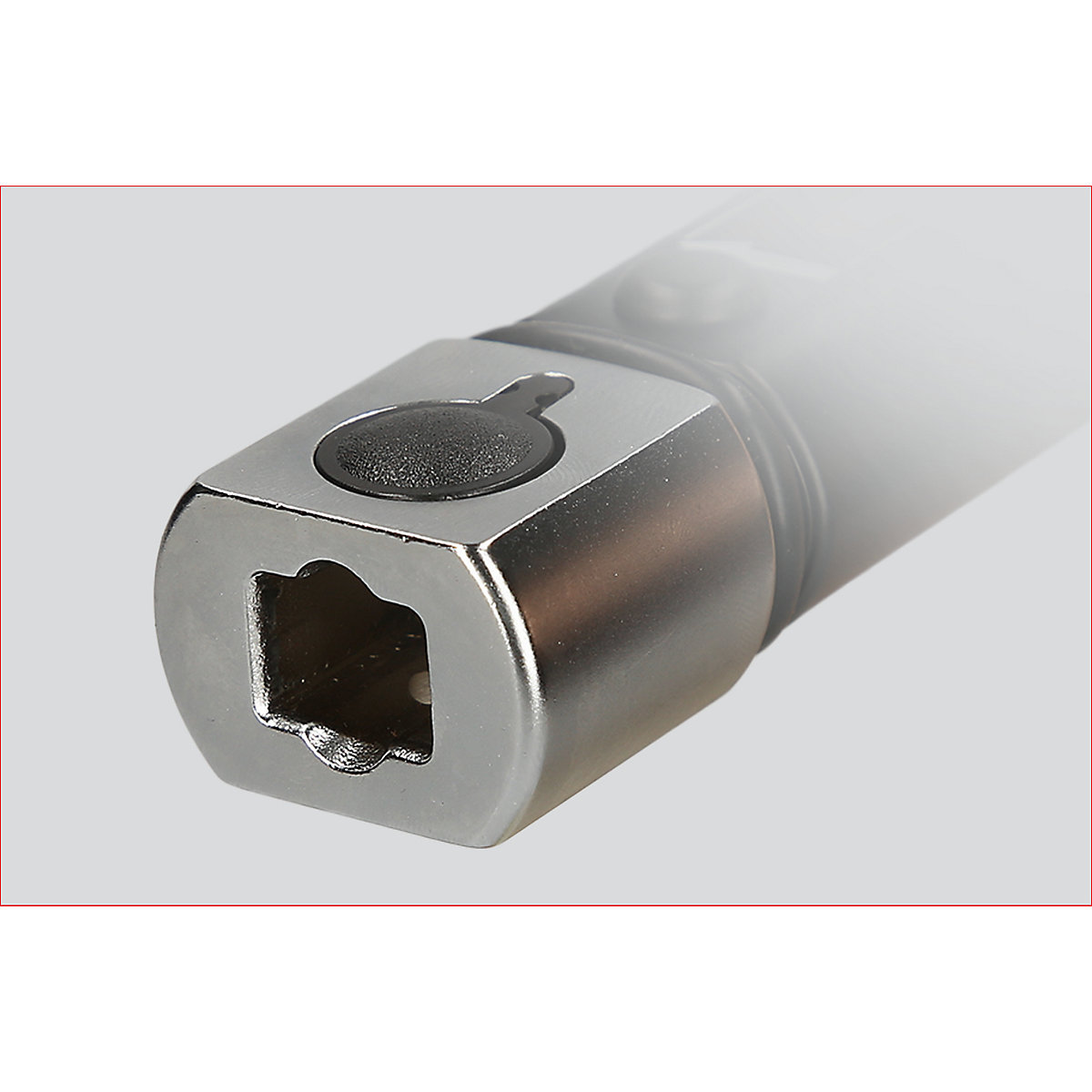

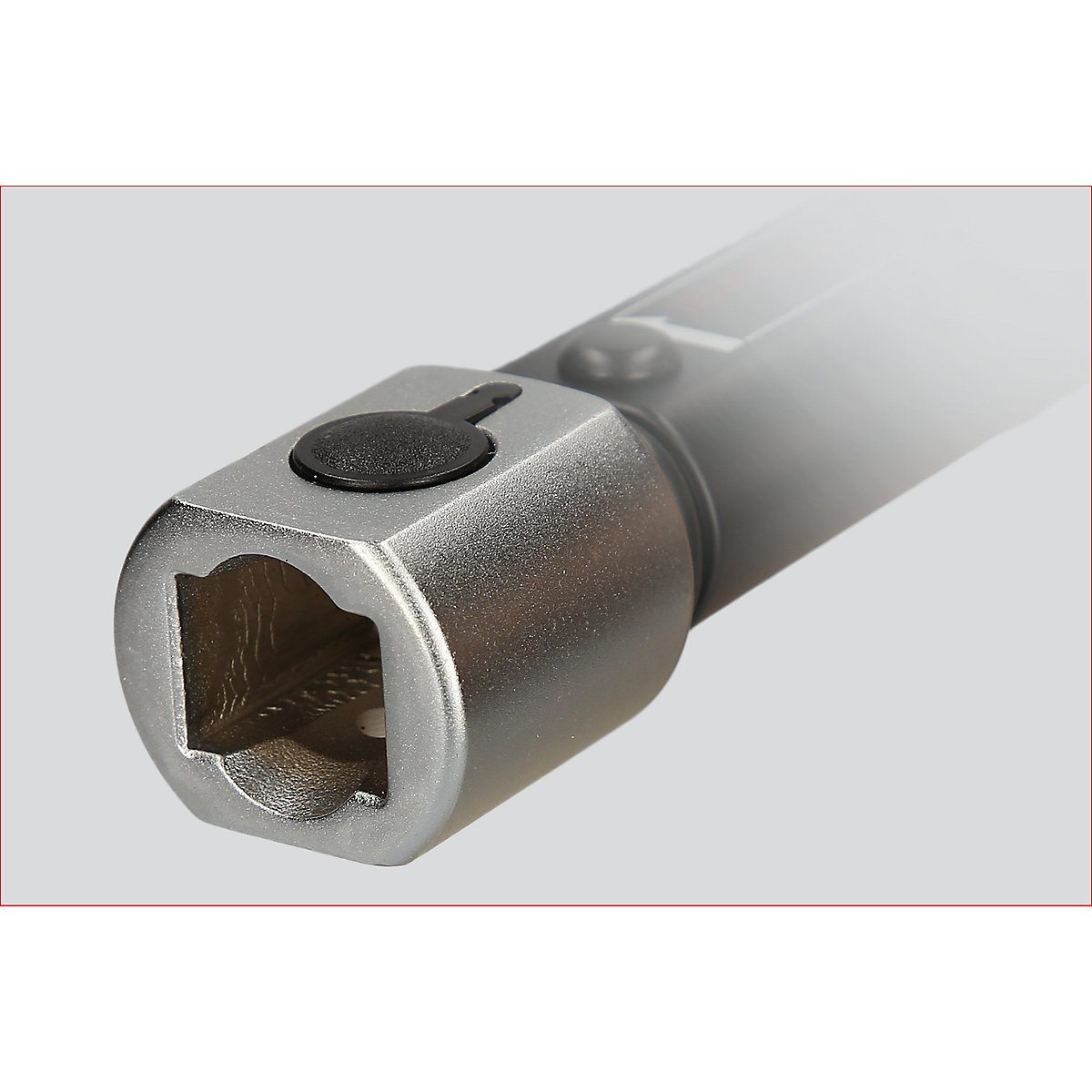

With quick lock plug-in insert for 9 x 12 or 14 x 18 insertion tools.
Technical data
Weight1.02 kg
Display typegraduation (mechanical)
Holder14 x 18
Actuation accuracy±3 %
Handle2-component handle

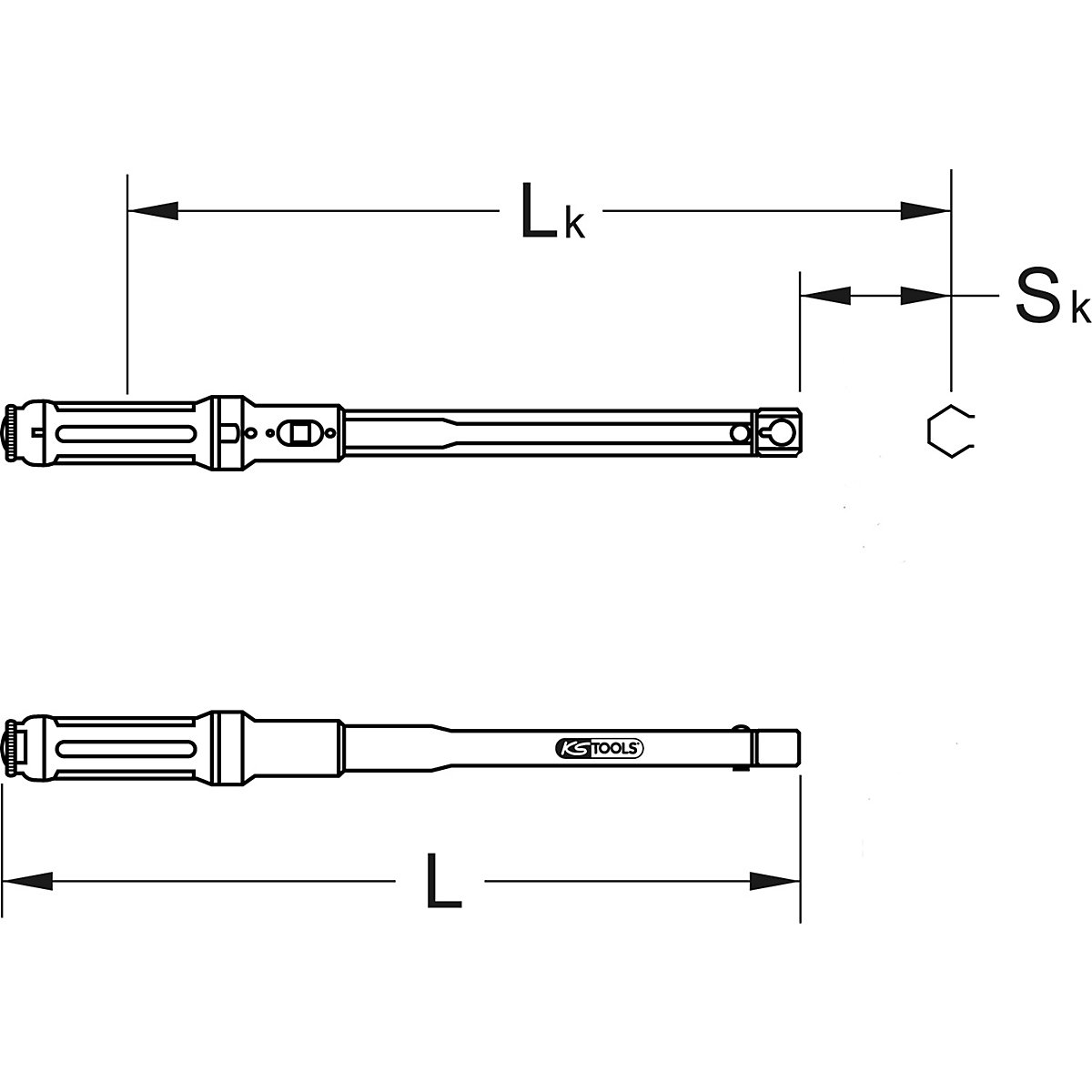

Lever arm length335 mm
Length375 mm
Materialchrome-vanadium steel
Measuring range Nm20 – 100 N·m
Tool holderinterchangeable tool
Colourblack
Product typetorque wrenches
Suppliedassembled
