Ref.: 538217 10

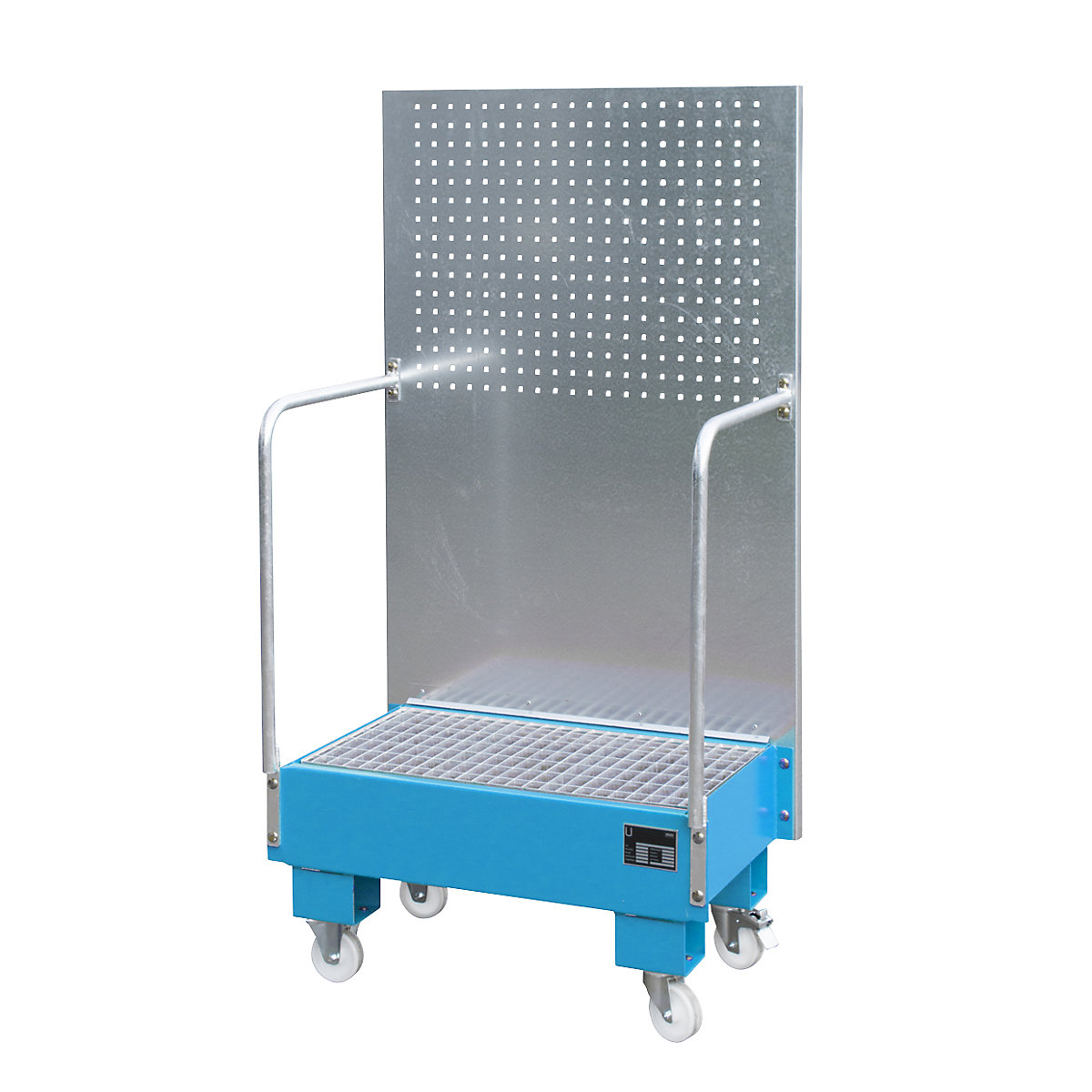

Mobile sump tray with perforated panel – eurokraft pro 1 x 200 l drum placed upright, LxWxH 870 x 890 x 2110 mm

Mobile sump tray with perforated panel – eurokraft pro

light blue

For water hazardous liquids
For water hazardous liquids
For flammable liquids
For flammable liquids
Sump capacity [l]
Drum capacity
Length [mm]
1.080,00 €
Price / item (Ex. VAT)
Availability: 3-4 weeks
Product description
  • Regulation compliant transport, storage and filling of hazardous liquids such as oils, lubricants, fuels, etc.
  • Practical perforated panel for attaching tools, pumps, hoses, etc.
  • Comfortable transport between the usage sites – safe filling directly at the point of use
  • Steel sump tray with manufacturer's declaration of conformity, with zinc plated, removable grate and sturdy push handles
Mobile filling station with perforated panel for free positioning of tool holders.

Mobile sump tray made of 3 mm sheet steel with leakproof welds, painted in colour, 2 swivel and 2 fixed castors, 1 swivel castor with wheel stop.
With hot dip galvanised, removable grate, max. load 1000 kg/m². Sturdy, zinc plated push handle for easy handling.
With manufacturer's declaration of conformity in accordance with StawaR. Approved for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4.

Sturdy, zinc plated sheet steel panel with square holes (10 x 10 mm) in continuous increments of 38 mm for attaching tool holders and accessories such as hose/cable holders, pumps, storage baskets, etc.
Required tools can be taken with you and be kept within reach. Mobile tray can easily be extended to form a mobile filling station.

Perforated panel grid dimensions are suitable for our extensive range of tool holders and accessories – please include with your order.
Technical data
Type of gratewith zinc plated grate
Modelwith push handle
Materialsheet steel
Max. load1000 kg/m²
Test symbolmanufacturers declaration of conformity in accordance with StawaR
Material thickness3 mm
For mediaflammable and water hazardous liquids
Hazard classfor flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4
Featuremobile
Distributed load1000 kg/m²
Wheel typenylon
Wheel fittings2 swivel and fixed castors, 1 swivel castor with wheel stop
Drum storageupright
Certificationwith
Suppliedpre-assembled, final assembly by customer
Sump capacity203 l
Drum capacity1 x 200 l
Length870 mm
Width890 mm
Height2110 mm
Colourlight blue RAL 5012
Finishpainted
Max. wheel load450 kg
Wheel diameter180 mm
Push handle height1355 mm
Product type200 l sump trays mobile sump trays
Weight100 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
25
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

469.82kg CO₂e
LCA Raw Material Extraction & Processing
40.1%
LCA packaging production
1.6%
LCA Product Manufacturing
50%
LCA Inbound and Outbound Transportation
8.2%
Scoring System
3.0/5.9Overall score
CriteriaWeightingScore
Icon Climate protectionClimate protection30%2.5
Icon Circulatory economyCirculatory economy30%3.7
Icon BiodiversityBiodiversity25%2.0
Icon Economic efficiencyEconomic efficiency10%0.0
Icon InnovationInnovation5%3.9
More about our sustainability approach.
‌
‌
‌
‌
‌
