PTFE hand drum pump

with drainage hose and tap
  • For aggressive liquids that corrode conventional pumps made of PP or PVC
  • Suitable for dispensing high purity liquids
  • Very high chemical resistance
Suitable for caustic substances
Effect of the substances: destruction of living tissue (e.g. acids with pH < 2 or alkalis with pH > 11.5).
Suitable for caustic substances. Effect of the substances: destruction of living tissue (e.g. acids with pH < 2 or alkalis with pH > 11.5).

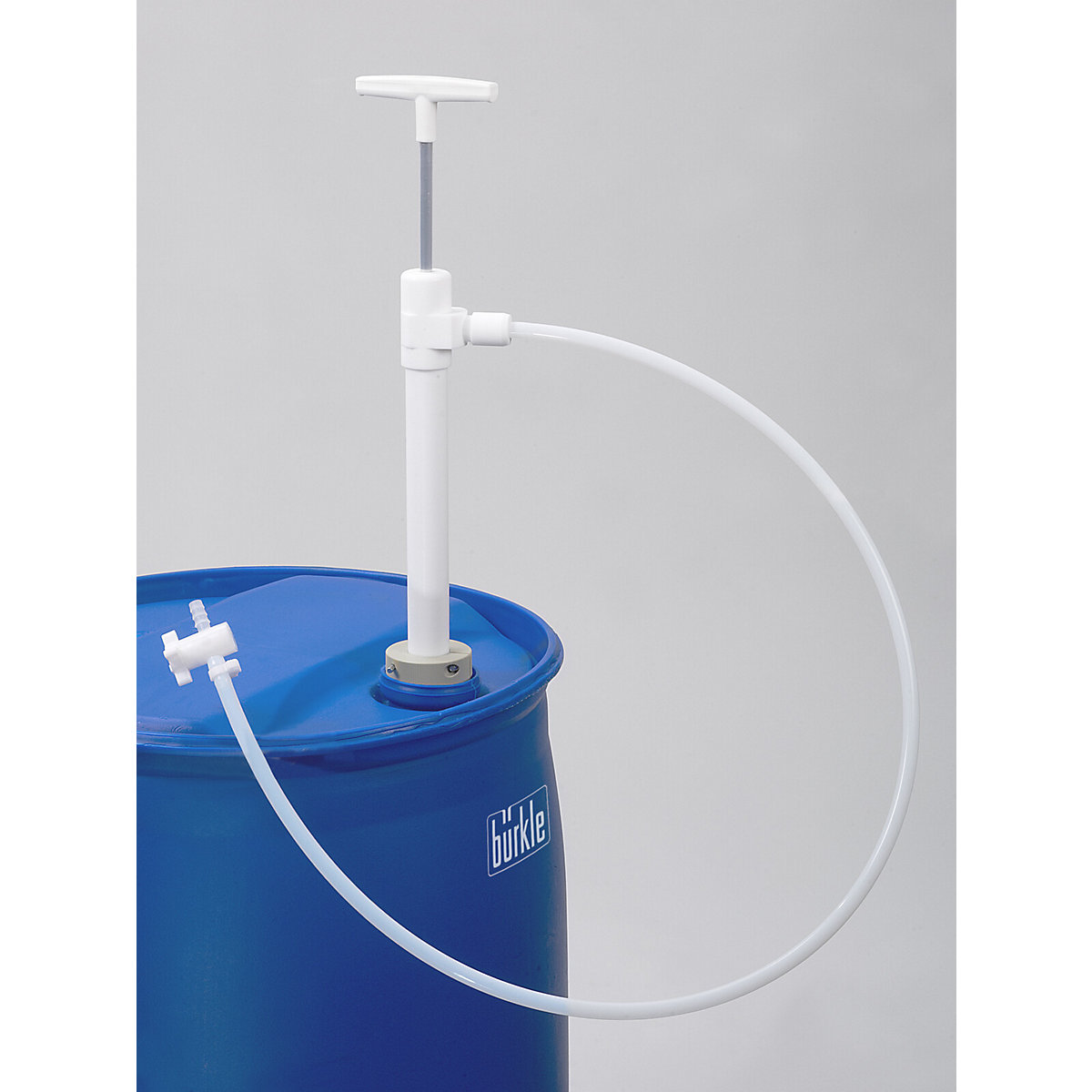

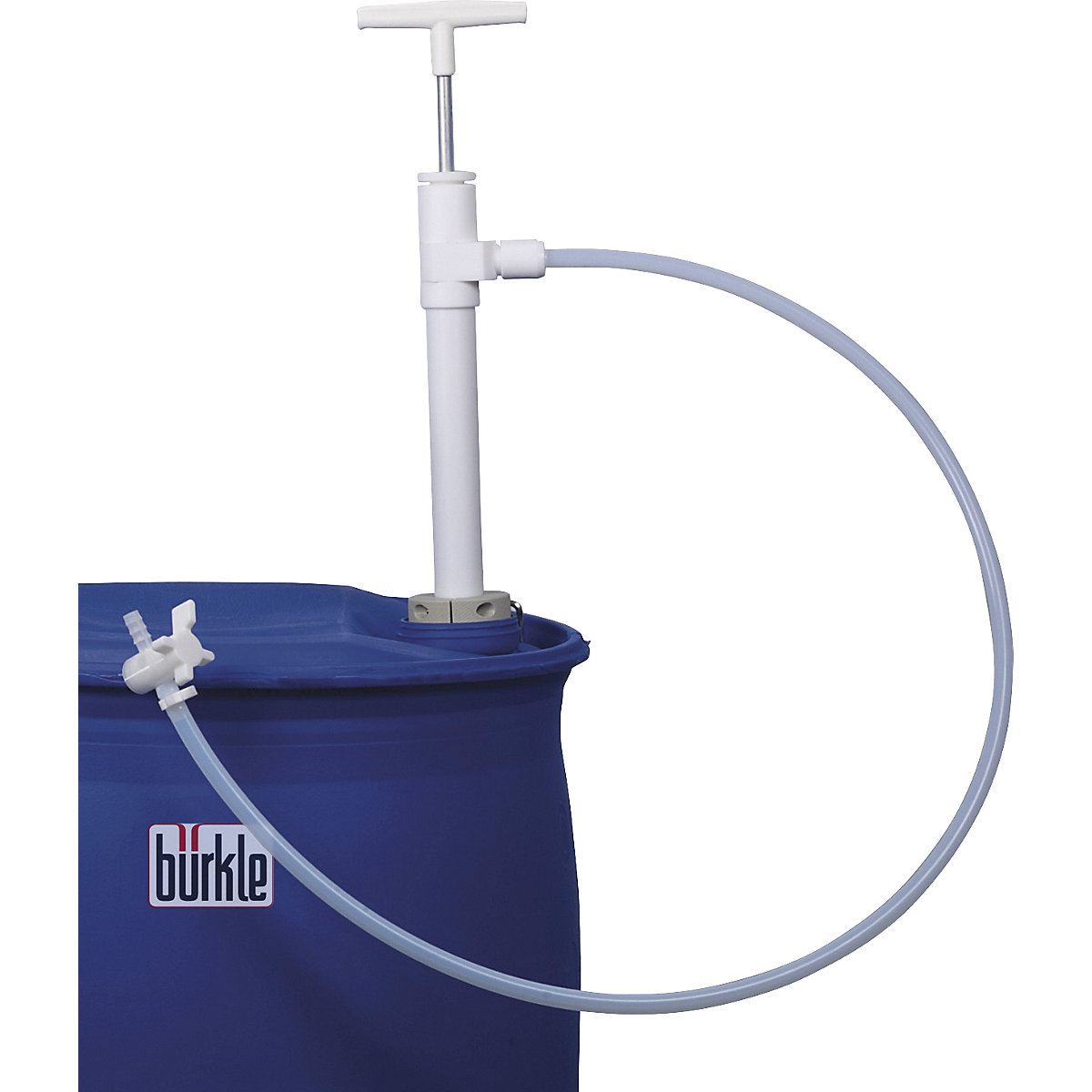

PTFE hand drum pump, with drainage hose and tap, immersion depth 600 mm, 270 ml/stroke
Price / items (Ex. VAT)
from
459,00 €

Product description
+

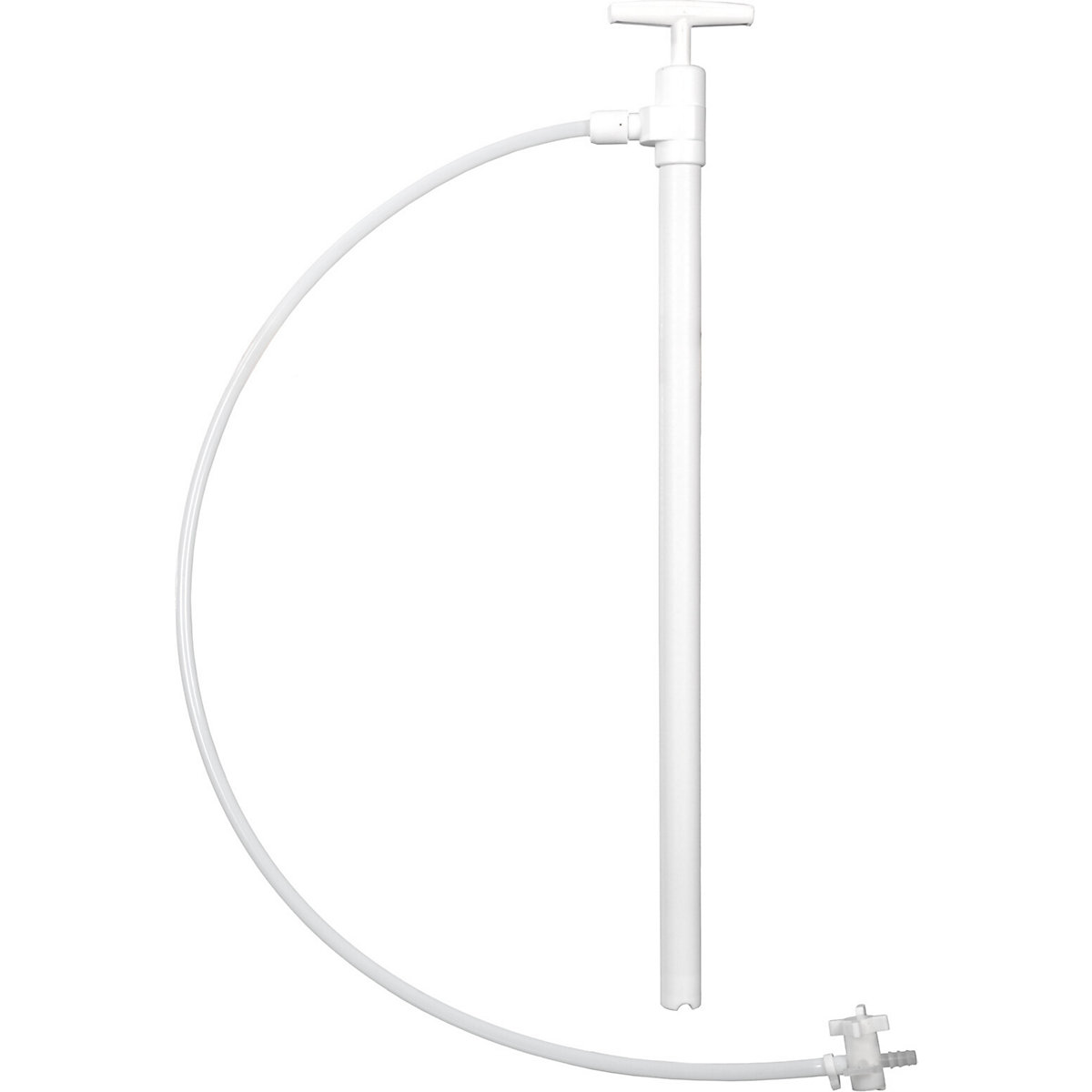

Drum pump made of ultra pure PTFE and FEP with a flexible drainage hose made of PTFE, length 1.2 m and stop cock made of PVCF. Stop cock prevents any hazardous fumes from escaping and any dripping.
For aggressive liquids that corrode conventional pumps made of PP or PVC (except elemental fluorine). Also suitable for high purity liquids.
Not for easily flammable liquids.
For unspecified media, please enquire about compatibility beforehand.

Supplied without drum screw connection – please order as an accessory.
  • For aggressive liquids that corrode conventional pumps made of PP or PVC
  • Suitable for dispensing high purity liquids
  • Very high chemical resistance
Suitable for caustic substances
Effect of the substances: destruction of living tissue (e.g. acids with pH < 2 or alkalis with pH > 11.5).
Suitable for caustic substances. Effect of the substances: destruction of living tissue (e.g. acids with pH < 2 or alkalis with pH > 11.5).
Technical data
+
Design of pumpwith drainage hose and tap
For mediahigh purity liquids, no highly flammable/flammable liquids, not for explosion hazard areas
Material of pumpPTFE
FEP
PVDF
Pump unit materialPTFE
FEP
PVDF
Immersion tube diameter32 mm
Tube diameter32 mm
Suction hose length1200 mm
Max. viscosity at +20 °C500 mPas

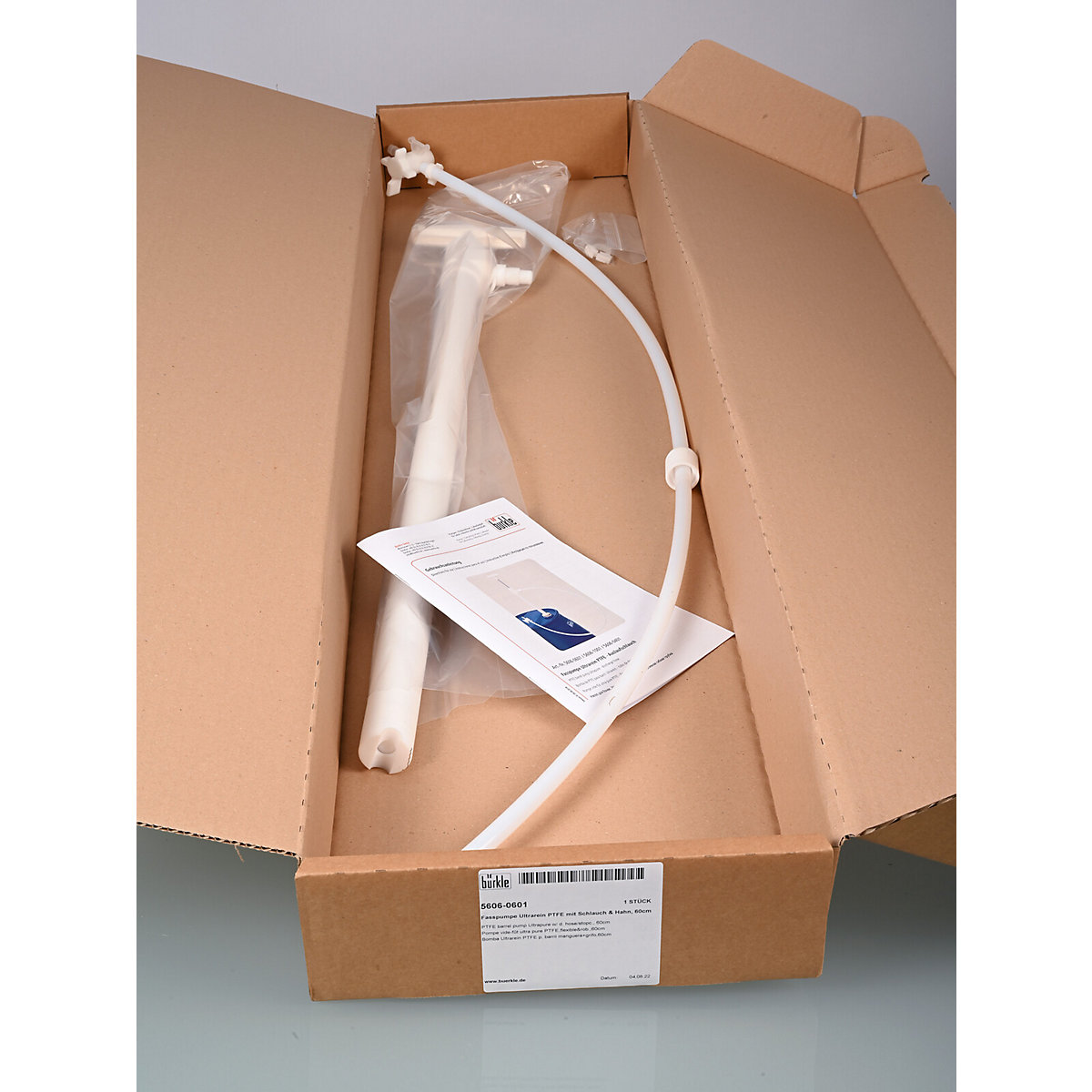

Scope of deliverydrum pump with drainage hose without drum screw connection
Suppliedflat pack
