Ref.: 532835 10

Semi-electric drawbar stacker max. load 1200 kg

Semi-electric drawbar stacker

lifting height 2500 mm

Lifting range [mm]
2.975,00 €
Price / item (Ex. VAT)
Only 9 available
Availability: 3-4 Working Days
Product description
  • Electric lift – manual drive
  • Powerful lift
  • Strong battery
  • Easy to operate
  • Slight change of direction
  • With safety valve

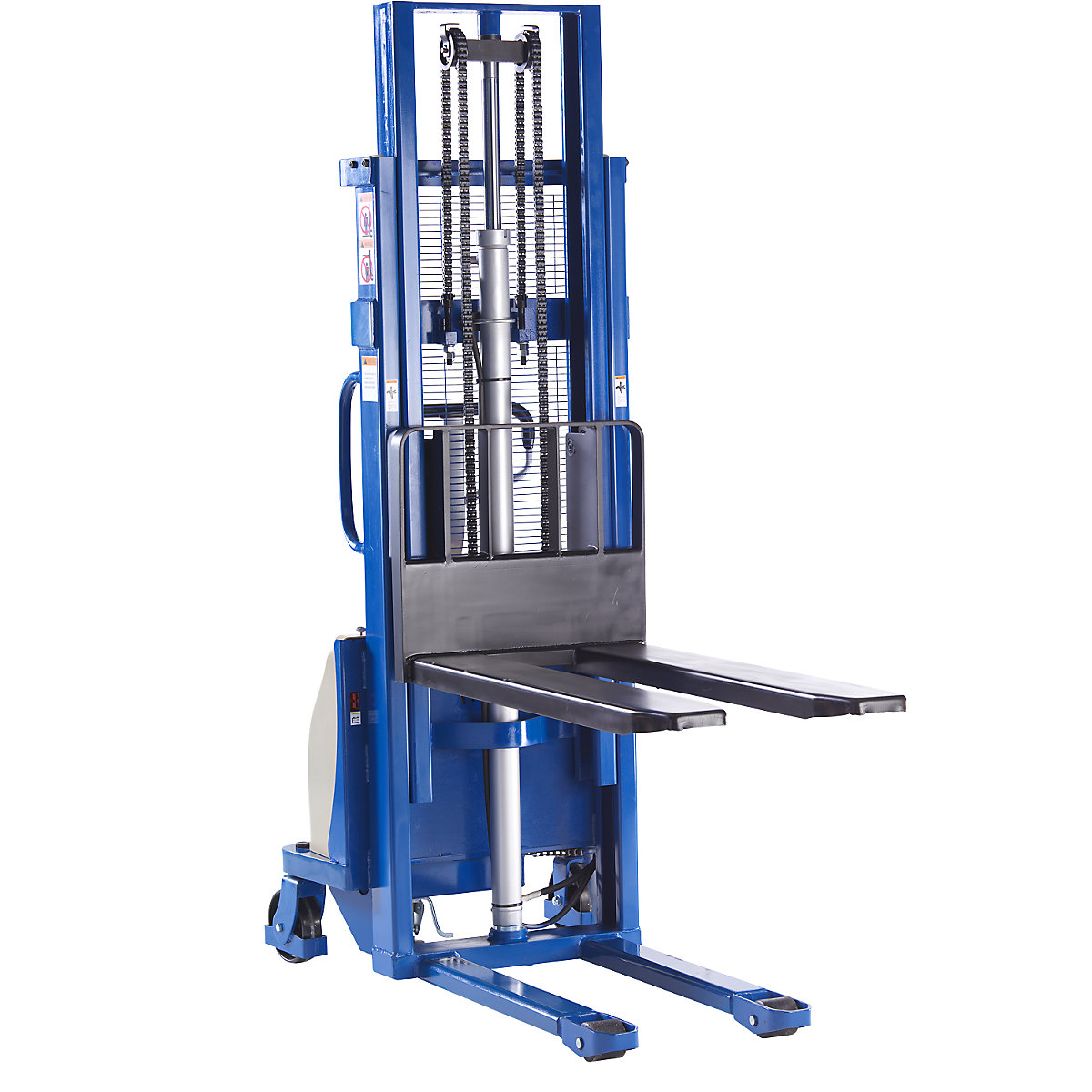

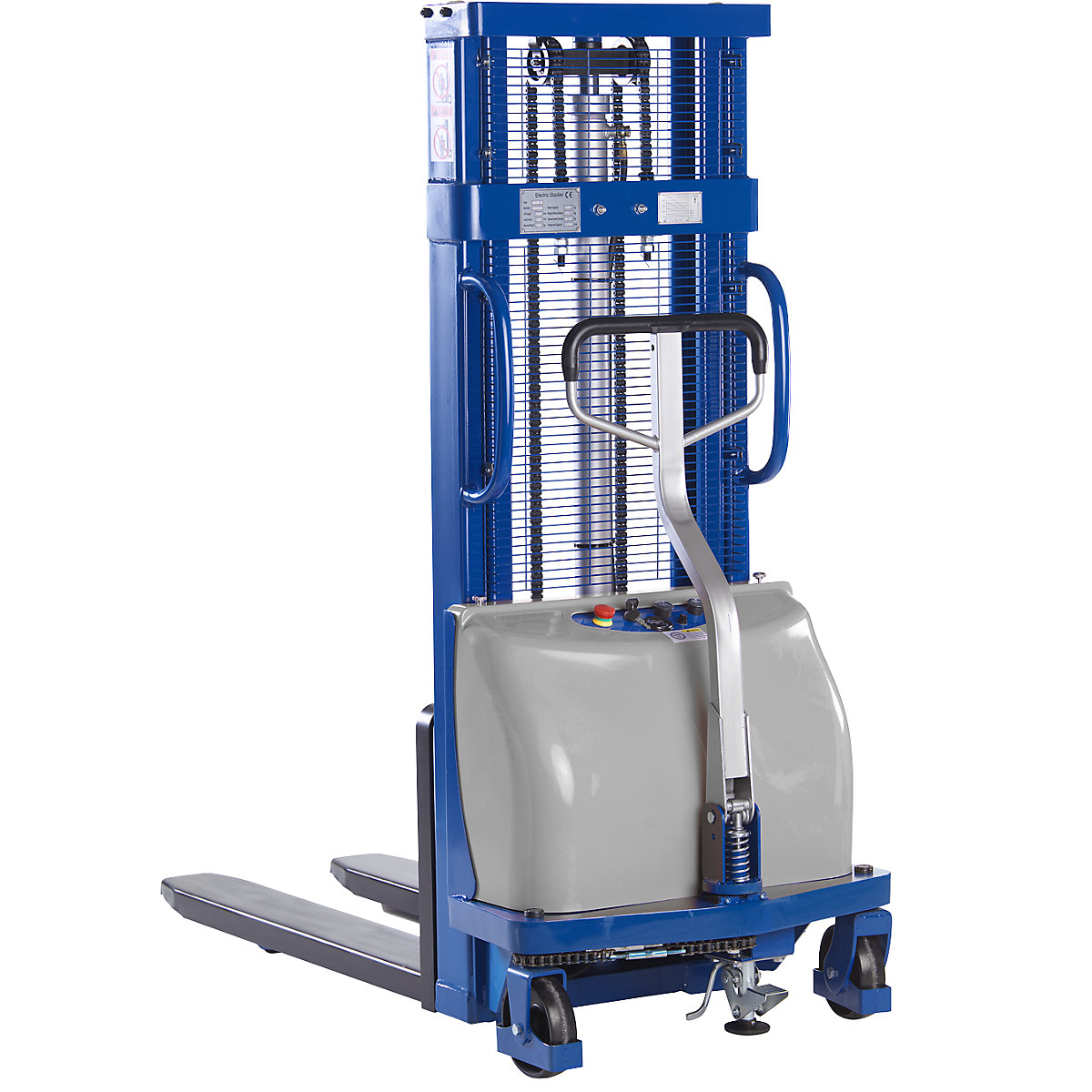

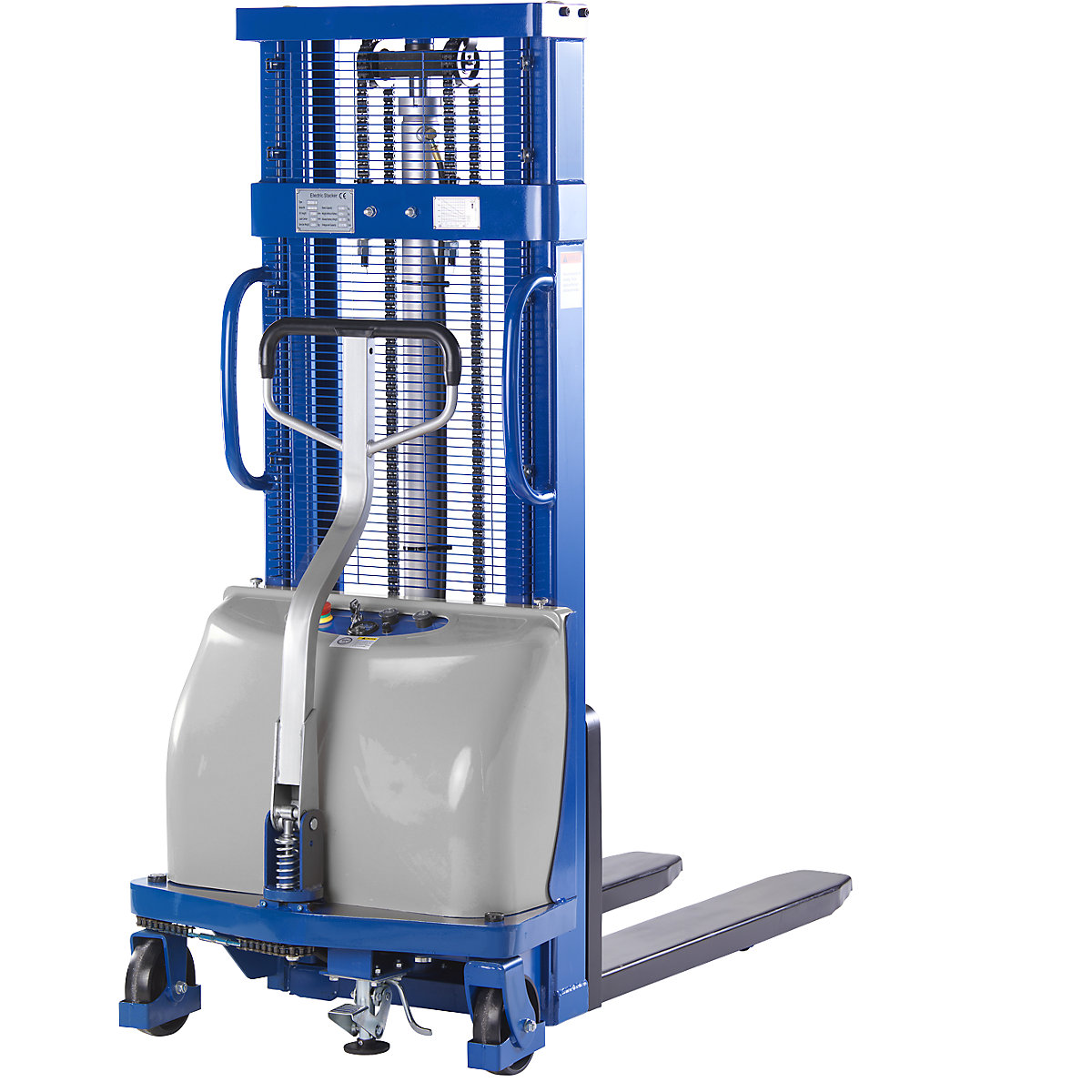

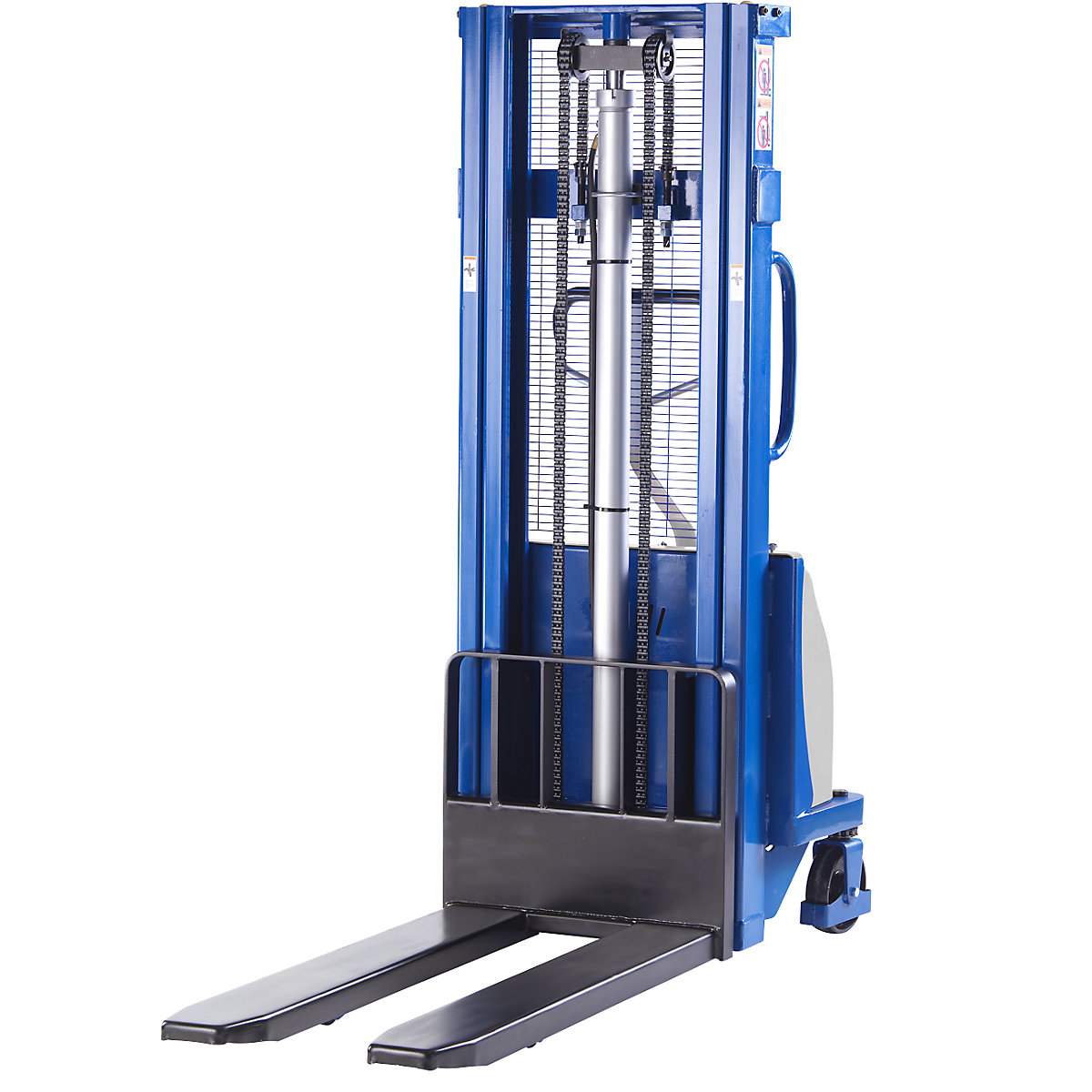

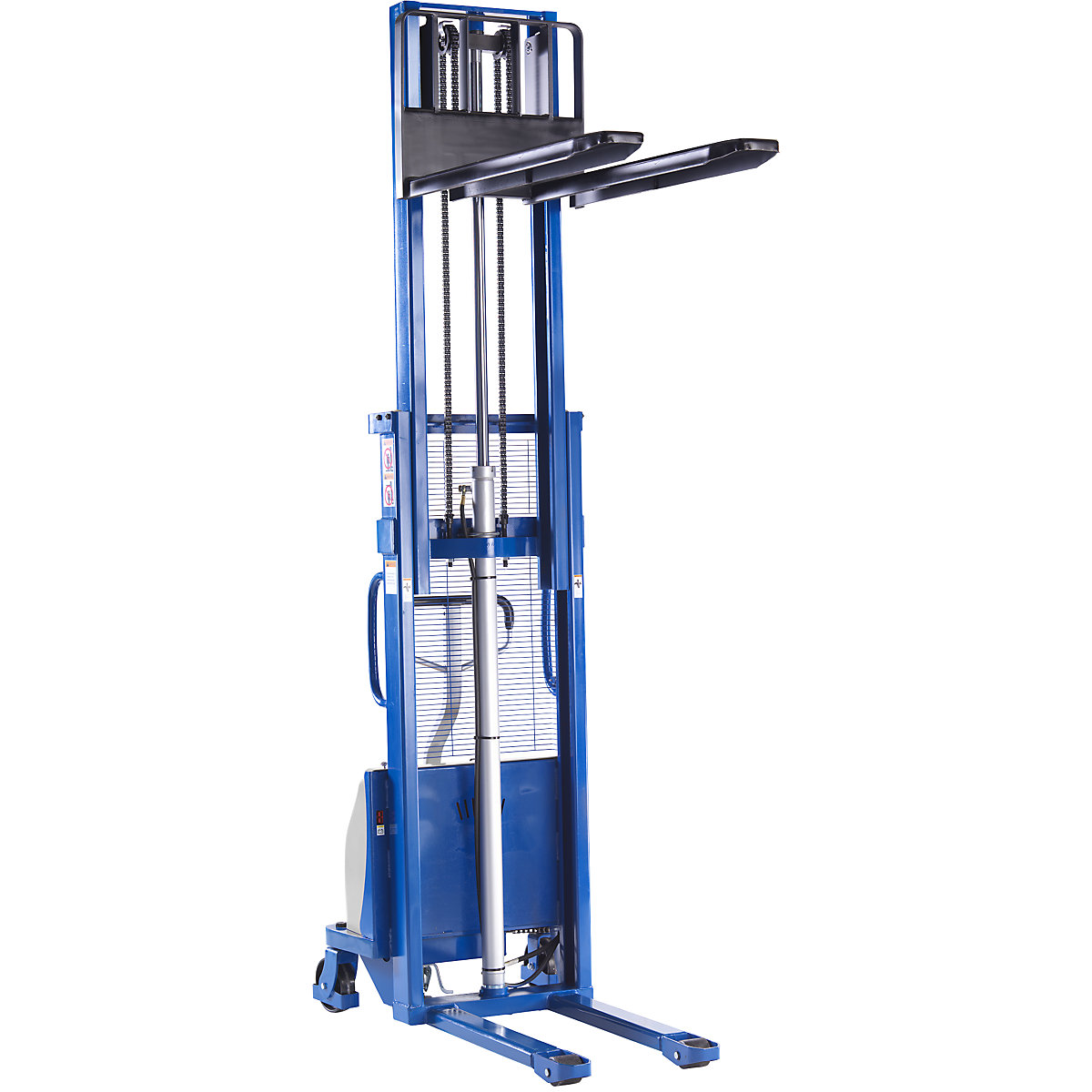

The electric drawbar stacker is characterised by its electro-hydraulic load lifting mechanism. It is moved by pulling on the drawbar or pushing the two powerful handles. It is therefore ideal for occasionally loading and unloading commercial vehicles and for storing and removing goods in warehouses with shorter routes. Max. load 1500 kg, battery 125 Ah with powerful external 10 A charger. Lifting heights up to 3000 mm. Drawbar is connected to the steering wheels via a chain. The advantage is an easy change of direction. Central foot operated wheel stop for firm stand. Safety valve prevents the fork from falling in case of failure. Overload and deep discharge protection for battery prolongs its service life.
Technical data
Max. load1200 kg
Fork length1150 mm
Fork width170 mm
Distance across forks570 mm
Length1678 mm
Width800 mm
Min. lifting speed70 mm/s
Max. lifting speed90 mm/s
Turning radius1425 mm
Thickness of fork prong60 mm
Battery12 V / 125 Ah
Battery charger230 V / 12 V, 10 A
Working gangway for pallet length2267 mm
Roller materialnylon
Fork roller versionsingle
Fork roller diameter80 mm
Fork roller width70 mm
Steering wheel width50 mm
Steering wheel diameter180 mm
Lifting motor1.5 kW
Colourblue
Product typeelectric drawbar stackers
Suppliedassembled
Lifting range90 – 2500 mm
Overall height1840 mm
Design of masttelescopic mast
Weight410 kg
Instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

2,702kg CO₂e
LCA Raw Material Extraction & Processing
47%
LCA packaging production
0.9%
LCA Product Manufacturing
41.7%
LCA Inbound and Outbound Transportation
10.5%
‌
‌
‌
‌
‌
