Ref.: 474536 10

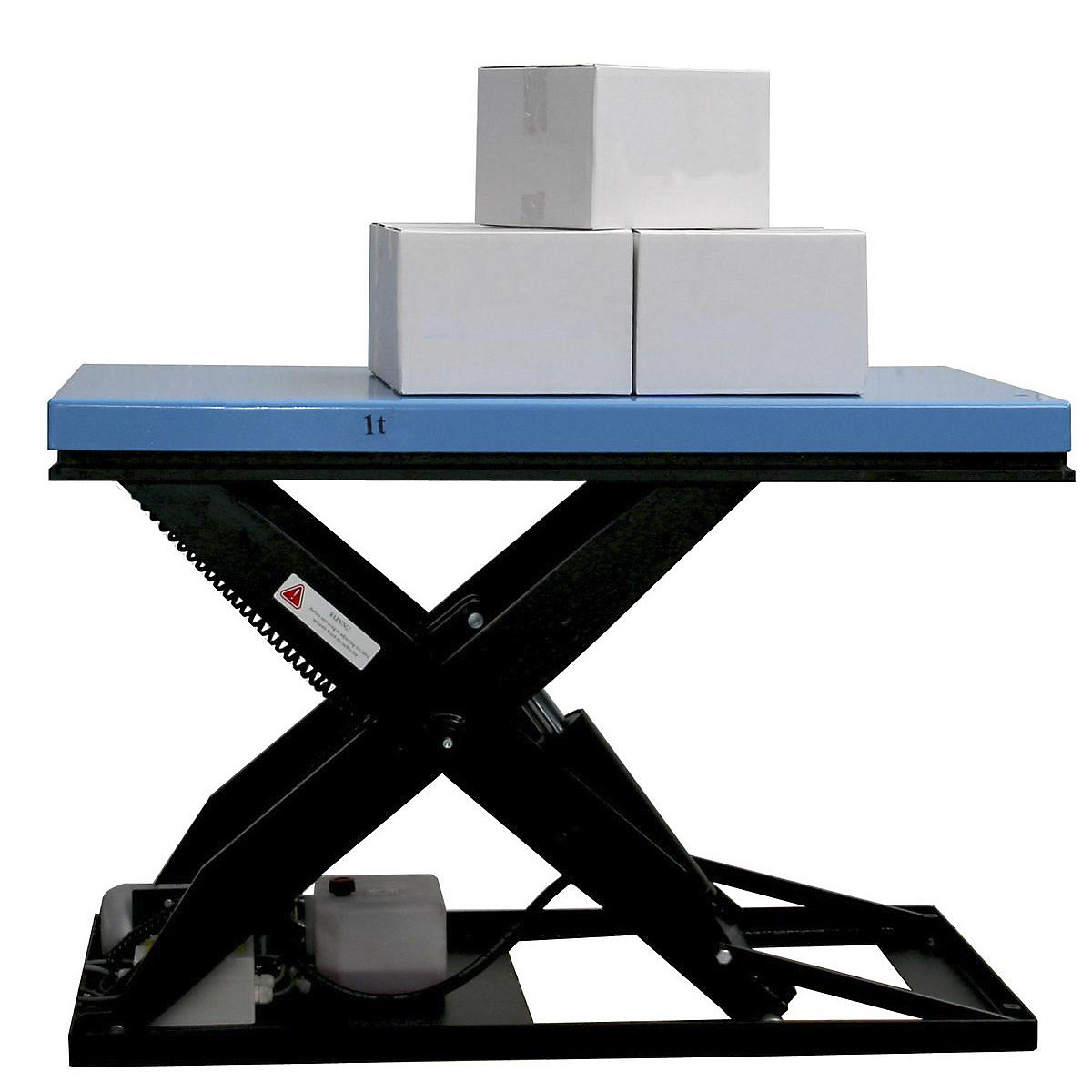

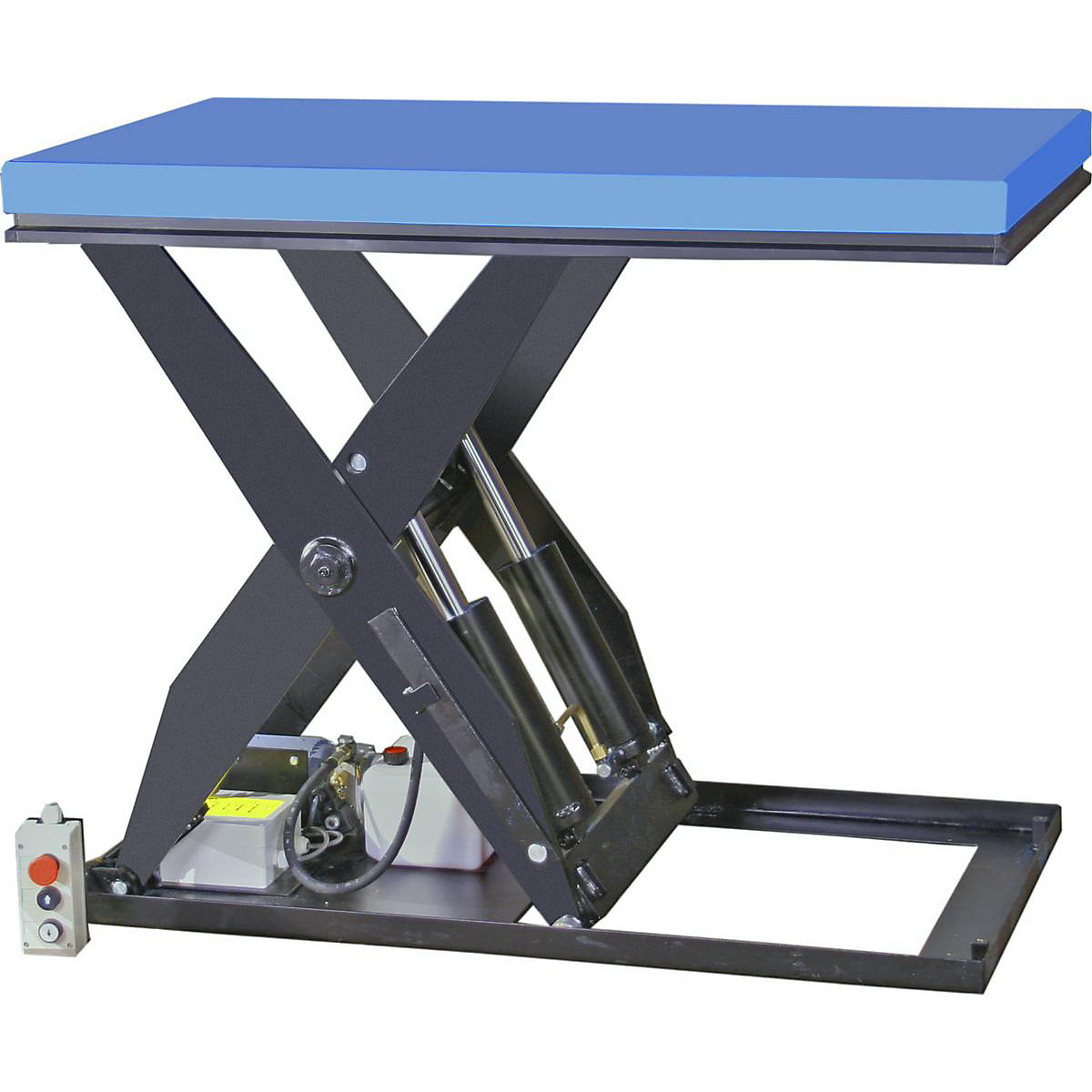

Compact lift table platform LxW 1300 x 800 mm

Compact lift table

max. load 500 kg, operating voltage 400 V

Max. load [kg]
2.825,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Free standing
  • Can be built-in to floor for ground level loading / unloading
  • To be loaded with a counterbalance forklift
Infinite, hydraulic height adjustment. Robust scissor support struts. Overload pressure valve for a long service life, end stop on top and bottom positions.
High-quality powder coating, platform in light blue RAL 5012, frame and scissor mechanism in black RAL 9005.

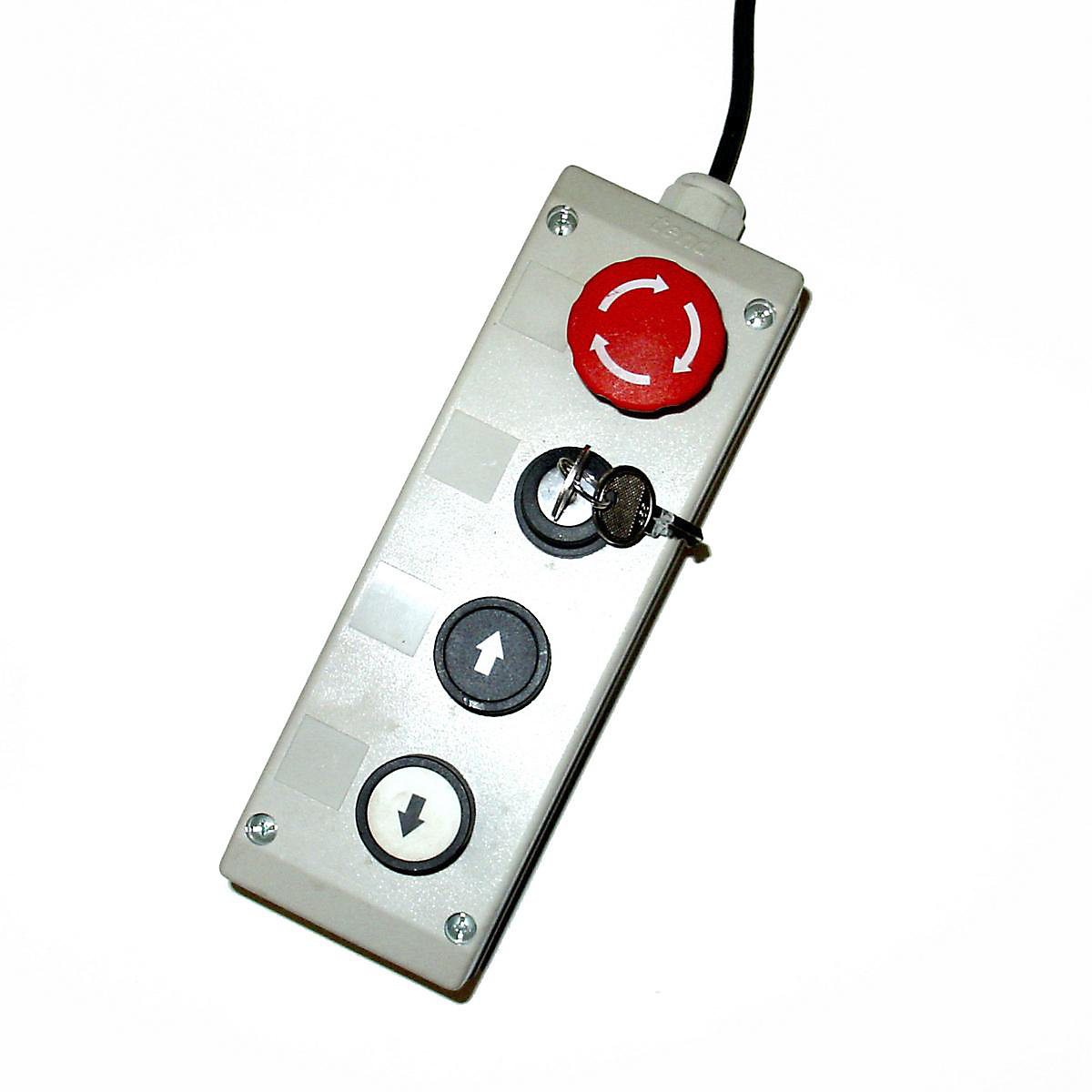

Operated via hand key with 2.6 m cable. Key switch. Emergency off switch.
Technical data
Lifting range190 – 1010 mm
Platform designclosed
Power0.75 kW
Operating voltage400 V
Control voltage24 V
Lift driveelectro-hydraulic
Platform colourlight blue RAL 5012
Platform materialsteel, powder coated
Materialsteel
Finishpowder coated
Frame colourjet black RAL 9005
Fittingswith hand operated control unit
Lift820 mm
Lift per pump stroke820 mm
Platform width800 mm
Platform length1300 mm
Featurestationary electro-hydraulic
Product typecompact lift tables
Suppliedassembled
Max. load500 kg
Lifting time15 sec
Lifting capacity at full load in 1 shift operationsmax. 20 cycles per hour
Weight160 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

1,005kg CO₂e
LCA Raw Material Extraction & Processing
41.3%
LCA packaging production
0.9%
LCA Product Manufacturing
47%
LCA Inbound and Outbound Transportation
10.9%
‌
‌
‌
