Ref.: 968794 10

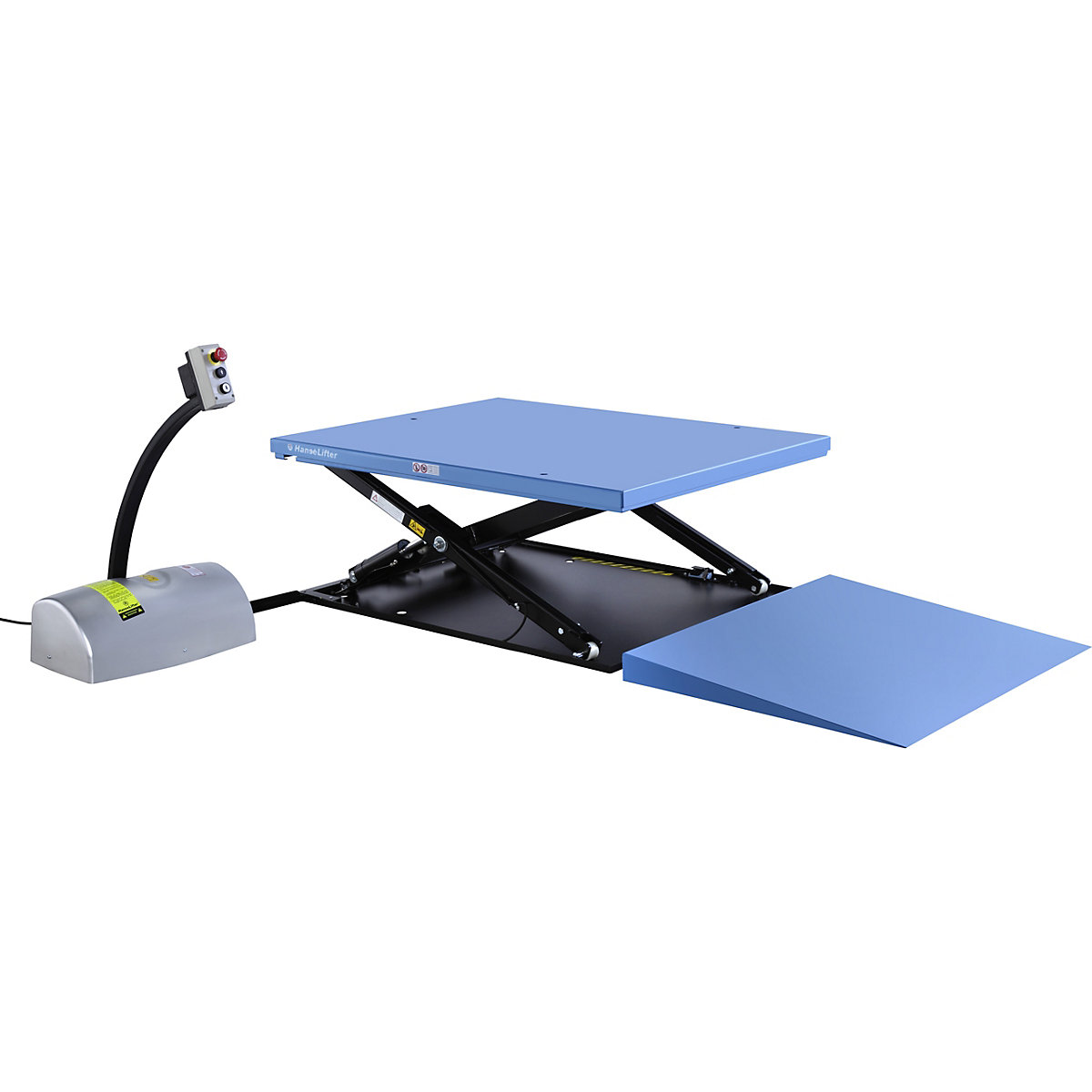

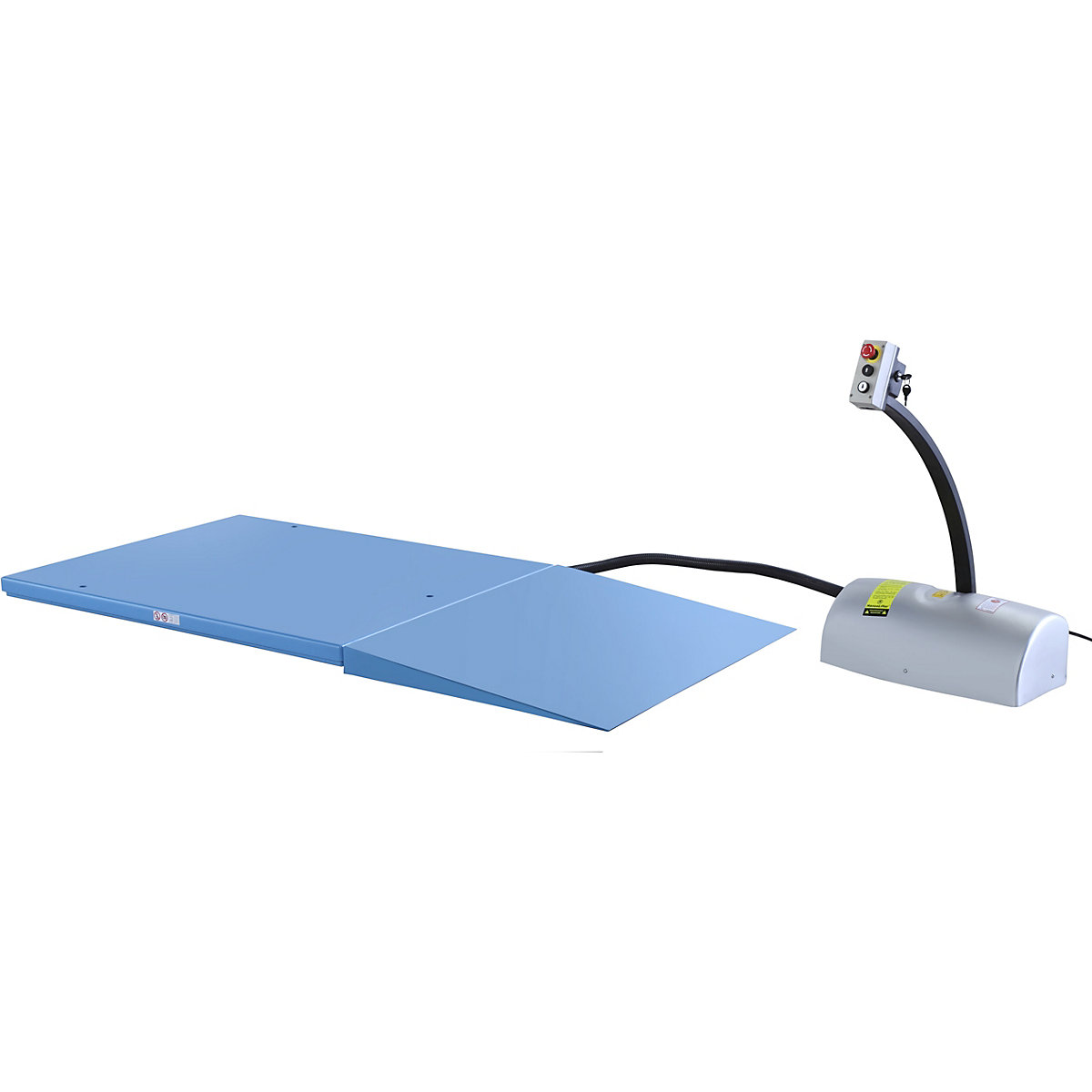

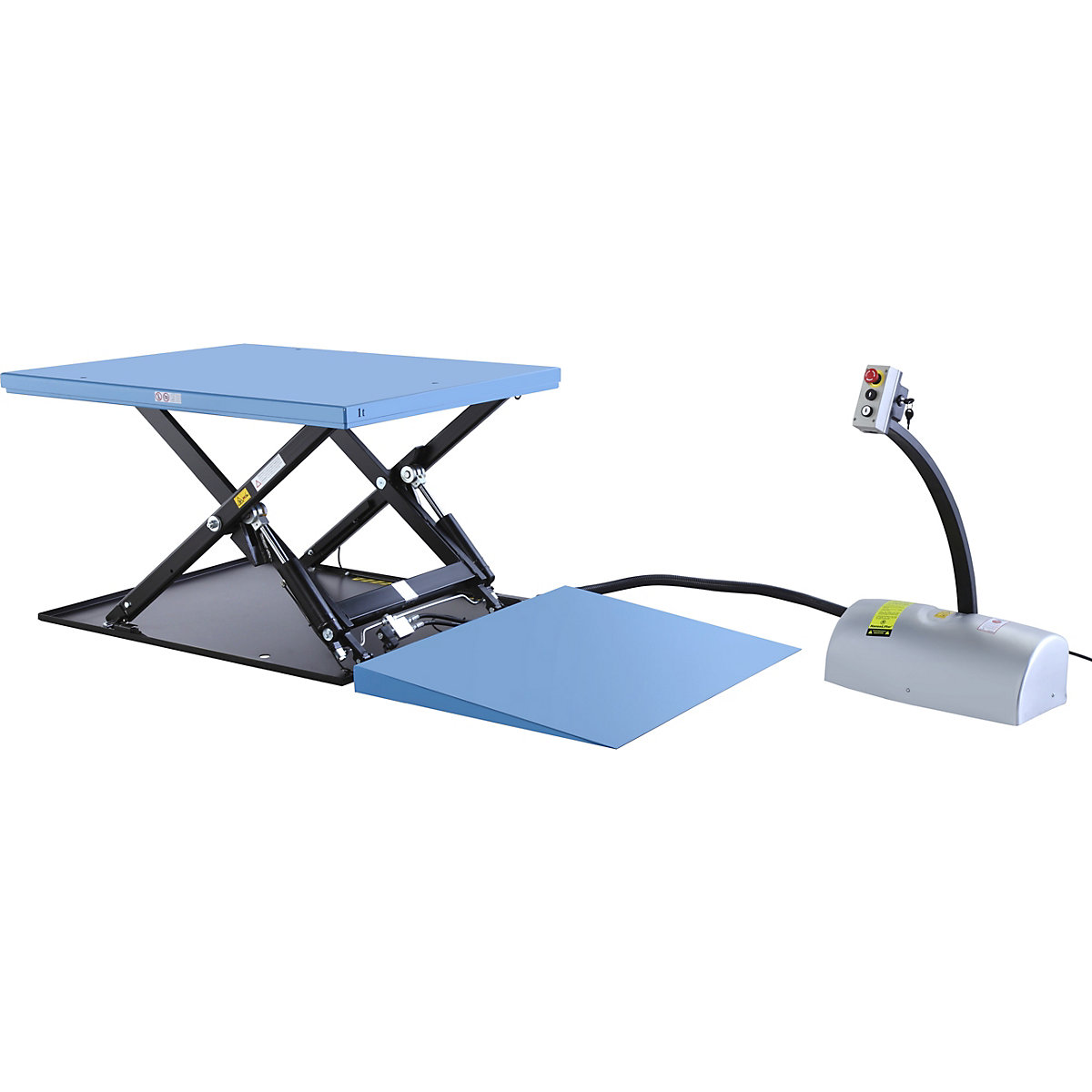

Low profile lift table Closed platform

Low profile lift table
Supplied with ramp element for loading with pallet truck

max. load 1000 kg, operating voltage 400 V

3.925,00 €
Price / item (Ex. VAT)
Availability: 9–12 Working Days
Product description
  • Suitable for Euro pallets and industrial pallets
  • A counterbalance forklift is not required
Closed platform

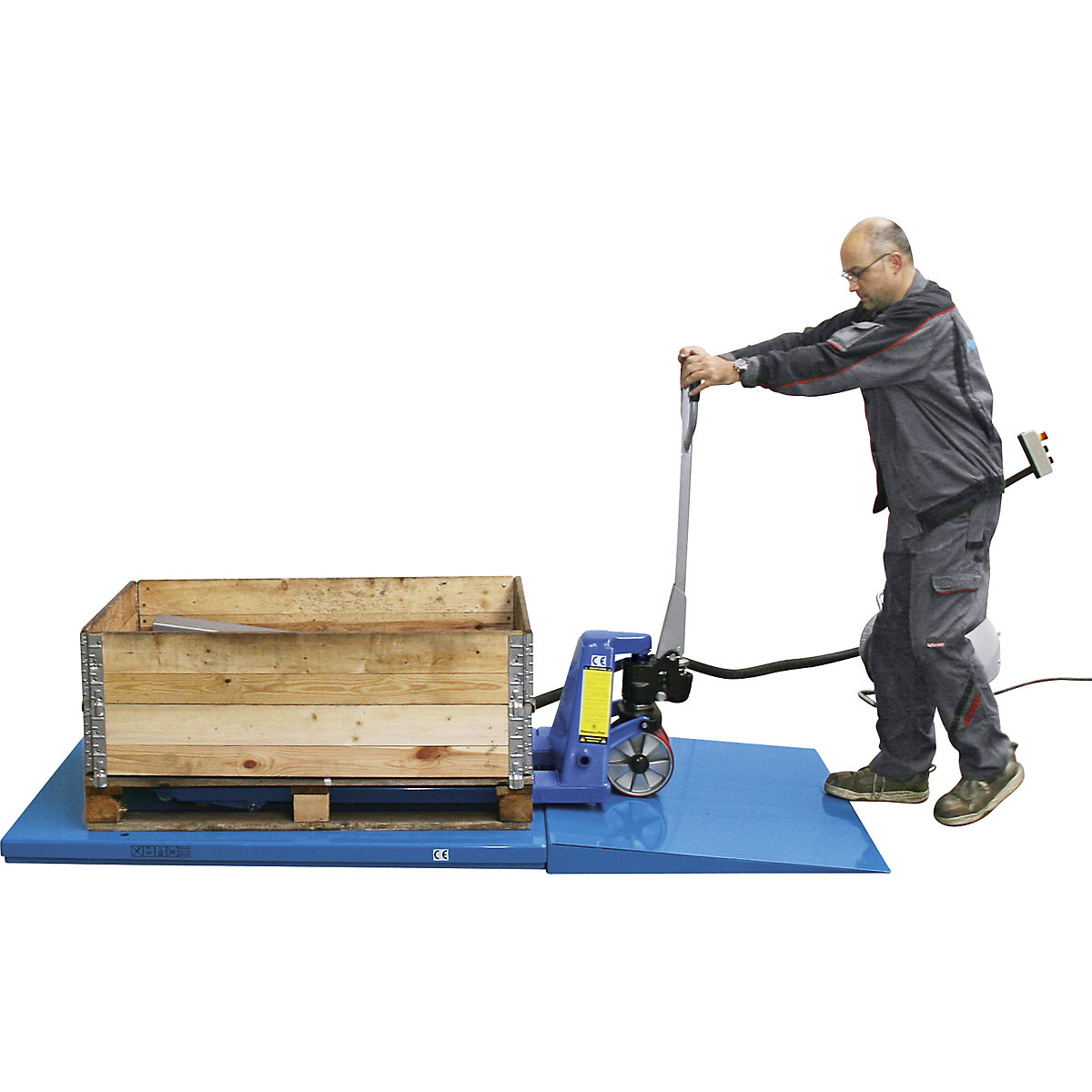

For access with pallet truck using the supplied ramp element.
All lift tables are fitted with safety rails and safety valves, and comply with EN 1570-1 as well as VDE requirements.
Lifting capacity at full load – 6 cycles per hour in 1 shift operations.
Technical data
Max. load1000 kg
Lifting range85 – 840 mm
Platform designclosed
Operating voltage400 V
Control voltage24 V
Platform colourlight blue RAL 5012
Materialsteel
Frame colourjet black RAL 9005
Fittingswith hand operated control unit
Lifting capacity at full load in 1 shift operations6 cycles per hour
Lifting time without load18 sec
Lifting time with full load23 sec
Platform width1140 mm
Platform length1450 mm
Featurestationary electro-hydraulic
Product typelow profile lift tables
Suppliedassembled
Weight250 kg
Instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

1,474kg CO₂e
LCA Raw Material Extraction & Processing
40.6%
LCA packaging production
1%
LCA Product Manufacturing
46.8%
LCA Inbound and Outbound Transportation
11.6%
‌
‌
‌
