EUROKRAFTpro – Lift truck with platform

  • Can be moved as a truck for long routes
  • Exact positioning on 4 wheels
  • Exchangeable load supports
EUROKRAFTpro
Tested safety
This is a test mark. GS stands for tested safety.
Tested safety. This is a test mark. GS stands for tested safety.
*Whether azure blue or salmon pink – we will customise the product for you for a surcharge of just 10%. Please note that this voids your right of return, and that the delivery time may be longer. The colours shown on your screen may deviate from the original.
Ref.: 522660 49

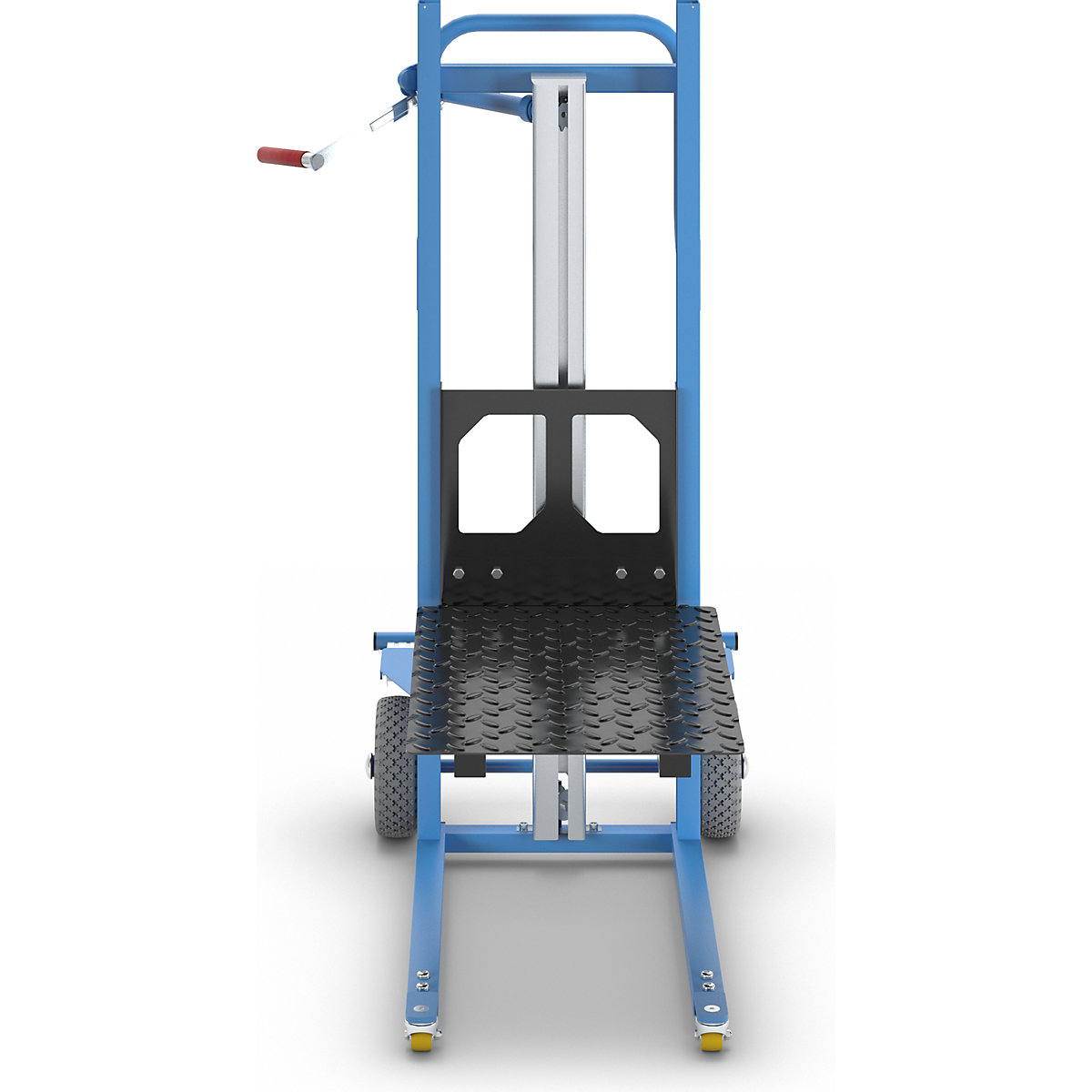

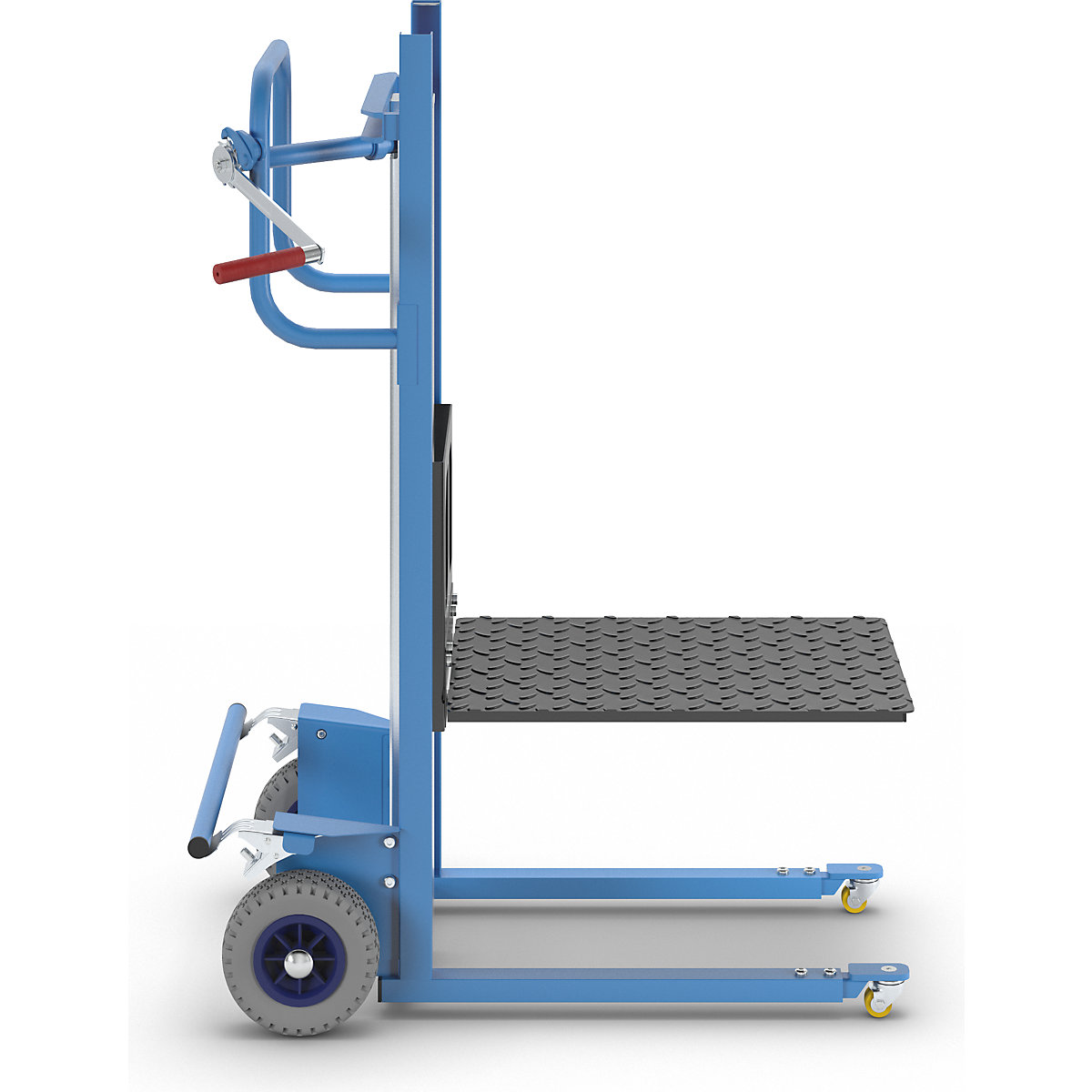

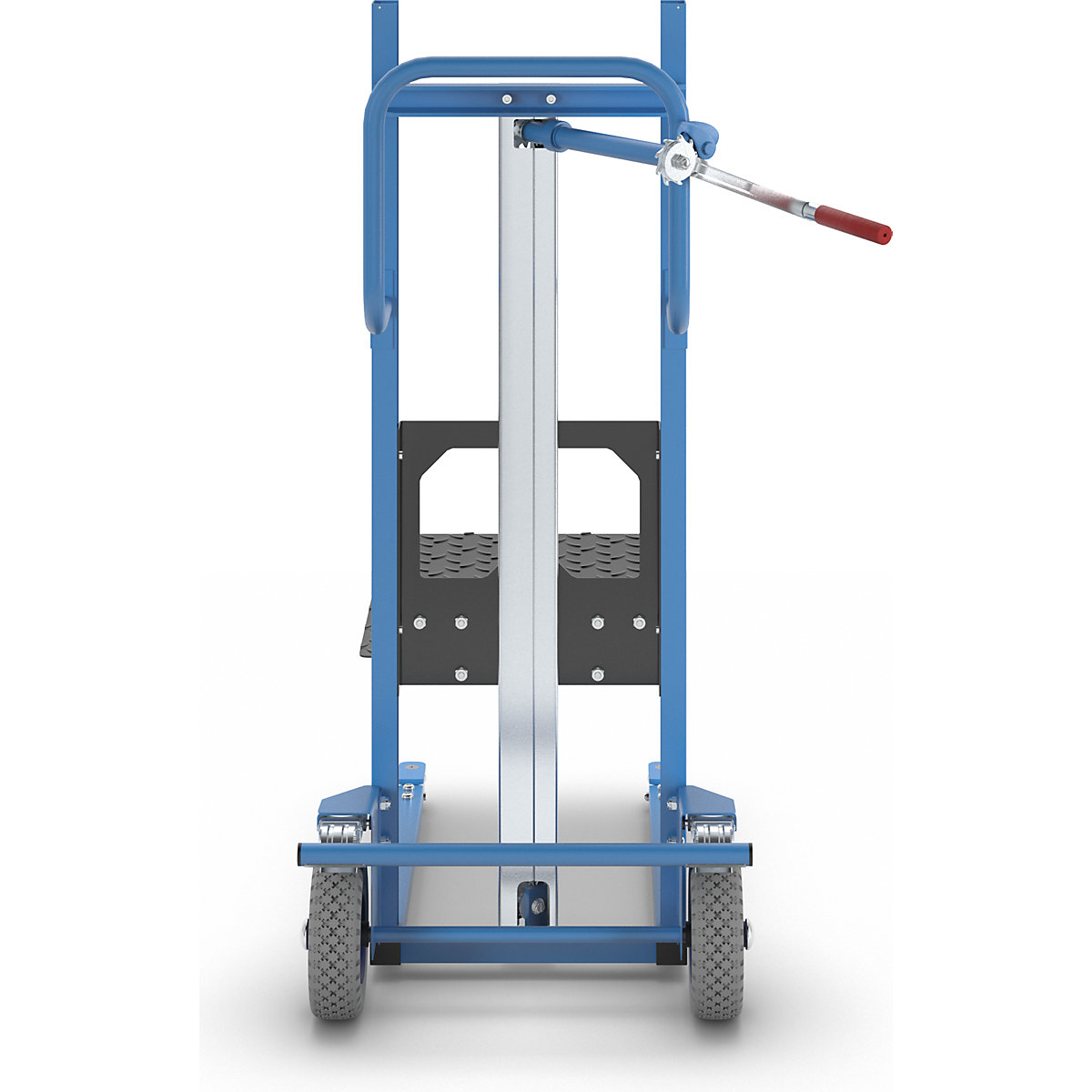

EUROKRAFTpro – Lift truck, with platform, lifting range 80 – 945 mm
Price / items (Ex. VAT)
839,00 €

Product description
Transport materials and goods to/from the workstation and place them in the ideal working position.

Lift truck with different load support equipment for many applications. Load centre 300 mm. Puncture proof wheels with central brake and 2 swivel castors for exact moving and positioning. Lifting motion produced by means of self locking safety winch and precision roller chain.

Particularly large platform for more applications.
  • Can be moved as a truck for long routes
  • Exact positioning on 4 wheels
  • Exchangeable load supports
Tested safety
This is a test mark. GS stands for tested safety.
Tested safety. This is a test mark. GS stands for tested safety.
Technical data
Modelwith platform
Load suspension device LxW/Ø600 x 430 mm
Max. load120 kg
Load centre300 mm
Lifting range80 – 945 mm
Overall length925 mm
Overall width575 mm
Overall height1265 mm
Clearance height75 mm
Materialsteel
Featuremanual
Finishpowder coated
Coloursignal blue RAL 5005
Wheel fittings2 wheels, 2 swivel castors
Castor diameter front / rear35 / 200 mm
Fork roller materialpolyurethane
Weight45.8 kg
Support leg length610 mm
Lift per crank rotation130 mm
Platform width430 mm
Platform length600 mm
Suppliedpartially assembled
