Ref.: 841946 10

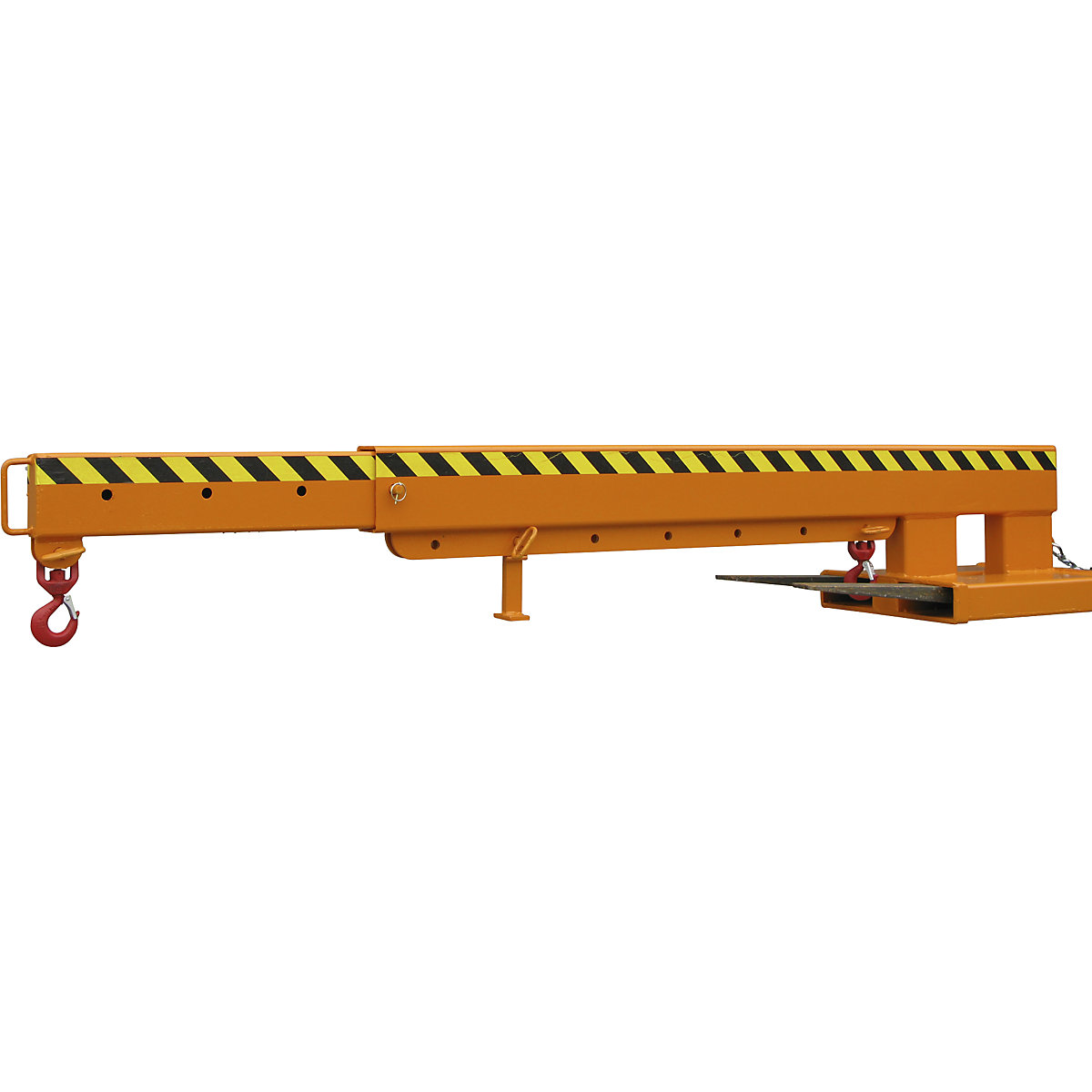

Crane arm – Eichinger telescopic

Crane arm – Eichinger

560 – 2500 kg, pure orange

Max. load from – to [kg]
Colour
1.640,00 €
Price / item (Ex. VAT)
Availability: 5-8 Working Days
Product description
  • Telescopic in 7 steps

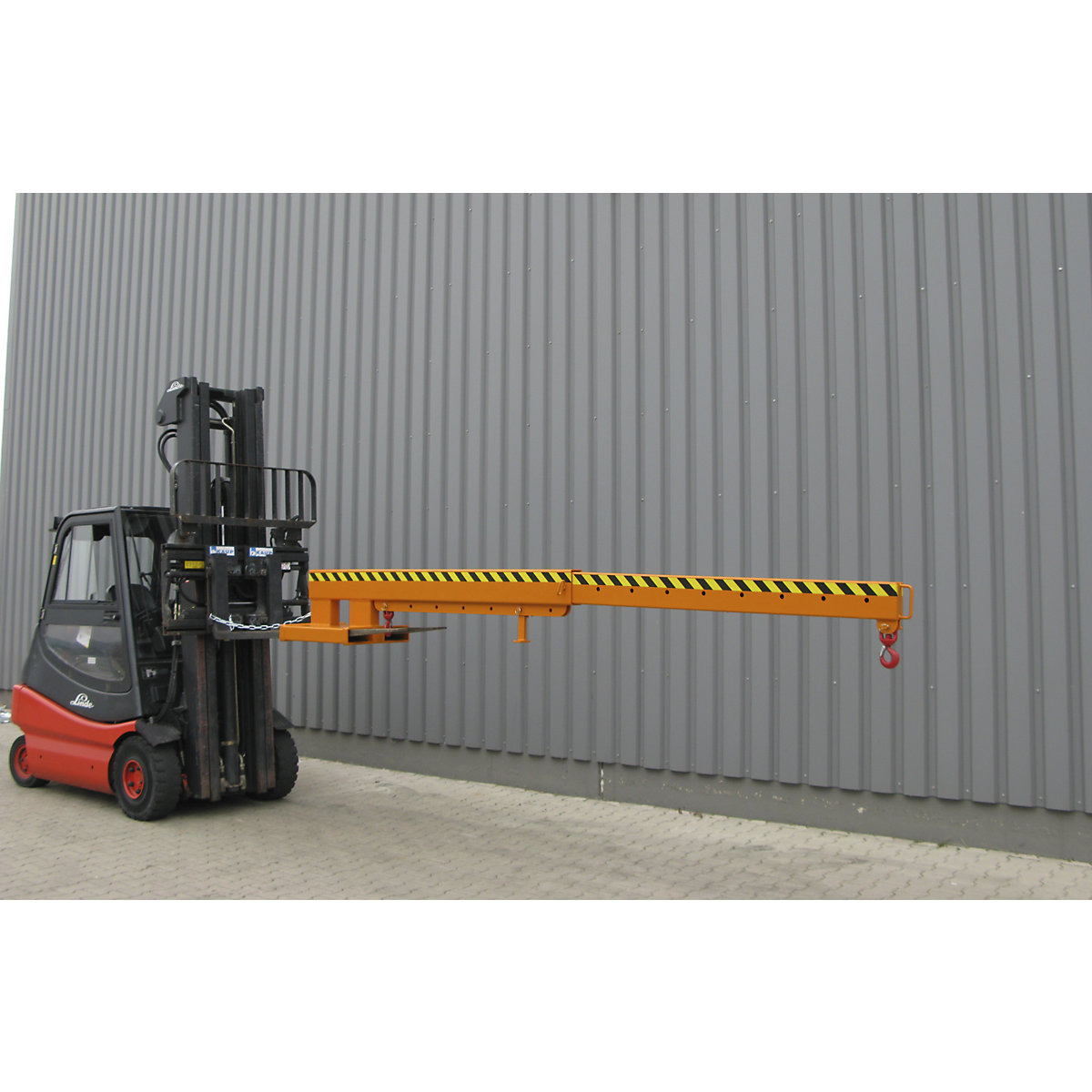

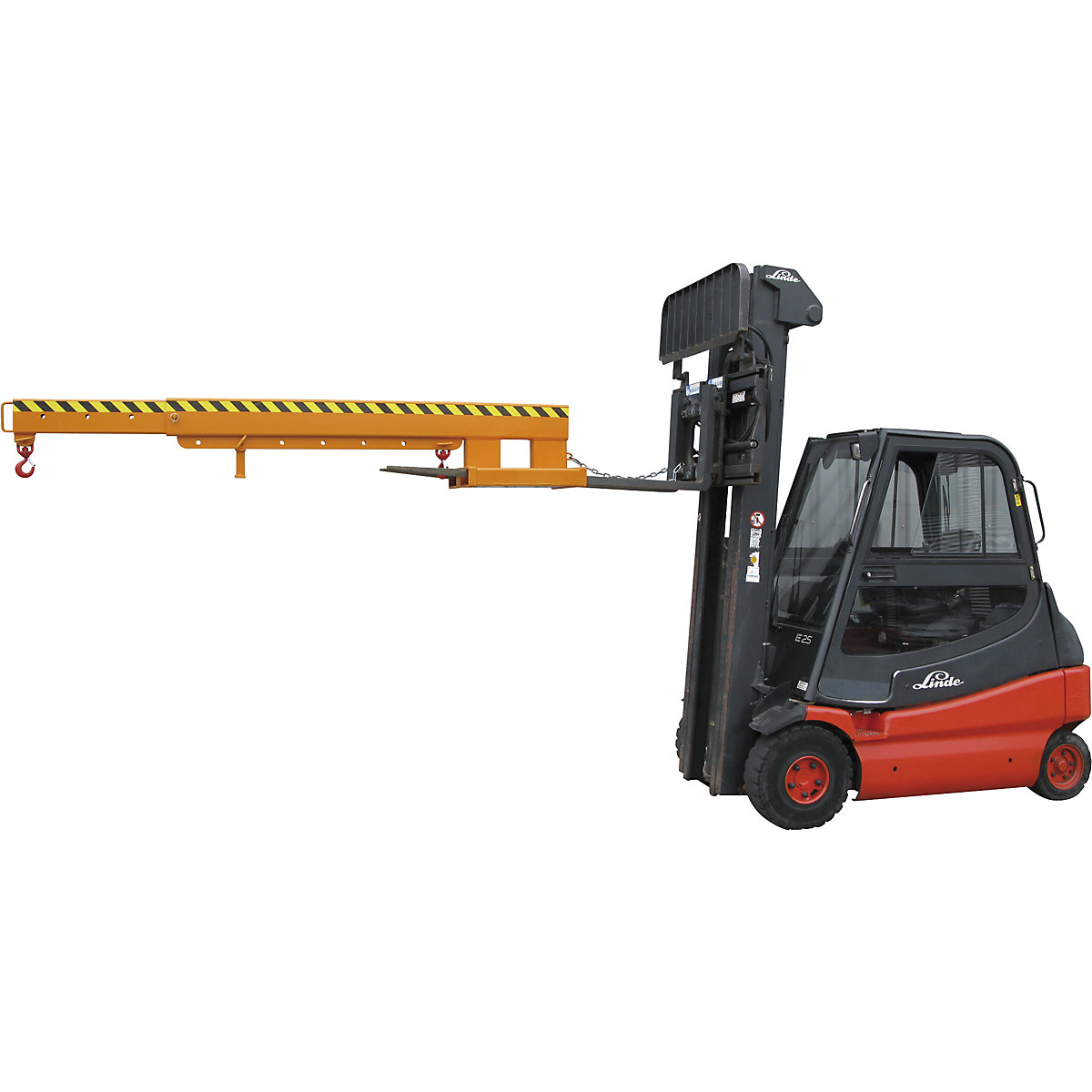

  • Extends the reach of a forklift as a mobile crane
  • Including 2 rotatable swivel hooks
  • Bolt securing directly on the mast for the utilization of the stacker max. load
  • Practical stand
  • TÜV-certified (GS Mark)
The crane arm is a robust attachment that transforms forklift trucks into versatile mobile cranes, thus significantly extending their reach. This robust telescopic arm made of profile tubes enables the precise picking up, lifting, and transporting of hanging loads.

Its seven-fold telescopic length adjustment from 670 – 3665 mm offers high flexibility. The flexible length adjustment makes it possible to precisely position loads even in hard-to-reach places and to optimally adapt the forklift's reach to the respective task.
Two rotatable swivel hooks are included and facilitate working with lifting gear such as ropes or chains. The integrated pin lock on the mast guarantees secure attachment and use of the stacker's max. load. For easy pick-up on the forklift truck, the telescopic loader is equipped with a practical stand. The TÜV certification with GS mark confirms the high quality and safety of this attachment.

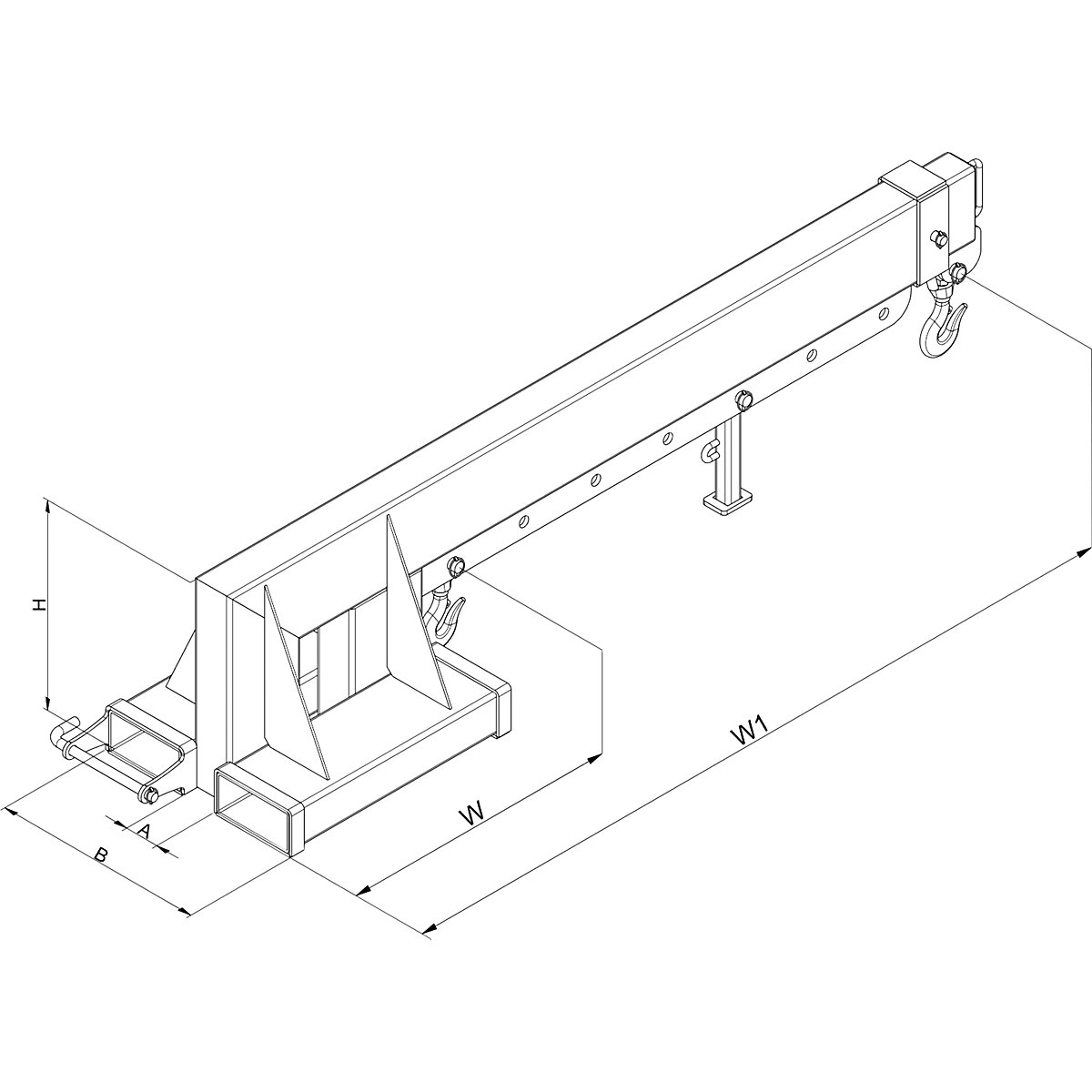

Technical data
Adjustable length670 – 3665 mm, 7 positions
Width520 mm
Height430 mm
Length670 mm
Finishpowder coated
Distance across forks110 mm
Product typeload arms
Fork pocket dimensions190 x 90 mm
Materialsteel
Suppliedassembled
Max. load from – to560 – 2500 kg
Colourpure orange RAL 2004
Weight150 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
100
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

597.59kg CO₂e
LCA Raw Material Extraction & Processing
21.2%
LCA packaging production
1.2%
LCA Product Manufacturing
68%
LCA Inbound and Outbound Transportation
9.6%
Scoring System
3.1/5.9Overall score
CriteriaWeightingScore
Icon Climate protectionClimate protection30%2.5
Icon Circulatory economyCirculatory economy30%4.2
Icon BiodiversityBiodiversity25%2.0
Icon Economic efficiencyEconomic efficiency10%2.5
Icon InnovationInnovation5%5.9
