Ref.: 546844 10

PE hazardous goods storage unit with roller shutter for 4 x 200 l drums, collection capacity 242 l

PE hazardous goods storage unit with roller shutter

HxWxD 2110 x 1565 x 1620 mm

For water hazardous liquids
For water hazardous liquids
Resistant to aggressive, corrosive chemicals
Resistant to aggressive, corrosive chemicals
2.275,00 €
Price / item (Ex. VAT)
Availability: 9–12 Working Days
Product description
  • For indoor and outdoor storage of corrosive and water hazardous liquids in accordance with regulations
  • Drums can be placed on a pallet and handled with mounted pumps, funnels etc.

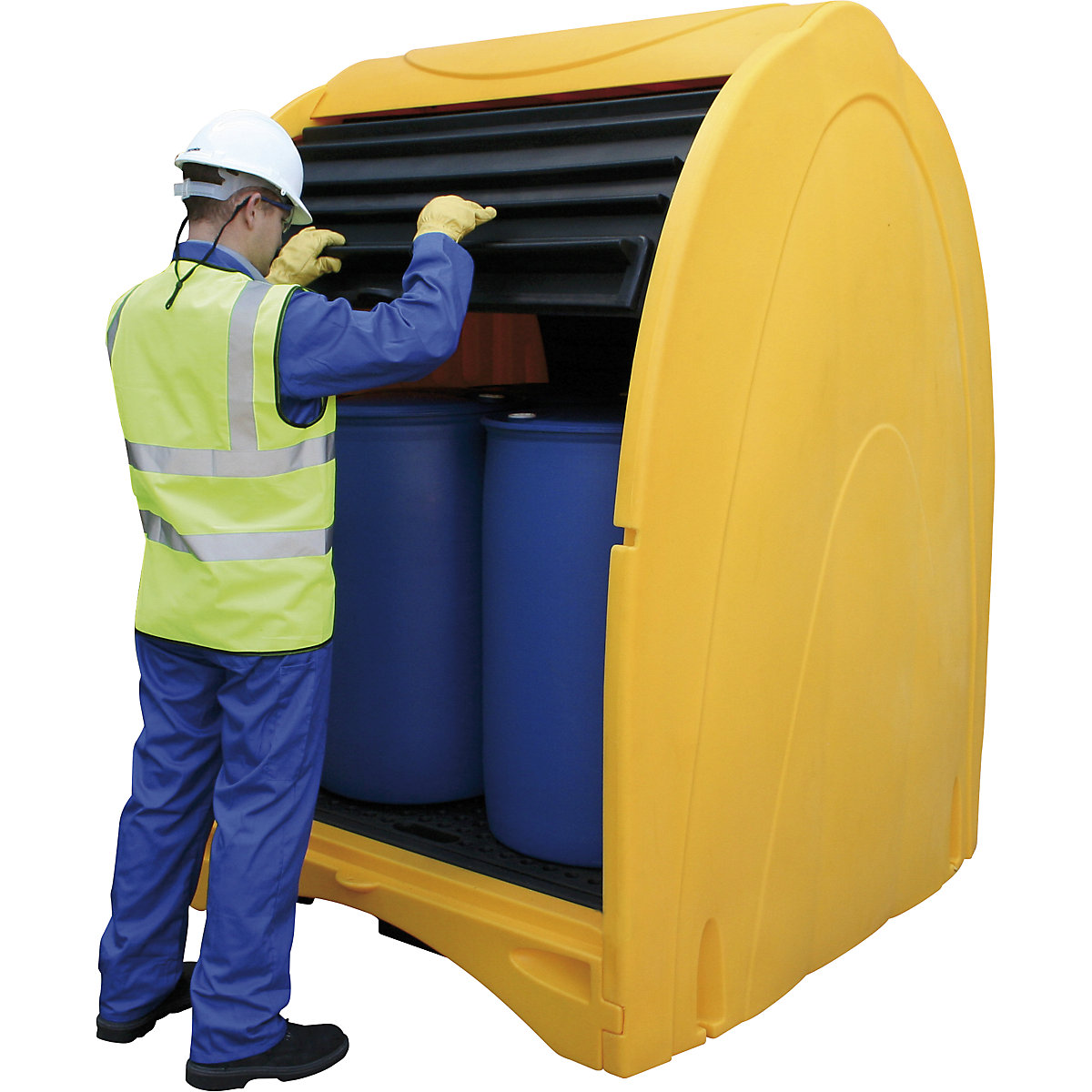

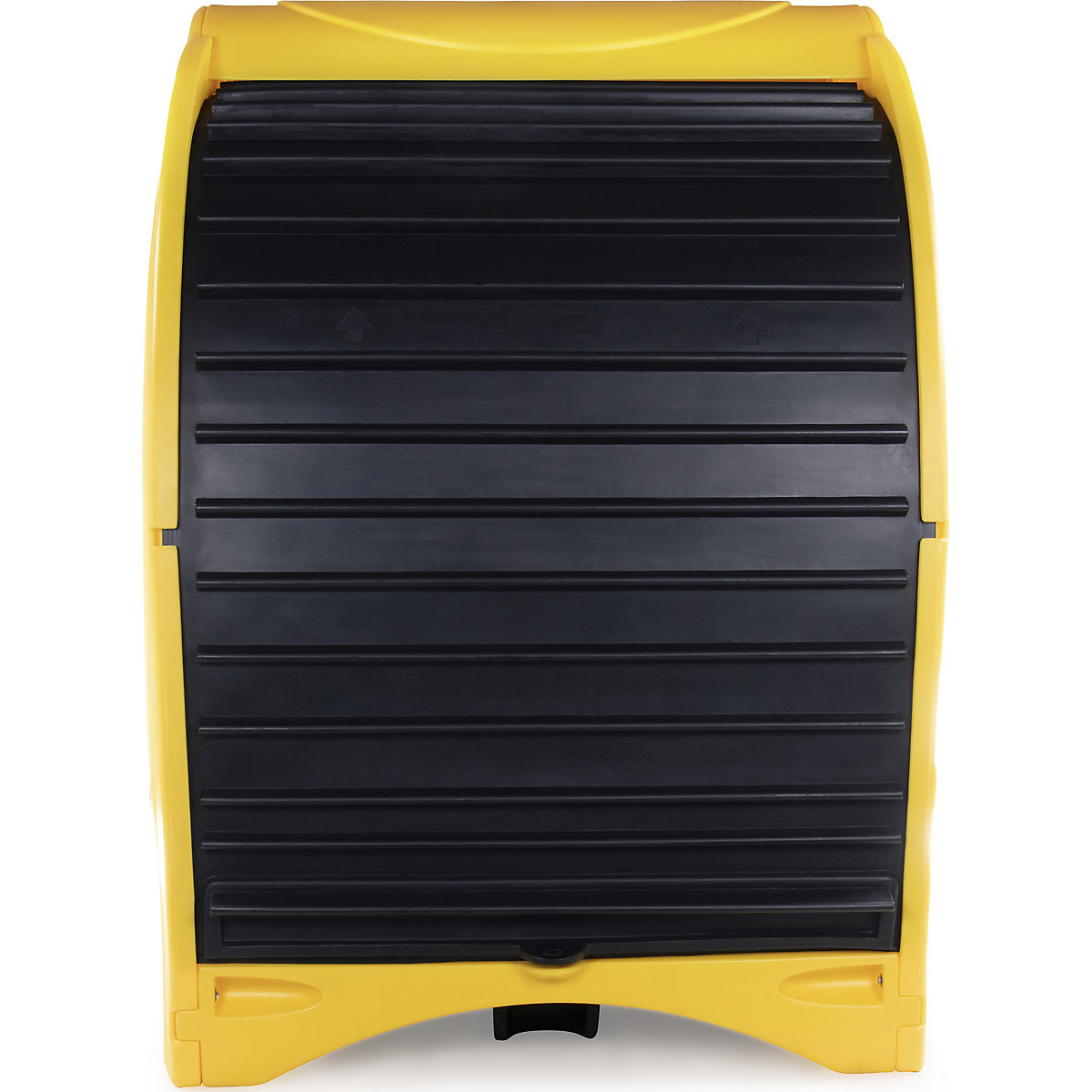

  • Two smooth-running, space-saving roller shutters for access from both sides
  • Depot can be opened at the front and back
  • Integrated PE sump tray with PE grate and DIBt approval
  • Made of highly resistant polyethylene – for storing corrosive media such as oils, acids, alkalis etc.

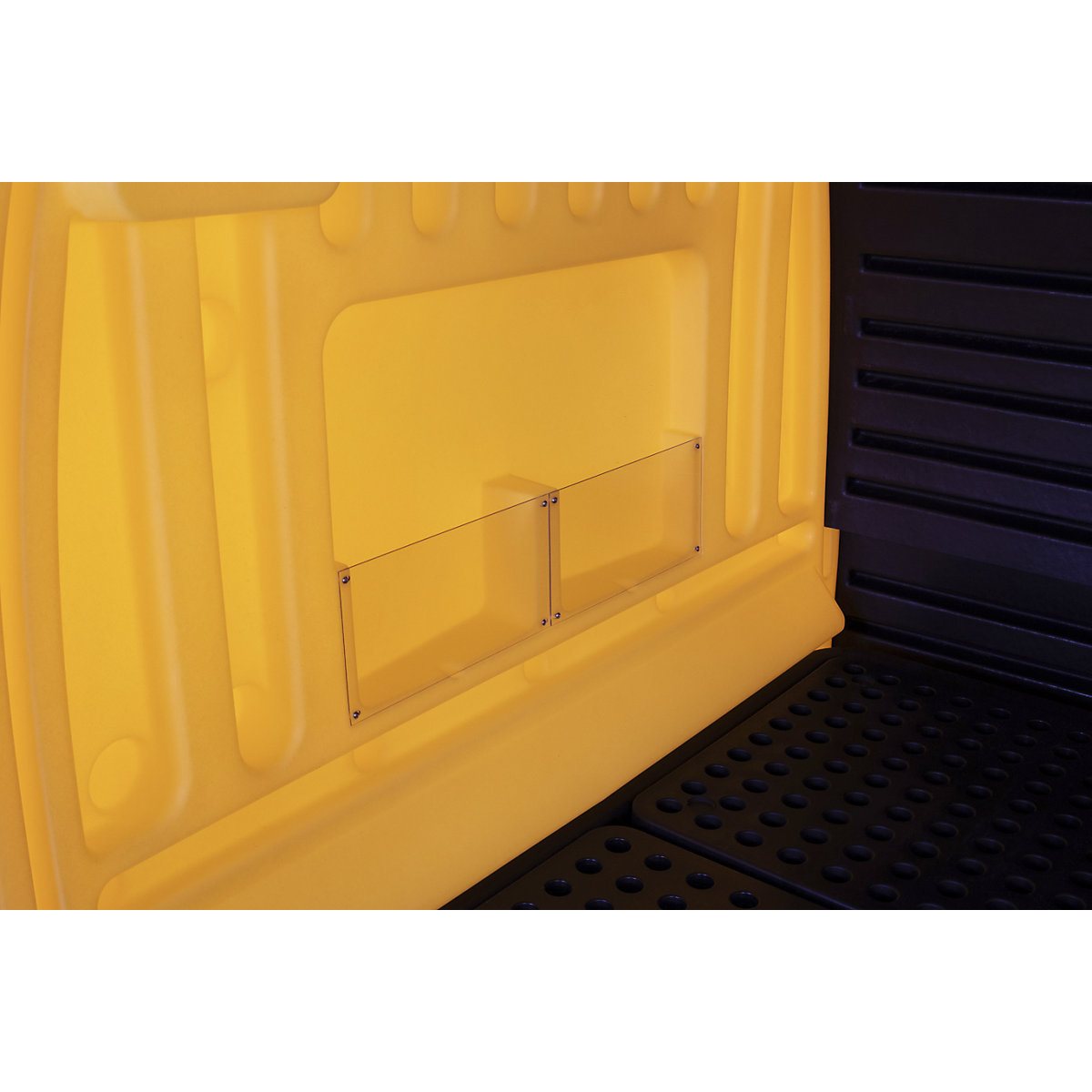

  • Two integrated, transparent document compartments
Robust, corrosion-free, UV-resistant, weather-resistant and chemical-resistant polyethylene construction.

Integrated PE sump tray with PE grating. With general technical approval from the DIBt, Berlin no. Z-40.22-380.

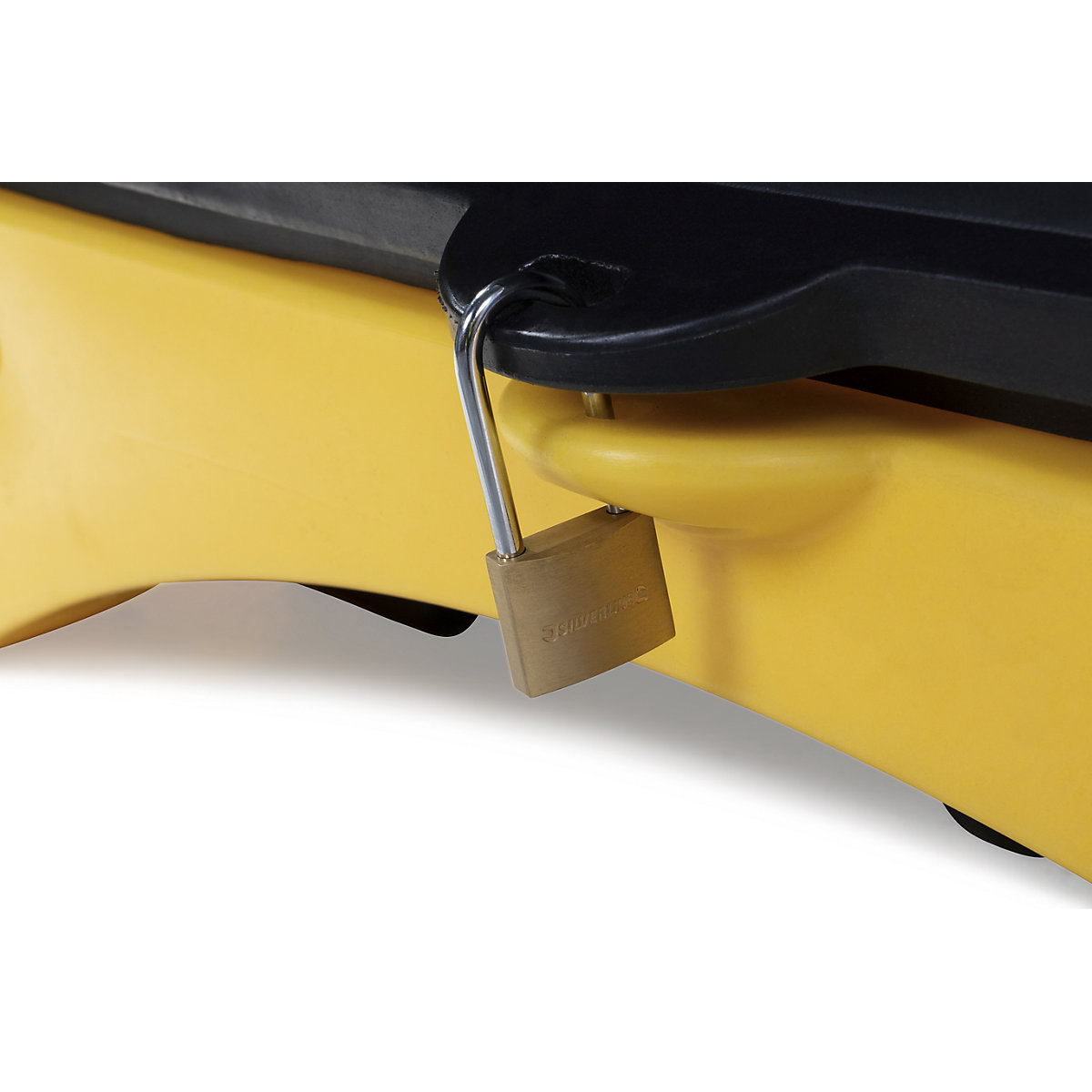

Robust PE roller shutters lockable with a padlock (padlock not included, recommended lock shackle length 80 mm).
The depot is accessible from underneath on two sides for transport with a stacker and pallet truck (fork pockets 312 mm wide each, centre distance 190 mm).

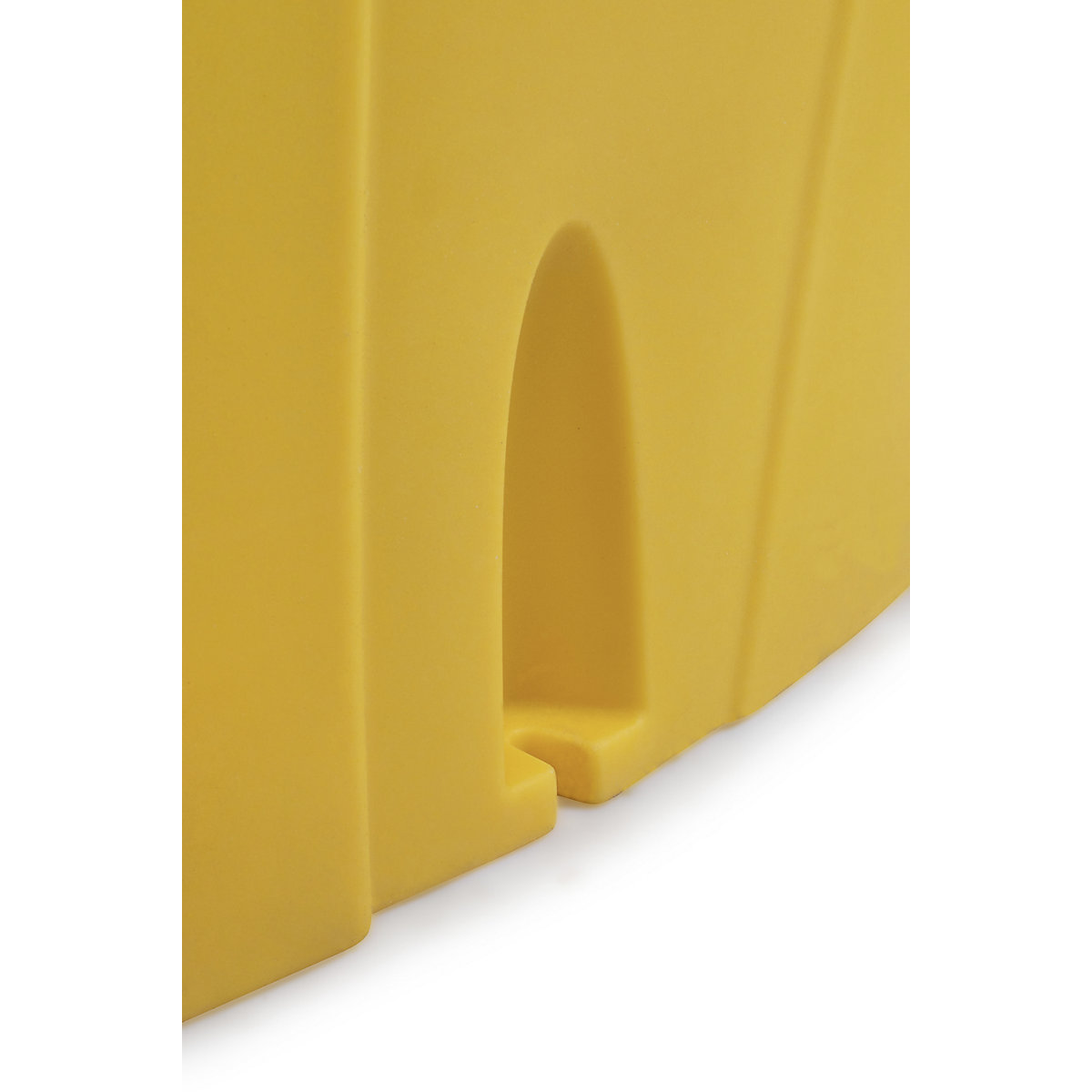

Four recesses for floor anchoring (bolts not included).
Arched roof for optimal water run-off.

Storage capacity: for regulation compliant storage of 4 x 200 litre drums, 60 litre drums or small containers with corrosive and water hazardous liquids.
Collection capacity 242 litres.
Technical data
Height2110 mm
Width1565 mm
Depth1620 mm
Drum capacity4 x 200 l
1000 l container capacity0 pcs.
Sump capacity242 l
Colouryellow black
Test symbolwith general certification from the DIBt (German Institute for Construction Technology) Berlin
Materialpolyethylene (MDPE)
Lock typefittings for padlock
Internal height1510 mm
Internal width1210 mm
Internal depth1440 mm
Door typehorizontal blinds
Place of useindoor and outdoor use
For mediawater hazardous dangerous goods corrosive media
Hazard classfor corrosive and water hazardous liquids in accordance with GHS
Weight155 kg
Max. load1000 kg
Type of mountingfloor anchor
Product typehazardous goods storage
Suppliedflat pack
Manufacturer / EU responsible Person (GPSR)
Sustainability
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
100
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

544.52kg CO₂e
LCA Raw Material Extraction & Processing
37.4%
LCA packaging production
2.2%
LCA Product Manufacturing
49.4%
LCA Inbound and Outbound Transportation
11.1%
Scoring System
3.2/5.9Overall score
CriteriaWeightingScore
Icon Climate protectionClimate protection30%1.5
Icon Circulatory economyCirculatory economy30%4.9
Icon BiodiversityBiodiversity25%2.0
Icon Economic efficiencyEconomic efficiency10%4.0
Icon InnovationInnovation5%5.9
