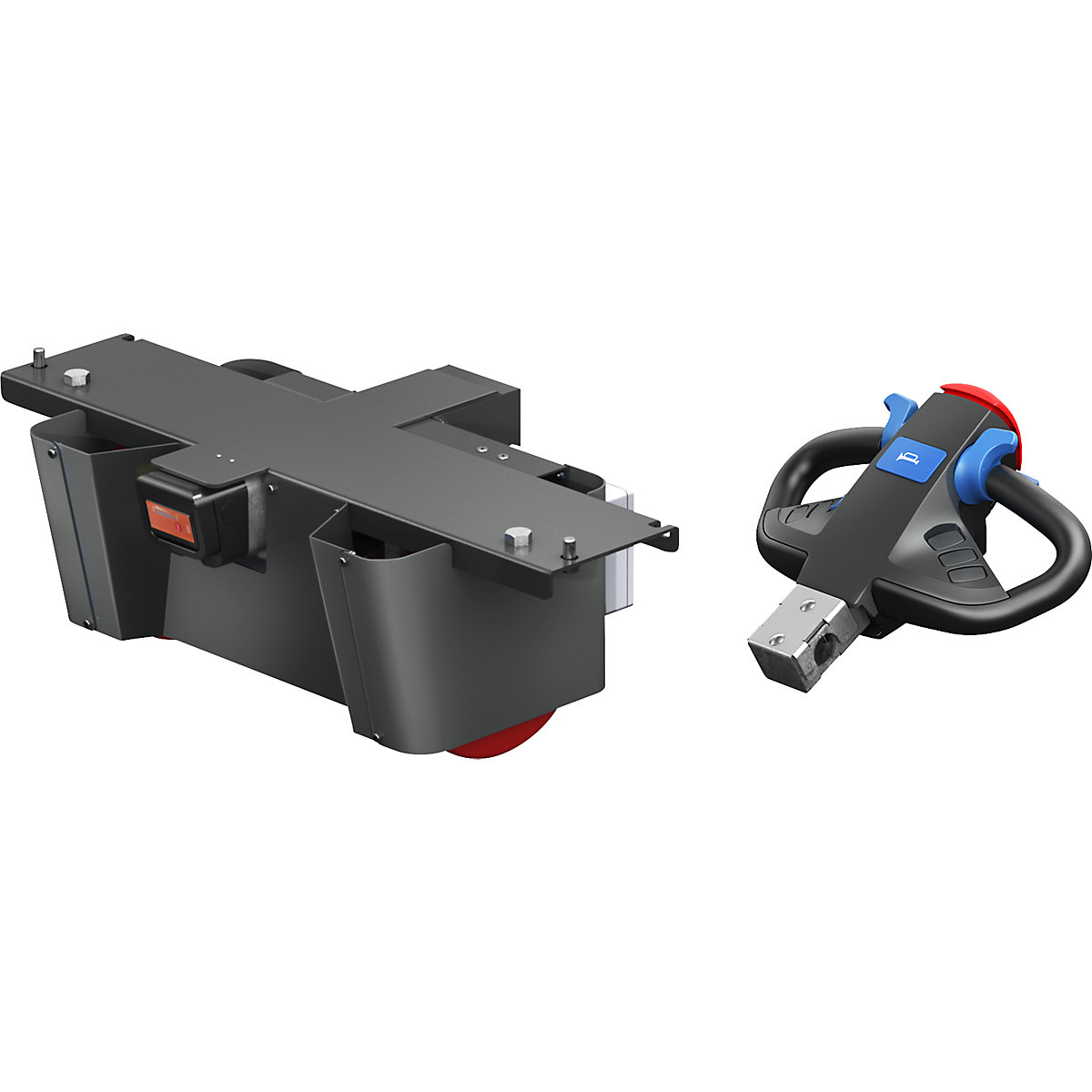

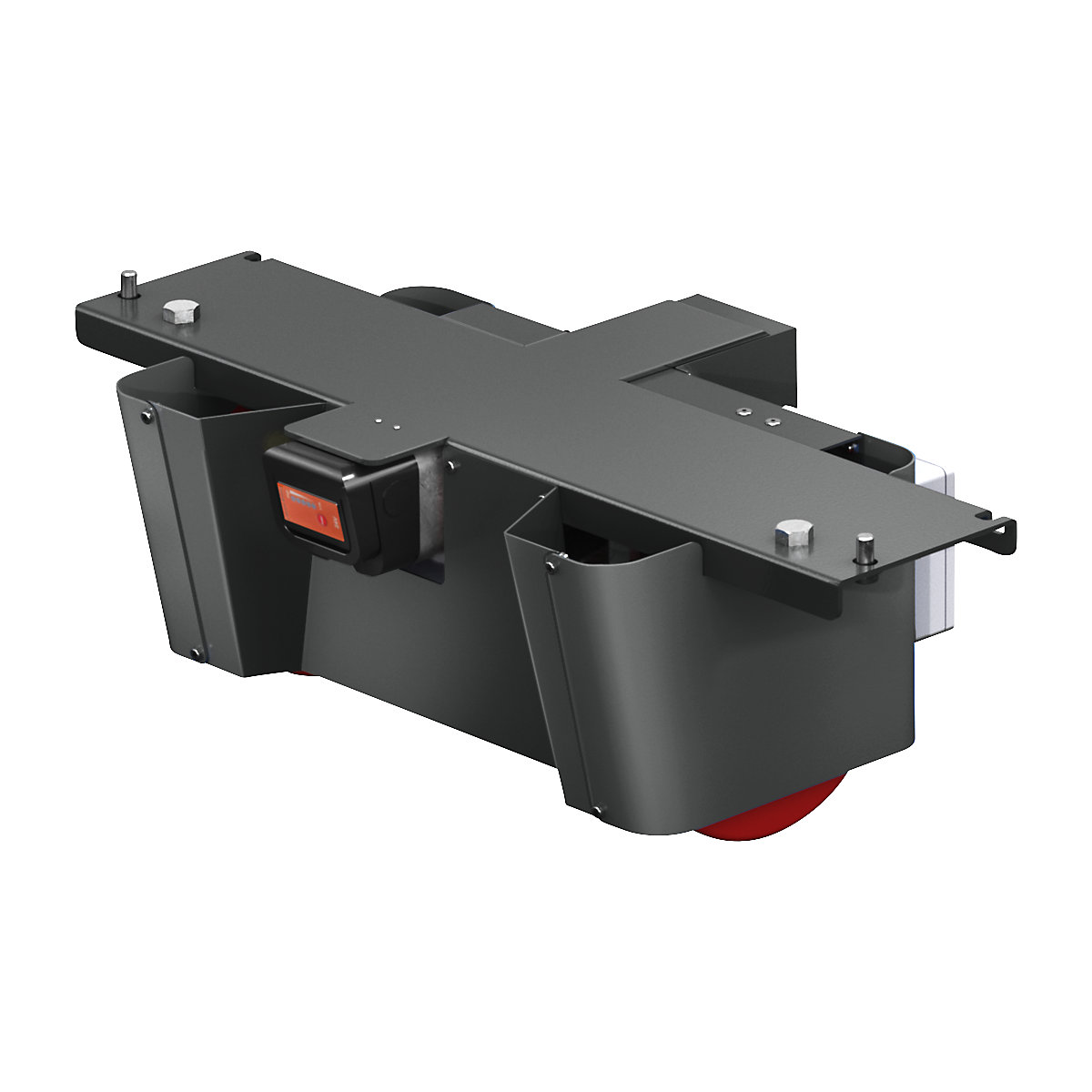

CustomLine e-module retrofit set – eurokraft pro for assembly trolleys and shelf trucks

CustomLine e-module retrofit set – eurokraft pro

with ergonomic push handle

New
on request
Price / item (Ex. VAT)

Product description
The e-module for CustomLine assembly trolleys and shelf trucks, including an ergonomic push handle and complete with a powerful lithium-ion battery and charger. Wireless – the drive is controlled by means of Bluetooth using the drawbar head. Promote ergonomic work processes in your company for the well-being of your employees, as loads of up to 500 kg are easy and efficient to transport using the e-module. The ergonomic handle of the e-module ensures comfortable use, and it can be adapted to different body sizes.

The e-module is characterised by intuitive operation with perfect control for easy transport of loads up to 500 kg. The battery used for the drive consists of a rechargeable lithium-ion battery, the charging status of which is indicated visually on a battery status indicator. The operating time is up to 8 hours per battery charge with average use. The replaceable battery system makes it easy to exchange the empty battery for a fully charged one to ensure uninterrupted operation. The connection between the drawbar head and drive is wireless and uses Bluetooth, which also enables use in fleet operation. The charging time is just 6 hours for a full charge.

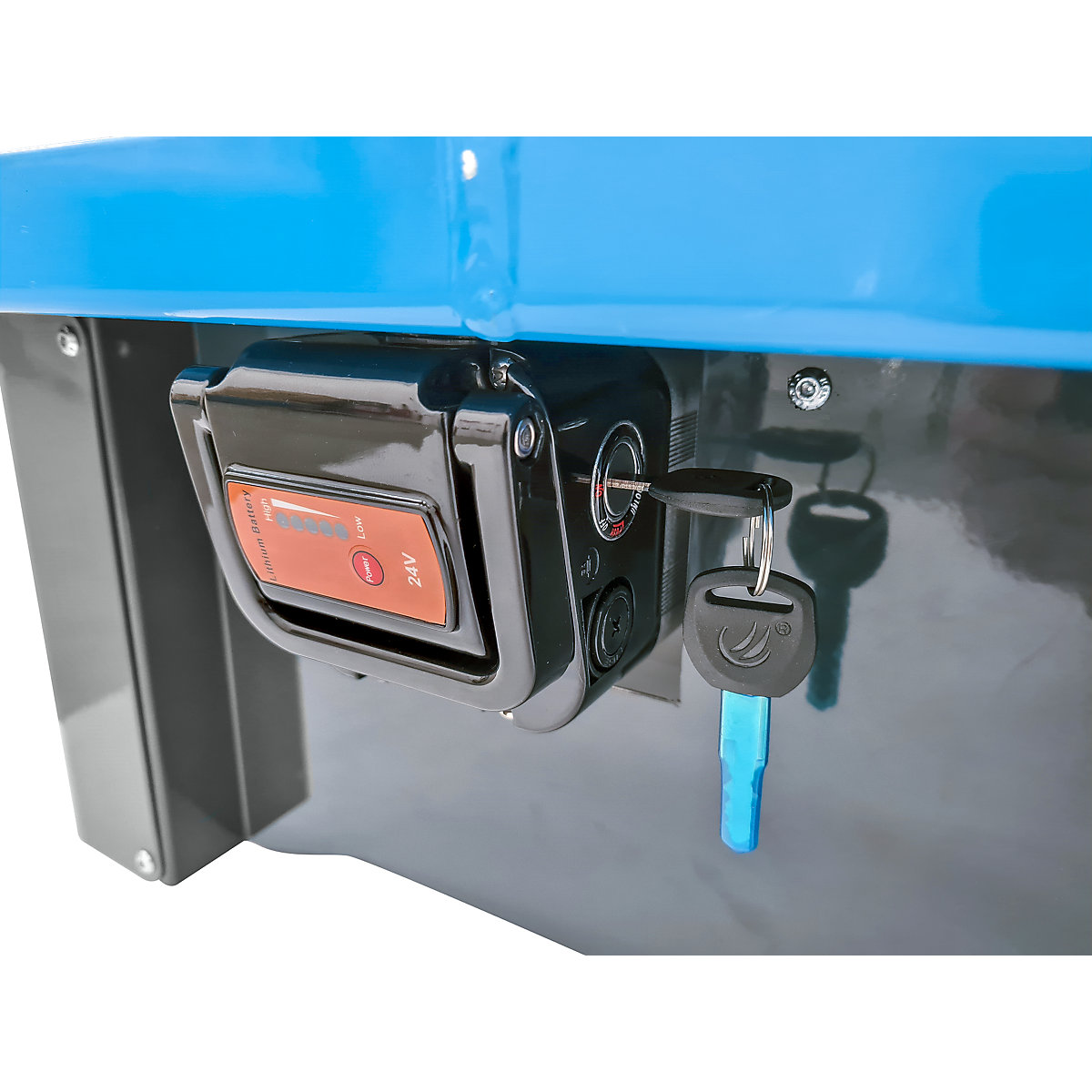

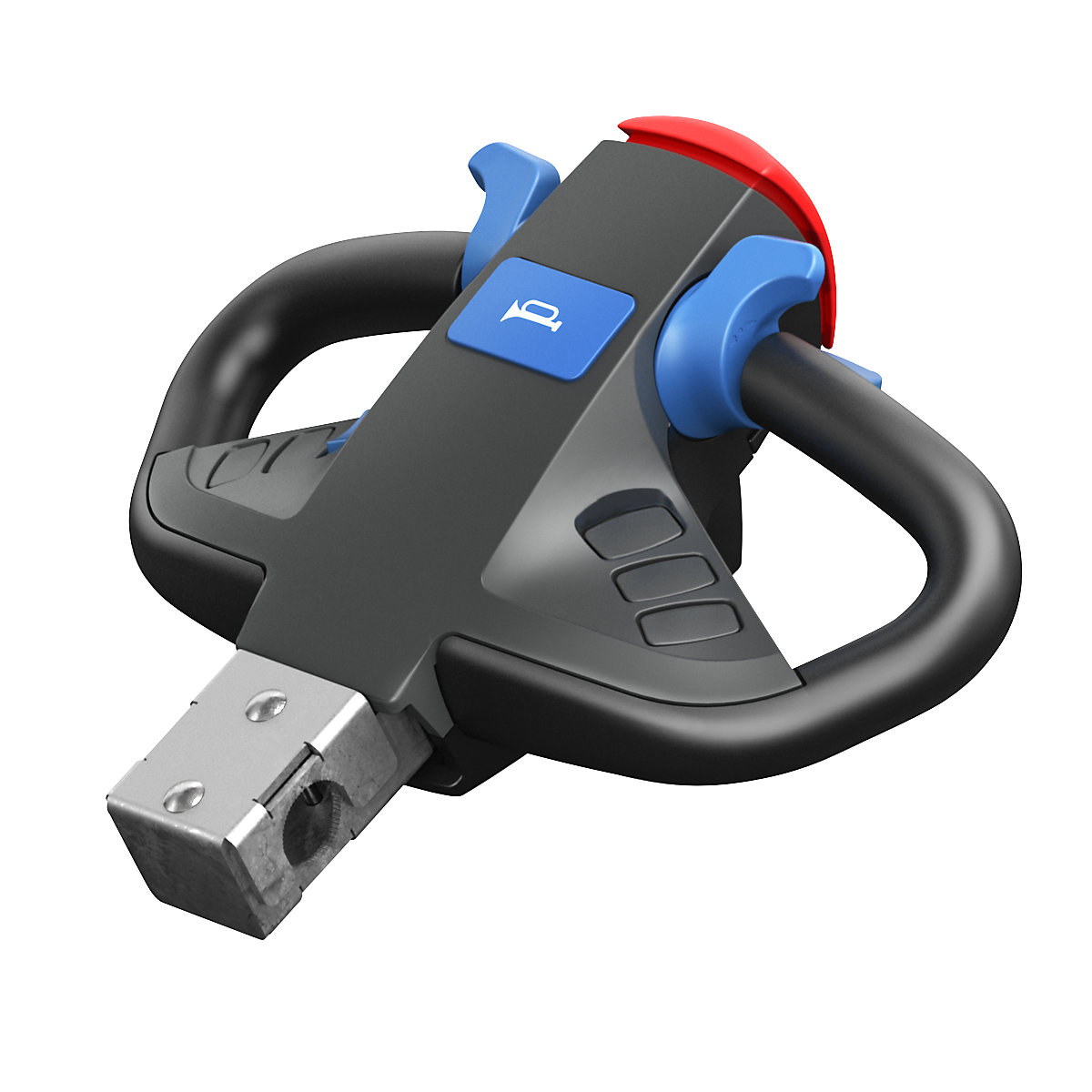

The e-module offers easy navigation, supported by fatigue-free operation due to the ergonomically shaped, multifunctional drawbar head. Sturdy, tubular handles ensure it is easy to steer, and the stepless speed control is provided by two thumb switches, with a maximum speed of 4 km/h. If required, a creep speed can be activated, which enables high precision forward and backward travel. Additional safety features include a warning function in the form of a horn on the drawbar head and a belly switch to prevent entrapment when reversing. The integrated foot protection ensures that there is no risk of becoming trapped under the drive. The e-module does not require a certificate of competence for operation, and anti-theft protection is provided by an access control feature secured by a lock on the drive battery.

CustomLine
The intelligent modular principle allows you to change the configuration of the CustomLine assembly trolley and shelf truck at any time to suit your individual requirements. The innovative products offer you flexibility and modularity with their various combination options and upgrades by adding accessories. Choose from our preconfigured items with different shelves.* The number of shelves can be increased by adding additional shelves. Plastic shelves provide a secure grip for components to ensure everything stays in place. You can also convert your shelf truck into an assembly trolley for greater versatility. The trolley can be customised due to its modular design. The corner posts with perforated profiles make it easy to secure the shelves at different heights and thereby customise them to suit your components. Change the height of the trolley by combining corner posts of different lengths. Additional shelves and corner posts with perforated profiles are available separately as accessories. The modern design in light blue or charcoal is stylish and offers you even more options for use and colour coding.

*Follow the instructions for use
  • Suitable for CustomLine assembly trolleys and shelf trucks
  • Ergonomic and smooth travel due to electric drive
  • Move loads up to 500 kg with ease
  • Includes push handle
  • Wireless control of the drive by means of Bluetooth using the drawbar head
  • Replaceable rechargeable battery system for unlimited operating time
  • Intuitive operation with perfect steering control
Technical data
Categorytransport equipment and trolleys
Product typespare parts/accessories
Materialsteel
Colourlight blue RAL 5012
charcoal RAL 7016
Width685 mm
Height255 mm
Length430 mm
Suppliedflat pack
Weight36.3 kg
