Railing system upright with base plate

  • Optimum protection for outdoor equipment
  • Delivered flat pack – easy self-assembly!
  • Can be set at any angle up to 90°
  • Rises of up to 45° can be bridged
Railing system, upright with base plate, zinc plated
Price / items (Ex. VAT)
from
74,90 €

Product description
Hot dip galvanised pipes or with additional safety paint in red / white or yellow / black.

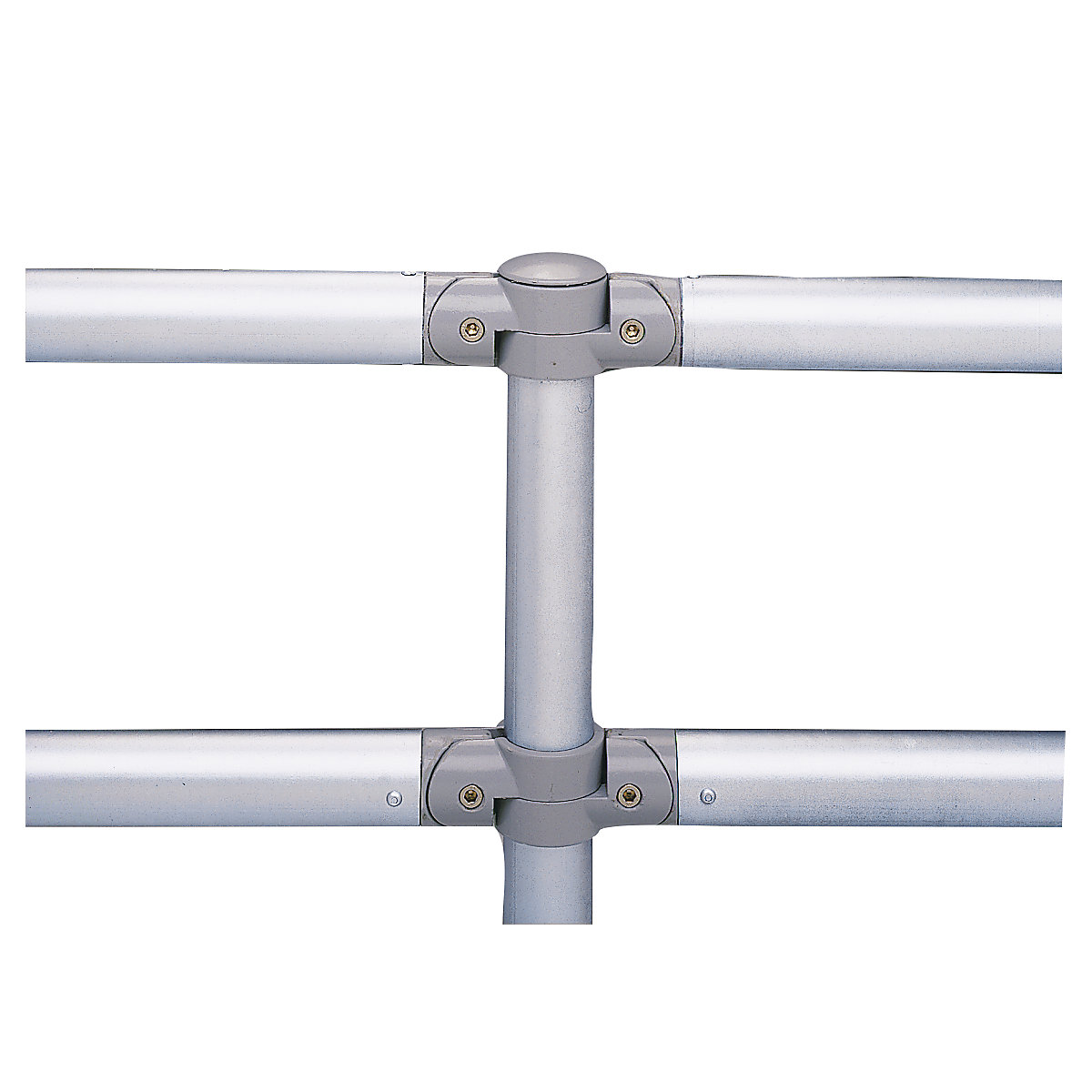

Clamps made of aluminium, connection parts (in cross pipe) made of non-conducting plastic.
Cover caps made of aluminium, clamp screws made of V2A steel.

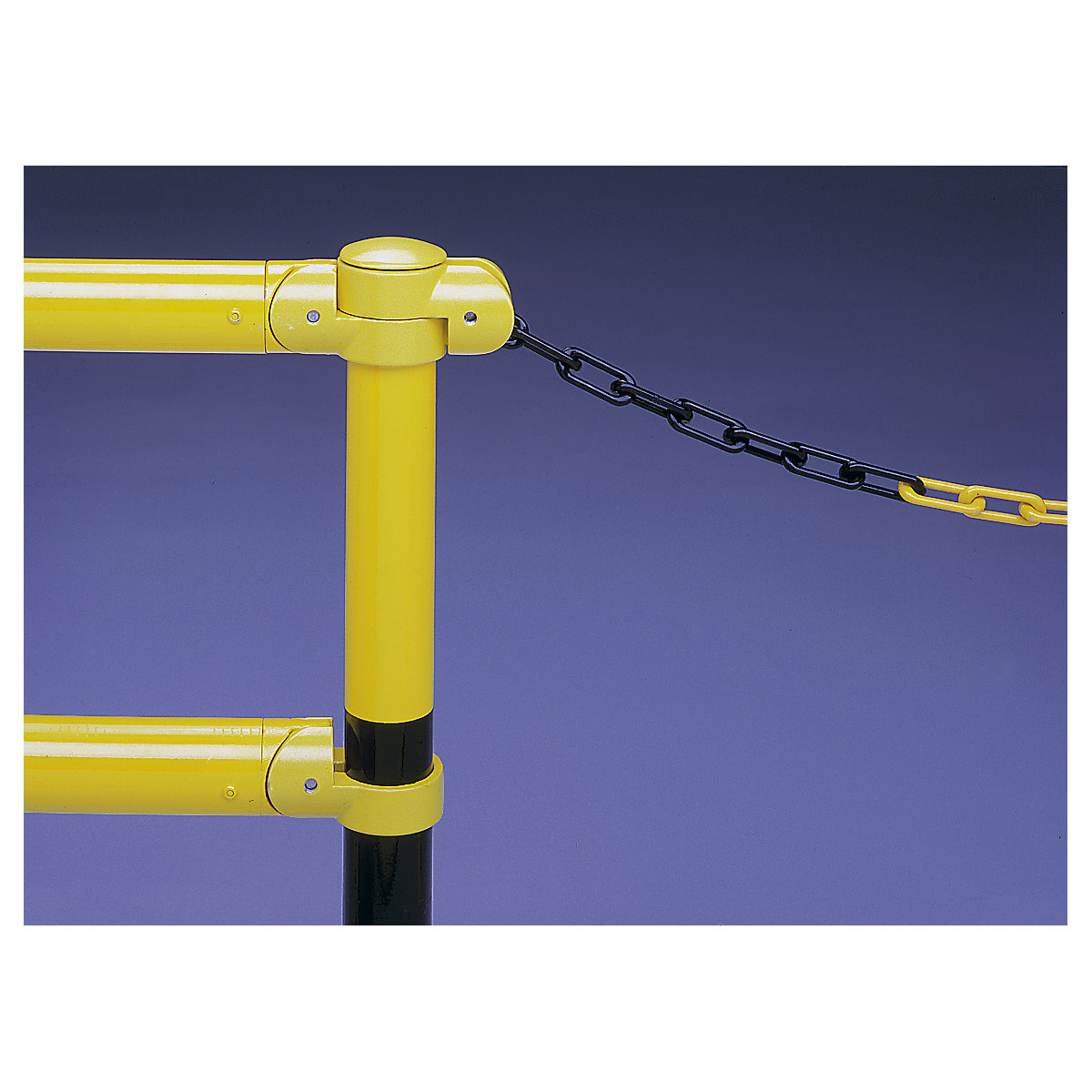

Stand pipes are also suitable for chain barriers.

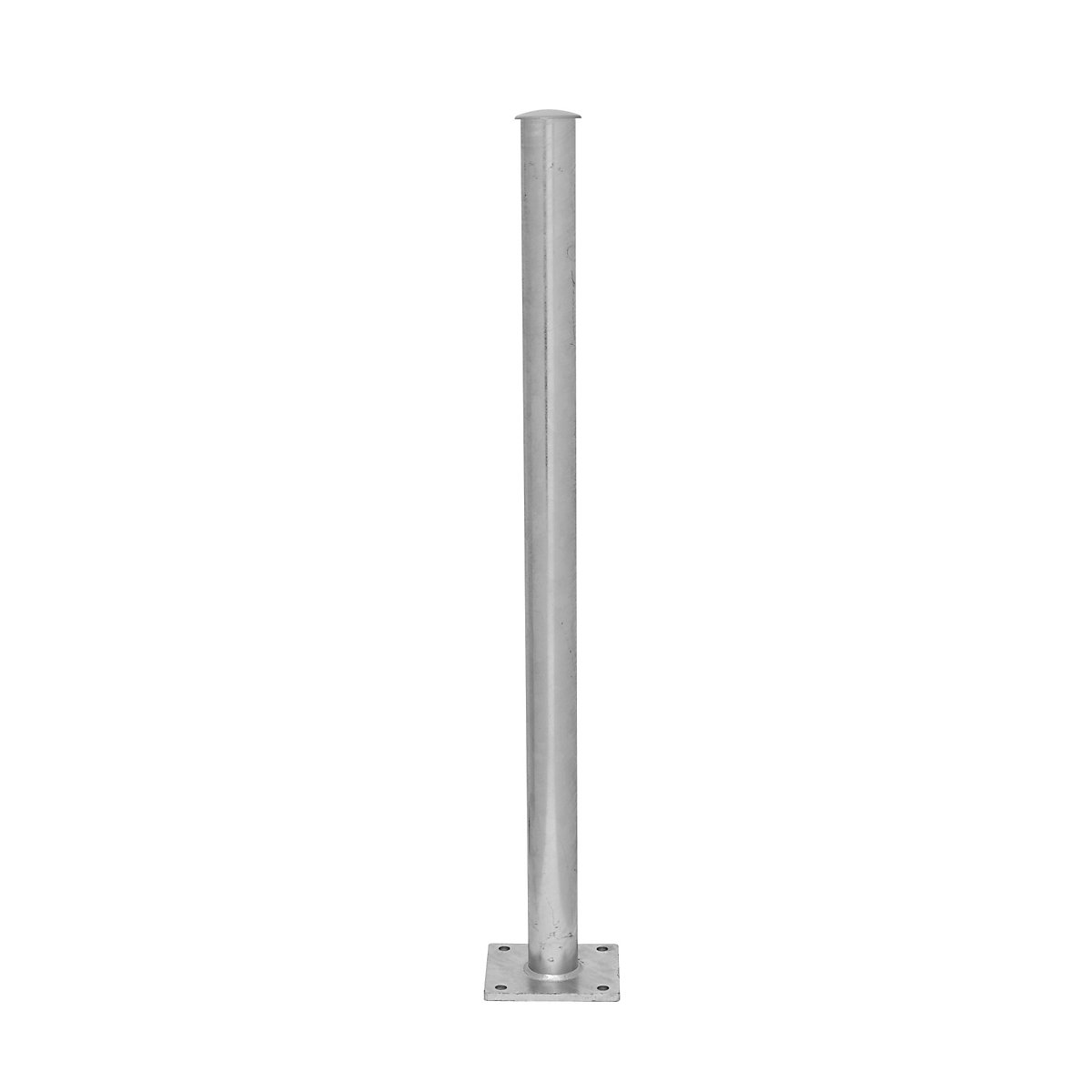

Stand pipe with floor anchor with base plate. Base plate 160 x 140 x 10 mm with 4 drill holes, without screws and dowel plugs.
  • Optimum protection for outdoor equipment
  • Delivered flat pack – easy self-assembly!
  • Can be set at any angle up to 90°
  • Rises of up to 45° can be bridged
Technical data
Materialtubular steel, galvanised
Overall height1000 mm
Height above ground1000 mm
Modelstanding pipe
Base plate length160 mm
Base plate width140 mm
Type of mountingwith base plate for bolting in place
Tube diameter60 mm
Suppliedflat pack
Weight5.3 kg
