Display catalogue page (PDF)

Flexible partition system, wall thickness 82 mm glass wall section

  • Wall thickness 82 mm
  • Sound insulation up to 43 dB
  • Can be assembled and disassembled as often as needed
  • Can be set up as an office, noise protection cabin or partition

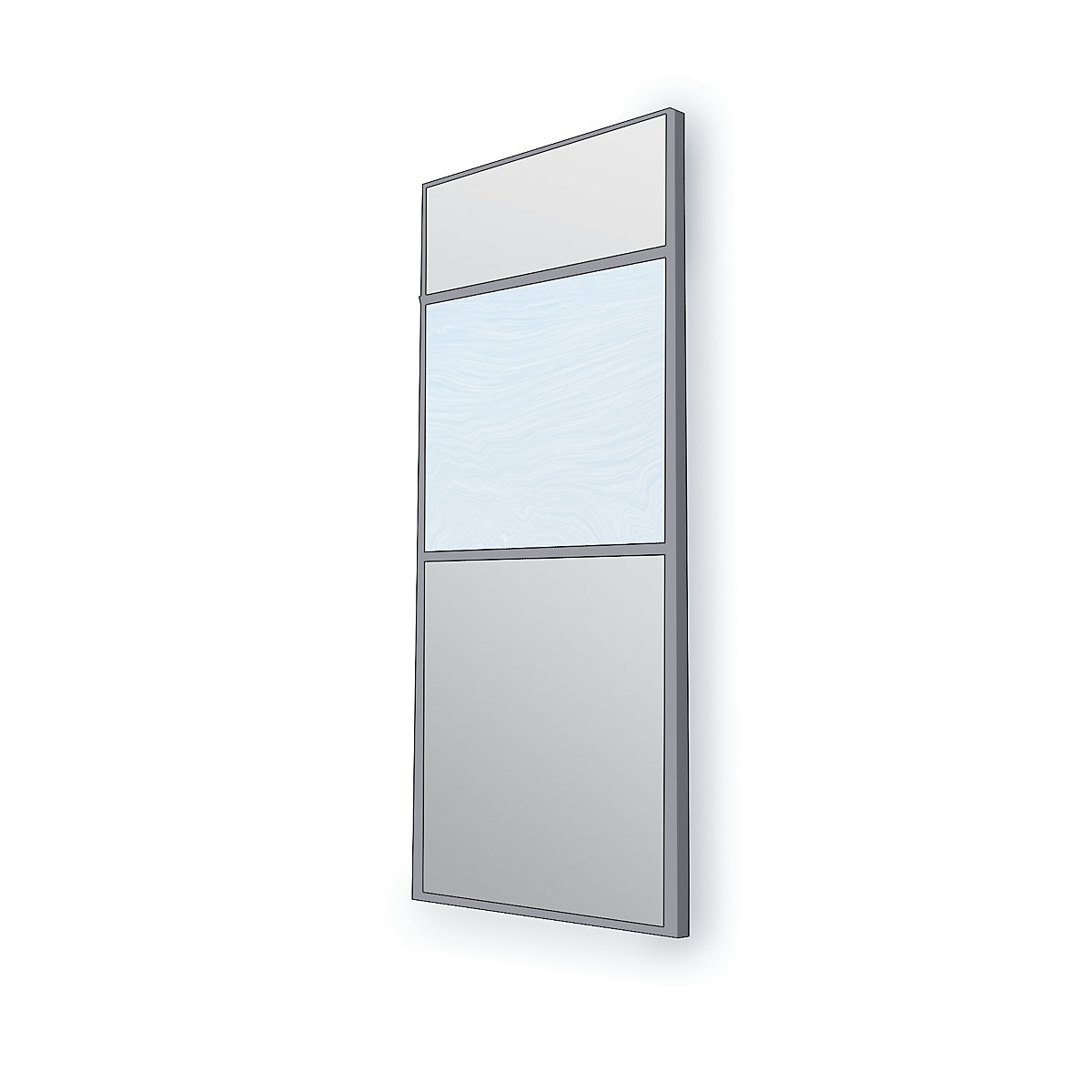

Flexible partition system, wall thickness 82 mm, glass wall section, HxW 1085 x 600 mm
Price / items (Ex. VAT)
from
329,00 €

Product description
Sound insulation values
Solid wall with mineral wool approx. 43 dB
Glass section approx. 36 dB
Sound insulation values are laboratory values – the more glass walls used, the lower the sound insulation value.

Colour selection
For walls, window frames, door frames and cover profiles there are two standard colours to choose from:
– Light grey RAL 7035
– Pure white RAL 9010
Please specify the desired colour when ordering.

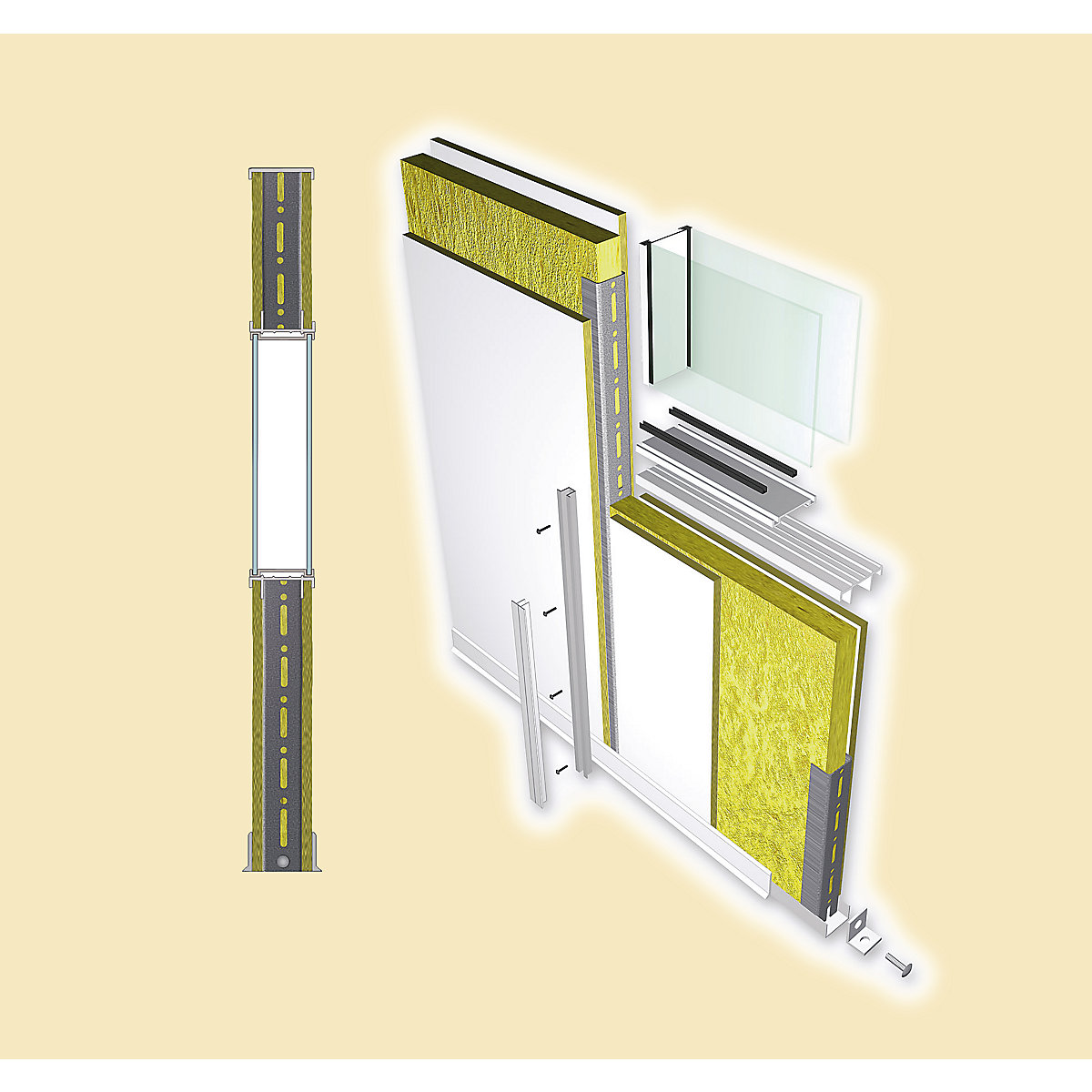

Aluminium frame, 82 mm thick, powder coated, with PVC holding profiles.
Double glazing, 2 x 5 mm float glass.
Additional RAL colours available on request.
  • Wall thickness 82 mm
  • Sound insulation up to 43 dB
  • Can be assembled and disassembled as often as needed
  • Can be set up as an office, noise protection cabin or partition
Technical data
Railing height1050 mm
Max. wall height10000 mm
Panel thickness82 mm
Section typeglass wall
Section glazingdouble glazing, float glass, 5 mm
Section height1085 mm
Noise insulation36 dB(A)
Available colourslight grey RAL 7035
pure white RAL 9010
Grid dimensions1200 mm
Suppliedflat pack
