KRAUSE – STABILO hinged multipurpose ladder can be used as a lean to ladder or step ladder
- Patented safety lock hinge system with one-hand release bar (SpeedMatic system) for fast and convenient operation
- Two wide cross beams with anti-slip foot caps (Safety Cap)
- Lightweight and space saving storage
10 year guarantee
Ref.: 569354 10
KRAUSE – STABILO hinged multipurpose ladder, can be used as a lean to ladder or step ladder, 4 x 4 rungs
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Monday to Friday from 8.00 am to 4.00 pm CET
Product description
Multipurpose hinged aluminium ladder for daily use in industry and trades. All round profiled 30 mm deep rung ensure a secure footing. The rails are made of robust extruded aluminium profile with additional edge reinforcement for highly demanding applications.

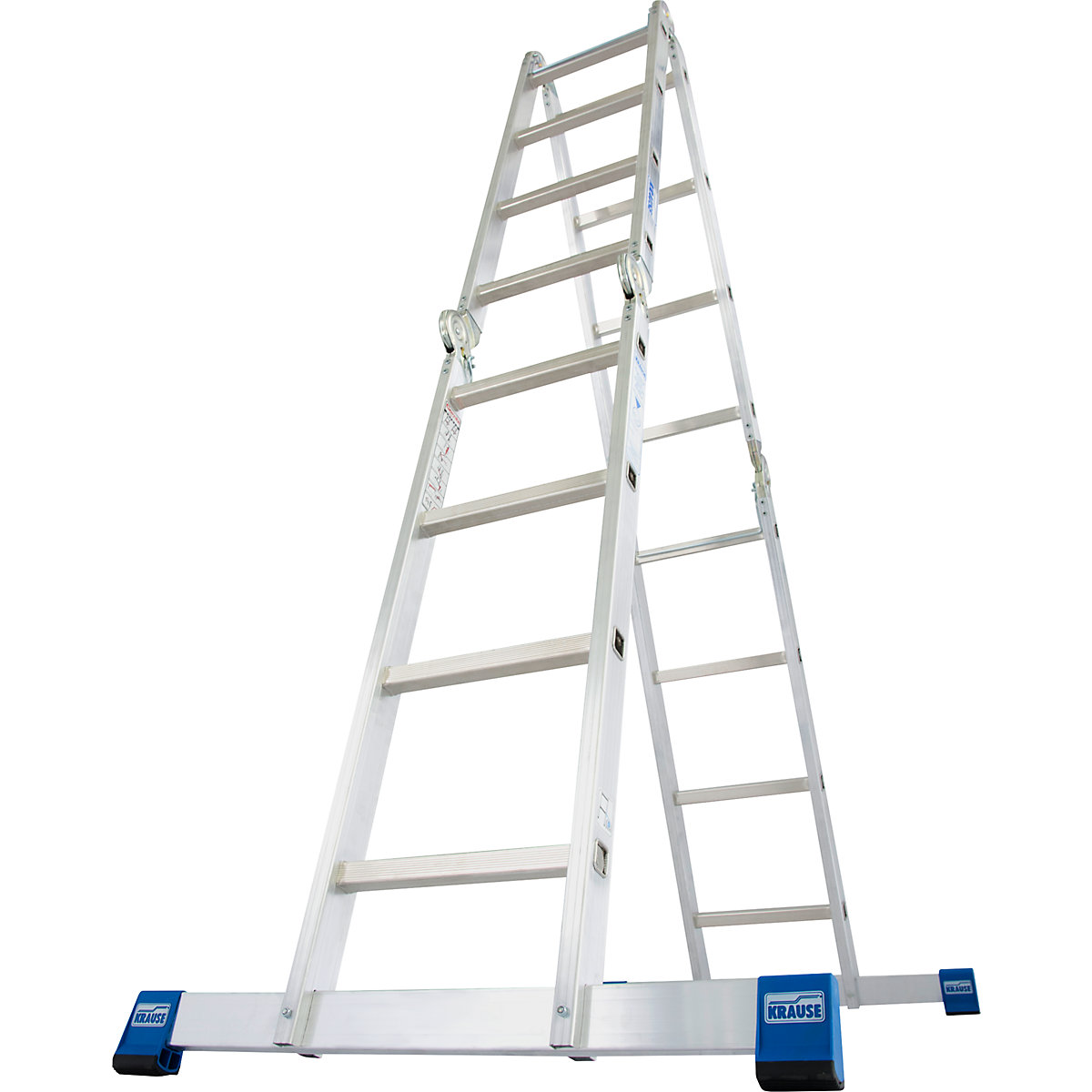

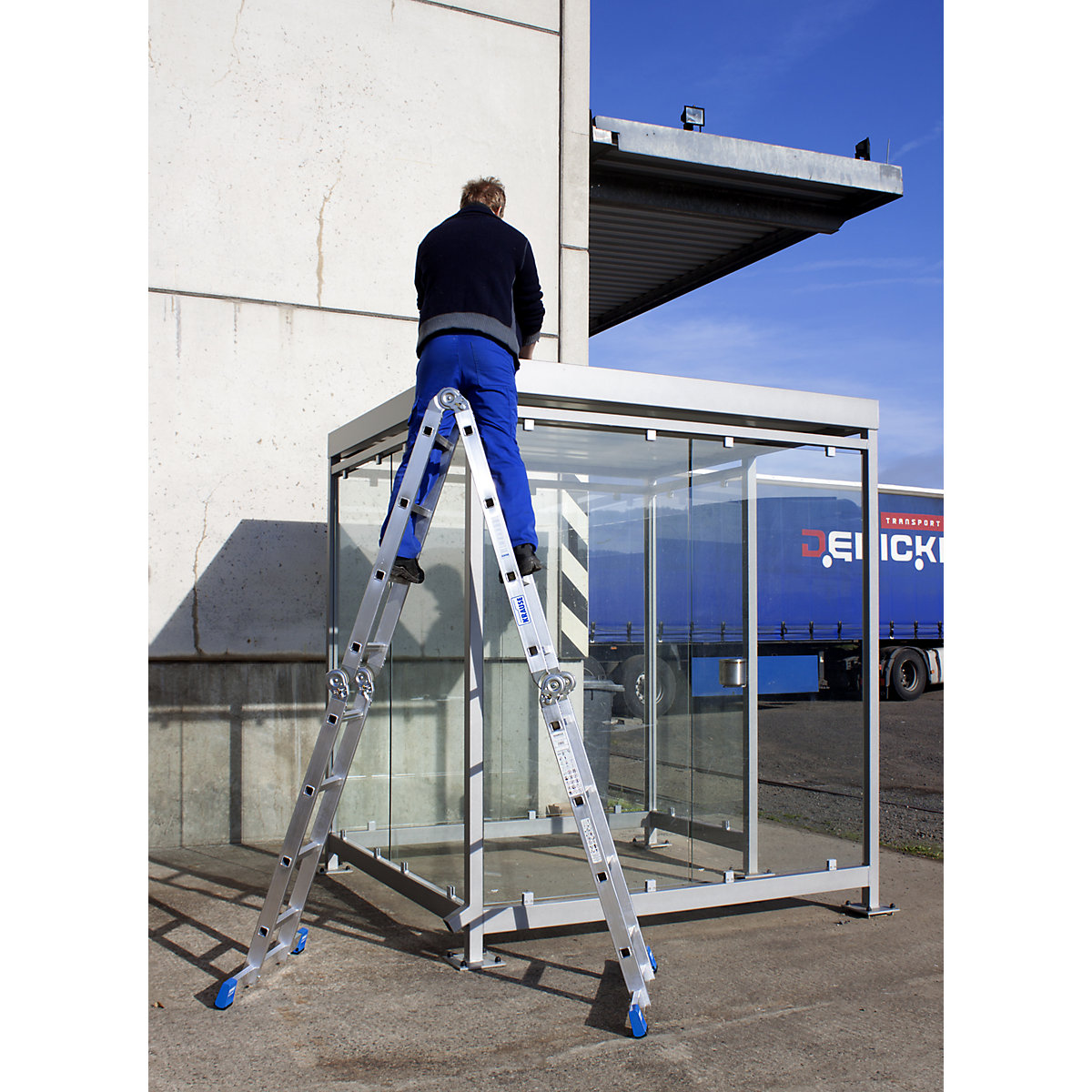

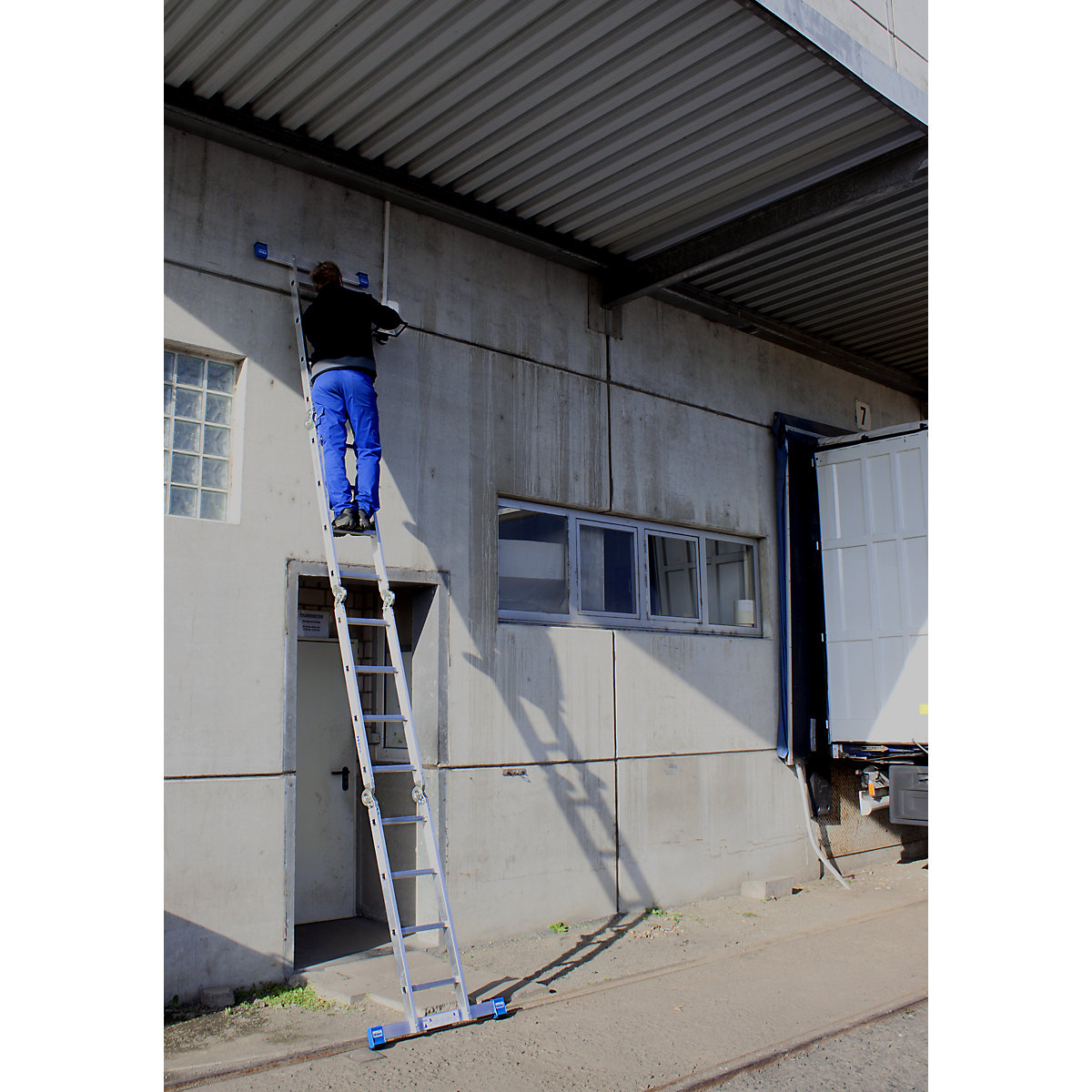

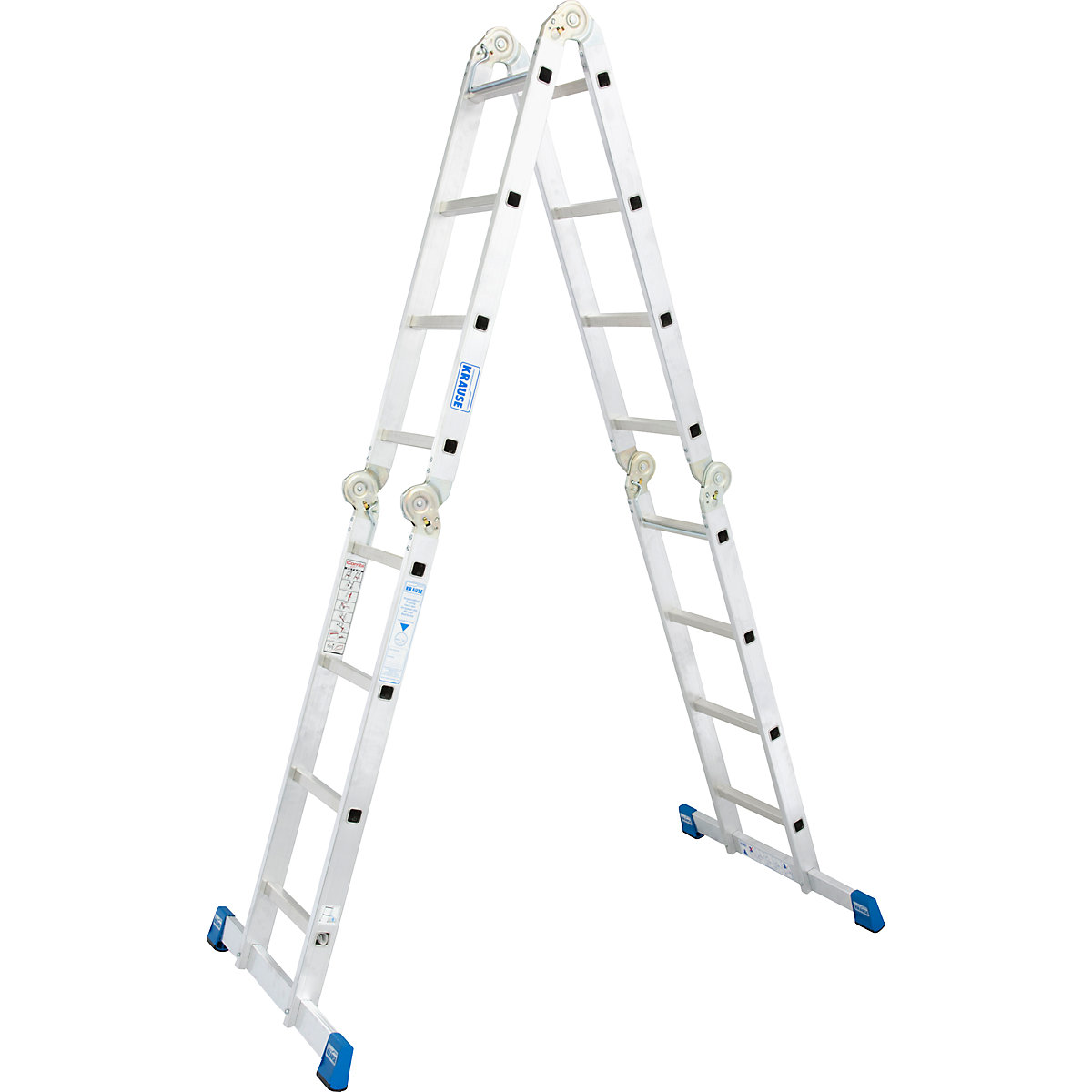

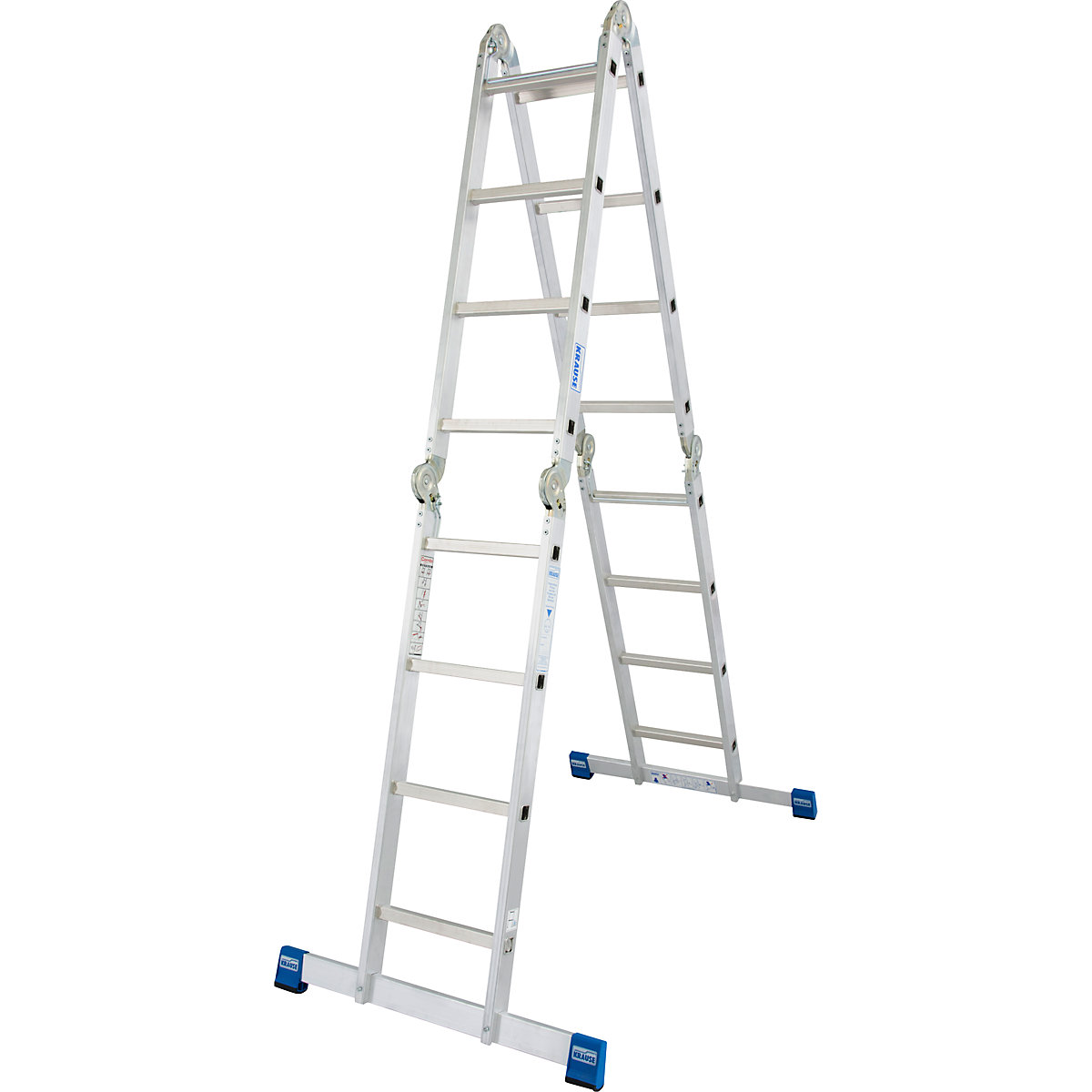

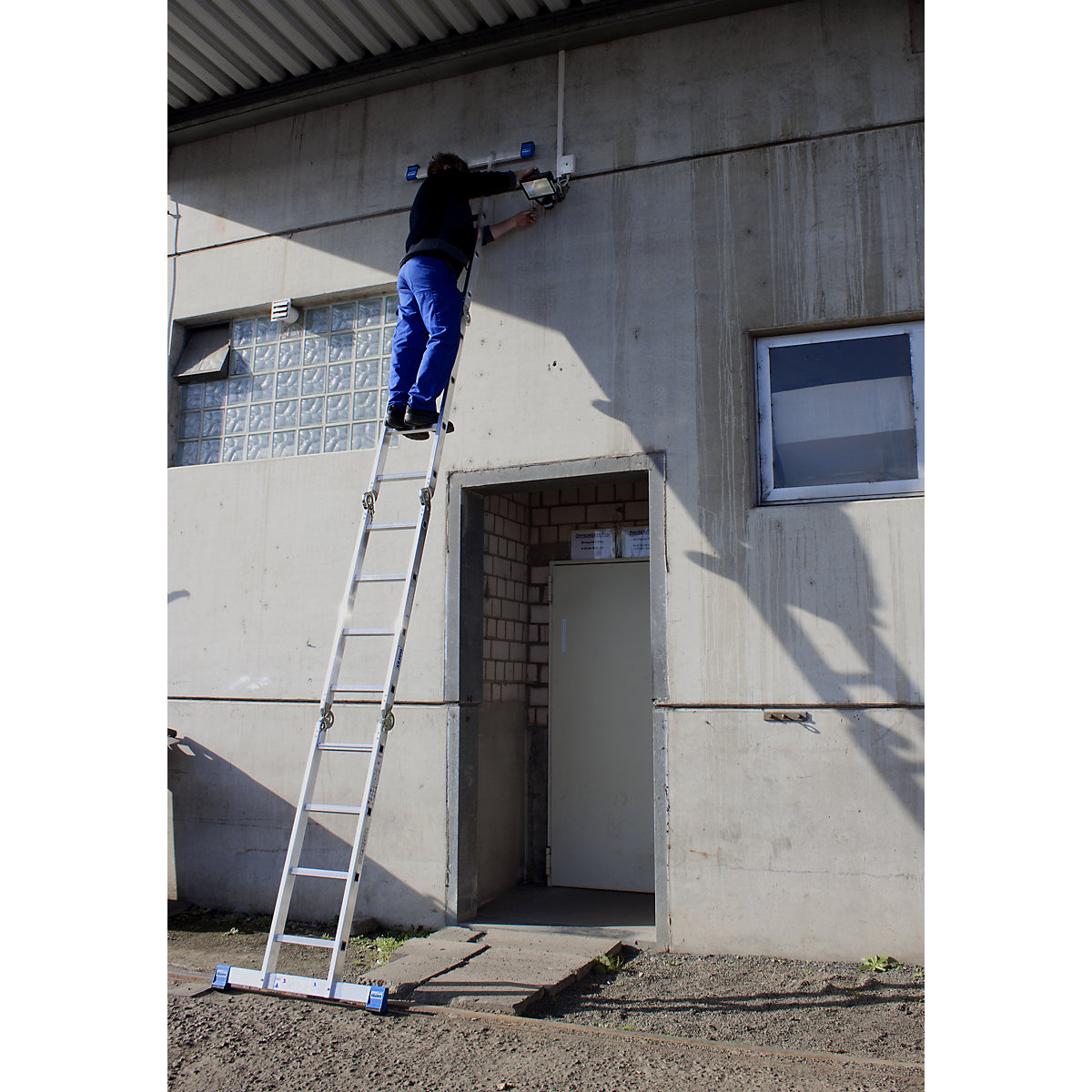

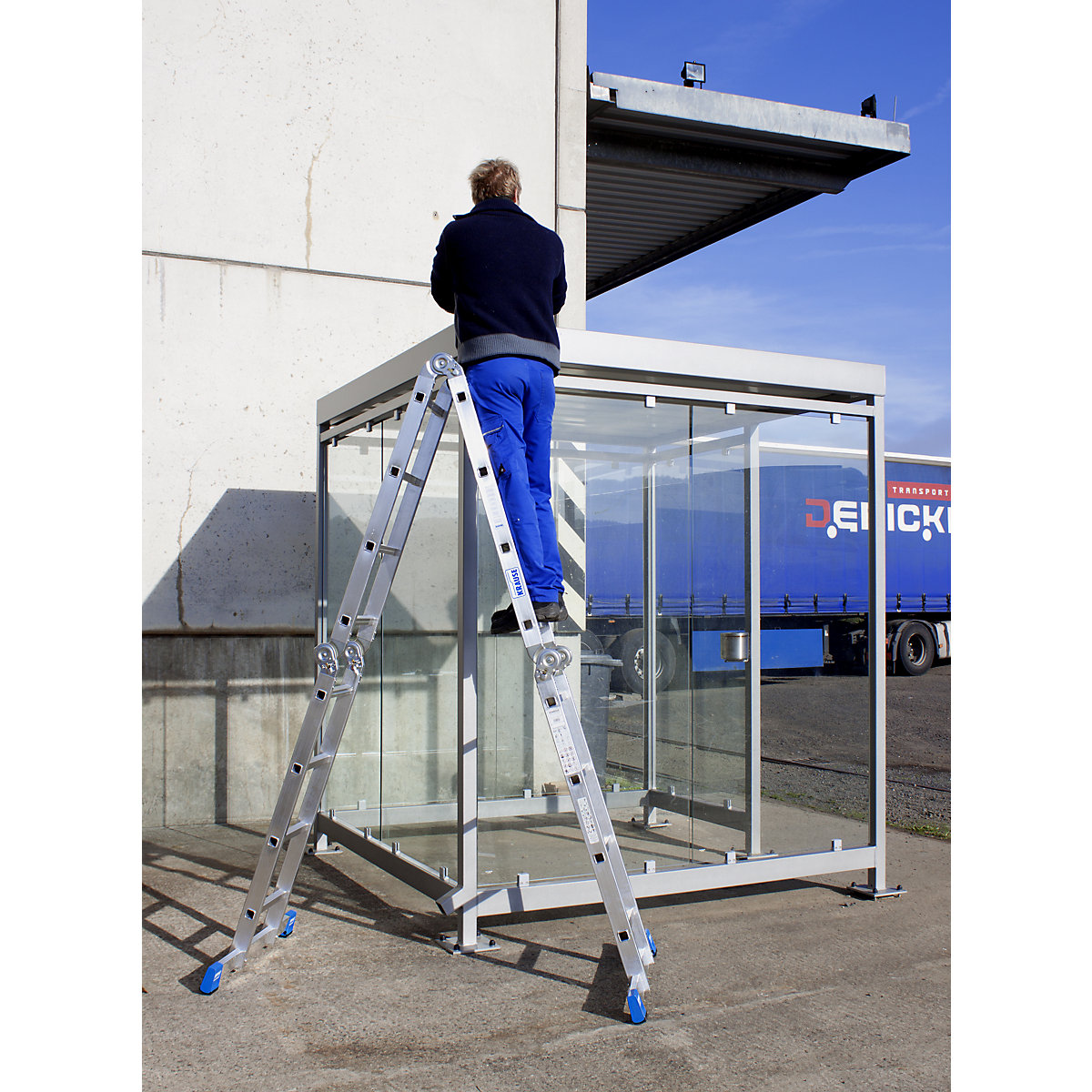

Can be used as a lean to ladder and step ladder.
Can be used as a lean to ladder and step ladder.
- Patented safety lock hinge system with one-hand release bar (SpeedMatic system) for fast and convenient operation
- Two wide cross beams with anti-slip foot caps (Safety Cap)

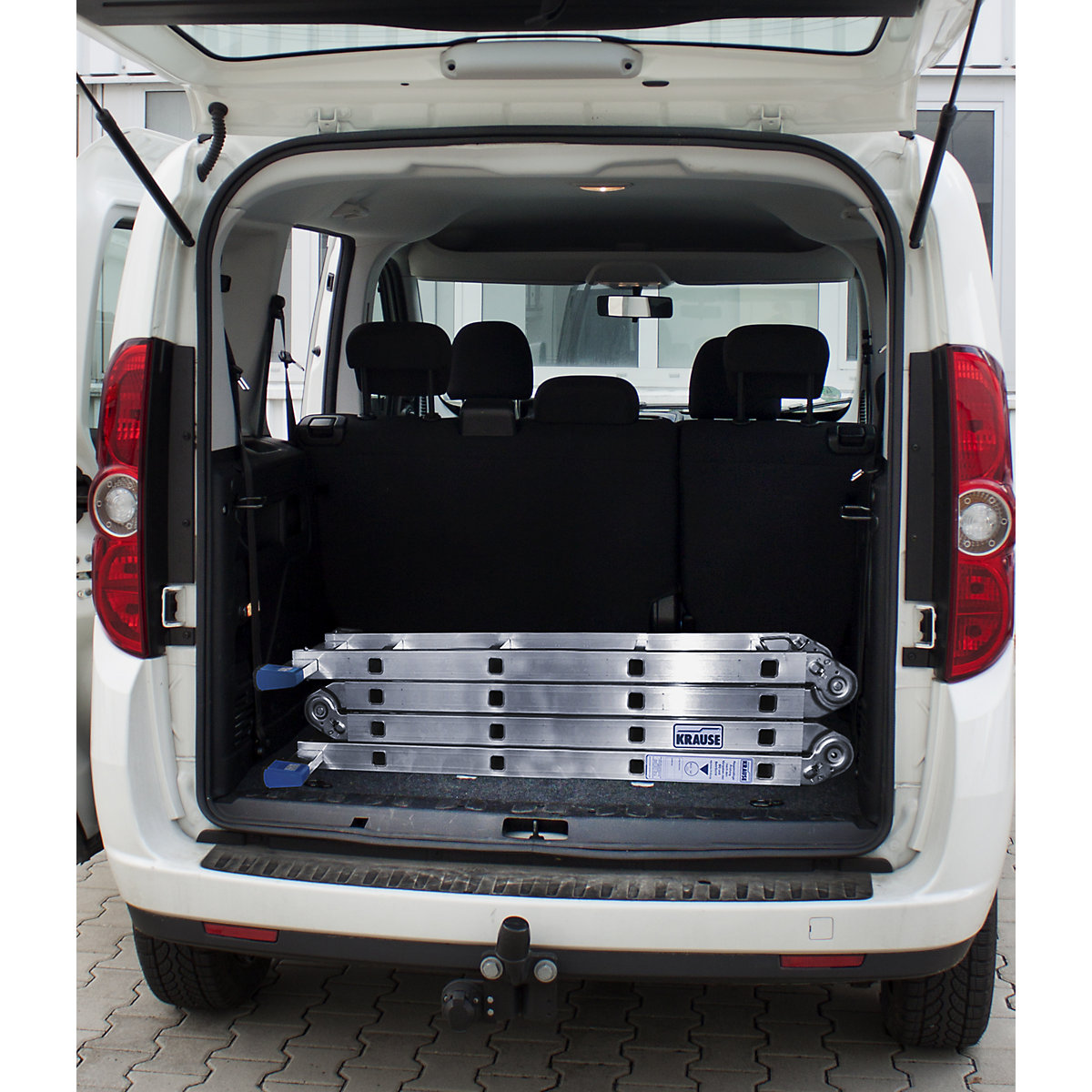

- Lightweight and space saving storage
10 year guarantee
Technical data
| Supplied | partially assembled |
|---|---|
| Working height as a lean-to ladder | 5500 mm |
| Working height as a step ladder | 3550 mm |
| Access type | rungs |
| Max. load | 150 kg |
| Width folded | 370 mm |
| Feature | without work platform |
| Weight | 14.5 kg |
| Height as a step ladder | 2250 mm |

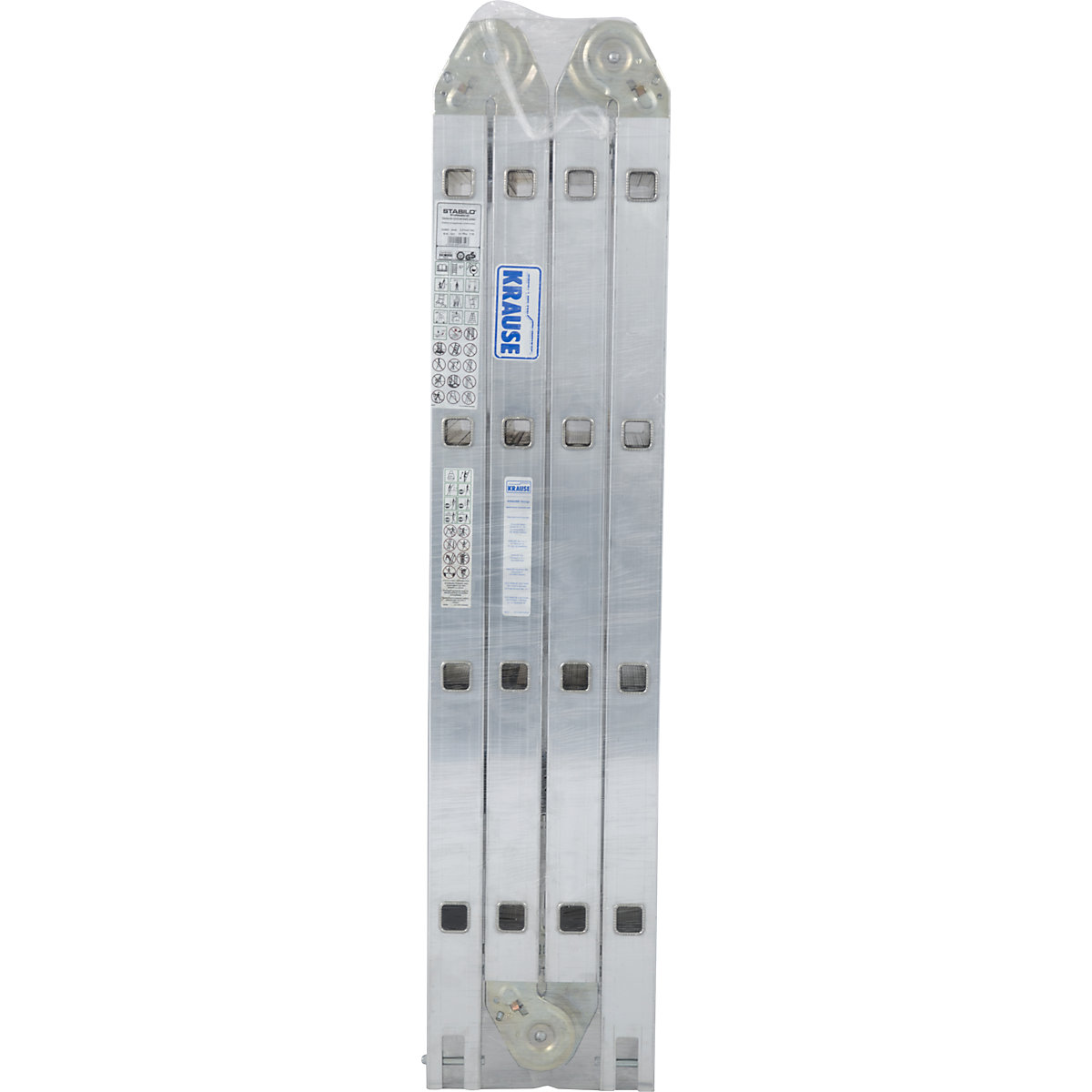

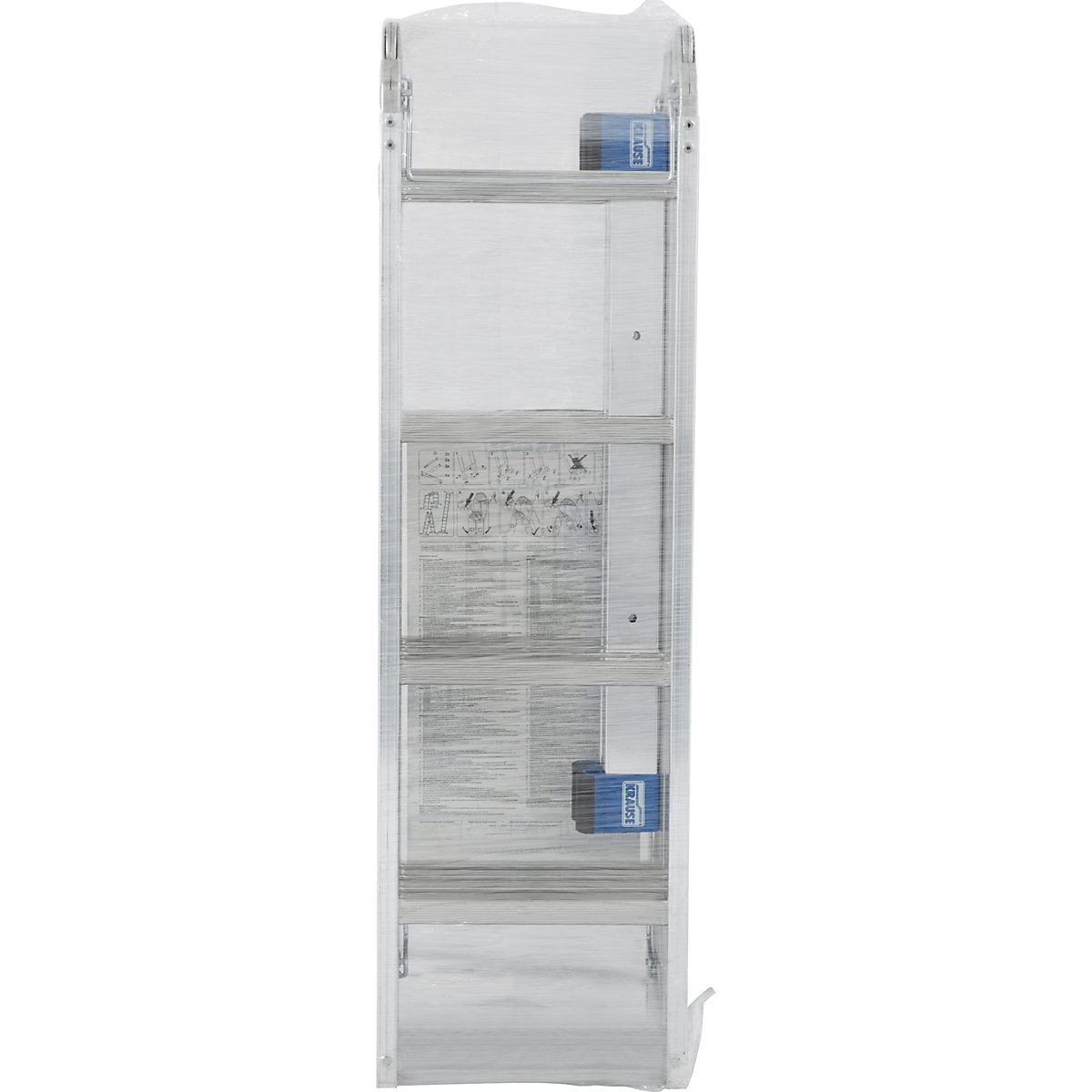

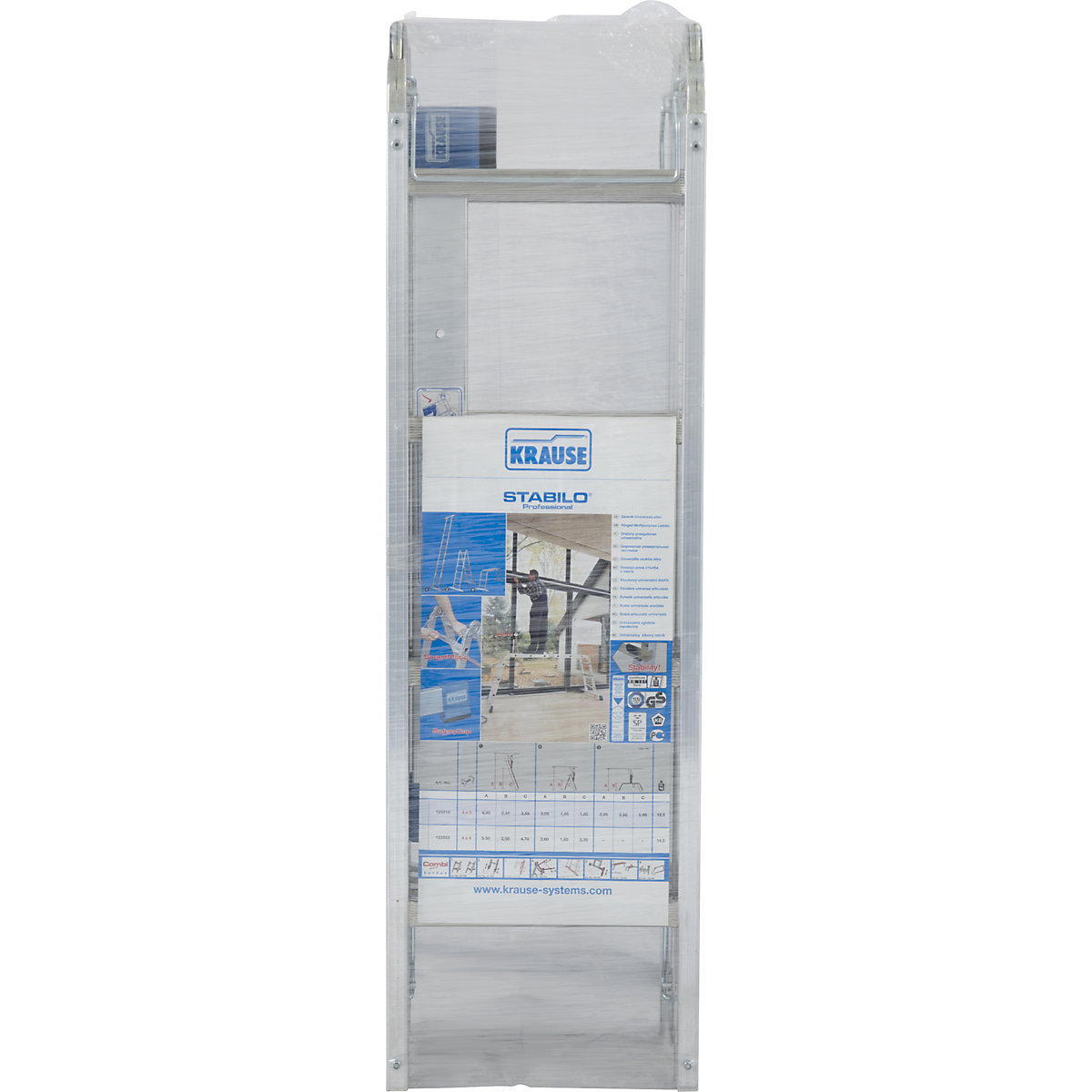

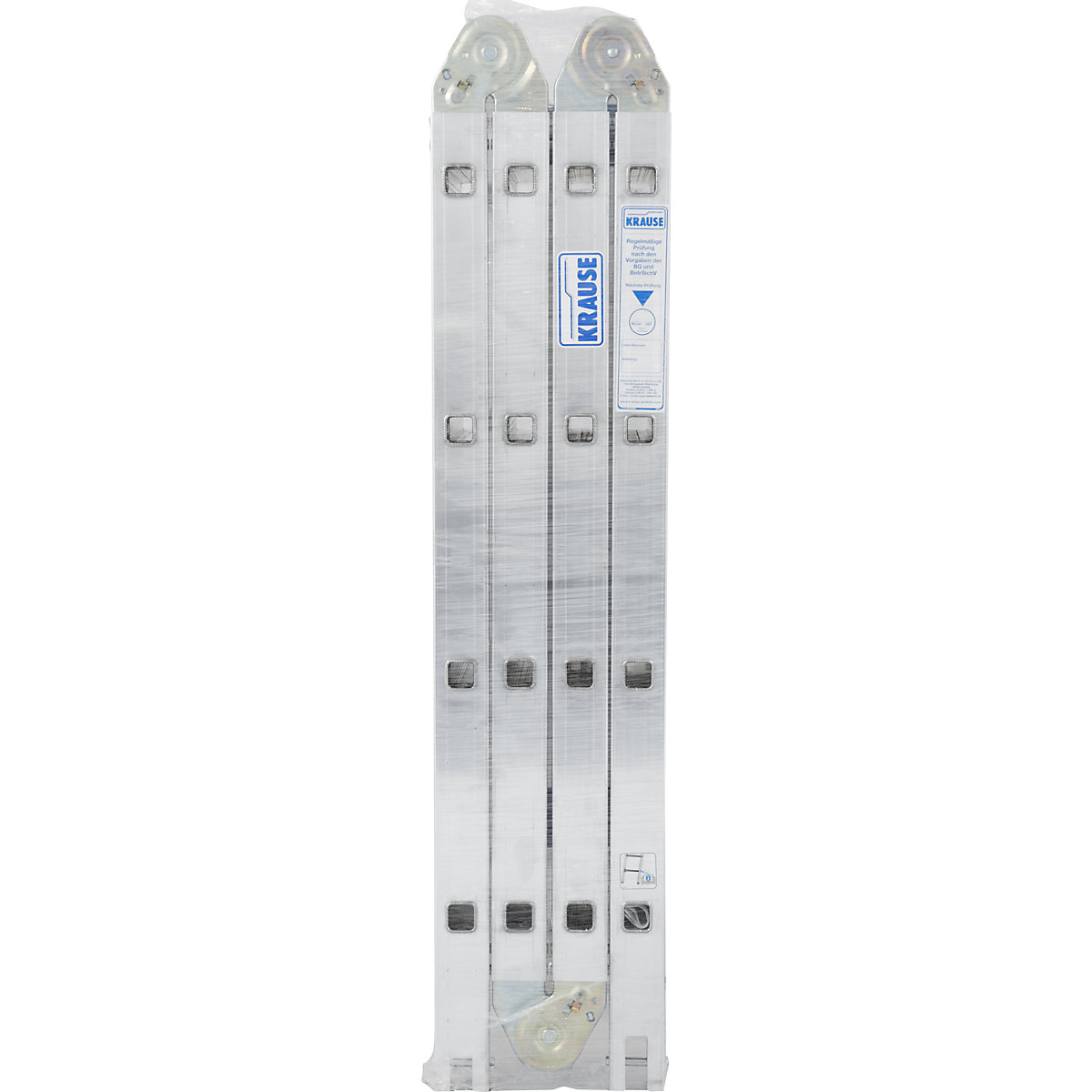

| Height folded | 1300 mm |

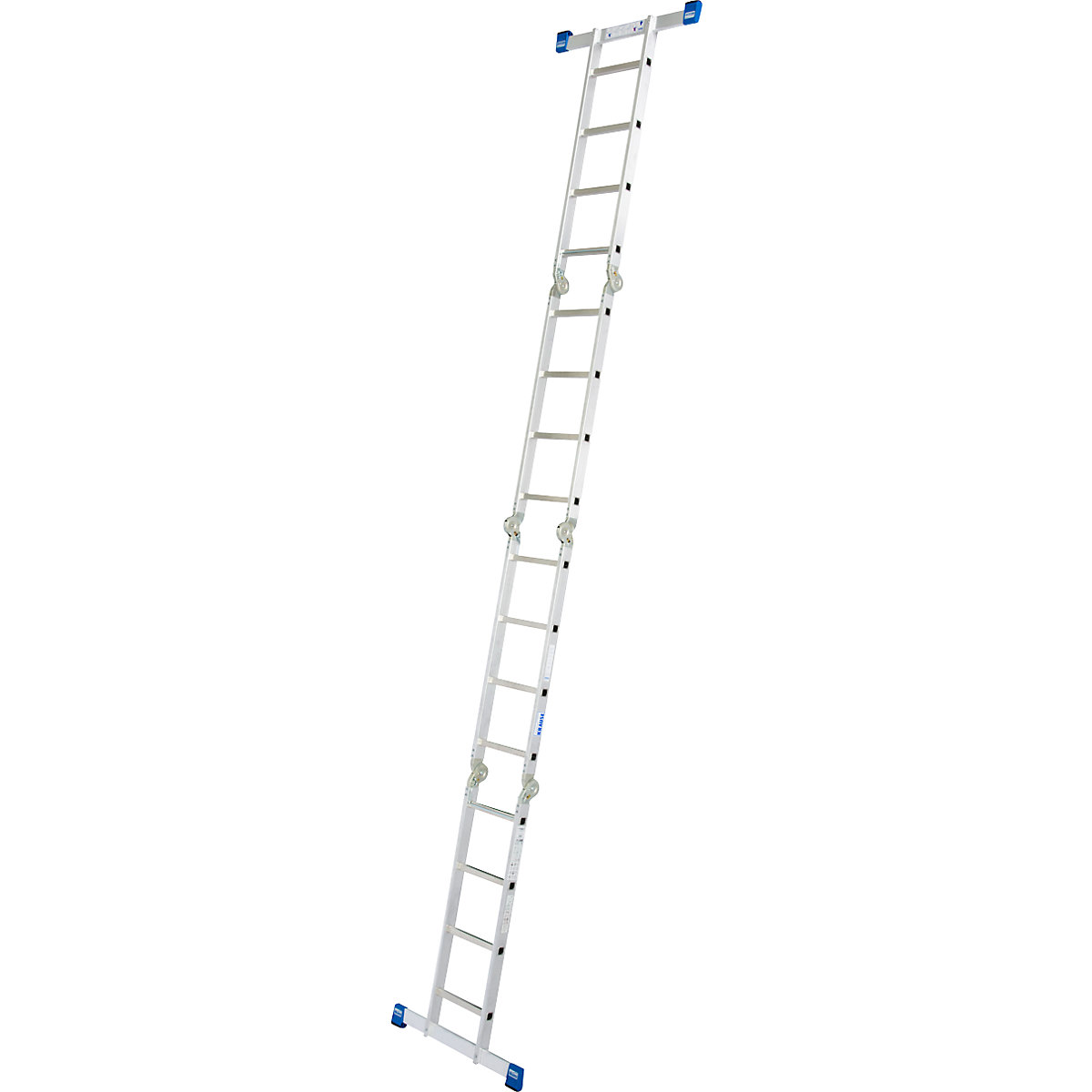

| Length as a lean-to ladder | 4700 mm |
| Length as a step ladder | 2350 mm |
| Length per ladder section | 1300 mm |
| Retracted length | 1300 mm |
| Conforms to | EN 131 |
| Product type | hinged ladders |
| Rungs material | aluminium |
| Rung spacing | 250 mm |
| Number of rungs as a lean-to ladder | 16 pcs. |
| Number of rungs as a step ladder | 16 pcs. |
| Number of rungs | 4 x 4 pcs. |
| Rung depth | 30 mm |
| Depth folded | 280 mm |
| Cross beam width | 840 mm |
