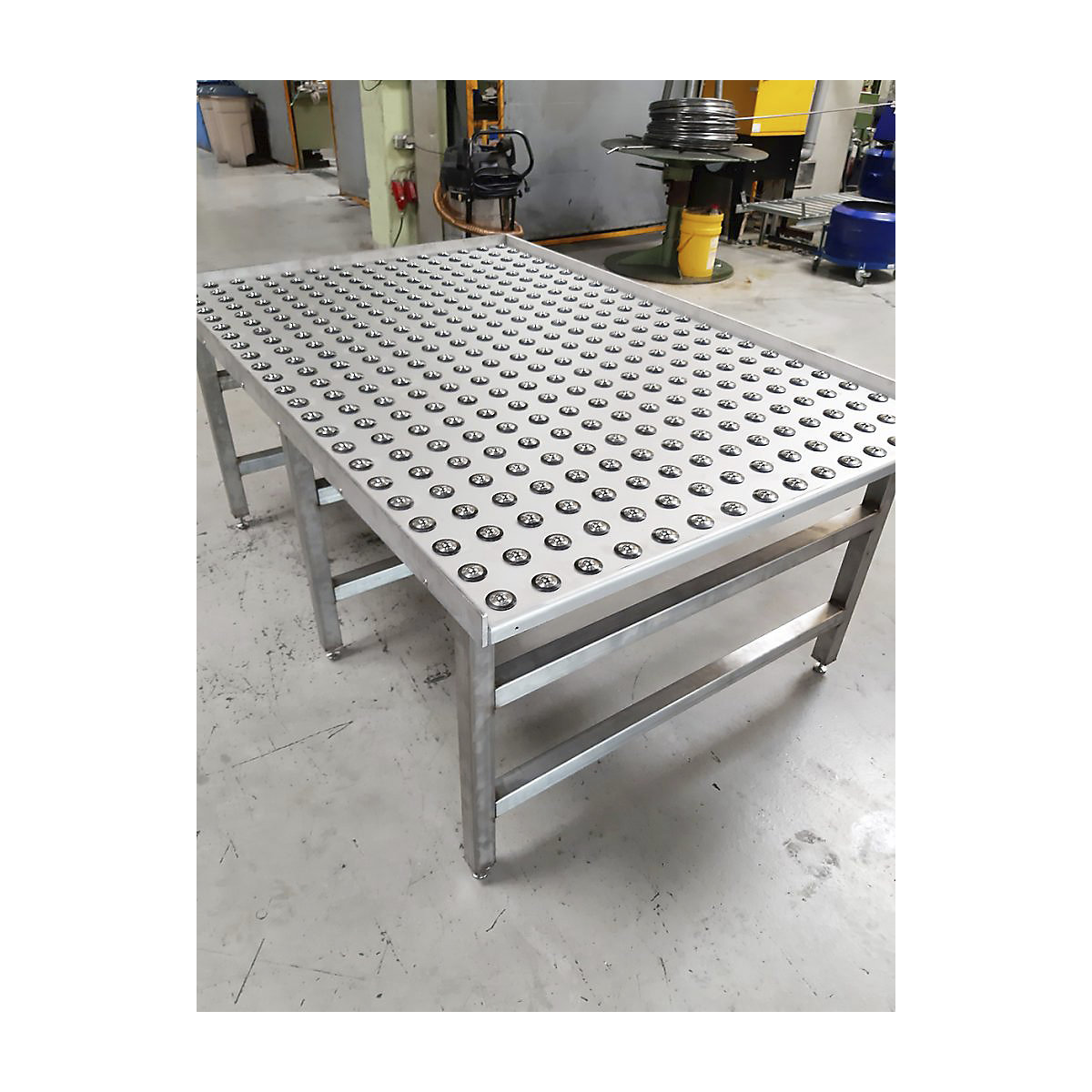

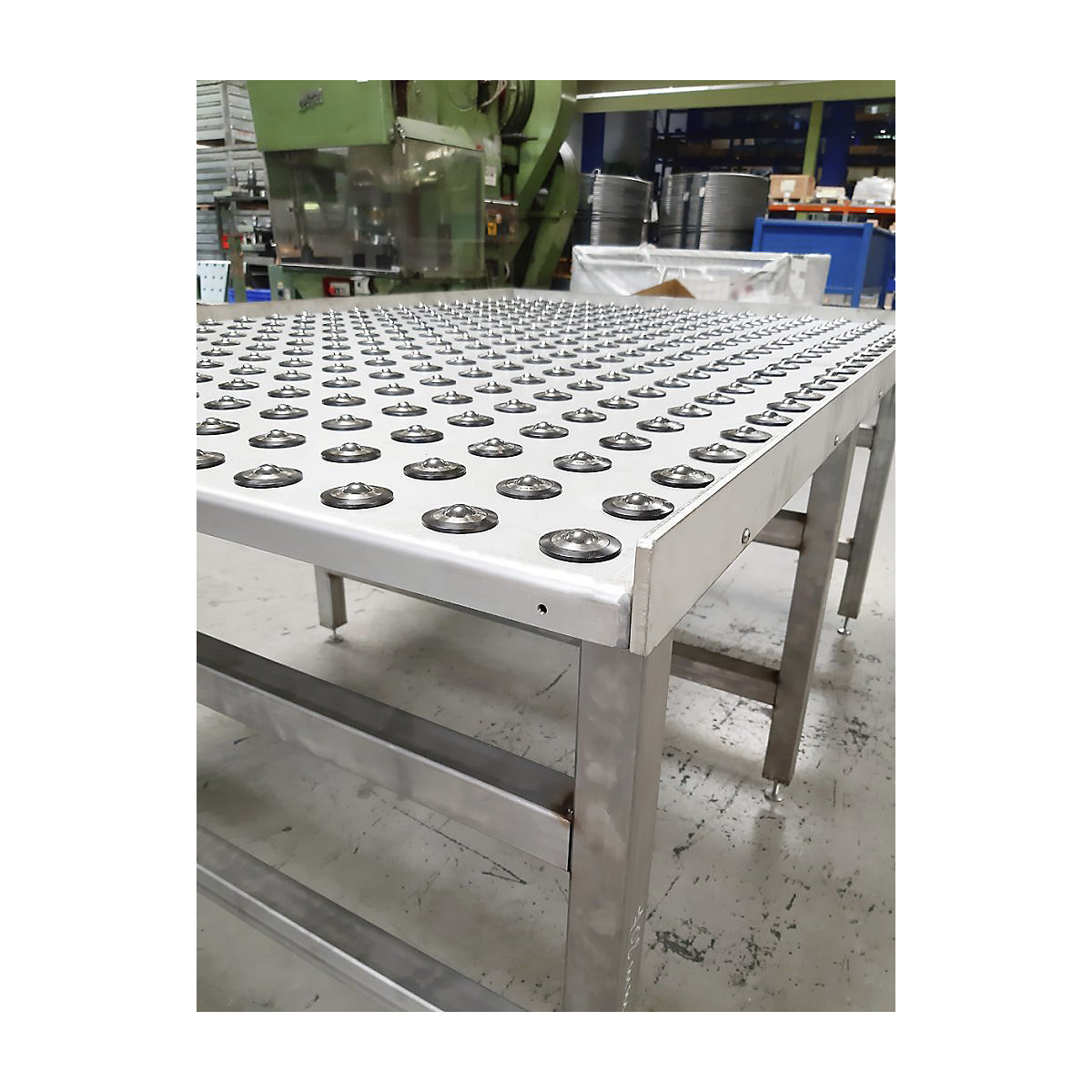

Schulz Stanztechnik – Ball roller table, overall height 70 mm track width 500 mm, length 1000 mm

  • Heavy loads are easy to move, rotate and align
  • Optimally suited for solid and level floor surfaces
  • Optimises the material flow in conveyor systems
Schulz Stanztechnik
Spacing 75 mm
Spacing 75 mm
Schulz Stanztechnik – Ball roller table, overall height 70 mm, track width 500 mm, length 1000 mm, spacing 125 mm
Price / items (Ex. VAT)
from
519,00 €

Product description
Ball unit tables are used as crossing elements for gravity conveyors and manually operated conveying systems. Can also be used as a work table, the overall max. load totals 200 kg.
Additional table widths, lengths and ball unit tables in special designs available on request.
Additional table widths, lengths and ball unit tables in special designs available on request.
  • Heavy loads are easy to move, rotate and align
  • Optimally suited for solid and level floor surfaces
  • Optimises the material flow in conveyor systems
Technical data
Overall height70 mm
Track width500 mm
Length1000 mm
Ball diameter19 mm
Overall width540 mm
Effective load per ball30 kg
Worktop materialsheet steel, galvanised
Applicationskate wheel and light-duty roller conveyors
Suppliedassembled
