Ref.: 476180 10

Ball unit – Schulz Stanztechnik flange, solid

Ball unit – Schulz Stanztechnik
Solid flange

stainless steel, load bearing ball Ø 22 mm

Ball diameter [mm]
Effective load [kg]
Roller material
18,75 €
Price / item (Ex. VAT)
Availability: 3-4 Working Days
Product description
  • For easy movement, rotation and positioning of loads with minimal effort
  • Run smoothly with precise rolling characteristics
  • Max. conveyor speed 3 m/s
These high quality ball units are suitable for transporting products and goods which require the option of being moved horizontally to all sides and being rotated around the vertical axis. They guarantee low friction transport of materials on conveyor systems when a high load bearing capacity is required. A change of direction can be realised quickly. Our ball units are characterised by high temperature tolerance and impact resistance.

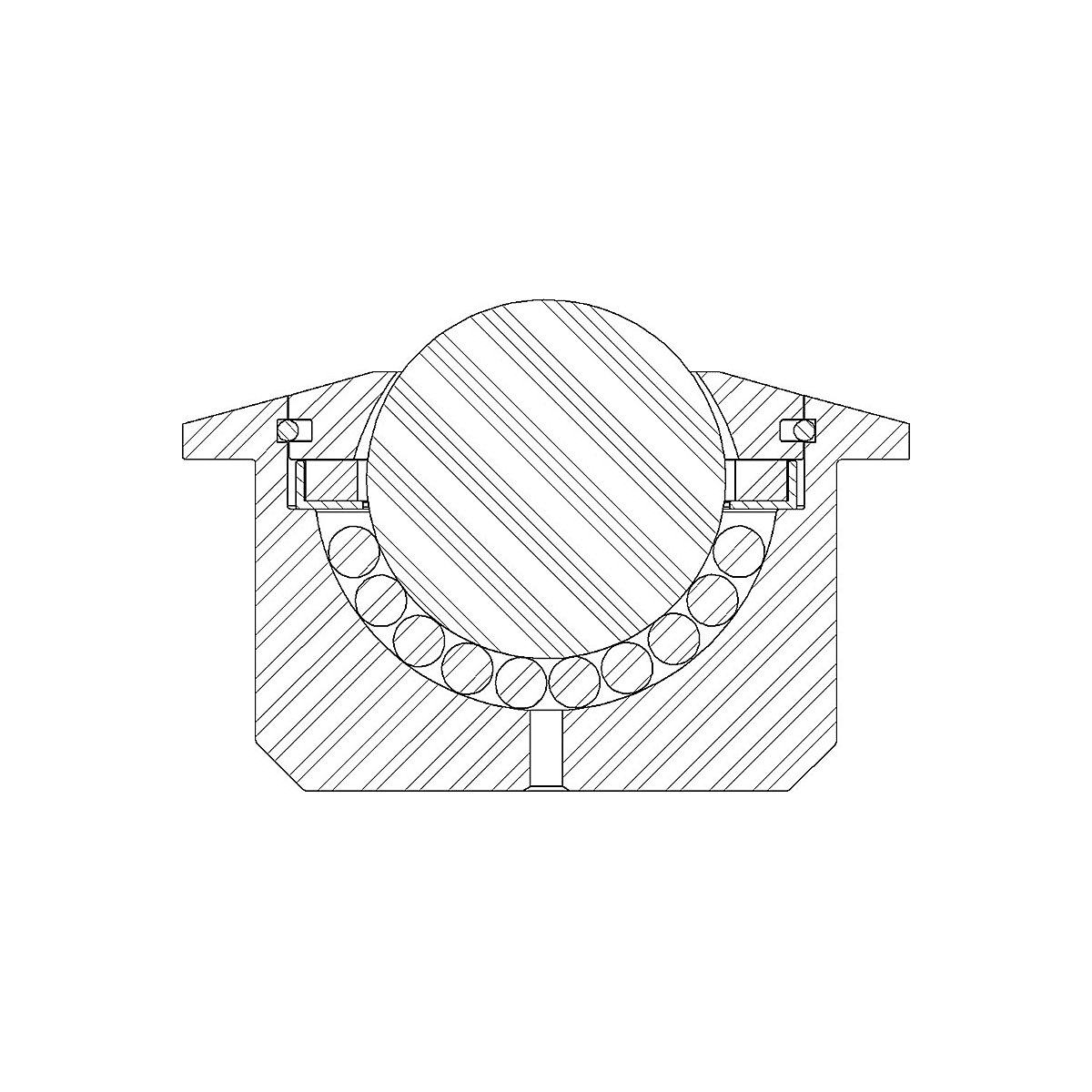

Ball unit with low overall height.

D1= ball diameter
D2= housing diameter
D3= flange diameter
H1= overall height
H2= installation height
H3= ball protrusion
Full stainless steel also available on request.
This is how to find the right ball unit to suit the load:
Weight of the goods being conveyed / 3 = max. dynamic load of a ball unit
Technical data
Design of ball rollersflange, solid
Housing materialsheet steel, electrolytically zinc plated
Product typeball units
Coloursilver
Suppliedassembled
Ball diameter22 mm
Effective load240 kg
Roller materialstainless steel (1.4430)
Overall height30.5 mm
Housing diameter36 mm
Ball protrusion above table plane4.5 mm
Max. speed2 m/s
Flange diameter45 mm
Installation height10 mm
Weight0.185 kg
